Rockford Fosgate TM400X4AD Power Series Class AD 4-Channel Amplifier For Marine and Powersports Applications
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 4-Channel moto-marine amplifier

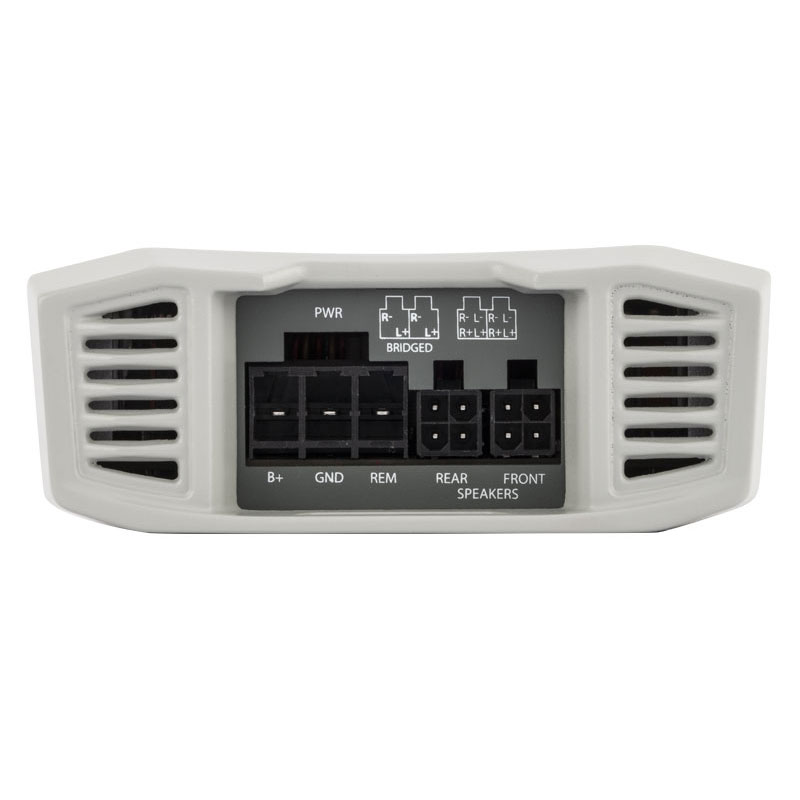

- • Power/ground/turn-on plug (installed)
- • (2) 8" Speaker output harnesses (bare wire to 4-pin Molex)

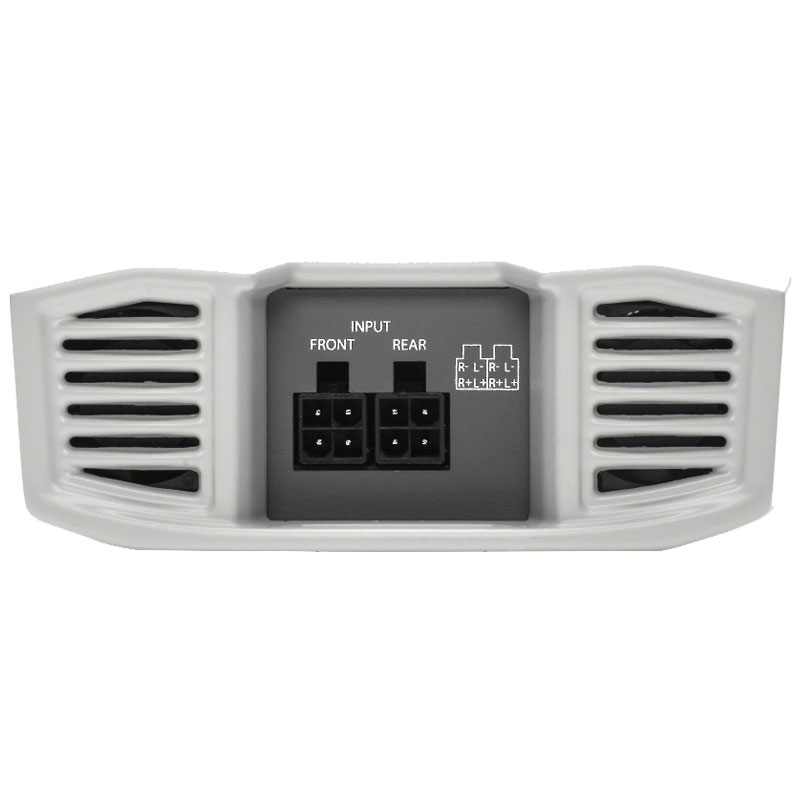

- • (2) 14" Input harnesses (2 RCA to 4-pin Molex)
- • Amplifier Quick Setup
- • Certificate of Performance Verificationl
- • Owner's Manual
Why Choose Rockford Fosgate TM400X4AD Marine Amplifier?
Featuring Constant Power
The Power TM400X4ad 400 Watt 4-channel ultra-compact amplifier is built on Rockford Fosgate’s proprietary Class-AD technology, featuring Constant Power to produce the same output at both 4-Ohm and 2-Ohm impedances. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on.

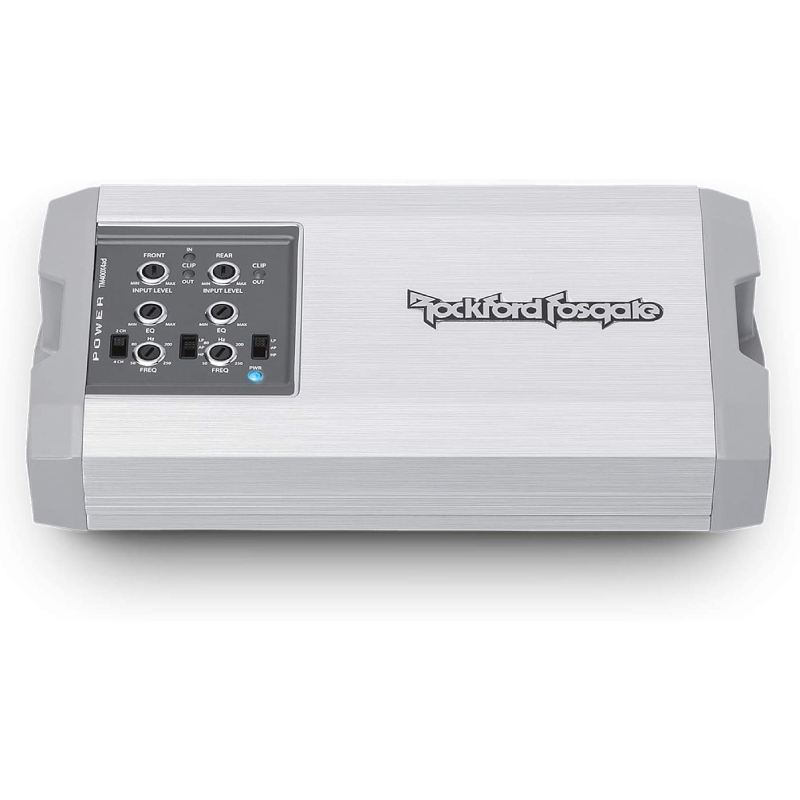

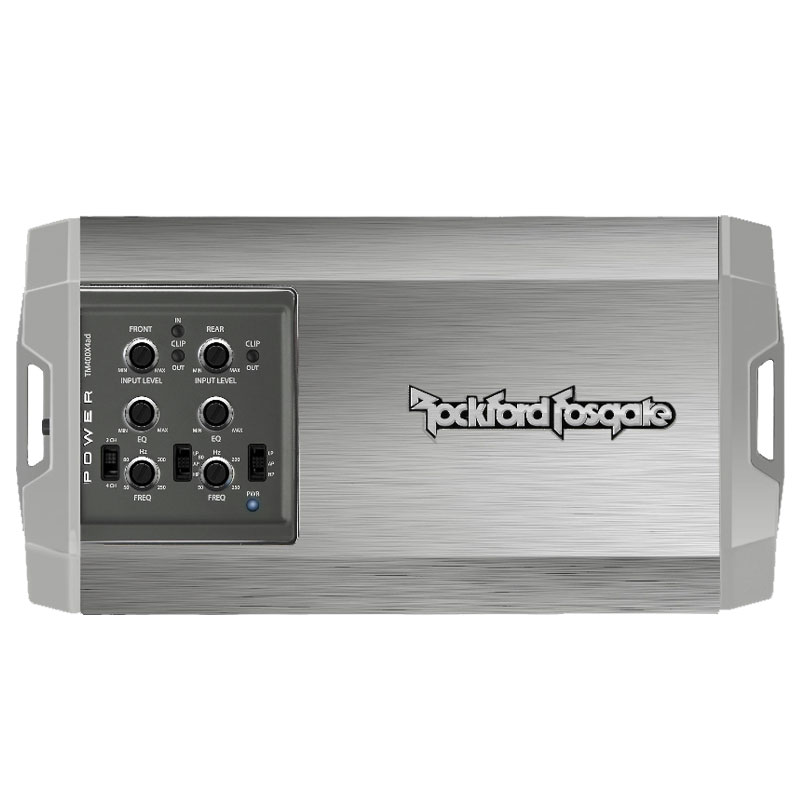

Easy Access to Built-in Crossover
< p> Top-mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.
Made to Handle Moisture and Heat

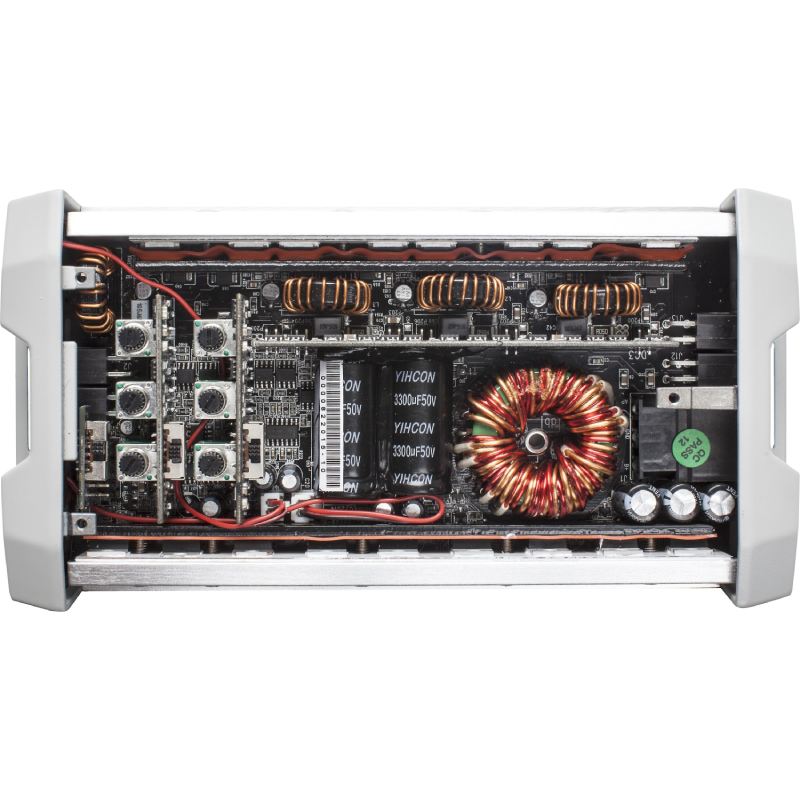

It's built to stand up to outdoor life, too, with conformal-coated circuitry that withstands moisture and dirt and stainless steel hardware that won't succumb to corrosion. With a 3-stage thermal lock extrusion, dual- fan forced induction system, and real-time thermal monitoring, the TM400X4AD can rock hard without overheating – even when it's tucked into a tight space.
Frequently Asked Questions (FAQ)
- • Why does the amplifier have no power?
Check the fuse, battery connection, ground, and power cable. Loose connections or a poor ground can prevent the amplifier from turning on.
- • Why does it keep going into protection?
Check for shorted speaker wires, incorrect impedance, overheating, or weak power connections. Make sure the load is within the amplifier's limits.
- • Why does the sound cut out at high volume?
Low voltage, overheating, excessive gain, or an unsuitable speaker load can cause shutdowns. Check the power supply and amplifier settings.
- • Why do I hear a whining noise through the speakers?
Whining is often caused by grounding or signal interference. Check the ground connection and keep signal cables separated from power wiring.
- • Why is one channel not producing sound?
Check the RCA inputs, speaker wiring, gain controls, and source output. Swap channels to determine whether the issue follows the input or speaker.
- • Why does the amplifier get very hot?
Some heat is normal, but excessive temperature may indicate poor ventilation, high output, or an incorrect load. Allow adequate airflow around the unit.
- • Can it be used safely on a boat?
It is designed for marine applications, but proper installation is still important. Protect connections, use suitable wiring, and mount the amplifier securely.
- • Why does the audio sound distorted?
Distortion can come from excessive gain, clipping, or an unsuitable speaker load. Lower the gain and check the source and amplifier settings.
- • Why does the amplifier shut off after getting wet?
Check for moisture around connections and terminals. Dry the area completely and inspect for corrosion or damaged wiring before restoring power.
- • What should I check if it suddenly stops working?
Inspect the fuse, power, ground, speaker wiring, and signal connections. Look for loose or damaged cables and check the amplifier's protection status.
- Maximum Power : 400 Watts
- Low Frequency Response : 50-250 Hz
- High Frequency Response : 50-250 Hz
- Number of Channels : 4
- Frequency Response : 20-20000 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- Amplifier Class : A/D
- Fuse Rating : 60 A
Features:
- Rockford Fosgate proprietary Class AD technology
- 8 AWG power/ground connector w/ upgraded RCA connectors
- Differential inputs with high level auto turn-on feature
- Remote-Out feature when using high level inputs
- 4/2 Ohm muti-impedance Constant Power
- 2/4 channel input switch
- Top mounted controls
- C.L.E.A.N. input/output clip detection and indicator LEDs
- 4 Ohm bridged capable
- Dual fan cooled
- Real time thermal sensing
- Dual extruded heat sinks
- Discrete surface mount technology
- Marine grade two part epoxy coating on circuit boards
- 2-Year Warranty
Specifications:
- RMS Power Output (Watts x Channels); 100 x 4
- Frequency Response at Rated RMS Power: 20-20k Hz
- THD at Rated RMS Power: 1%
- Signal to Noise Ratio: N/A
- Input Voltage: 14.4v
- Peak Power Output (Watts x Channels): 128 x 1
- Power at 2 Ohms (Watts x Channels): 100 x 2
- Bridged Power (Watts x Channels): 200 x 1
- Minimum Impedance Bridged: 4
- Minimum Impedance Unbridged: 2
- Amplifier Class: A/D
- Low-Pass Crossover Frequency: 50-250 Hz
- Low-Pass Slope (dB/octave): 12 dB/oct
- High-Pass Crossover Frequency: 50-250 Hz
- High-Pass Slope (dB/octave): 12 dB/oct
- Bass Boost: 0-18 dB
- Bass Boost Frequency: 45 Hz
- Fan Cooled: Yes
- Fuse Rating: 60
- Speaker Level Inputs: Yes
- Preamp Outputs: No
- Height (inches): 1-11/16
- Width (inches): 4-5/16
- Depth (inches): 8-5/8
- Parts Warranty: 2 Years
- Labor Warranty: 2 Years
- UPC: 780687345150
- Weight: 4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
