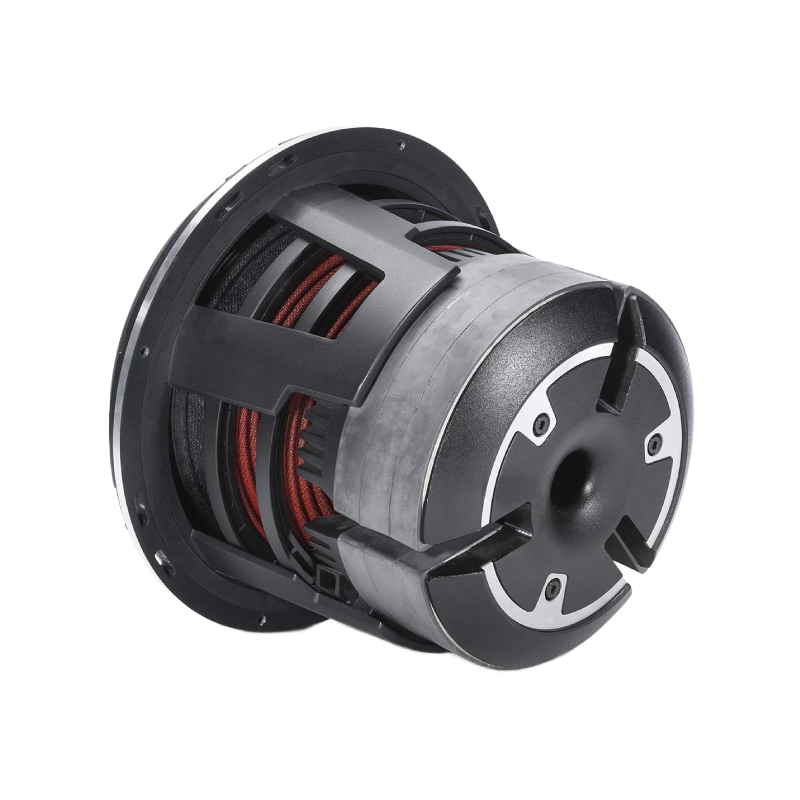

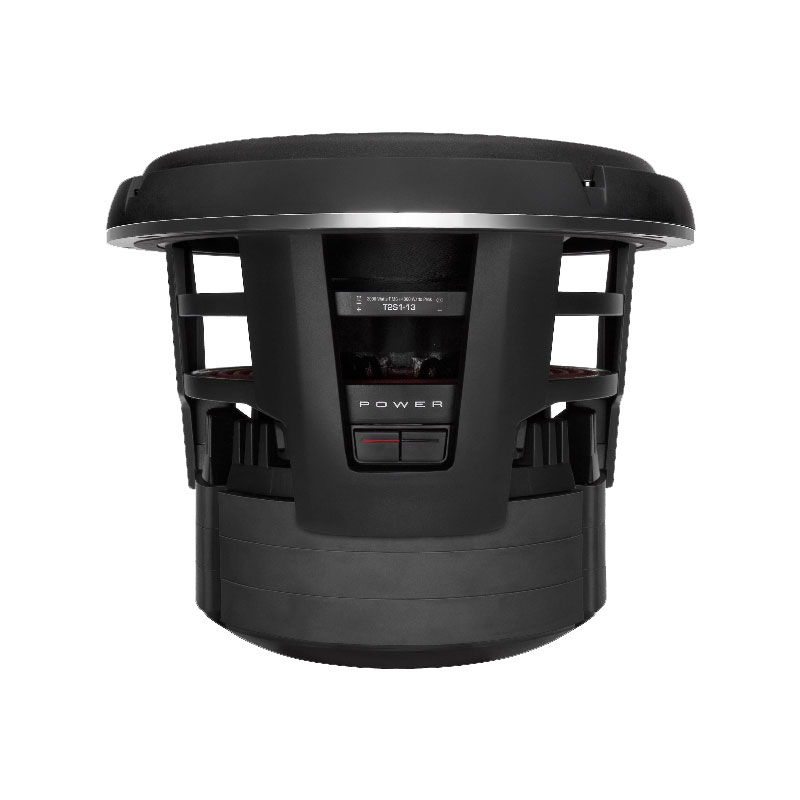

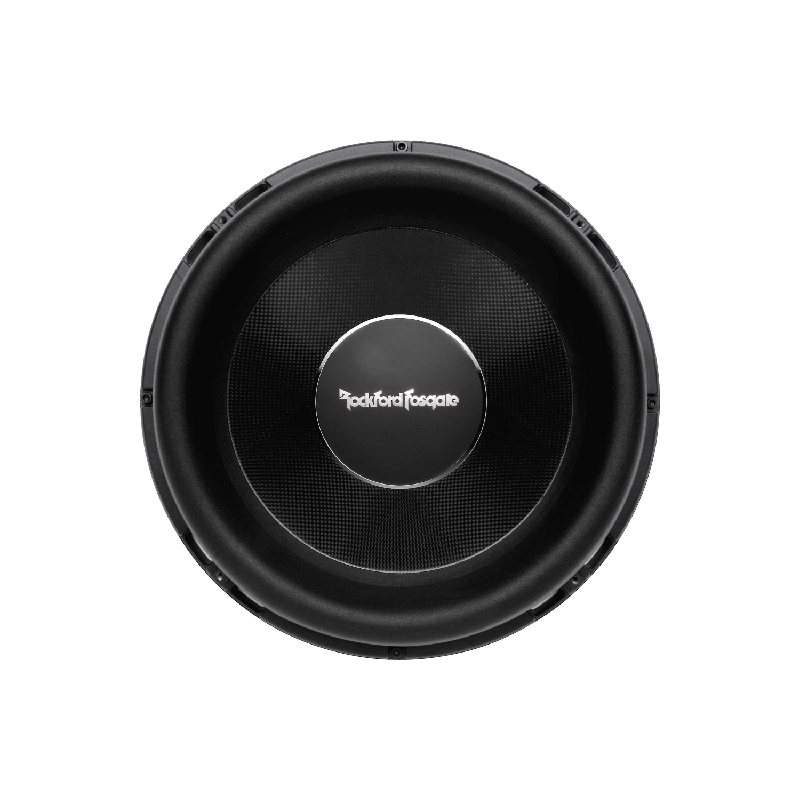

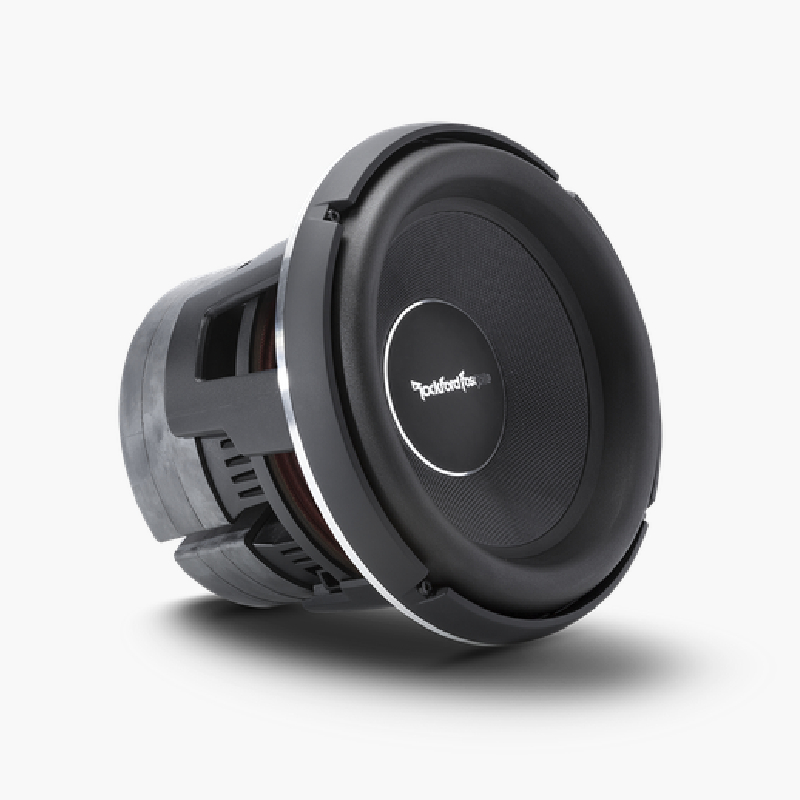

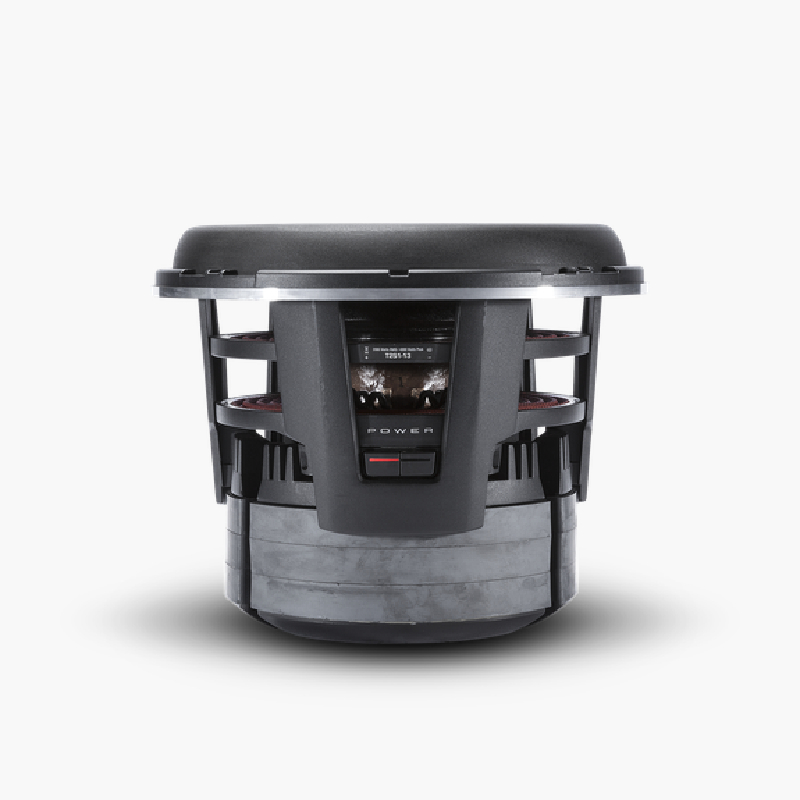

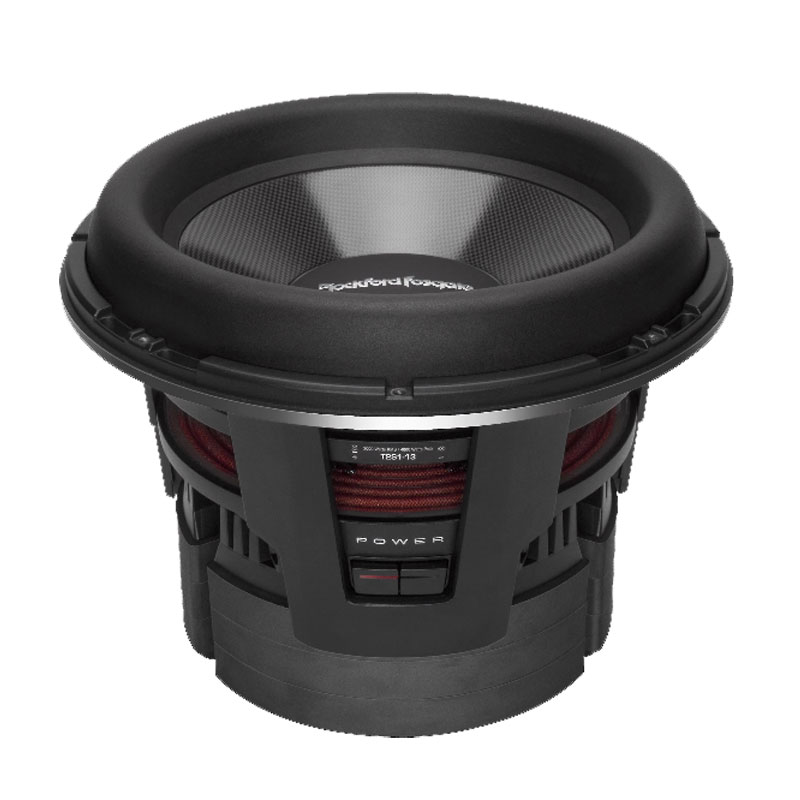

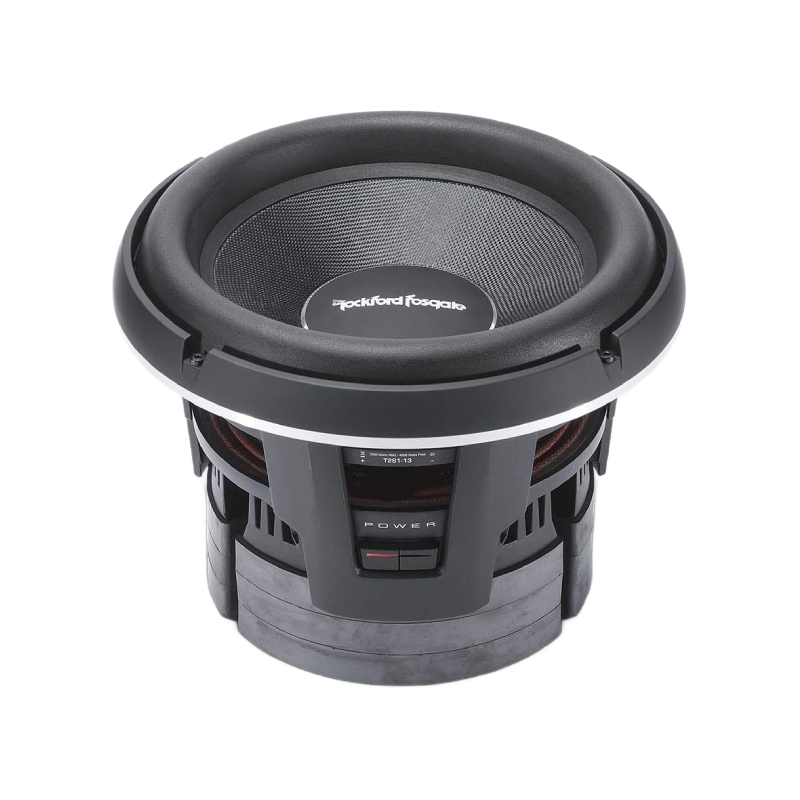

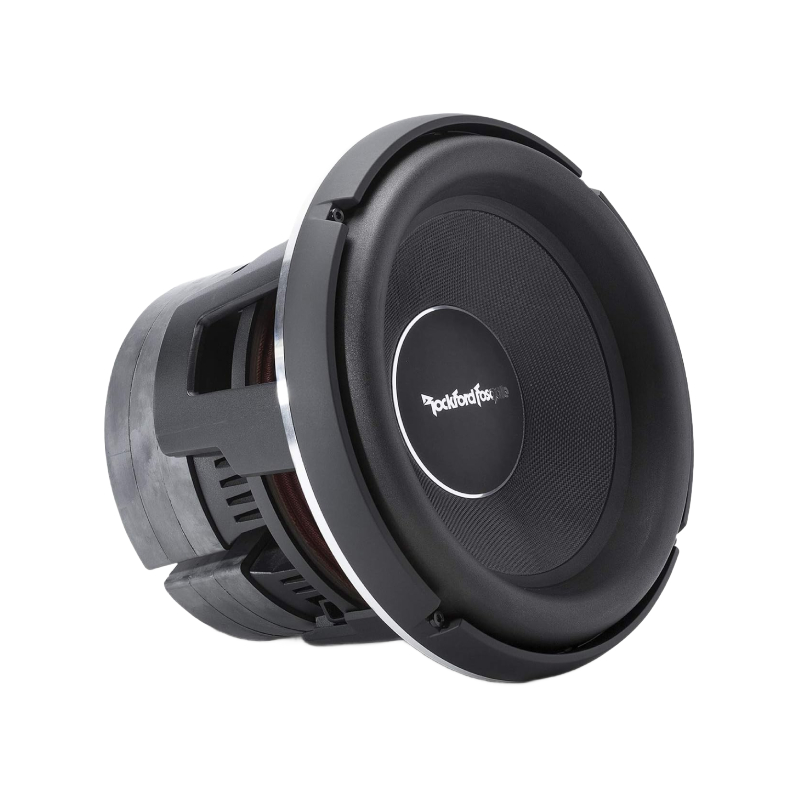

Rockford Fosgate T2S2-13 Power T2 Series 13" 2000W RMS 2 Ohms, Single Voice Coil Car Subwoofer
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 13" Power T2 Series Single Voice Coil Car Subwoofer
- • (12) Allen head screws
- • Trim ring (attached)
- • Allen head bit
- • Installation/Operation manual (English/ French/ Spanish/ German)
- • Owner's Manual
Why Choose Rockford Fosgate T2S2-13 Component Car Subwoofer?
Massive Bass Precision Built for Serious Sound Lovers
The Rockford Fosgate T2S2-13 is built for people who want real, clean, hard-hitting bass without losing control. Its triple-layer cone made from glass fiber and aramid honeycomb keeps things ultra rigid, so even when you push it hard, the sound stays tight and accurate. Add in CEA-2031 certified power handling and Klippel verified tuning, and you get a sub that is engineered for consistent performance, not just short bursts of loudness.
Bigger Output Without Losing Sound Accuracy
This sub hits harder than you expect thanks to VAST surround technology, which increases cone area without needing a bigger basket. That means more air movement and stronger bass response without sacrificing clarity. The injection-molded foam surround also helps keep everything responsive, so your low-end stays clean whether you are playing smooth basslines or heavy hits.

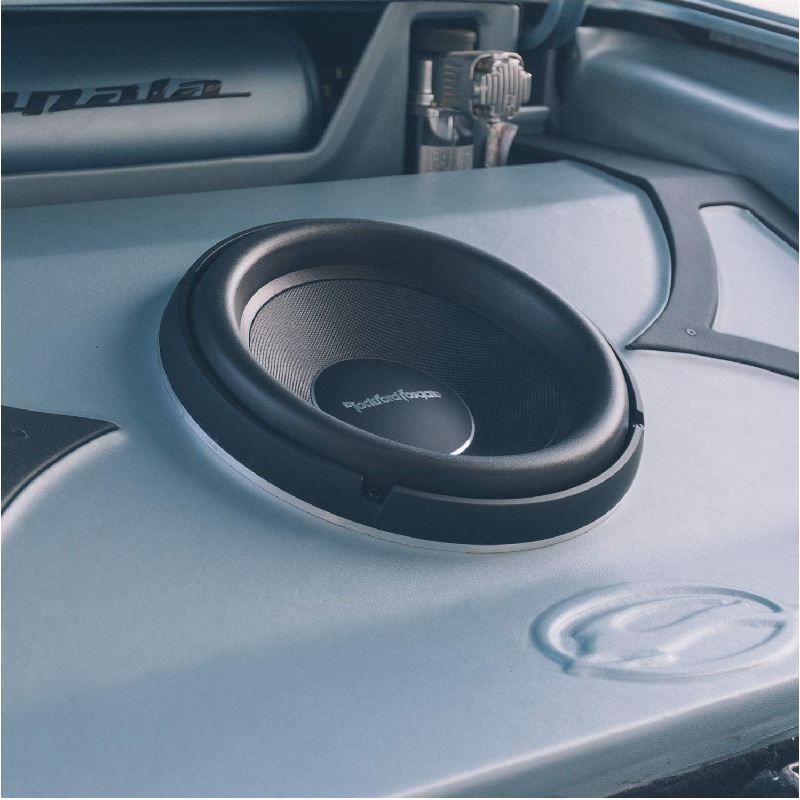

Built for Real-World Installations and System Flexibility
Rockford Fosgate designed this sub to be easy to integrate into serious builds. The FlexFit mounting system gives you adjustment room during installation so you can get a perfect fit in different enclosures. The spring-loaded terminals support up to 8-gauge wire for solid power transfer, and the design works well in both sealed setups for tight, accurate bass or ported boxes when you want deeper, more aggressive low-frequency output.
Frequently Asked Questions (FAQ)
- • Why isn't the bass as strong as expected?
Check the enclosure volume, amplifier output, polarity, and gain settings. The wrong box can noticeably reduce bass performance and overall output.
- • What amplifier power should I use?
Use an amplifier that matches the woofer's RMS rating and 2-ohm load. Clean power and proper gain settings help achieve strong performance.
- • How much enclosure space does it need?
A properly sized enclosure is essential for this large woofer. Follow the recommended internal volume and allow enough clearance for installation.
- • Why is the port making a chuffing noise?
Incorrect port dimensions or excessive air velocity can cause noise. Check the port size, length, and enclosure tuning carefully.
- • Why does the enclosure seem too large?
This 13-inch woofer requires substantial enclosure space and mounting clearance. Measure the available area carefully before building the box.
- • Why does the vehicle rattle at high volume?
The large cone and high output can vibrate panels and trim. Tighten loose hardware and add sound-deadening material where needed.
- • Why does it distort when I turn the volume up?
Clipping, excessive gain, or insufficient electrical power can cause distortion. Lower the gain and verify stable amplifier and battery voltage.
- • Why does it sound different in sealed and ported boxes?
Sealed boxes provide tighter bass, while ported designs can deliver greater low-frequency output. Proper enclosure volume and tuning are essential.
- • Why is the bass weaker inside the cabin?
Vehicle acoustics, enclosure placement, and orientation affect cabin response. Check the enclosure position and polarity for possible phase cancellation.
- • What should I check if there is little or no bass?
Check the amplifier, fuse, speaker wiring, terminals, polarity, and crossover settings. Also verify the 2-ohm load and enclosure connections.
- Diameter : 13 Inch
- Maximum Power : 4000 Watts
- Sensitivity : 87 dB
- Impedance : 2 Ohm
- Frequency Response : 19-250 Hz
- Peak Power Handling : 4000 Watts
- Top Mount Depth : 9.7 Inches
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 1.85 Cubic ft.
- Suggested Ported Box Volume : 3.35 Cubic ft.
- Mounting Depth : 9.70 Inches
- RMS Power Handling : 2000 Watts
Features:

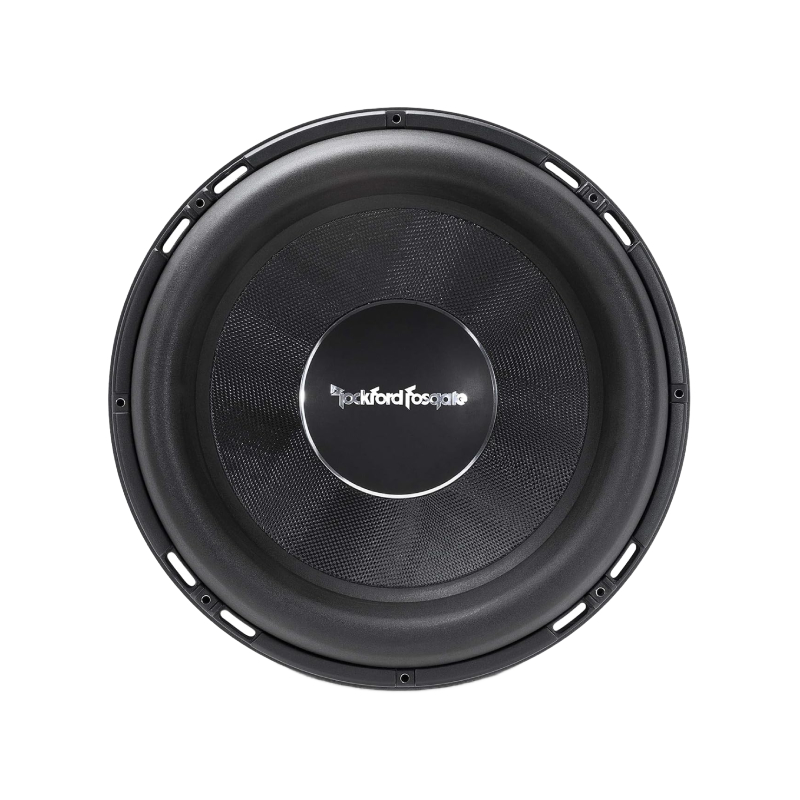

- Advanced Triple-Layer Cone Structure Design: The Rockford Fosgate T2S2-13 utilizes a three-layer composite cone made of glass fiber and aramid honeycomb with an aluminum dust cap, delivering exceptional rigidity and minimizing distortion during high-output performance.
- Increased Acoustic Output with VAST Surround Technology: Vertical Attach Surround Technique expands the effective cone radiating area without increasing basket size, while the injection-molded foam surround enhances responsiveness and overall bass efficiency.
- High-Current Spring Terminal Connectivity System: Equipped with spring-loaded terminals capable of accepting up to 8-gauge bare wire, ensuring secure connections and consistent power transfer in high-performance audio setups.
- CEA-2031 Certified Continuous Power Handling Capability: Engineered to meet CEA-2031 standards, the T2S2-13 is designed to handle continuous rated power reliably, supporting long-term durability under demanding listening conditions.

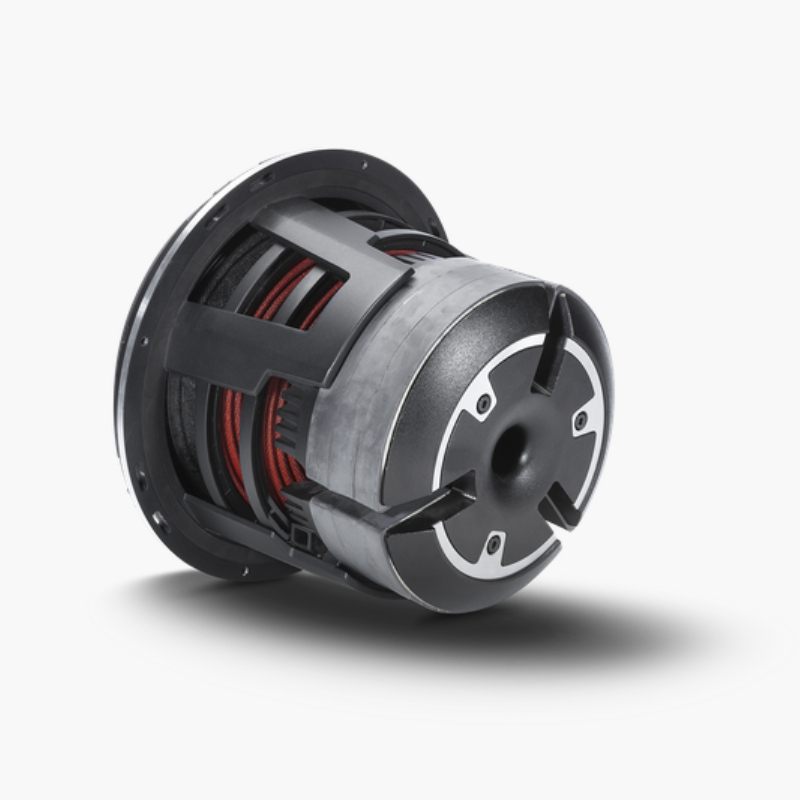

- Precision Engineered Klippel Verified Motor Assembly: Optimized using Klippel laser-based analysis, the motor structure, voice coil alignment, and suspension are finely tuned to reduce distortion and improve overall sound accuracy.
- Flexible Installation with FlexFit Mounting Design: Slotted FlexFit basket construction allows slight adjustment during installation, ensuring improved alignment and easier integration into various enclosure configurations.
- Optimized Sealed Enclosure Performance Tuning: Designed for sealed box applications with a recommended internal volume of 1.85 cubic feet, delivering tight, controlled bass response with accurate sound reproduction.
- High-Efficiency Ported Enclosure Performance Capability: Supports vented enclosure setups for enhanced output efficiency, providing deeper bass extension and stronger low-frequency performance when properly tuned.
Specifications:
- Speaker Connector: 8 AWG slot loaded
- CEA-2031 CompliantL CEA-2031 Guidelines
- Nominal Impedance: 2-Ohms
- Size: 13"
- 2000 Watts RMS
- 4000 Watts Peak
- Mounting Depth: 9.70 in. (246 mm)
- Voice Coil Diameter: 3.96" (100 mm)
- Shipping Weight: 93.70 Lbs. (42.5 Kg.)
- Vas (Liters): 68.7
- Fs (Hz): 25.5
- Qms: 3.01
- Cutout Diameter: 12.28 in. (312 mm)
- Xmax (mm): 34
- Woofer Displacement: 0.250 cu. ft. (7.08 Liters)
- Sd (cm2): 707
- Qts: 0.35
- Qes: 0.40
- Le (mH): 0.91
- SPL (dB @ 1w/1m): 87
- Magnet Weight (oz): 528 oz. (14.97 Kg)
- SPL (dB @ 2.8v/1m): 90
- Re (Ohms): 1.6
- Subwoofer Type: Standard
- Voice Coil Type: Single Voice Coil
- Sealed Box Volume (Vb): 1.85 cu. ft. (52.3 Liters)
- Vented Box Volume (Vb): 4.0 cu. ft. (113 Liters)
- UPC: 780687343545
- Weight: 22
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
