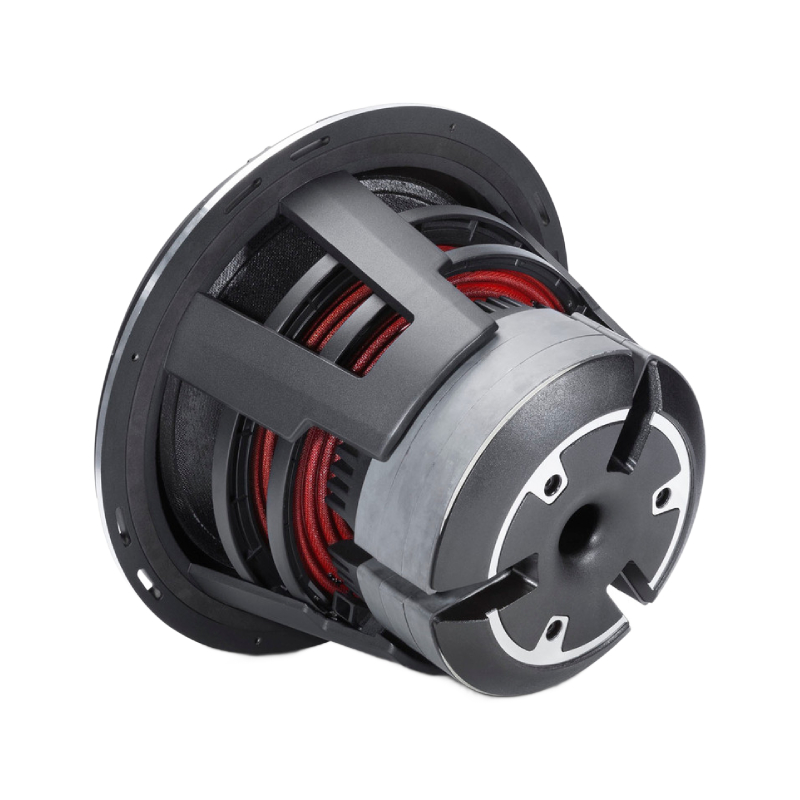

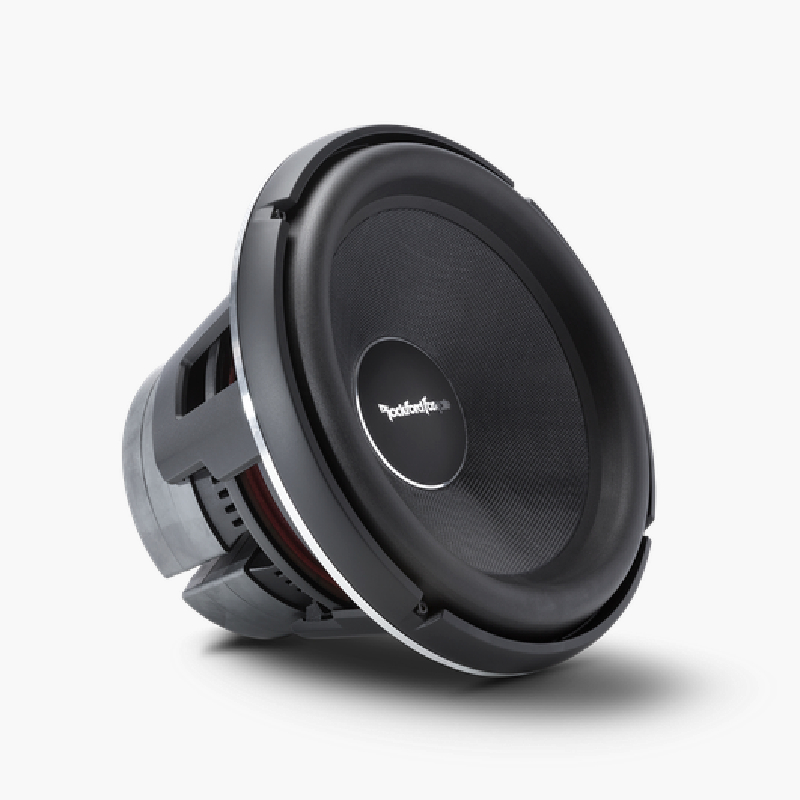

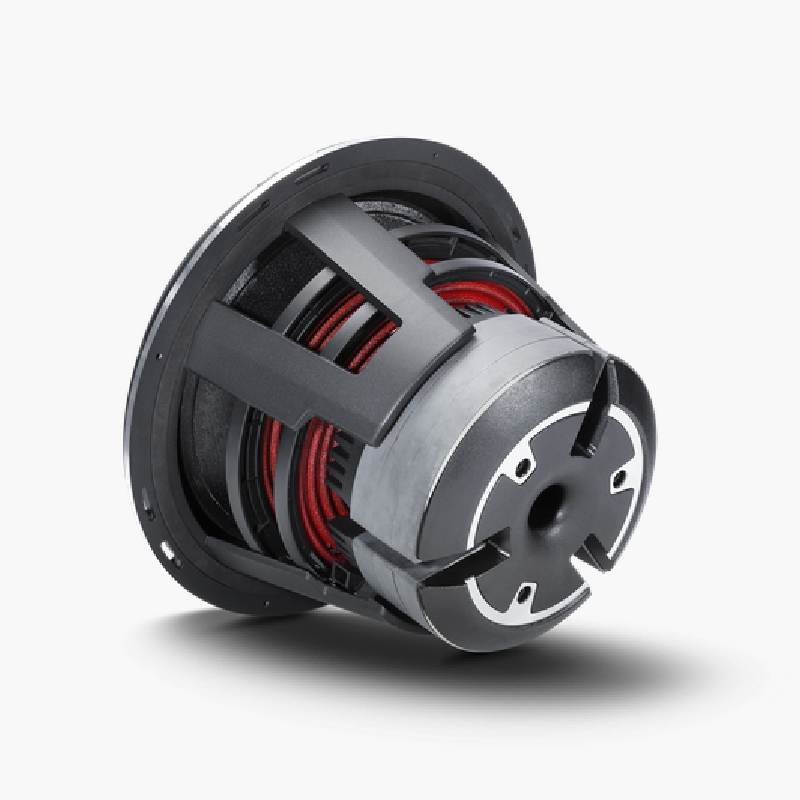

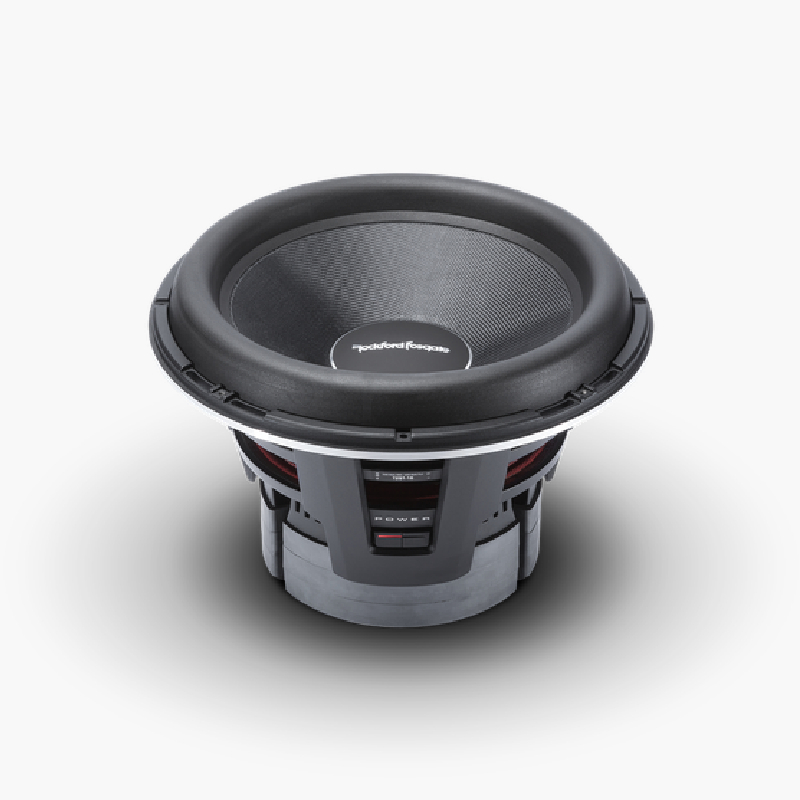

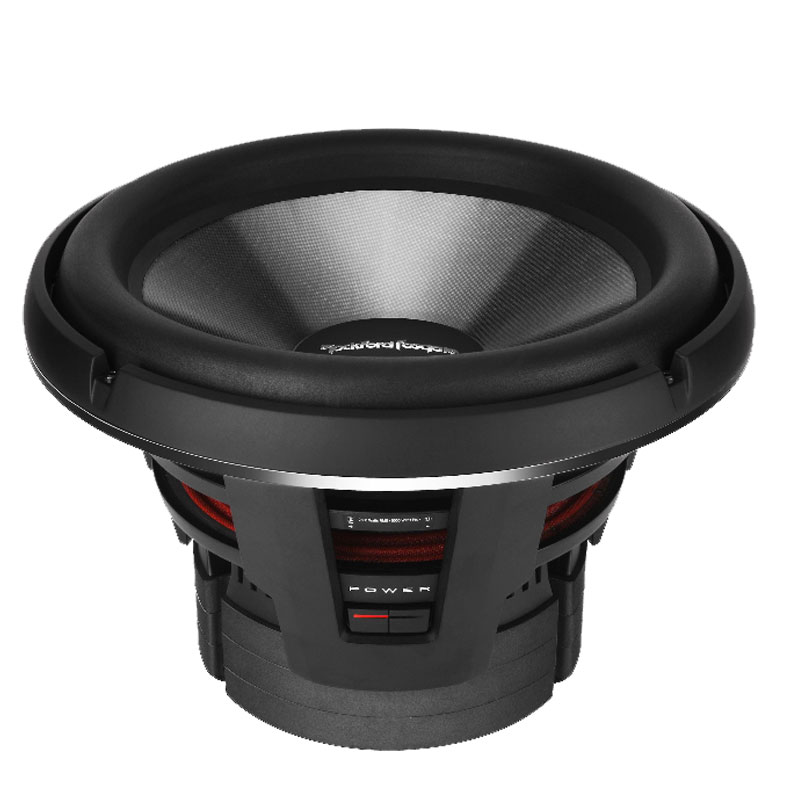

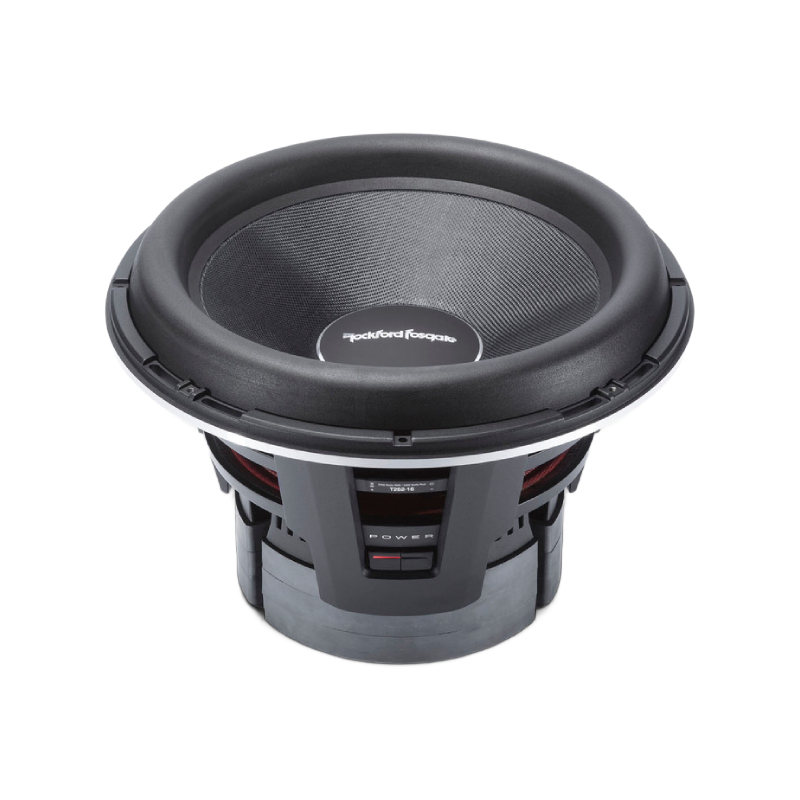

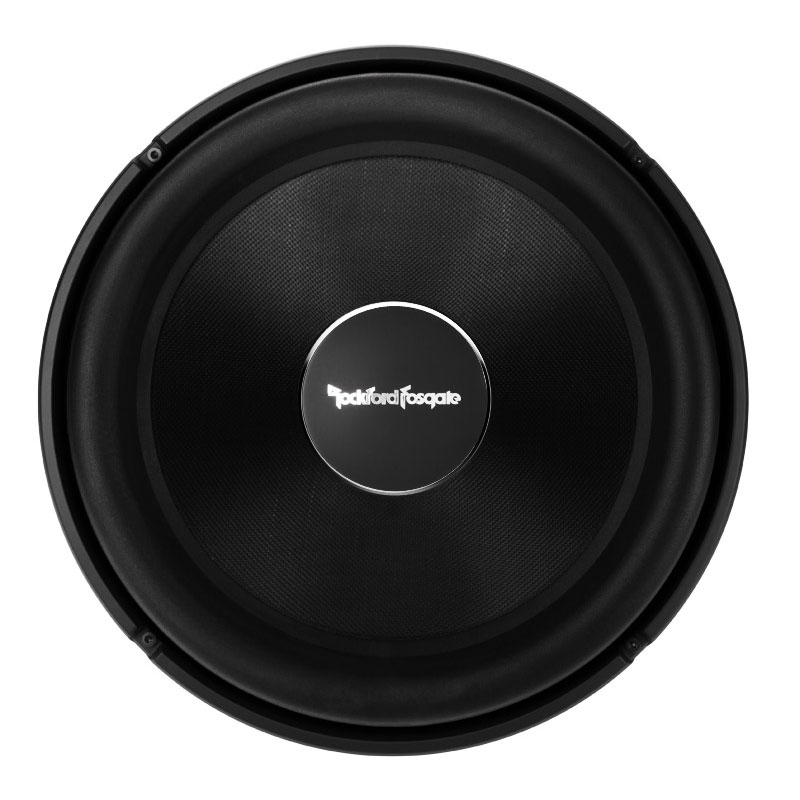

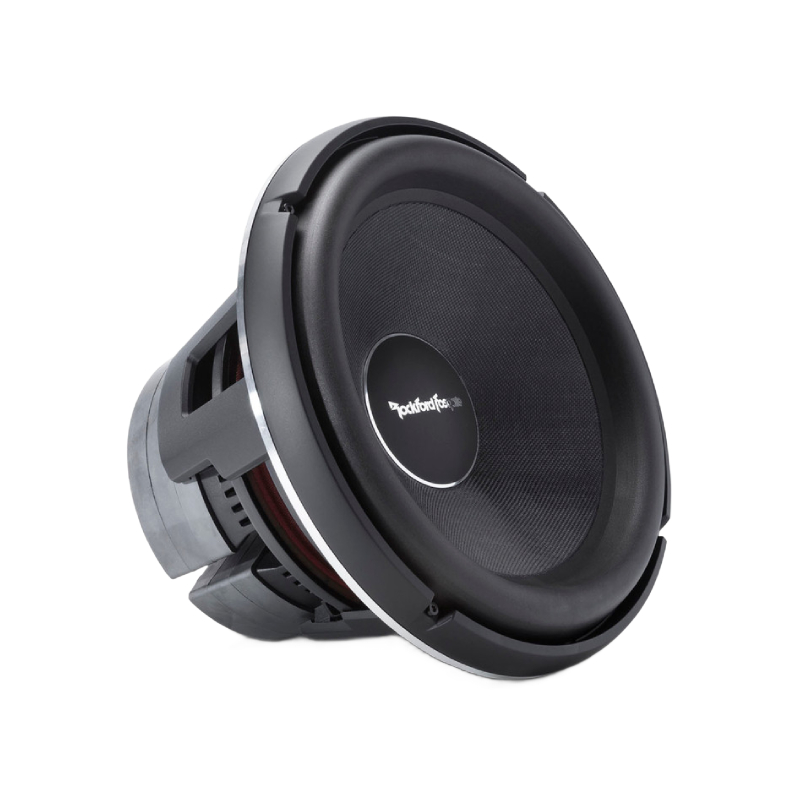

High-performance subwoofer that provides dependable, low-end bass reproduction. Its 13" driver features an anodized aluminum cone and a Santoprene surround for powerful, distortion-free bass. The speaker is optimized for sealed enclosures, allowing for deep and accurate bass reproduction, even at high volumes. The T2S1-13 also features a rigid die-cast aluminum basket to reduce the risk of flexing for increased performance. The subwoofer is optimized for sealed enclosures and can handle up to 2000 watts of RMS power.
It is made from aluminum and is designed to work with the T2S1 series subwoofers. It is designed to reduce distortion and increase the power handling of the subwoofer. The dustcap helps maintain the sound quality of the subwoofer, while protecting it from dust and other particles.
Custom Push Spring Terminal
Designed to offer secure and reliable connection of speaker wires to speakers. These terminals feature 13mm wide blades, allowing them to fit a wide range of speaker wire sizes. The push spring design ensures a secure connection between the speaker wire and the speaker for optimal sound quality. The terminals are made from premium quality materials for long-lasting durability and are corrosion-resistant.
Diameter : 16 Inch
Maximum Power : 5000 Watts
Sensitivity : 89 dB
Impedance : 1 Ohm
Frequency Response : 21-250 Hz
Peak Power Handling : 5000 Watts
Top Mount Depth : 10-1/2 Inches
Number of Voice Coils : Single
Suggested Sealed Box Volume : 2.4 Cubic ft.
Suggested Ported Box Volume : 4.4 Cubic ft.
Mounting Depth : 10.47 Inches
RMS Power Handling : 2500 Watts
Three layer glass fiber/Aramid honeycomb/Glass fiber cone
Injection molded foam surround with VAST™
Dual Nomex progressive spiders with integrated lead wires
Proprietary surround mechanical clamping ring

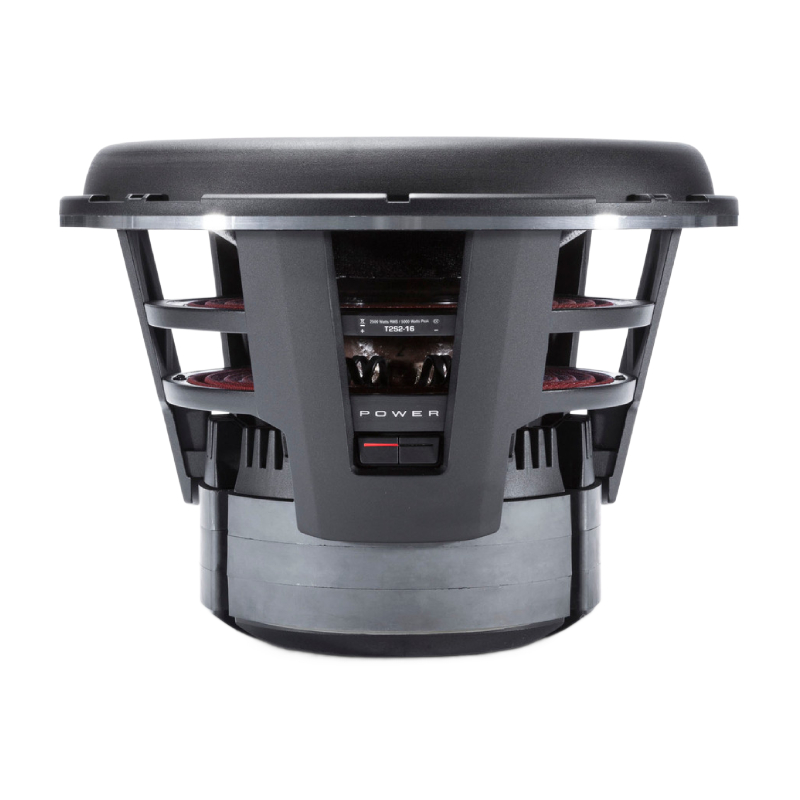

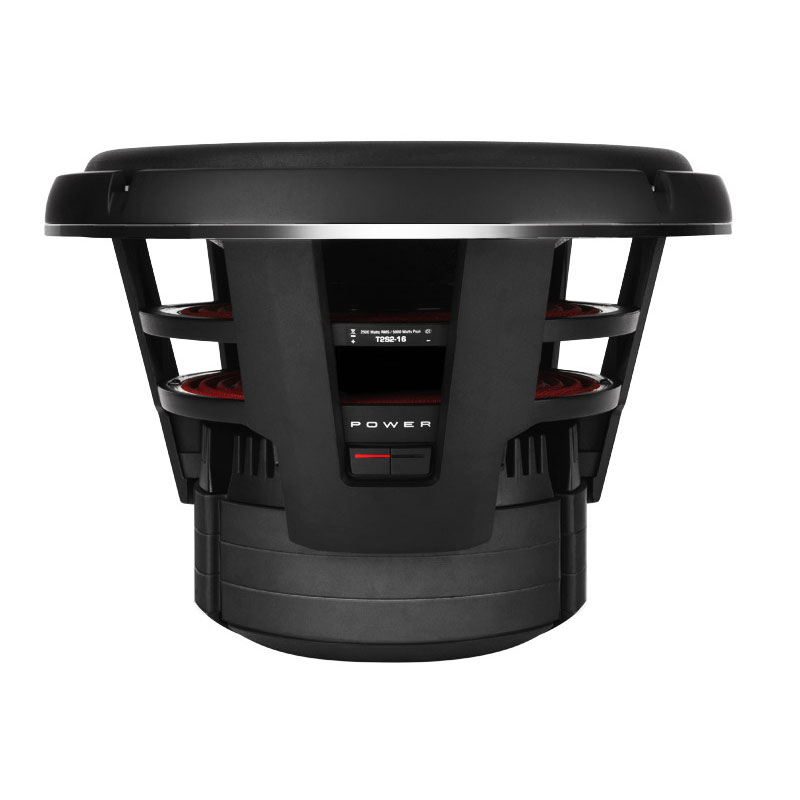

Aluminum diecast frame with integrated heat sink fins
Detachable die cast aluminum trim ring
Custom push spring insulated 8 AWG terminals
Single layer edge wound aluminum 4" voice coil
Vented pole piece
Integrated aluminum heat sinking shorting ring (IDHS)
Triple stack segmented ferrite motor structure
1 Year Warranty
Power Handling (Watts RMS)
2500 Watts RMS
5000 Watts Peak
Subwoofer Type: Standard
Nominal Impedance: 1-Ohm
CEA-2031 Compliant: CEA-2031 Guidelines
Voice Coil Diameter: 3.96" (100 mm)
Speaker Connector: 8 AWG slot loaded
Voice Coil Type: Single Voice Coil
Magnet Weight: 529 oz. (15 Kg)
Fs (Hz): 28.5
Re (Ohms): 0.9
Le (mH): 0.53
Sd (cm2): 1034
SPL (dB @ 1w/1m): 89
Xmax (mm): 34
SPL (dB @ 2.8v/1m): 92
Vas (Liters): 84.5
Cutout Diameter: 15.04 in. (382 mm)
Woofer Displacement: 0.289 cu. ft. (8.2 Liters)
Mounting Depth: 10.47 in. (266 mm)
Sealed Box Volume (Vb): 2.4 cu. ft. (67.9 Liters)
Vented Box Volume (Vb): 5.5 cu. ft. (155 Liters)
Shipping Weight: 100.80 Lbs. (45.7 Kg.)
