What's Included:
- 6 Flat-head ISO screws (M5 x 6mm)

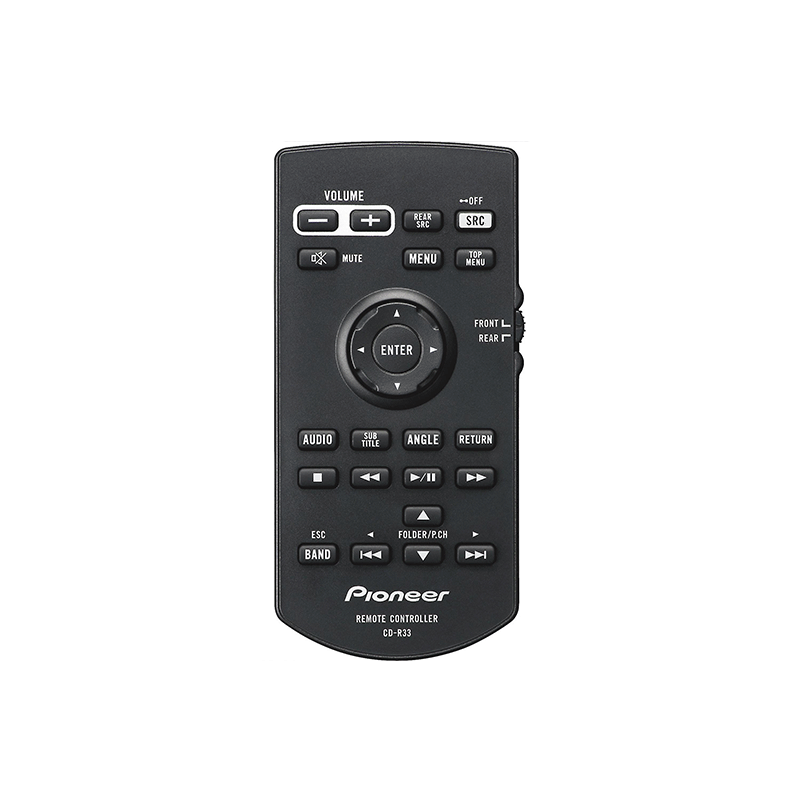

- Remote control (CD-R33)
- Installation Manual
- Wiring harness
- Detachable control-panel (attached)
- Quick Start Guide
- Face-fixing screw
- Navigation receiver w/ integrated 6.1" touchscreen monitor (10A fuse)
- Microphone w/ visor-bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
- Owner's Manual on CD-ROM
- CR2025 3V lithium battery (installed in remote)
- GPS antenna (attached 11.5' cable)
- Self-adhesive square
- 58" USB-A extension cable
- 6.5' Stereo minijack extension cable
- Two-sided tape
- 6 Pan-head ISO screws (M5 x 6mm)
- Wire-tie
Product Highlights:
- low- and high-pass filters with adjustable crossover points
- free traffic updates in major metropolitan areas
- built-in Android control
- remote control
- speed limit warnings
- CEA-2006 compliant

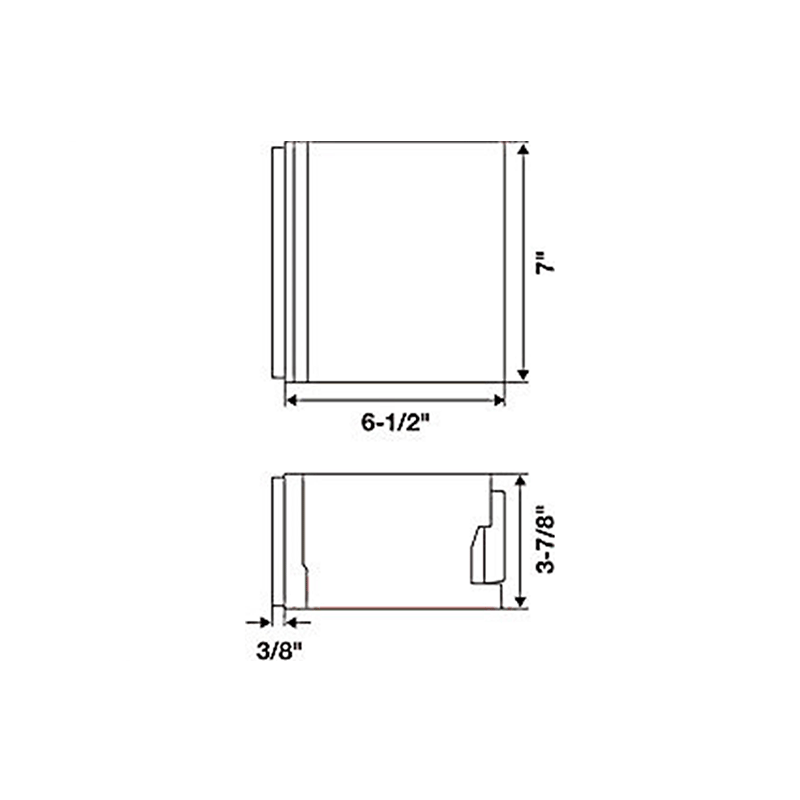

- fits double-DIN (4" tall) dash openings
- Apple CarPlay™ compatible
- manual map zoom
- Auto EQ with Time Alignment (optional CD-MC20 mic required)
- Navigation Features:
- built-in iPod, iPhone, and iPad control
- Pandora and Aha Radio control through iPhone and Android
- plays CDs, DVDs, and USB drives
- maps of United States, Canada, and Puerto Rico, plus 7.9 million points of interest
- 13-band graphic EQ with Easy EQ preset equalizer
- inputs: HDMI input; dual rear USB inputs; 2 rear A/V inputs; dual camera inputs
- DVD/CD receiver with 6.2" touchscreen and AM/FM tuner
- text-to-speech announces actual street names at turns
- Pioneer CD-IH202 cable and Apple Lightning Digital AV Adapter required for AppRadio Mode and viewing video content from Lightning devices
- internal amp (14 watts RMS CEA-2006/50 watts peak x 4 channels)
- built-in Bluetooth for hands-free calling and audio streaming
- built-in HD Radio tuner
- plays lossless FLAC audio files (up to 192kHz/24-bit) from your flash drive
- Siri Eyes Free control with iPhone 4s and newer
- Pioneer CD-AH200 kit required for AppRadio Mode and viewing video content from Android devices
- MirrorLink compatibility for select Android devices — requires optional CD-MU200 adapter
- Google Now voice control with compatible phones
- lane guidance
- Advanced Sound Retriever enhances compressed digital files
- Pioneer MIXTRAX technology creates nonstop mixes and adds effects to digital tracks
- dual-zone A/V output
- works with SiriusXM SXV300 tuner—supports Tune Mix, Traffic & Weather Now, and Sports Flash features
- outputs: 6-channel preamp outputs (4-volt front, rear, subwoofer); composite video output
- Other Information:
- compatible with most factory steering wheel audio controls (adapter required)
- compatible with iDatalink Maestro module to retain factory settings for Ford, GM, Chrysler, Toyota, and VW
- Maximum Power : 50 Watts
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : Yes
- Detachable Face : No
- RMS Power Output : 14 Watts
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 4 volts
- Display Size : 6.2 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Front USB Input : 1
- Rear USB Input : 1
- Preamp Outputs : 6
- Voice Guidance : Yes
- RDS - Radio Data System : Yes
- Rear View Camera Input : Yes
The AVIC-6200NEX features Apple CarPlay, the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and access messages with just a word or a touch. Allows you to Connect your compatible iOS or Android™ smartphone with NEX for a truly connected experience, bringing many of your favorite apps right into the dashboard and letting you communicate using advanced high quality Bluetooth connectivity.
In addition to playing numerous sources and file formats, Pioneer's AppRadio® Mode allows you to bring many of your favorite apps right into the dashboard. All NEX models feature built-in Bluetooth® that enables both hands-free calling and audio streaming. Including the latest Hands-Free Profile (HFP 1.6) with Wideband Speech capability, NEX provides more natural sound quality and details during calls. When streaming music, NEX even lets you browse and select the media stored on your smartphone using the AVRCP 1.4 profile.
The AVIC-6200NEX offers a generous helping of A/V connections to maintain access to your media. Its HDMI input opens the receiver up to some of the newest A/V sources around — including Android phones — and the two rear USB inputs are perfect for your digital tunes, including FLAC lossless files and you can check out video from DVDs or other sources on the 6.2" display when you're parked.
| Specifications |
| HD Radio |
Built-in |
| Android Auto |
No |
| Steering Wheel Control Compatible |
Adapter required |
| Audio/video Input |
HDMI (rear), Mini (rear), RCA (rear) |
| Memory Card Slot |
USB |
| Peak Output |
50 watts |
| USB Input |
Rear (2) |
| Key Button Color |
Variable |
| AUX Input |
Mini (rear),RCA (rear) |
| Seek/Scan |
Seek |
| RMS Power Output |
14 watts |
| RMS Power Bandwidth |
20-20kHz |
| Navigation |
Yes |
| iPhone |
6S+/6S/6+/6/5S/5C/5/4S/4/3GS/3 |
| FM Sensitivity |
11 dBf |
| Android Control |
Yes |
| Video Screen |
Yes |
| Preamp Voltage |
4 volts |
| CarPlay |
Yes |
| European Tuning |
No |
| Radio Data System |
Yes |
| CEA-2006 Compliant |
Yes |
| Preamp Outputs |
6-channel |
| Sub Preamp Outputs |
Yes |
| Switchable Rear Preamp Outputs |
No |
| EQ Bands |
13 |
| Wireless Remote |
Yes |
| Full size |
Classic |
| Nano |
7/6/5/4/3 |
| Touch |
6/5/4/3/2 |
| Siri Control |
Yes |
| Bluetooth Compatible |
Built-in |
| Satellite Radio Ready |
SiriusXM 3.0 |
- UPC: 884938327107
- Weight: 5
