The MX650-CCX 6.5-inch coaxial speaker is designed around the standard marine 6.5-inch speaker format and features a wide mounting flange with a six hole mounting pattern. The long excursion woofer design and excellent power handling make your music come through loud and clear at speed, or at anchor.
The woofer design is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). Operating this coaxial system in less space will compromise its low frequency performance. A 0.75-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. Silk has been chosen for its lightness, excellent damping properties and smooth response characteristics.

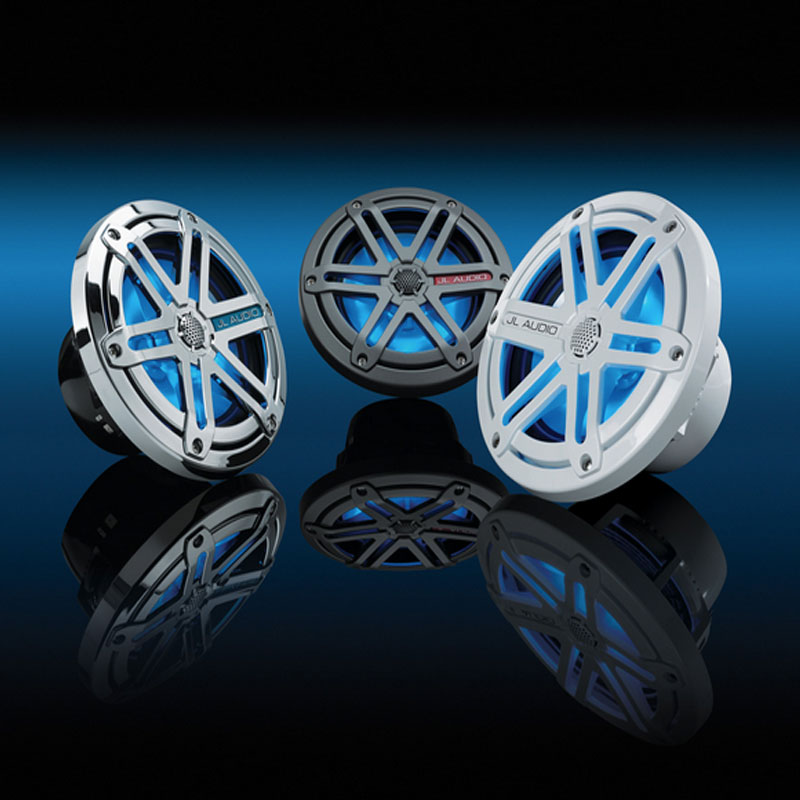

Integrated into the Sport Grille’s frame, the internal LED lighting assembly was meticulously designed to uniformly illuminate the woofer’s cone area with a lively blue glow, adding a dramatic visual experience to your high seas journey. Although MX650-CCX Coaxial Systems can be used with as little as 20 W per channel, for best audio performance we recommend amplifiers capable of between 75-100 W of continuous power per channel.
General Features:
6-1/2" Marine Cockpit Coaxial System
Optimized to operate large air volumes: (at least 2 cu. ft. / 57 l)
Power Handling:
RMS: 120 watts per pair / 60 watts each
Recommended Power Range: 20 - 125 watts RMS each
1.00" (25 mm) Voice Coil
Marine tested design
DMA-optimized, long excursion design
UV-resistant polymer baskets and grilles
Cutout Dimensions: 5.00" - 5.25"
Top-mount Depth: 2.74 "
4 ohms impedance
Frequency Response: 55 - 25,000 Hz
Sensitivity: 89.5 dB @ 1 W / 1 m
Injection-molded, mica-filled polypropylene cone material
Synthetic rubber surround
Specially treated ¾" pure silk dome tweeter
Low-profile/ progressive-roll spiders
Built-in Blue LED lighting assembly
[Available in Chrome, Titanium and White]
- Diameter : 6.5 Inch
- Sensitivity : 89.5 dB
- Impedance : 4 Ohm
- Frequency Response : 55-25000 Hz
- RMS Power Range : 20-60 Watts
- Peak Power Handling : 225 Watts
- Design : 2 Way
Features:
- 6-1/2" 2-way marine speakers with built-in blue LED lighting (pair)
- injection-molded, mica-filled polypropylene woofer with synthetic rubber surround
- 3/4" silk dome tweeter
- 2-way crossover attached to the woofer basket
- UV- and corrosion-resistant Centrex polymer baskets and grilles
- designed for free-air applications (no enclosures needed)
- power range: 20-60 watts RMS (225 watts peak power)
- frequency response: 55-25,000 Hz
- sensitivity: 89 dB
- top-mount depth: 2-13/16"
- UPC: 699440915120
- Weight: 7
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
