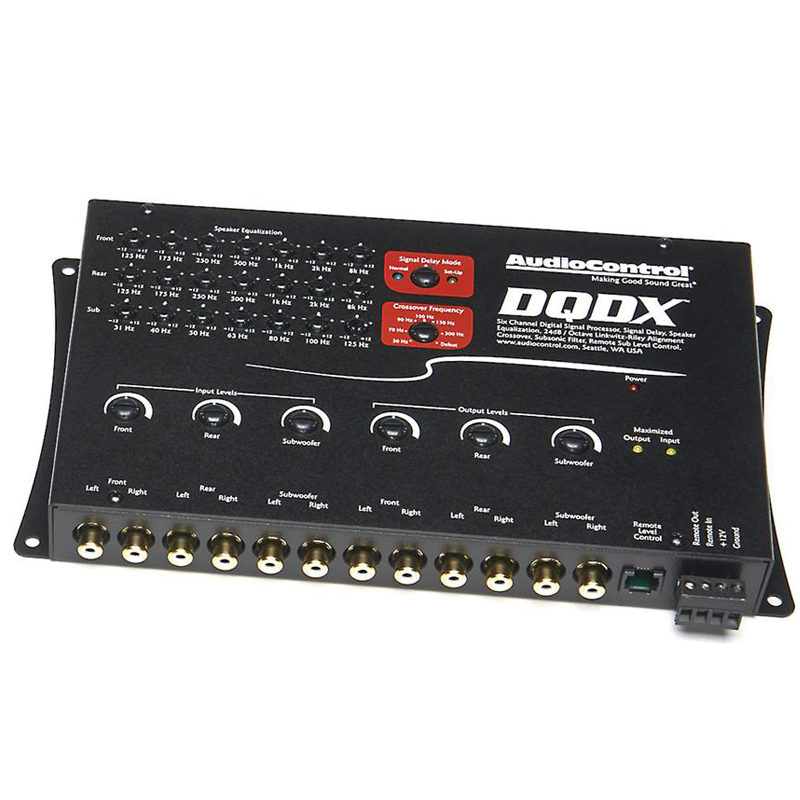

AudioControl 6-Channel Digital Signal Processor and Speaker Equalizer
We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • DQDX
- • ACR-3 Remote
- • Power and Speaker Connectors
- • Manual
- • Warranty
Provides Great Performance

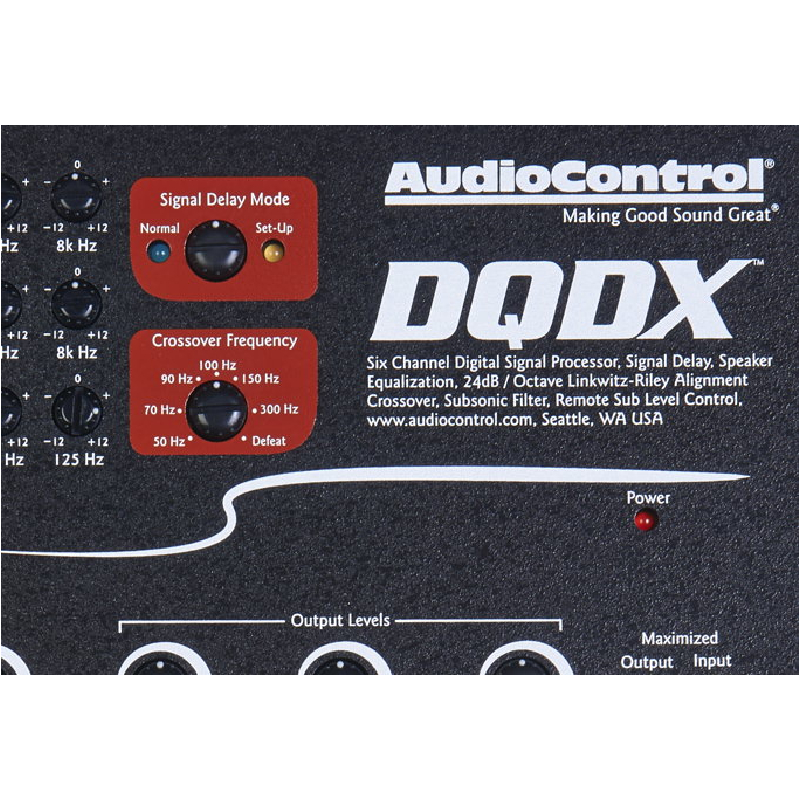

The DQDX performance digital signal processor features EQ, Crossover and Signal Delay. The Signal Delay featured in the unit provides acoustical alignment between right and left channels as well as subwoofer channels. The Independent front, rear and subwoofer equalization provide a great performance. This feature provides precise tuning. Also included are the 24 dB / Octave Linkwitz-Riley Selectable Crossover. A PFM Subsonic Filter is built into the amplifier. It has a Dash Mount ACR-3 level control included. The Dash Mount ACR-3 level control allows the user to adjust subwoofer and bass levels. Input and Output level controls with clipping indicators provide a smooth performance.
Latest AudioControl Processor
Designed for maximum sound quality and enhanced audio performance, the DQDX is the latest AudioControl processor to incorporate Signal Delay. This process corrects for the varying speaker locations in the vehicle.
Take Control
The AudioControl DQDX lets music enthusiasts truly “take control” of their sound and receive an amazing experience.
- Low Frequency Response : 10 Hz
- High Frequency Response : 22000 Hz
- Frequency Response : 10-22000 Hz
- Number Of Bands : 14
Features:
- Free iOS Mobile Toolsapp with DQ-61 Delay module
- User-friendly Signal Delay to control the acoustical alignment between the left and right channels plus the front and subwoofer channels
- Individual equalization controls for the front, rear and subwoofer channels for simple yet precise system tuning
- Fully adjustable 24dB/Octave Linkwitz-Riley electronic crossover
- PFM (Program Frequency Match) Subsonic Filter
- Six channels of RCA line level inputs
- ACR-3 Dash Control Remote allows for control of the subwoofer level plus processing bypass
- Discrete Input and Output level controls with clipping indicators
- Remote turn on output provides a 12-volt trigger to turn on your amplifier
- Built in Pink Noise for easy Signal Delay and Equalizer tuning and system set-up
- Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)
Specifications:
- Preamp Inputs: 3 (6 channels)
- Input Impedance: 20kΩ
- Preamp Outputs: 3 (6 channels)
- Maximum Output Level: 7.5Vrms
- Output Gain: ±12dB
- Output Impedance: 150Ω
- Total Harmonic Distortion: 0.01%
- Frequency Response: 10Hz-22kHz
- Equalizer Frequencies (front/rear): 125Hz, 175Hz, 250Hz, 500Hz, 1kHz, 2kHz, 8kHz
- Equalizer Frequencies (sub): 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100HZ, 125Hz
- PFM Frequency: 20Hz or 30Hz selectable
- Crossover Frequency: 50Hz-500Hz selectable
- Crossover Type: 24dB/Octave Linkwitz-Riley
- Signal Delay Max (Left/Right): 10ms
- Signal Delay Max (Front/Sub): 35ms
- Remote In
- 12VDC Remote Out (always active when unit is on)
- Power Supply: High Headroom PWM Switching
- Current Draw: 350mA
- Recommended Fuse Rating: 2A
- Dimensions: 9.25”W x 5.75”D x 1.25”H
- UPC: 855814005952
- Weight: 6
