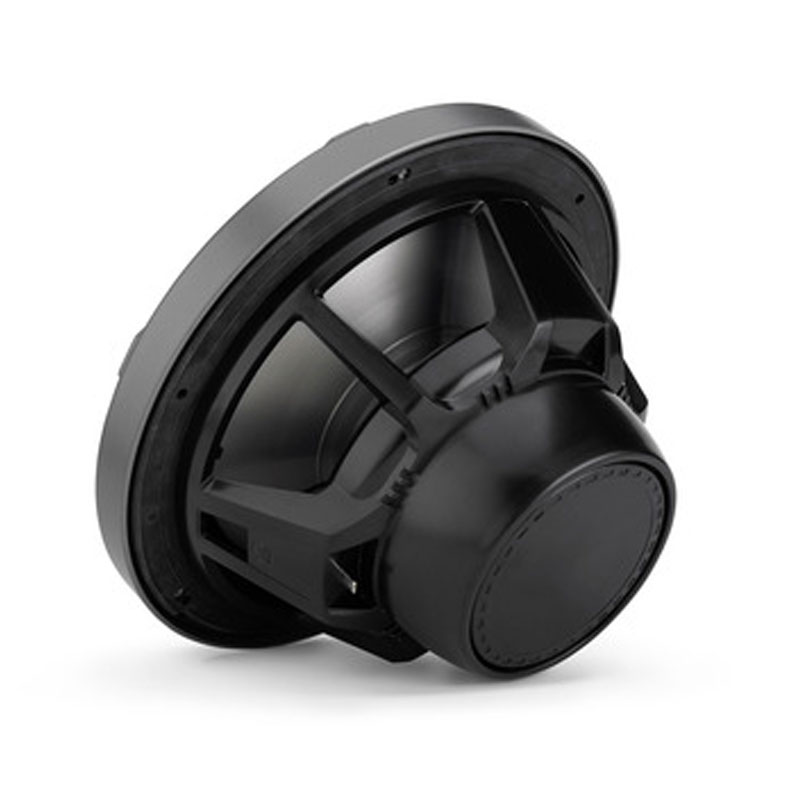

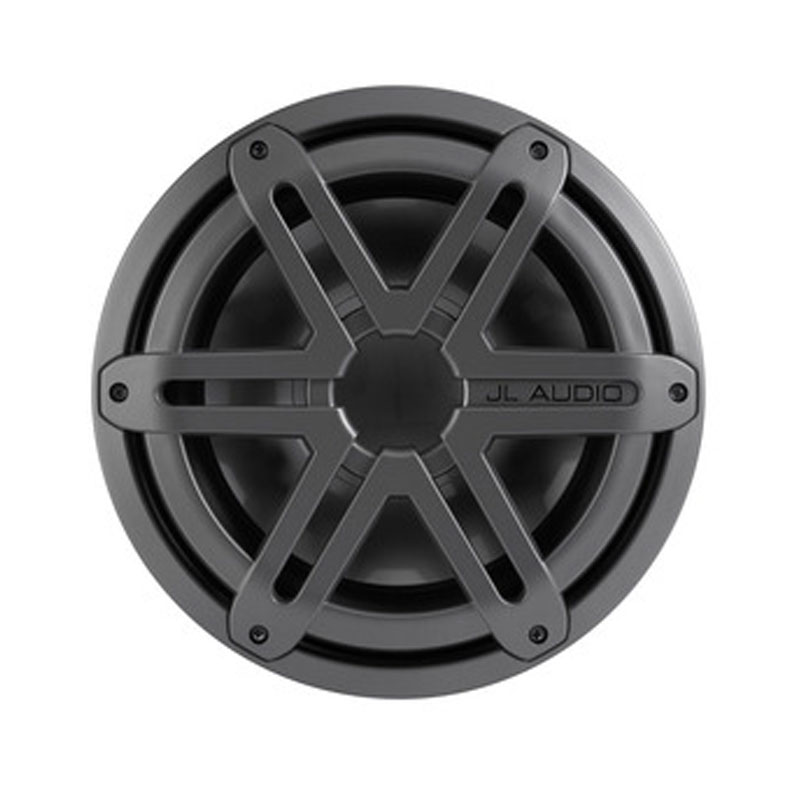

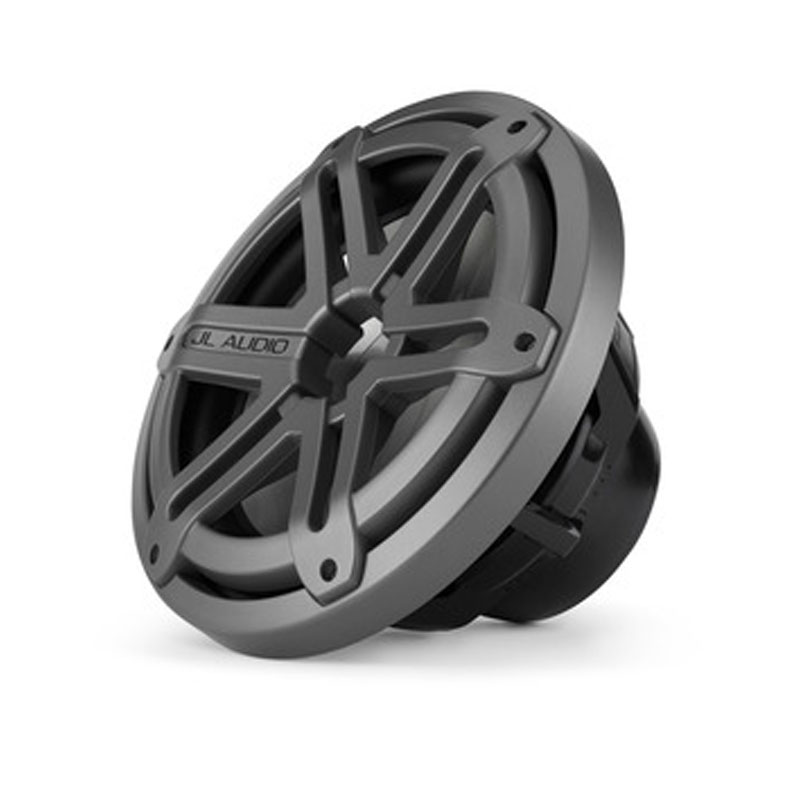

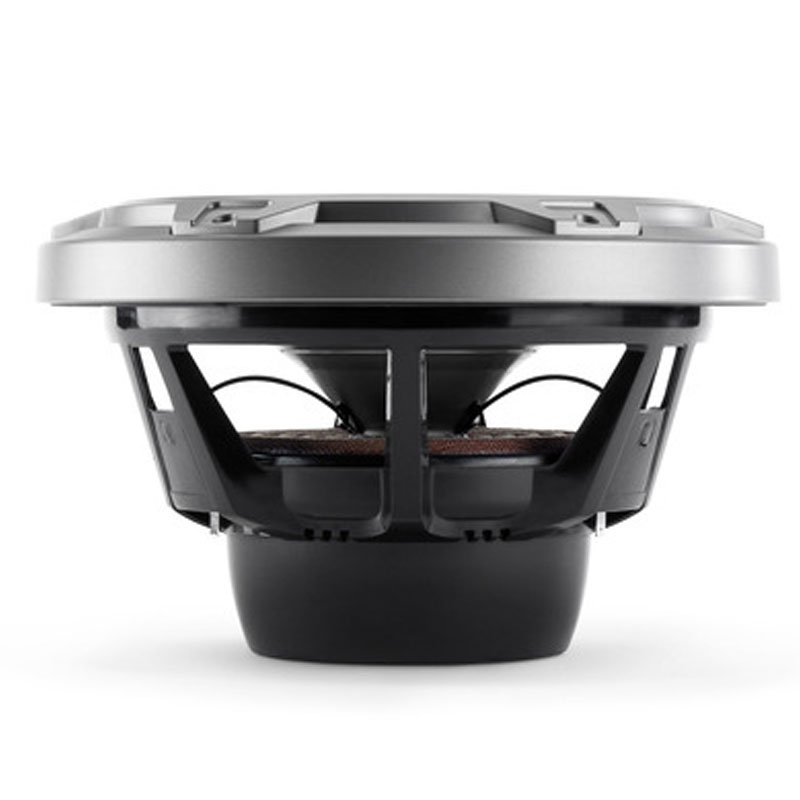

MX-Series 10-inch Marine Subwoofer Driver for Infinite-Baffle Use (175 W, 4 Ω) - Titanium Sport Grille
With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.
Purpose-engineered and built for real marine duty, the MX-Series infinite-baffle subwoofers are designed to operate without a dedicated enclosure and are targeted towards moderate power applications.
The MX10IB3 is best used with amplifier power in the 50W - 175W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a subwoofer driver that operates in a small sealed enclosure, select our M10W5, instead.
Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
| Specifications | |
|---|---|
| Subwoofer Design | Round / Circle |
| Minimum Sealed Box Volume | 2.0 cubic feet |
| Woofer Composition | Mica Injected Polypropylene (MIPP) |
| Subwoofer Grille | Yes - Included |
| Sensitivity | 87.23 dB |
| Shallow Mount Installation | No |
| Re-Cone Kit Available | No |
| Top-Mount Depth | 5.12" |
| No Amplified or Non-Amplified | Non-Amplified |
| RMS Power Handling | 175 watts |
| Impedance (Per Voice Coil) | 4 ohms |
| Woofer Surround | Synthetic Rubber |
| 10" | Subwoofer Design |
| Single | Impedance (Per Voice Coil) |
| Xmax (millimeters) | 11 mm |
| Cutout Diameter | 8.875" |
