Item# 46745 / Condition:  Brand New    Review this product


Stealthbox®12" Two JL Audio 12TW3-D4 Subwoofer for 2002-2013 Chevrolet Avalanche & 2002-2009 Cadillac Escalade

FREE Shipping in US 48!

Save $350.00 | Reg. Price $2,099.99 In Stock
Add Extended Warranty

What's Included:

  • Two JL Audio 12TW3-D4 Subwoofer
  • Owner's Manual

Product Highlights:

  • Subwoofer Size 12"
  • Total RMS Power Handling 800 watts
  • Frequency Response 22 - 200 Hz
  • Box Type Sealed
  • Impedance (Per Voice Coil) 4 ohms
  • Box Style/Shape Vehicle Specific
  • Voice Coil(s) Dual
  • Number of Terminals 1
  • Compatible Vehicle Make and Model Cadillac Escalade
  • Type of Enclosure Loaded
  • Terminal Type Binding posts
  • Box Finish Texture coated finish
  • Subwoofer Design Round / Circle
  • RMS Power Handling 400 watts
  • Woofer Surround Rubber
  • Woofer Composition Mica Injected Polypropylene (MIPP)
  • Sensitivity 84.11 dB
  • Xmax (millimeters) 15.2 mm
  • Enclosure Specifications
  • Chevy Avalanche
  • Number of Subs/Speakers 2
  • Box Exterior Color Black
  • Final Wired Impedance 4 ohms

Versatility meets amazing bass when you combine Chevrolet’s cross-over vehicle with this intelligently integrated Stealthbox®.

This is a brand-new model that takes advantage of our amazing TW3 thinline 12-inch subwoofer drivers to maintain a much lower profile than our previous Stealthbox® for this vehicle.

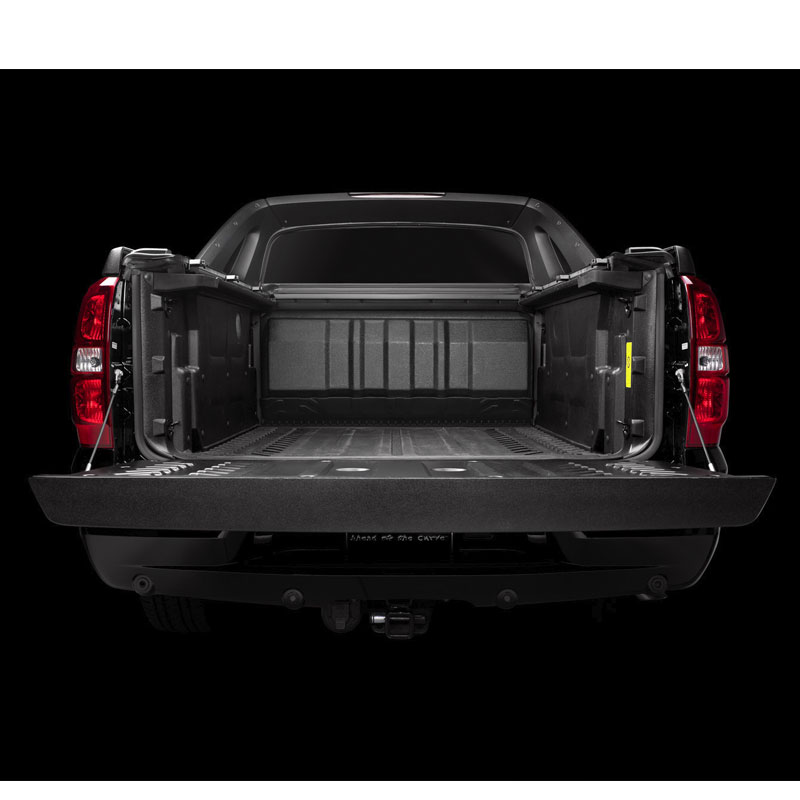

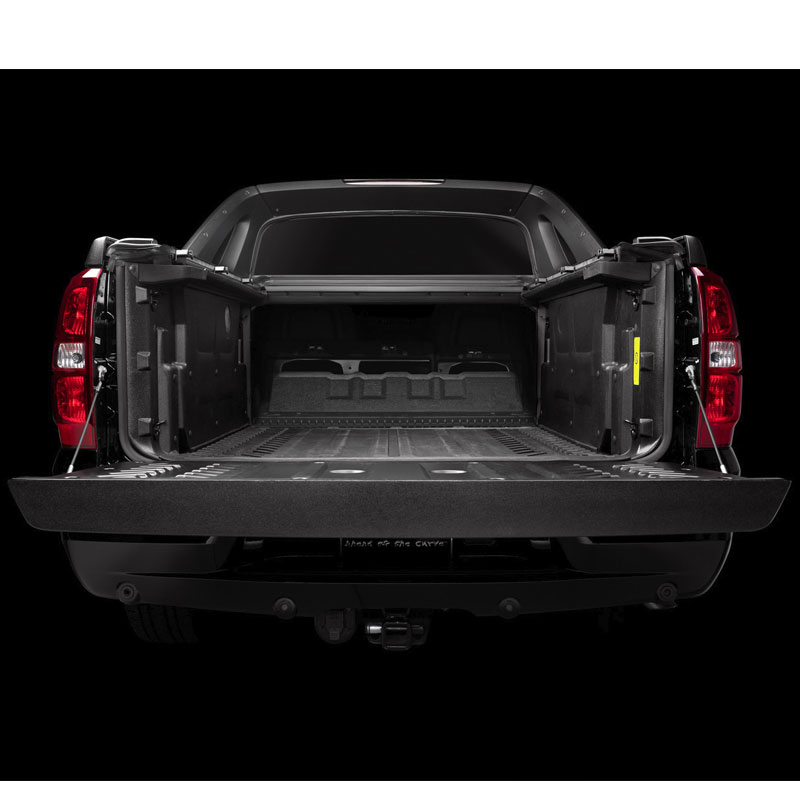

Using the vehicle’s factory mid-gate attachment hardware, the Stealthbox® seamlessly replaces the mid-gate while maintaining its folding functionality. When folded, the Stealthbox® allows you to carry long items in the bed. To make sure your truck remains a useful truck, the 100% fiberglass Stealthbox® enclosure is coated with a durable material that is textured to match the bed.

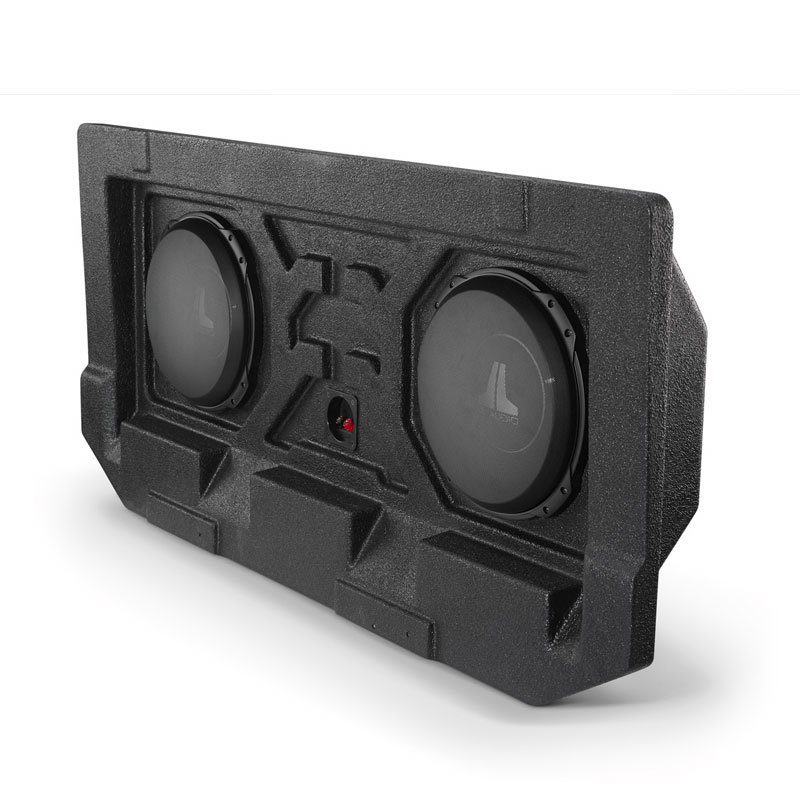

The Hard Data: Contains dual 12TW3-D4 subwoofers in a sealed enclosure. 800 watt power handling. Wired for 4 ohm mono. Replaces factory mid-gate and maintains folding function to allow access between cabin and bed. Black texture coated finish. Black steel mesh woofer grilles are included. Rear glass storage is lost. Will not fit Hummer H2 SUT.


  • Enclosure Features:
  • For 2002-2012 Chevrolet Avalanche & 2002-2009 Cadillac Escalade
  • Forward-firing design
  • Sealed fiberglass enclosure
  • Steel mesh grille included
  • Stealthbox® seamlessly replaces the factory mid-gate
  • Maintains folding function to allow access between cabin and bed
  • Black texture coated finish
  • Rear glass storage is lost
  • Will not fit Hummer H2 SUT
  • Binding post terminals for secure and sturdy connection and installation
  • OEM Color: All
  • Color Match Grade: Excellent
  • Two JL Audio 12TW3-D4 Subwoofer
  • Power Handling:
  • RMS: 800 watts total / 400 watts each
  • Recommended power range: 400 - 800 watts RMS
  • Wired to a 4 ohm load
  • Injection molded, mica-filled polypropylene cone
  • Rubber surround
  • No pole vent: permits mounting close to rear wall of enclosure.
  • Very small sealed enclosure volume requirements
  • Very long linear excursion capability
  • DMA-optimized motor designs
  • Patented "concentric tube" architecture
  • Patented "floating cone attach method" technology
  • Cast alloy frame
  • Aluminum-alloy dust cap and rear cap with JL Audio logo
  • Precision-built in USA at JL Audio's Miramar, Florida factory
  • Magnet: Single stacked
  • Frequency Response: 22-200 Hz
  • Sensitivity: 84.11 dB
  • Xmax: 15.2 mm
  • Matching Amplifier: JL Audio XD1000/1v2
  • UPC: 699440942980
  • Weight: 111
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
*JL Audio Stealthboxes are custom made, special ordered products and are not returnable after purchase.
