DX-Series Amplifiers deliver all the power, features and value you need – with an impact that’s all KICKER.
Ready for power everywhere in your ride? Easily expand your system by using the full range RCA outputs on DX Mono amps.
KICKER® amps are among the most flexible workhorses in the industry. Whether you connect them to a factory or aftermarket radio, CX amplifiers pump out the power. With the option to mount them vertically (hardware included) your mounting options are many.
DX-Series amps come loaded with FIT™ (Fail-Safe Integration Technology) circuitry for superior clarity and a wiring flexibility. Wire a KICKER amp directly to your factory radio – no special plugs or converters needed.
Your mono PX-Series amplifier is compatible with the CXARC remote control. Use it to customize your bass on the fly with just a turn of a knob!

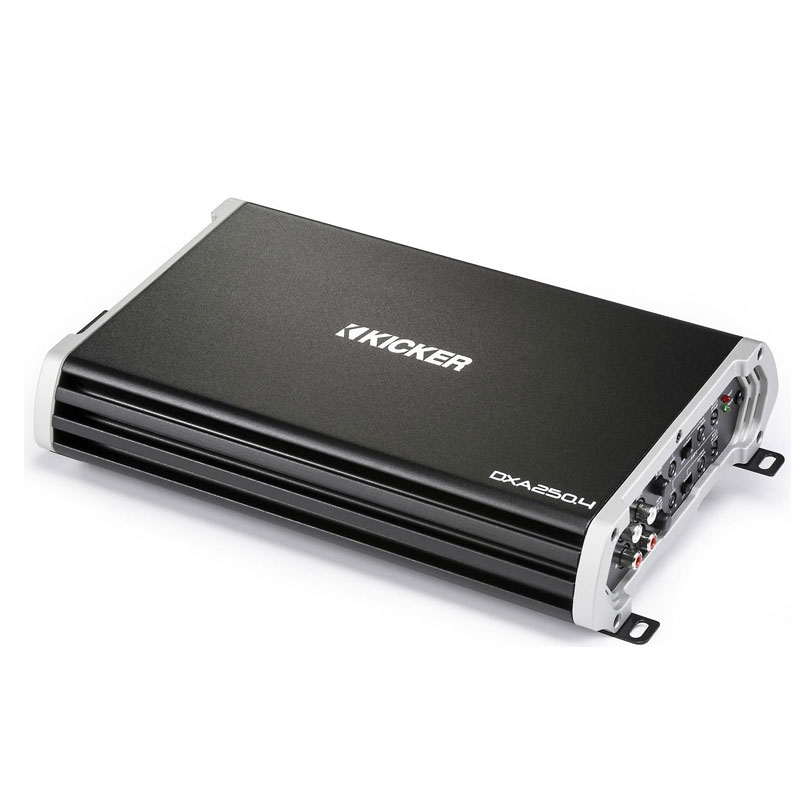

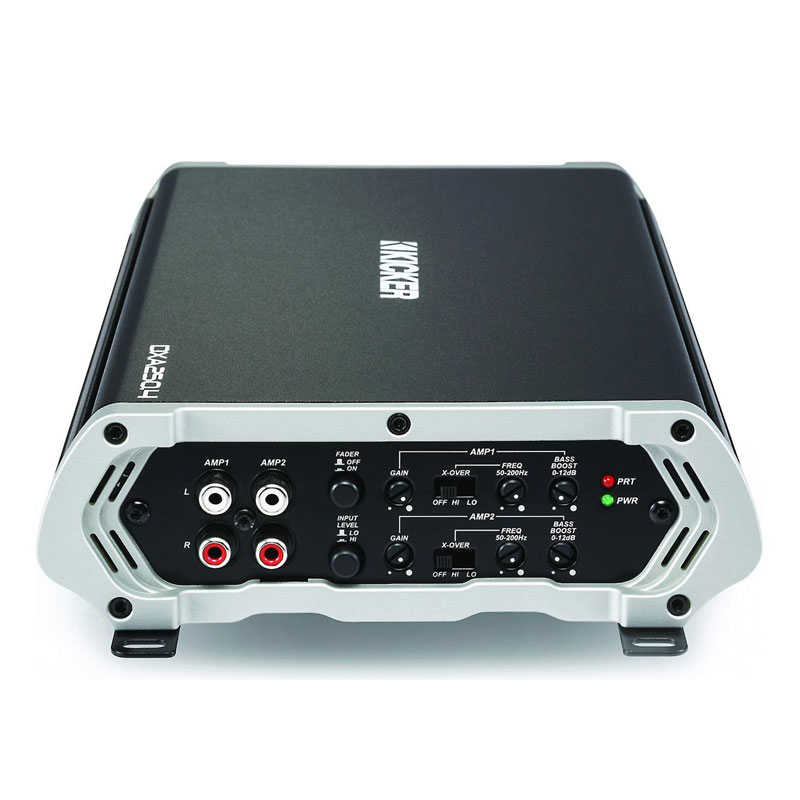

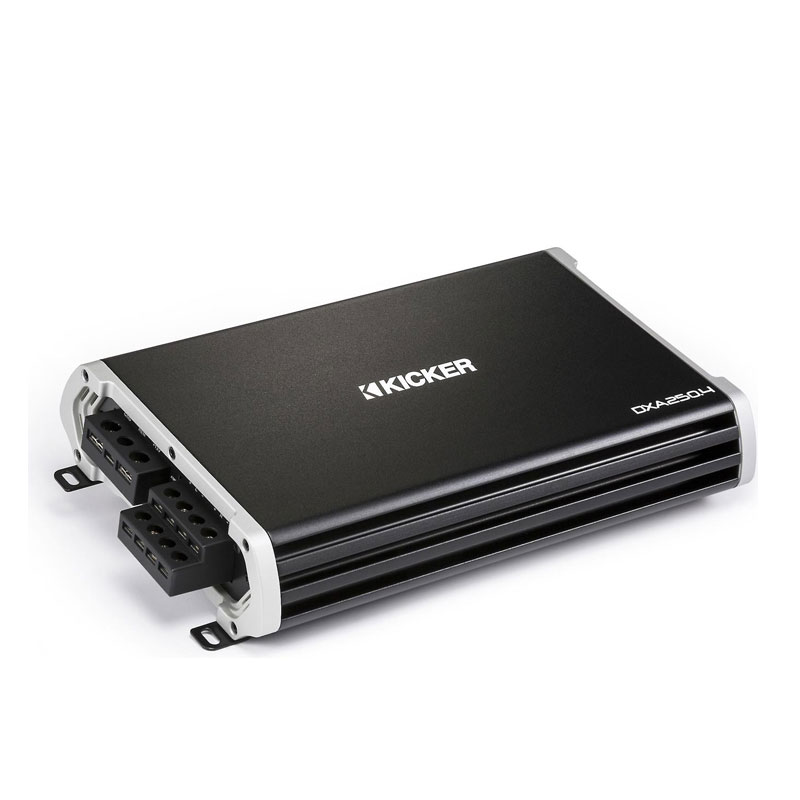

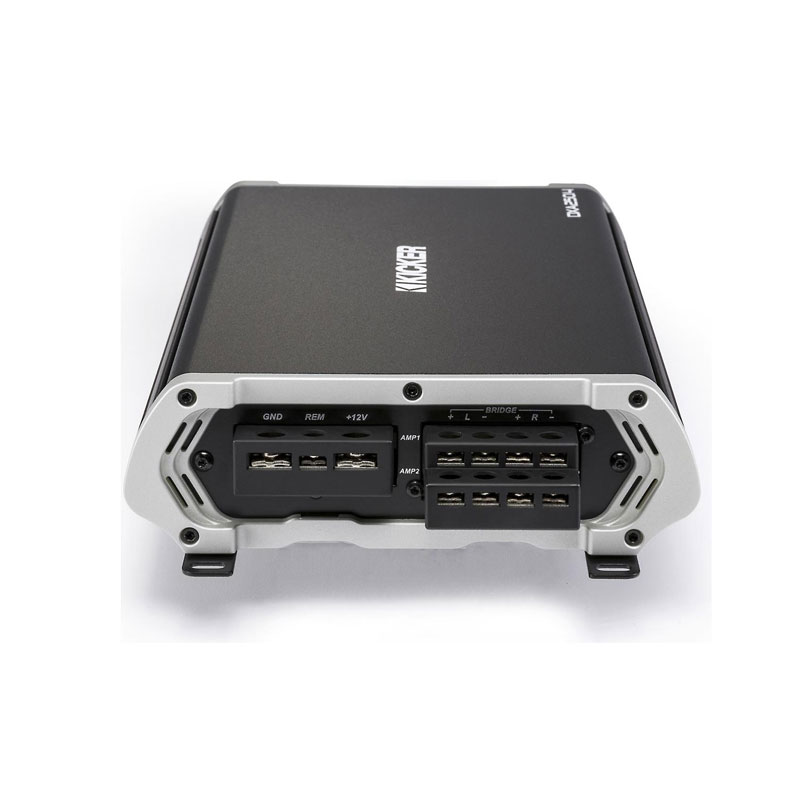

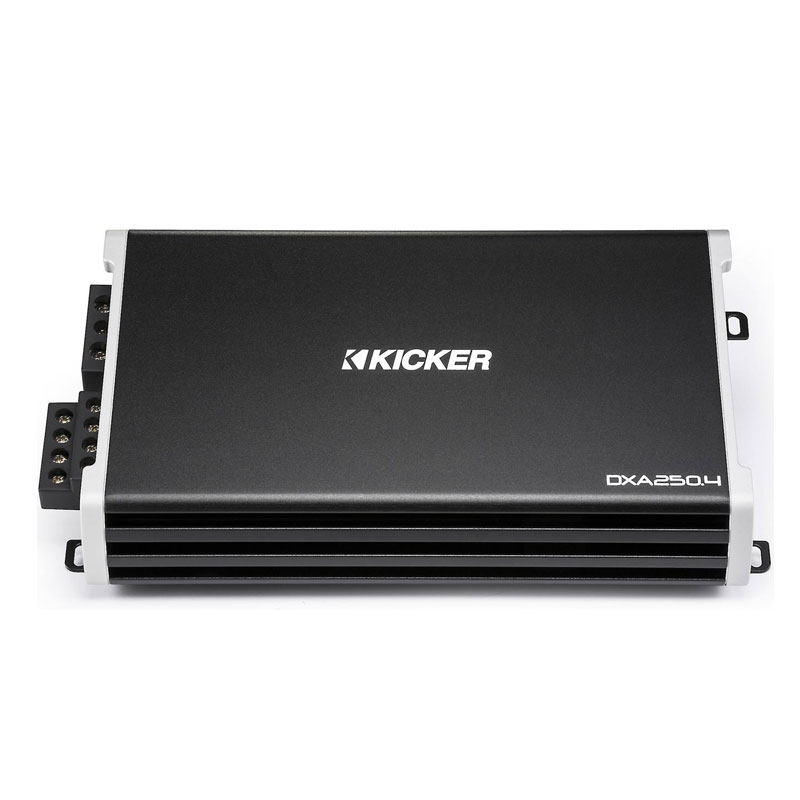

The DXA250.4 Four-Channel Amplifier is a perfect solution for all of your door speakers, or a bumpin’ three-way system for a two seater.
Use FIT™ (Fail-Safe Integration Technology) to install this amp in any ride – with or without a factory radio. For even more bass, use KickEQ™ for up to 12dB of extra bump!
This DX amplifier delivers as much as 60 watts per channel (4 channels driven), or 125 watts into two sets of bridged channels. See below for more details.
| Specifications | |
|---|---|
| Bridged Power (Watts x Channels) | 125 x 2 |
| Speaker Level Inputs | RCA |
| Best Frequency Response | 10-20k Hz |
| Power at 2 Ohms (Watts x Channels) | 60 x 4 |
| Low-Pass Crossover Frequency | 50-200 Hz |
| Width (inches) | 12-3/8 |
| High-Pass Crossover Frequency | 50-200 Hz |
| Signal to Noise Ratio | 75 dB |
| Minimum Impedance Bridged | 4 |
| Bass Boost | 0-12 dB |
| Amplifier Class | AB |
| Low-Pass Slope (dB/octave) | 12 dB/octave |
| Preamp Outputs | No |
| Fuse Rating | 60 |
| Fan Cooled | No |
| THD at Rated RMS Power | 1% |
| Input Voltage | 14.4v |
| RMS Power Output (Watts x Channels) | 30 x 4 |
| Peak Power Output (Watts x Channels) | N/A |
| Minimum Impedance Unbridged | 2 |
| High-Pass Slope | (dB/octave), 12 dB/octave |
| Bass Boost Frequency | 40 Hz |
| Height (inches) | 2-3/8 |
| Depth (inches) | 7-1/8 |
