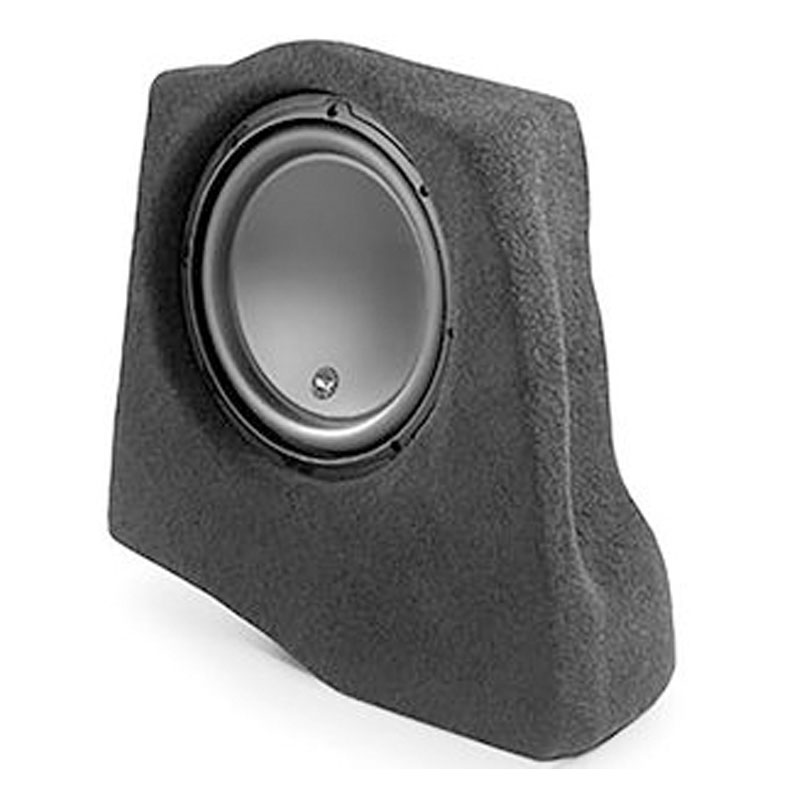

JL Audio SB-F-EDG/10W3v3 Stealthbox for 2007-2014 Ford Edge
One JL Audio 10W3v3-2 Subwoofer
Binding post terminals for secure and sturdy connection and installation
Wired to a 2 ohm load
Nitrile-butadiene rubber surround
One JL Audio 10W3v3-2 Subwoofer
OEM Color: All
Elevated frame cooling enhances power and sound quality

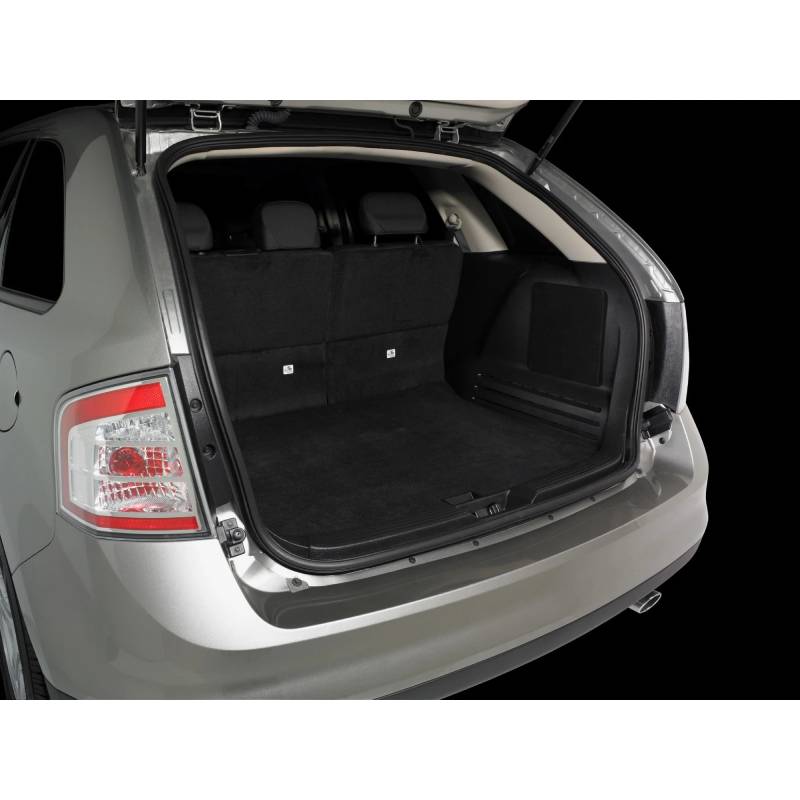

Stealthbox® Installs behind passenger side cargo area trim panel
Power Handling: RMS: 500 watts
Color Match Grade: N/A
Spider and lead wire assembly
For 2007-2014 Ford Edge / Lincoln MKX
Installation requires relocation of OEM amplifier
Floating Cone Attach Method allow the cone and surround to be aligned independently
Installation requires permanent modification to the factory trim panel
Recommended power range: 150 - 500 watts RMS
Mineral-filled polypropylene cone woofer
DMA-optimized, long linear excursion capability to virtually eliminate distortion and increase sound output
Vented reinforcement collar improves rigidity and stability of the cone, spider, and voice coil
Xmax: 14.0 mm
Sensitivity: 85.37 dB
Matching Amplifier: JL Audio JX500/1D
If equipped, removal of OEM "subwoofer" is required
Will not fit Lincoln MKX models equipped with THX® II Certified Audio System
Diameter : 10 Inch
Impedance : 2 Ohm
RMS Power Output : 500 Watts
Speaker Size : 10 Inches
Number Of Subwoofers : 1
Vehicle Make : Ford
Vehicle Make : Lincoln
Box Finish: Carpet
Impedance (Per Voice Coil): 2 ohms
Type of Enclosure: Loaded
Frequency Response: 25 - 250 Hz
Number of Subs/Speakers: 1
Xmax (millimeters): 14 mm
Compatible Vehicle Make and Model: Ford Edge, Lincoln MKX
Terminal Type: Binding posts
Subwoofer Design: Round / Circle
Box Style/Shape: Vehicle Specific
Woofer Surround: Nitrile Butadiene Rubber (NBR)
Final Wired Impedance: 2 ohms
Voice Coil(s): Single
RMS Power Handling: 500 watts
Woofer Composition: Mineral-Filled Polypropylene
Sensitivity: 85.37 dB
Subwoofer Size: 10"
Number of Terminals: 1
Box Exterior Color: Black
Box Type: Sealed
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
