DMA-optimized, long linear excursion capability to virtually eliminate distortion and increase sound output
Floating Cone Attach Method allow the cone and surround to be aligned independently
Also fits 2006-2008 "Harley-Davidson" and 2005-2014 "King Ranch" editions
OEM Color: Black (Cloth)
Mineral-filled polypropylene cone woofer
Binding post terminals for secure and sturdy connection and installation
May require relocation of the jack and removal of the jack mounting assembly for installation
For 2004-2014 Ford F-150 SuperCab, 2004-2008 SuperCrew & 2006-2008 Lincoln Mark LT with Black (cloth) interior
Sensitivity: 85.37 dB
Recommended power range: 150 - 500 watts RMS

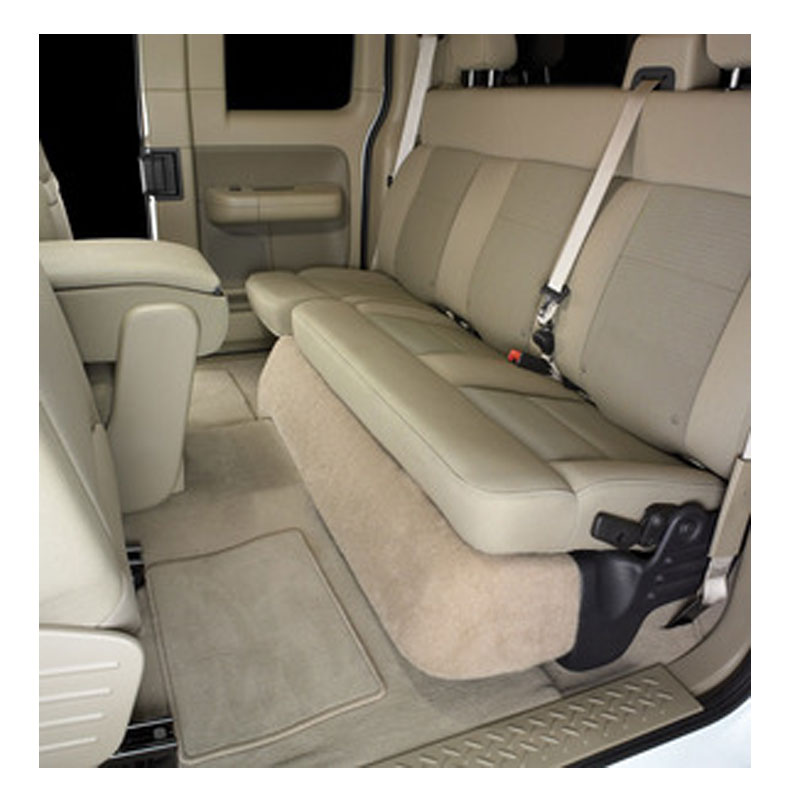

Stealthbox® Installs under the driver side rear bench seat and may raise the seat base slightly
One JL Audio 10W3v3-2 Subwoofer
Power Handling:RMS: 500 watts
Wired to a 2 ohm load
Nitrile-butadiene rubber surround
Vented reinforcement collar improves rigidity and stability of the cone, spider, and voice coil
Spider and lead wire assembly
Elevated frame cooling enhances power and sound quality
Xmax: 14.0 mm
Does not affect seat-folding functionality
Color Match Grade: Good
Diameter : 10 Inch
Impedance : 2 Ohm
RMS Power Output : 500 Watts
Speaker Size : 10 Inches
Number Of Subwoofers : 1
Vehicle Make : Ford
Vehicle Make : Lincoln

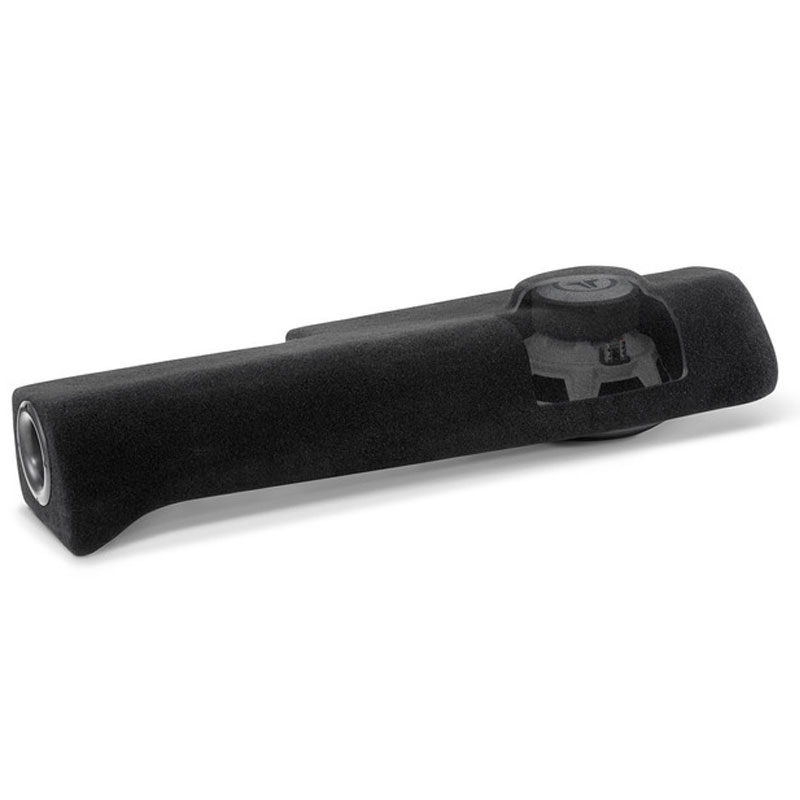

The F-150 has been Ford’s best-selling truck for almost thirty years running, so it's only fitting that the JL Audio design team create a Stealthbox® to accompany the newest model. This powerful ported subwoofer system installs under the rear seat and fills your truck with deep, rich JL Audio sub-bass performance. A powerful, down-firing 10-inch JL Audio subwoofer combines with a side-firing port to deliver outstanding output and deep bass extension.
The Hard Data: Contains one 10W3v3-2 subwoofer in a ported enclosure. 500 watt power handling. Wired for 2 ohm mono. Installs under the driver side rear bench seat and may raise the seat base slightly. Also fits '06-'08 "Harley-Davidson" and '05-'14 "King Ranch" editions. May require relocation of the jack and removal of the jack mounting assembly for installation (which also opens up space for amplifier installation). Does not affect seat-folding functionality. Please Note: “Black (leather)”, as indicated in the chart below is the OEM color/material. The Stealthbox® model that matches that OEM color is carpeted.
Final Wired Impedance: 2 ohms
RMS Power Handling: 500 watts
Type of Enclosure: Loaded
Subwoofer Size: 10"
Voice Coil(s): Single
Box Finish: Cloth
Terminal Type: Binding posts
Subwoofer Design: Round / Circle
Box Exterior Color: Black
Box Style/Shape: Vehicle Specific
Frequency Response: 25 - 250 Hz
Number of Terminals: 1
Compatible Vehicle Make and Model: Ford F-150, Lincoln Mark LT
Impedance (Per Voice Coil): 2 ohms
Woofer Surround: Nitrile Butadiene Rubber (NBR)
Woofer Composition: Mineral-Filled Polypropylene
Sensitivity: 85.37 dB
Xmax (millimeters): 14 mm
Number of Subs/Speakers: 1
Box Type: Vented / Ported
