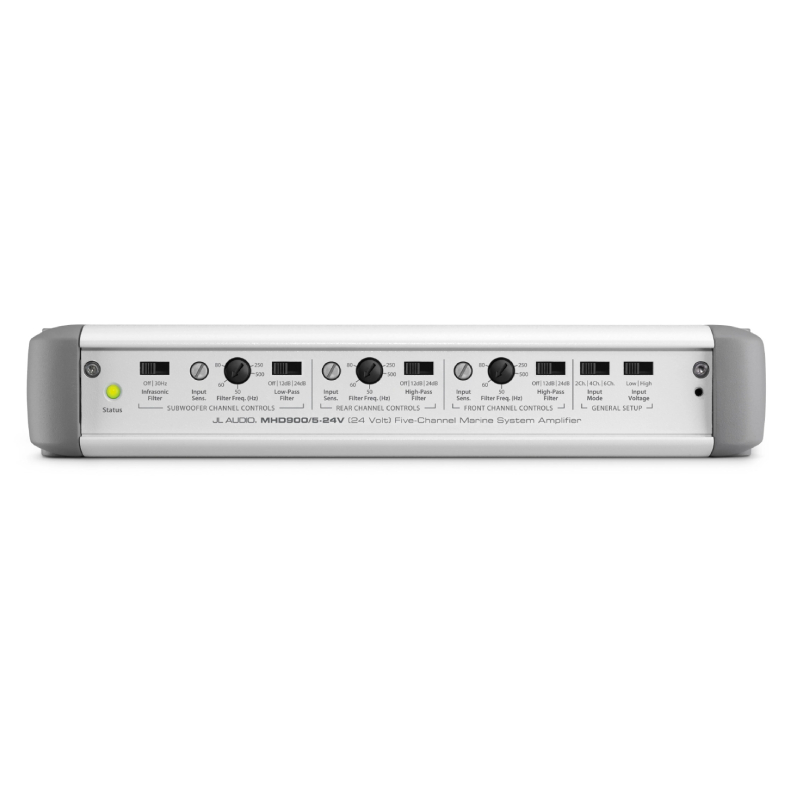

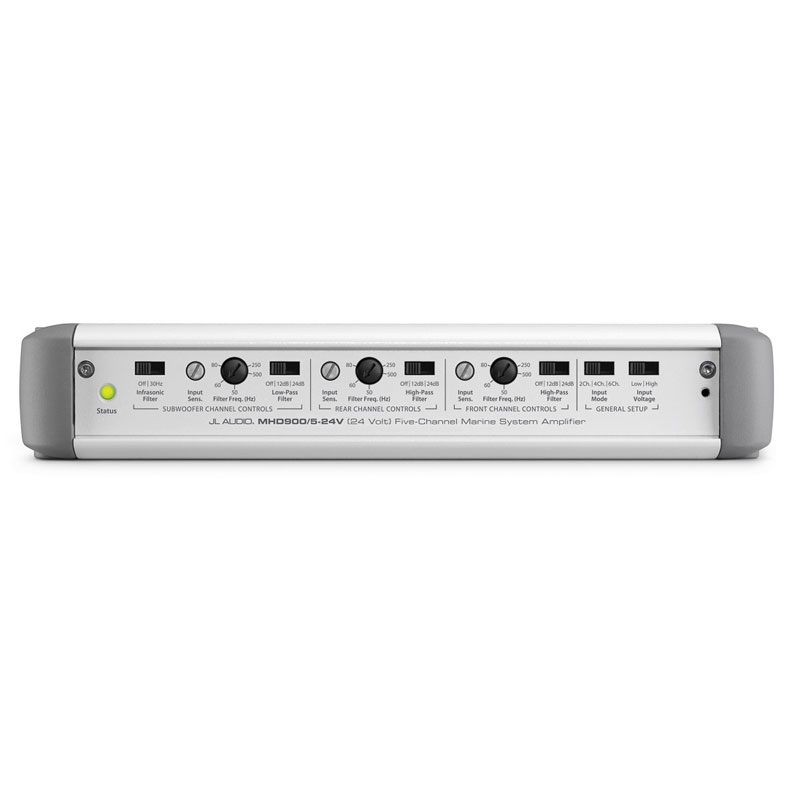

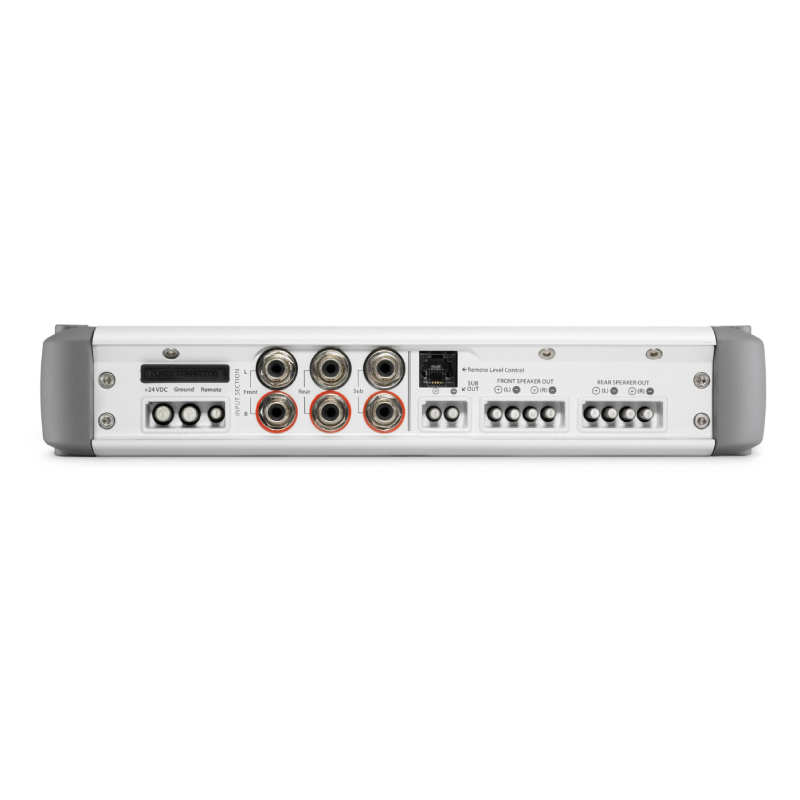

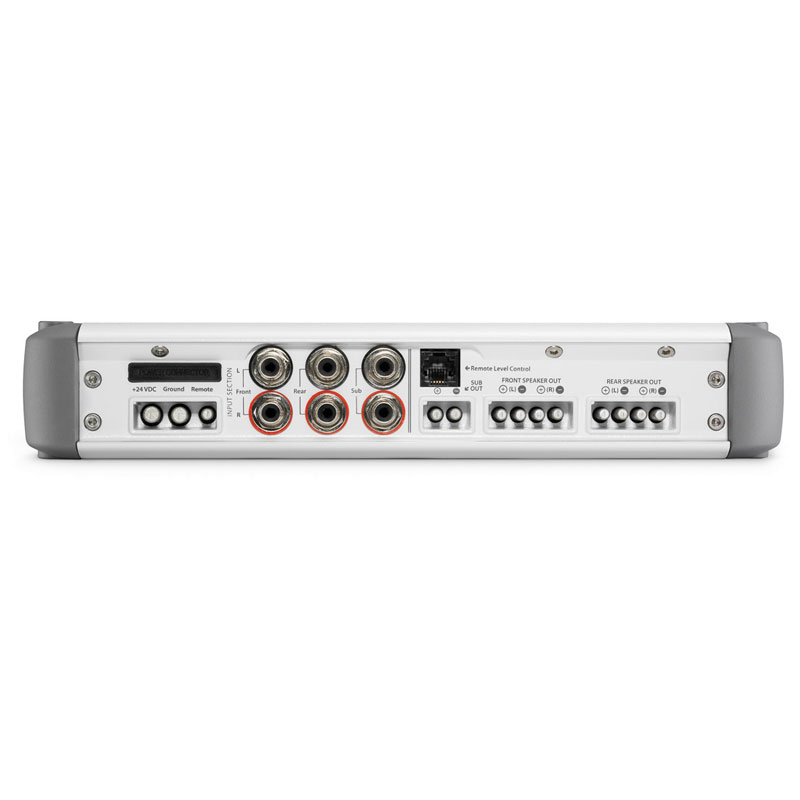

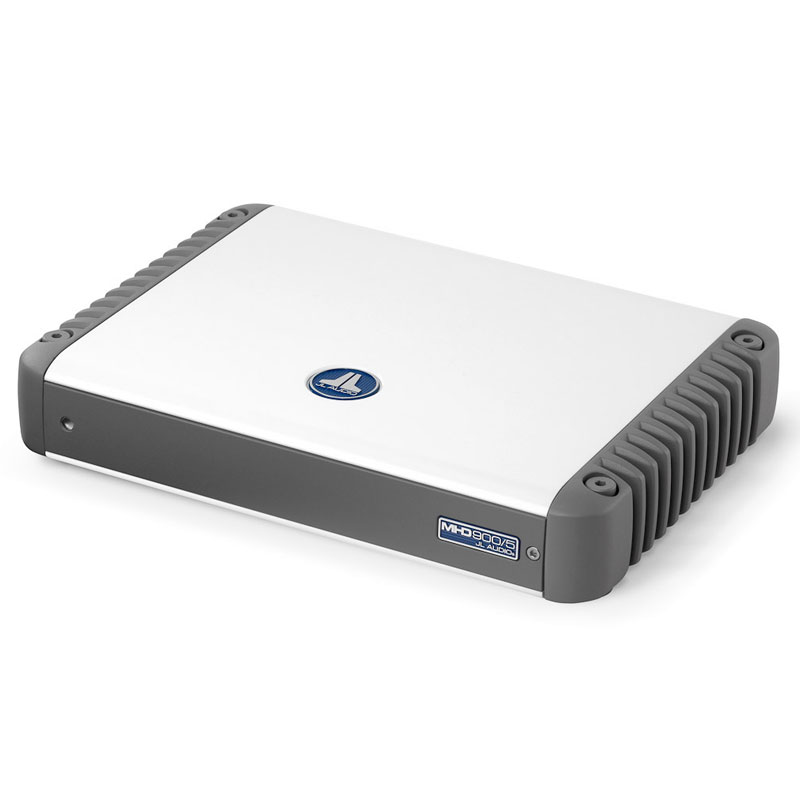

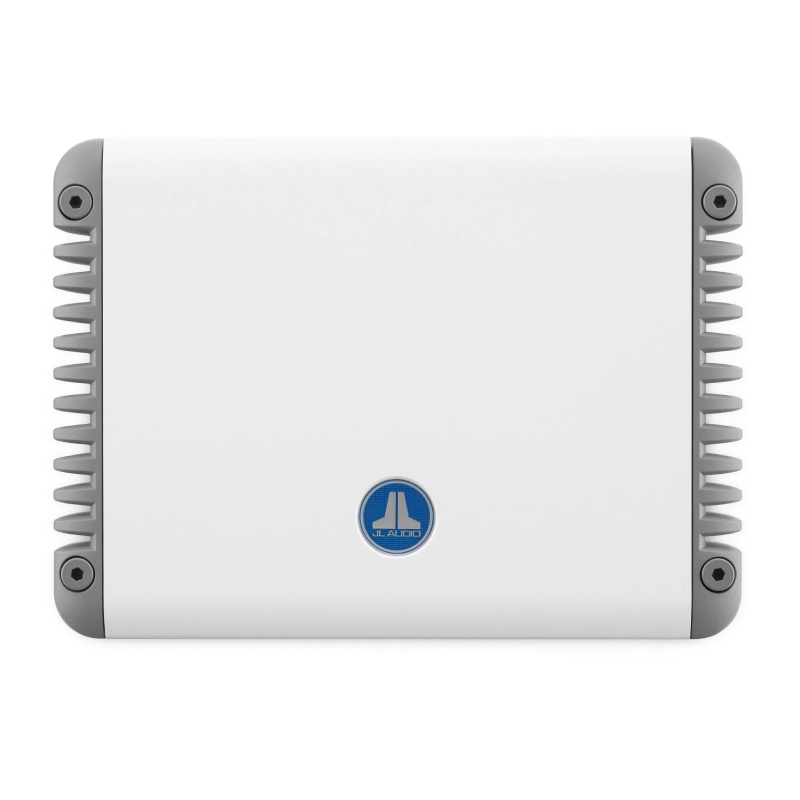

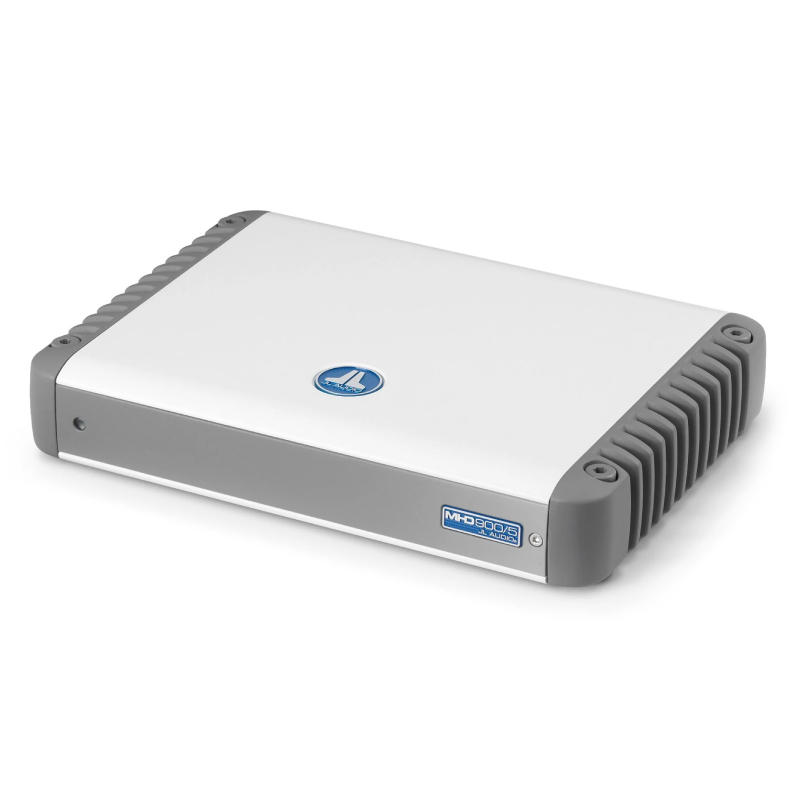

JL Audio  MHD900/5-24V

MHD Series 5-Channel 100W RMS x 4 + 500W RMS x 1 at 4 Ohms, Class-D Full-Range Marine Amplifier, For 24V Systems

Item #47707

Condition:   Brand New

Product Highlights

  • MHD Series 5-Channel Amplifier
  • 100W RMS x 4 + 500W RMS x 1 at 4 Ohms
  • Class-D Full-Range
  • Marine Amplifier
  • For 24V Systems

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$1,699.99

Reg. Price $1,749.99  Save $50.00
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

JL Audio Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


JL Audio Banner for Onlinecarstereo

JL Audio MHD900/5-24V MHD Series 5-Channel 100W RMS x 4 + 500W RMS x 1 at 4 Ohms, Class-D Full-Range Marine Amplifier, For 24V Systems


We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 5-Channel Class-D 24 Volt Marine Amplifier
  • • Power/Ground/Turn-On Plug
  • • (2) 2-Speaker Connection Plugs
  • • 1-Speaker Connection Plug
  • • (4) Mounting Feet
  • • 2.5mm Allen-Wrench
  • • 4mm Allen-Wrench
  • • (4) M4x40mm Flat Gead Machine Screws
  • • JL Audio Badge
  • Owner's Manual





Engineered for 24V Negative-Ground Systems with Optimized Power and Performance

Built to withstand the toughest marine environments, this amplifier features sleek white and gray powder-coat finishes, a gasketed control cover, and durable stainless steel hardware to ensure long-lasting performance. Designed specifically for 24V negative-ground systems, it powers a complete high-performance audio setup, driving four satellite speakers and a powerful subwoofer for an immersive sound experience on the water.

Experience Pristine Sound with Revolutionary Single Cycle Control™ Technology

Experience unmatched sound quality with the MHD750/1 amplifier, featuring revolutionary Single Cycle Control™ technology that corrects distortion over 400,000 times per second for pristine audio performance. With an impressive efficiency that reduces current draw by 60% compared to traditional Class A/B amplifiers, this compact powerhouse not only delivers superior fidelity but also generates less heat, making it the perfect choice for high-performance marine audio systems.



Unleash Consistent Power and Clarity with R.I.P.S. Technology

Transform your marine audio setup with the MHD750/1 amplifier, equipped with innovative R.I.P.S. (Regulated, Intelligent Power Supply) technology. This cutting-edge system ensures stable power delivery and minimal distortion across varying battery voltages and load impedances, providing you with reliable, high-quality sound performance for all your aquatic adventures.


SPECIFICATIONS


  • Low Frequency Response : 50-500 Hz
  • High Frequency Response : 50-500 Hz
  • Number of Channels : 5
  • Frequency Response : 12-28000 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 4x100 Watts
  • Amplifier Class : D
  • Fuse Rating : 1x30 A

FEATURES


Features:

  • 5-Channel Class D Marine System Amplifier: Designed for 24V systems only
  • Power Output: 100 W x 4 for satellite speakers + 500 W x 1 for subwoofer (Total 900 W)
  • Compact, One-Box Solution: Ideal for installations with limited space and high sound quality demands
  • Supports Complete Marine Audio System: Drives four satellite speakers and a subwoofer
  • Single Cycle Control Switching Design: Ensures efficient power delivery and superior performance
  • R.I.P.S Technology: Regulates power across various load impedances, delivering consistent high-quality sound
  • Durable Marine-Ready Construction: Features white/gray powder-coat finishes, gasketed control cover, and stainless steel hardware for harsh marine environments
  • 24V Negative Ground Operation: Compatible with 24V negative-ground electrical systems only
  • Warranty Warning: Not suitable for positive ground systems or voltages other than 24V; improper use voids warranty



Specifications:

  • RMS Power Output: 100 W x 4
  • Frequency Response at Rated RMS Power: ---
  • THD at Rated RMS Power: 0.03%
  • Signal to Noise Ratio: 108 dB
  • Input Voltage: 28.8V
  • Peak Power Output: N/A
  • Power at 2 Ohms: 75 W x 4
  • Bridged Power: 150 W x 2
  • Minimum Impedance Bridged: 3 Ohms
  • Minimum Impedance Unbridged: 1.5 Ohms
  • Amplifier Class: D
  • Low-Pass Crossover Frequency (Sub Channel): 50-500 Hz
  • Low-Pass Slope: 12 or 24 dB/octave
  • High-Pass Crossover Frequency (Front/Rear Channels): 50-500 Hz
  • High-Pass Slope: 12 or 24 dB/octave
  • Bass Boost: No
  • Bass Boost Frequency: N/A
  • Fan Cooled: No
  • Fuse Rating: 60
  • Speaker Level Inputs: Yes
  • Preamp Outputs: No
  • Dimensions (HxWxD): 2" x 10-3/4" x 9-1/2"
  • UPC: 699440982290
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
