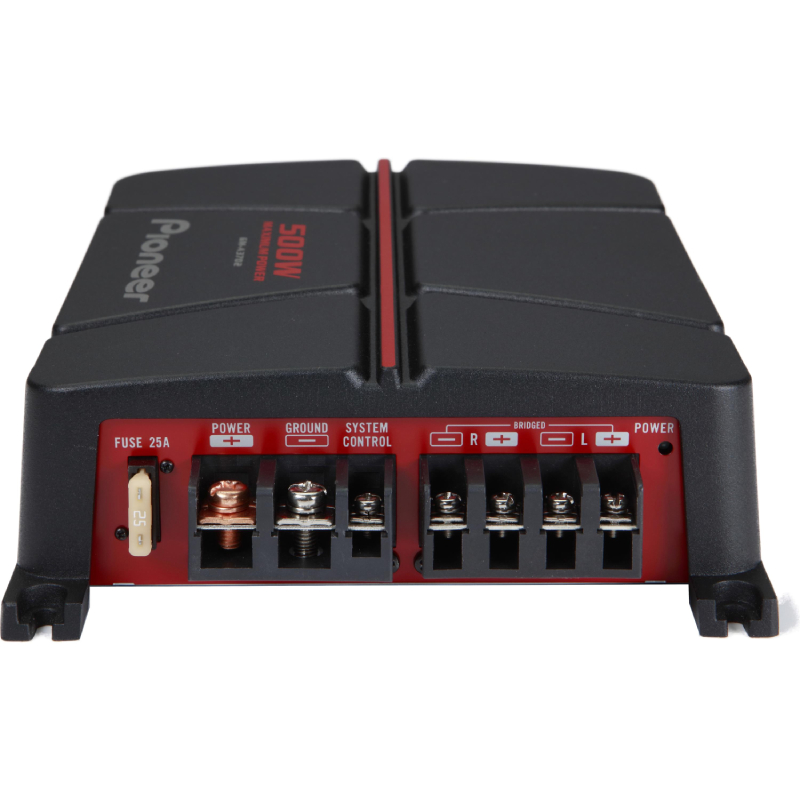

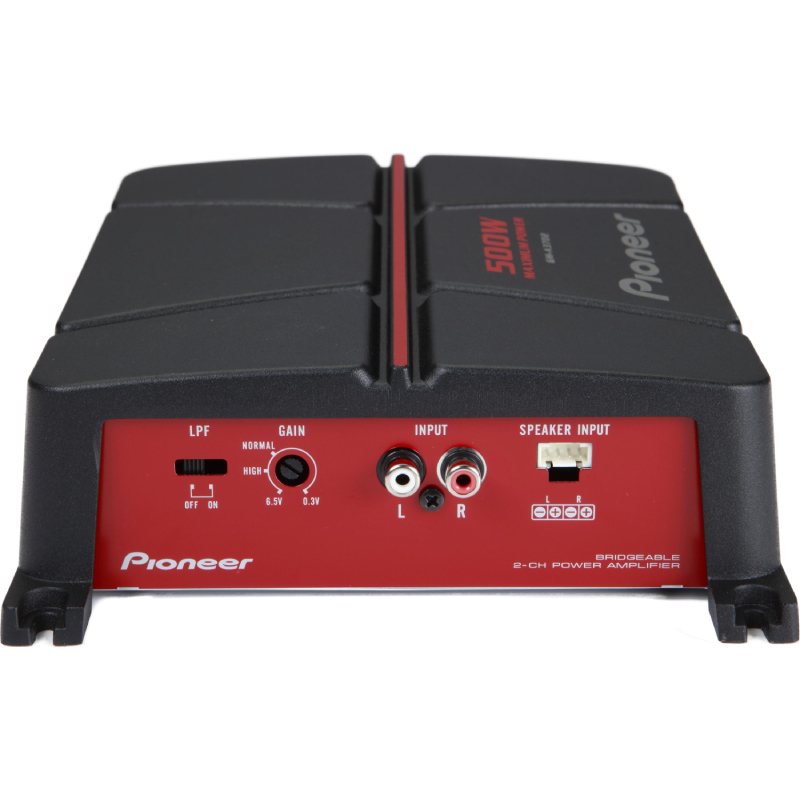

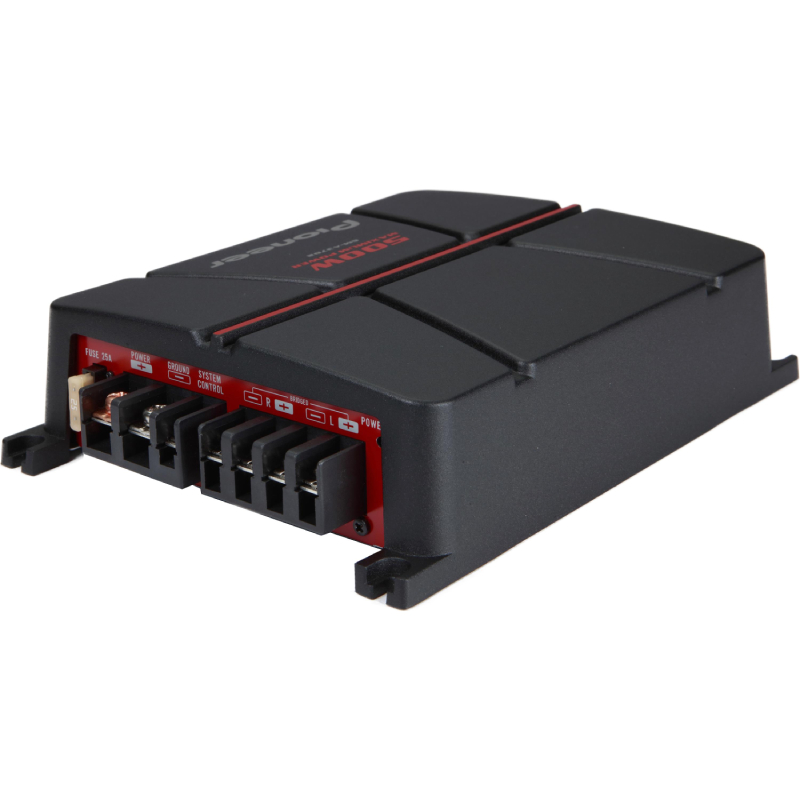

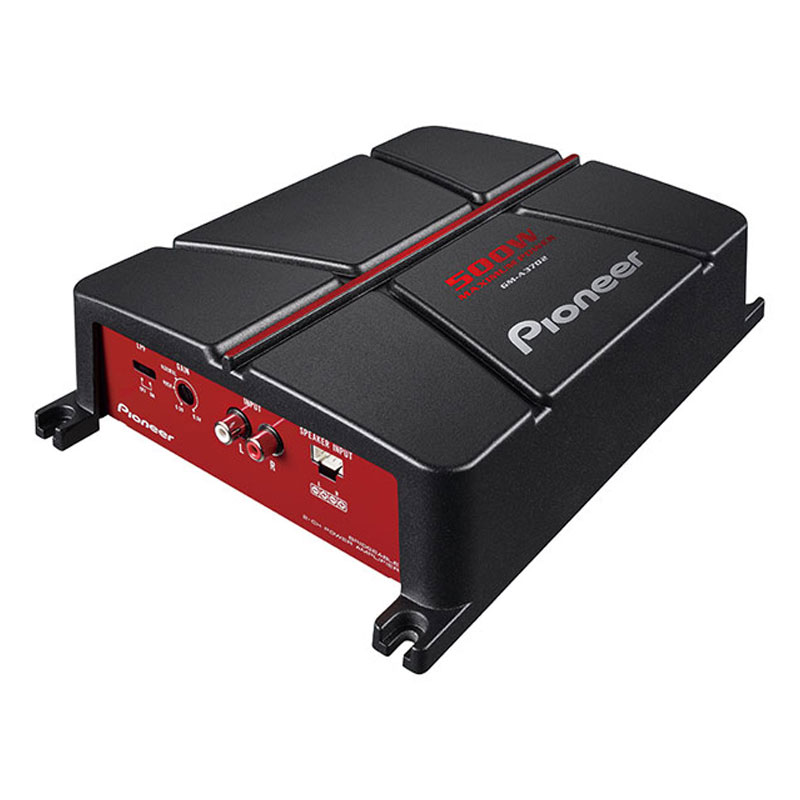

Pioneer GM-A3702 95W RMS x 2 @2Ohms, 500W Max Power Class A/B 2-channels Bridgeable Amplifier
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •2-Channel amplifier
- •25A ATO fuse (installed)
- •Speaker input harness with four 4" wires
- •4 Self-tapping screws (3/4" length)
- •1 Year Warranty sheet
- •Installation Manual
Automatic Signal Sensing and Turn-On
Enhance your car audio system with the Pioneer GM-A3702 amplifier, a powerhouse that delivers exceptional performance and amplification for your in-car sound experience. The Pioneer GM-A3702 is a two-channel bridgeable amplifier that provides a continuous power output of 95 watts at 2 ohms per channel, giving your speakers the boost they need to produce a rich and dynamic sound. Its Class AB amplifier design combines the efficiency of Class D amplifiers with the superior sound quality of Class A/B amplifiers.
Technology of the GM Series
The compact and sleek design of the Pioneer GM-A3702 allows for easy installation in various vehicles, while the advanced protection features, such as a thermal protection circuit and an overload protection circuit, ensure the amplifier's longevity and reliability.
- Maximum Power : 500 Watts
- Number of Channels : 2
- Frequency Response : 10-70000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 95x2 Watts
- Channel Separation : Yes
- Amplifier Class : A/B
- Fuse Rating : 25 A
Features:
- 500 Watts Max Power
- Automatic signal sensing and Turn-ON
- Hi-Volt input level control
- Balanced isolator input circuit
Specifications:
STANDARDS
PERFORMANCE
- Allowable Load Impedance: 2 ohm to 8 ohm allowable
- Avg Current Consumption (amps x #ch): 4 Ohm - 6.5A (1Ch) / 4 Ohm - 4A (2Ch)
- Crossover Network Channel: LPF - A Ch 80Hz
- Crossover Network Channel Slope: -12db/oct (A Ch)
- Frequency Response Channel: 10Hz to 70kHz (+0dB,-3dB) A Ch
- Fuse Rating: 25 A
- Input Level @Gain Max: 0.3 V to 6.5 V - RCA / 3.0 V to 26 V - Speaker
- Nominal Power Output: 2 Ohm - 95W x 2 / 4 Ohm - 50W x 2 / 4 Ohm Bridged - 190W x 1
- RCA Input: 2-Channel
- Signal to Noise: 78 dBA (Reference: 1 W into 4 ohm)
AMPLIFIER FEATURES
- Bridgable: Yes
- Class: A/B
- Grounding System: Negative
- Power Source: 14.4V (10.8 V to 15.1 V allowable)
- Protection Control system: Yes
- Terminal Type: Screw
- UPC: 884938340168
- Weight: 24
