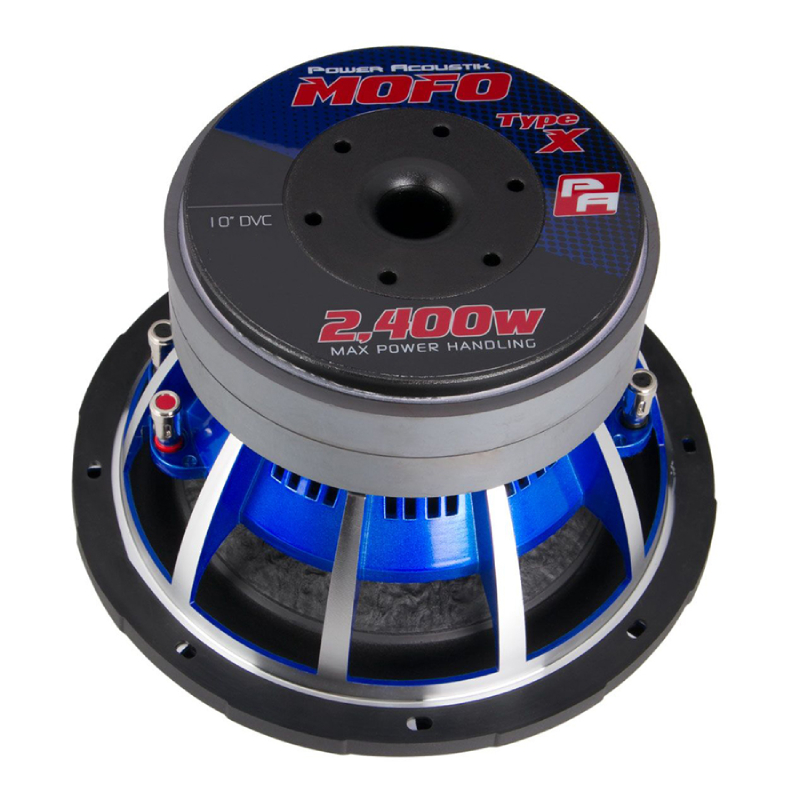

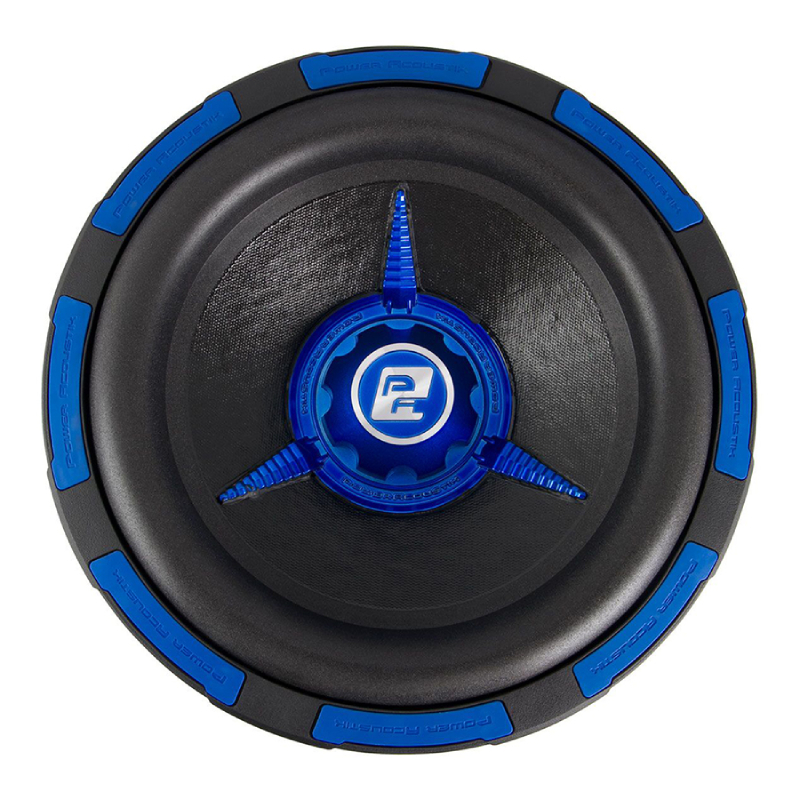

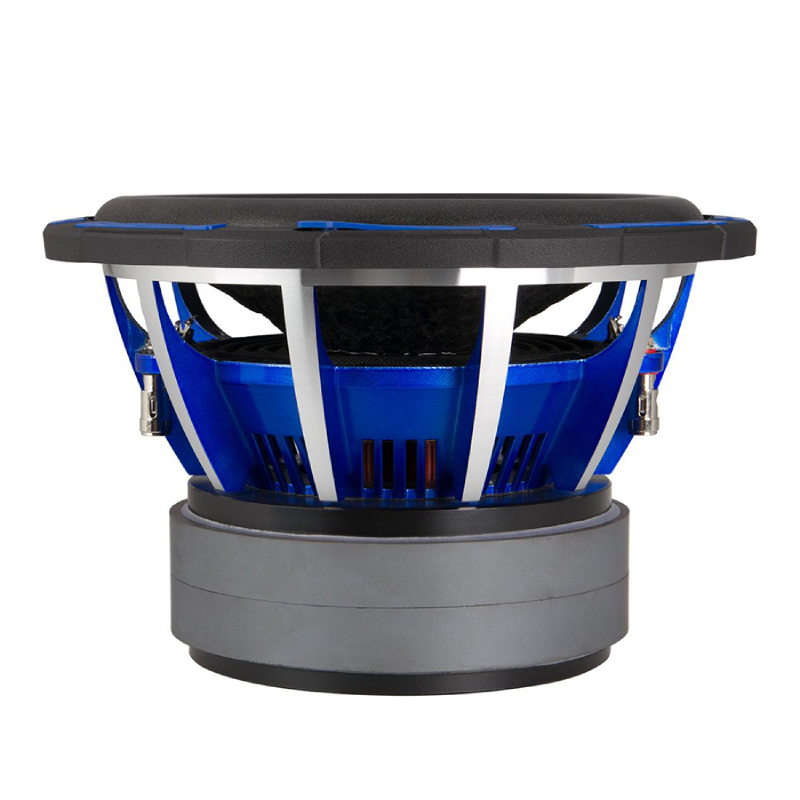

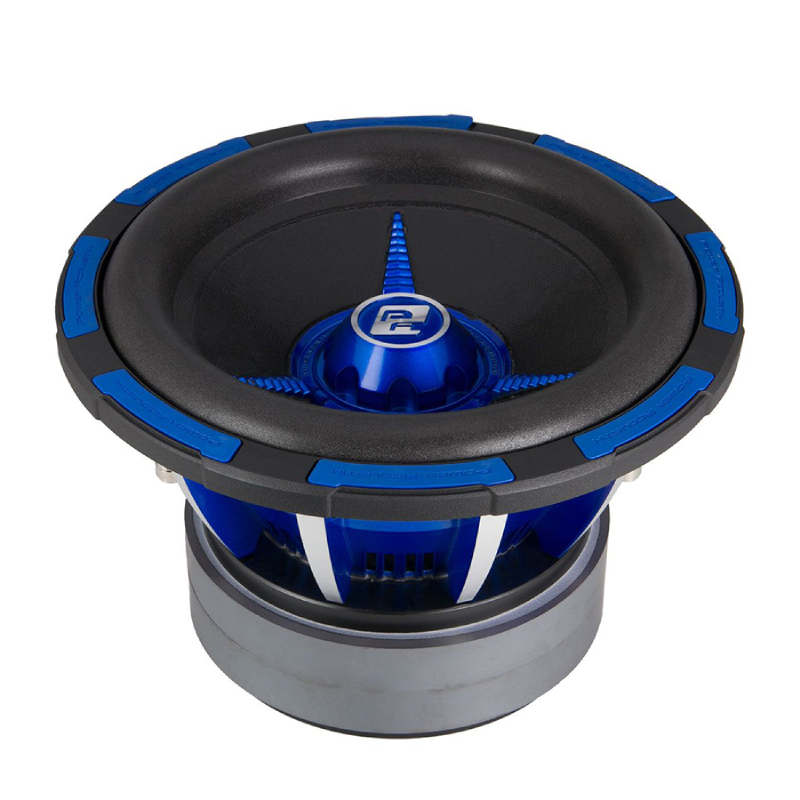

Power Acoustik  MOFO-102X

MOFO Type X Series 10" 2400W Peak Power Handling 2 Ohm, Dual Voice Coil Component Car Subwoofer

Item #47797

Condition:   Brand New

Product Highlights

  • MOFO Type X Series 10" Subwoofer
  • 2400W Peak Power Handling
  • 2-Ohm Dual Voice Coil Design
  • Deep and Powerful Bass Output
  • High-Performance Component Construction

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$126.61

Reg. Price $226.61  Save $100.00
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

Out of Stock Check out other products listed below
Power Acoustik Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Power Acoustik Banner

Power Acoustik MOFO-102X MOFO Type X Series 10" 2400W Peak Power Handling 2 Ohm, Dual Voice Coil Component Car Subwoofer


We are a Power Acoustik authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 10" 2400W 2 Ohm, Dual Voice Coil Component Car Subwoofer
  • Owner's Manual





Unparalleled Performance And Versatility

Introducing the MOFO-102X, a powerhouse subwoofer engineered to handle a staggering 2,400 watts of max power and 1,200 watts RMS, boasting an impressive efficiency rating of 83.62 dB at 1 watt per 1 meter. With its dual 2Ω voice coil configuration, massive 288oz motor volume, and a shallow mounting depth of just 6.125 inches, this sub delivers thunderous bass while fitting into tight spaces. Whether you prefer the precision of a sealed enclosure at 0.75 cubic feet or the booming resonance of a ported design at 1.25 cubic feet, the MOFO-102X ensures unparalleled performance and versatility for your car audio system.

High-Temperature Tolerance Adhesives Guarantee Thermal Resilience

Experience superior low-frequency dynamics with the 12mm T-Yoke & Top Plate and Vented T-Yoke & Frame for reduced heat build-up. The Die-cast Aluminum Heat Sink Dust Cap and Aluminum Dust Cap Fins ensure efficient heat absorption and cone reinforcement. With a Non-Magnetic Non-Resonate Die-Cast Aluminum Frame and 2.5” 4-Layer Voice Coil, this system delivers increased power handling. High-Temperature Tolerance Adhesives guarantee thermal resilience for uninterrupted performance.



Durability And Longevity

Enjoy secure connections with Nickel Plated 8ga Spring-Loaded Compression Wire Terminals. The Non-Transfer Spruce Pulp Cone and High-Density Polyether Foam Surround provide durability and longevity with UV & Chemical Protection. Experience smooth performance with Dual Poly-Cotton Suspension, while Stitched Voice Coil Leads prevent damage. Plus, installation is a breeze with the included 1-pc Gasket/Trim Ring featuring Concealed Mounting Holes for easy setup.


SPECIFICATIONS


  • Diameter : 10 Inch
  • Sensitivity : 83.62 dB
  • Impedance : 2 Ohm
  • Peak Power Handling : 2400 Watts
  • Number of Voice Coils : Dual
  • Suggested Sealed Box Volume : 0.75 Cubic ft.
  • Suggested Ported Box Volume : 1.25 Cubic ft.
  • RMS Power Handling : 1200 Watts

FEATURES


Features:

  • 12mm T-Yoke & Top Plate for enhanced low-frequency dynamics
  • Vented T-Yoke & Frame to reduce heat build-up in the voice coil
  • Die-cast Aluminum Heat Sink Dust Cap for efficient heat absorption
  • Aluminum Dust Cap Fins for heat dissipation and cone reinforcement
  • Non-Magnetic Non-Resonate Die-Cast Aluminum Frame for structural integrity
  • 2.5” 4-Layer Voice Coil with Large Gauge Wire for increased power handling
  • High-Temperature Tolerance Adhesives to resist thermal failure
  • Nickel Plated 8ga Spring-Loaded Compression Wire Terminals for secure connections
  • Non-Transfer Spruce Pulp Cone with UV & Chemical Protection for durability
  • High-Density Polyether Foam Surround with UV & Chemical Protection for longevity
  • Dual Poly-Cotton Suspension to dampen violent accelerations
  • Stitched Voice Coil Leads to prevent potential damage
  • 1-pc Gasket/Trim Ring with Concealed Mounting Holes Included for easy installation.



Specifications:

  • Model: MOFO-102X
  • Max Power Handling: 2,400 Watts
  • RMS Power Handling: 1,200 Watts
  • Efficiency (1w/1m): 83.62
  • Voice Coil Configuration: 2.50" Dual 2Ω
  • Motor Volume: 288oz
  • Mounting Depth: 6.125"
  • Optimum Sealed Enclosure ft^3: 0.75
  • Optimum Ported Enclosure ft^3: 1.25



Recommended Enclosure Specifications:

  • Recommended Enclosure Type: Ported / Vented or Sealed
  • Optimum Sealed Box Volume: 0.75 cubic feet
  • Optimum Ported Box Volume: 1.25 cubic feet
  • Top-Mount Depth (Mounting Depth): 6.125"
  • Cutout Diameter: 9.125"
  • Shallow Mount Installation: No



Electromechanical Parameters:

  • Free-Air Resonance (Fs): 29.63 Hz
  • Equivalent Compliance (Vas): 0.896 liters
  • Total Speaker Q Value (Qts): 0.42
  • Electrical Q Value (Qes): 0.45
  • Electrical Resistance of Voice Coil (Re): 7.24 ohms
  • Mechanical Q Value (Qms): 5.06
  • UPC: 709483032088
  • Weight: 24
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
