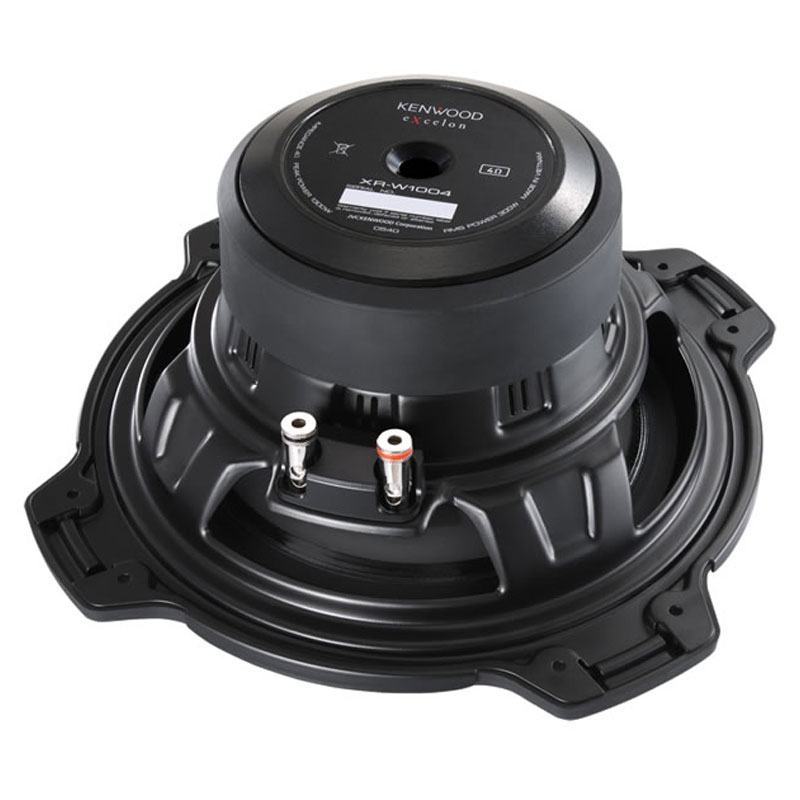

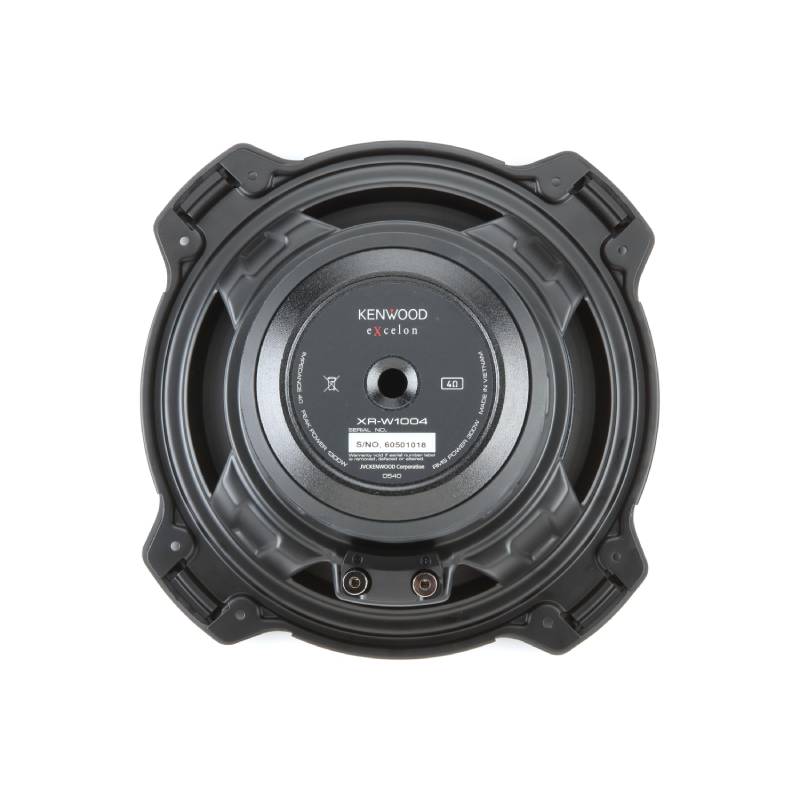

Kenwood Excelon XR-W1004 Excelon Series Oversized Component Subwoofer
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •One 10" Subwoofer
- •Eight 1-3/8" Screws
- •Adhesive backed foam gasket
- •Cardboard template
- •Warranty information
- •Specs on box lid
- •Owner's Manual
Larger Cone Size
Low frequency output is increased because of a larger cone size. The cutout diameter has remained the same making this feature of the new XR woofers ideal for most vehicles where space is a premium. The XR woofers are ideal for a small sealed box.
Reinforcing Ribs (Cone)
The newly designed cone features ribbing that adds strength to the cone and minimizes distortion.
Strong Magnetic Circuit
Our engineers designed a strong magnetic circuit with the purpose of reproducing deep low frequencies. Their efforts employed a large magnet and optimized yoke.
Stress-free Spider
By adopting a "Stress-free Spider" and a "Thermal Efficient System" the mechanical and thermal durability has been improved dramatically delivering smooth and strong bass sound with long lasting reliability.
- Diameter : 10 Inch
- Sensitivity : 82 dB
- Impedance : 4 Ohm
- Frequency Response : 31-300 Hz
- Peak Power Handling : 1300 Watts
- Top Mount Depth : 4-13/16 Inches
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 0.55 Cubic ft.
- Suggested Ported Box Volume : 0.9 Cubic ft.
- RMS Power Handling : 300 Watts
- Model Name XR-W1004
- Nominal Impedance 4 ohms
- Power Rating 1300 watts peak
- 300 watts peak
- Recommended Power Range 150 - 300 RMS
- Frequency Response 31 - 300 Hz
- Sensitivity 82 dB
- Surround Rubber
- Diaphragm PP Cone
- Basket Steel Basket
- Magnet Ferrite
- UPC: 019048215901
- Weight: 11.5
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
