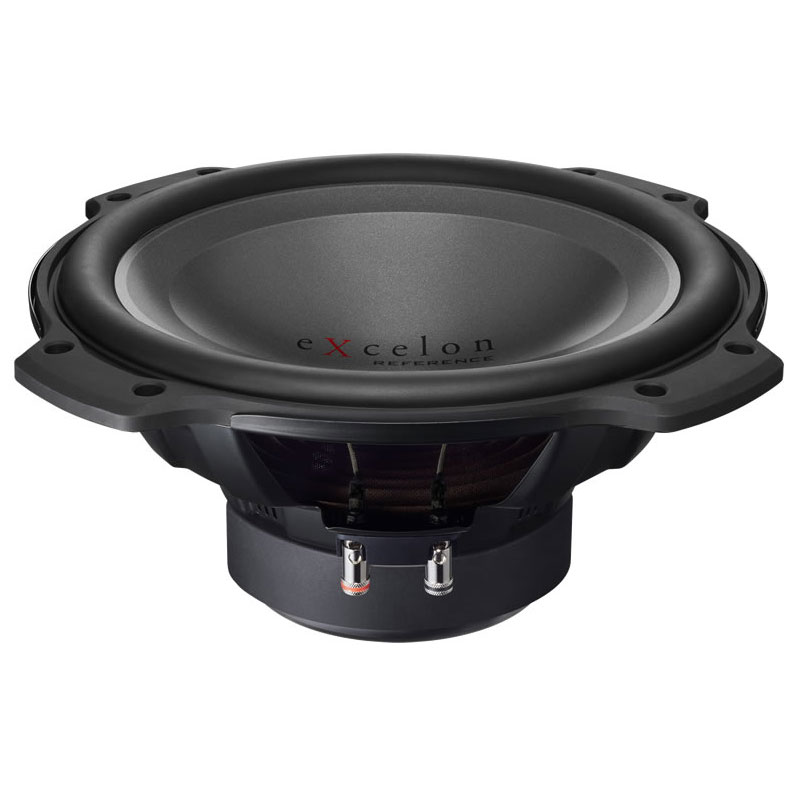

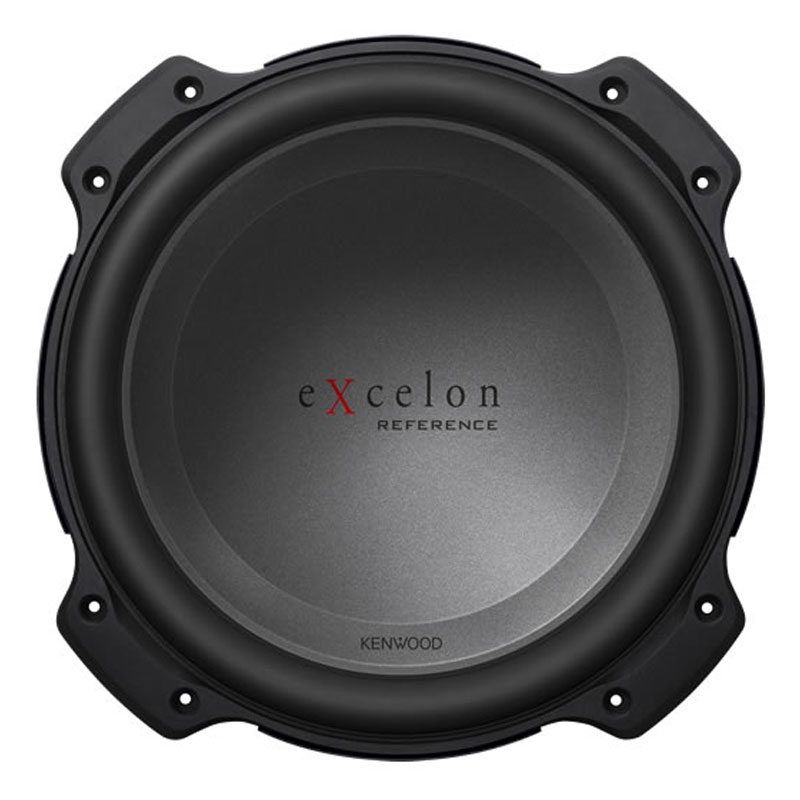

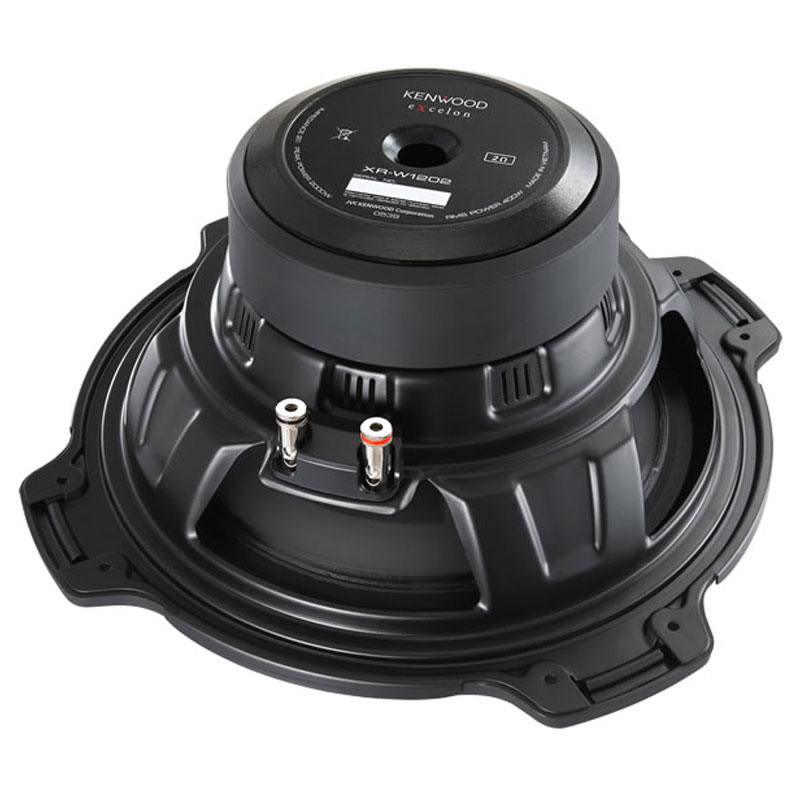

Kenwood Excelon XR-W1202 Oversized Component Subwoofer
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •One 10" Subwoofer
- •Eight 1-3/8" Screws
- •Adhesive backed foam gasket
- •Cardboard template
- •Warranty information
- •Specs on box lid
- •Owner's Manual
Larger Cone Size
Low frequency output is increased because of a larger cone size. The cutout diameter has remained the same making this feature of the new XR woofers ideal for most vehicles where space is a premium. The XR woofers are ideal for a small sealed box.
Reinforcing Ribs (Cone)
The newly designed cone features ribbing that adds strength to the cone and minimizes distortion.
Strong Magnetic Circuit
Our engineers designed a strong magnetic circuit with the purpose of reproducing deep low frequencies. Their efforts employed a large magnet and optimized yoke.
Stress-free Spider
By adopting a "Stress-free Spider" and a "Thermal Efficient System" the mechanical and thermal durability has been improved dramatically delivering smooth and strong bass sound with long lasting reliability.
- Diameter : 12 Inch
- Sensitivity : 81 dB
- Impedance : 2 Ohm
- Frequency Response : 33-300 Hz
- Peak Power Handling : 2000 Watts
- Top Mount Depth : 5-5/8 Inches
- Shallow Mount : No
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 0.88 Cubic ft.
- Suggested Ported Box Volume : 1.5 Cubic ft.
- RMS Power Handling : 400 Watts
- Model Name XR-W1202
- Nominal Impedance 2 ohms
- Power Handling 2000 watts peak
- 400 watts RMS
- Recommended Power Range 200 - 400 RMS
- Frequency Response 33Hz - 300Hz
- Sensitivity 81dB
- Woofer Size Oversized 12"
- Diaphragm PP Cone
- Surround Rubber
- Basket Steel
- Magnet Ferrite
- Special Feature Dual Ventilation System
- Oversized Cone
- Stress-Free Damper
- Rubber Magnet Cover
- 8AWG Push Terminal
- UPC: 0019048215895
- Weight: 15
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
