Rockford Fosgate PMX-3 2.7" Display Marine Compact Digital Media Receiver with Built-In Bluetooth and SiriusXM Ready (Does Not Play CDs)
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

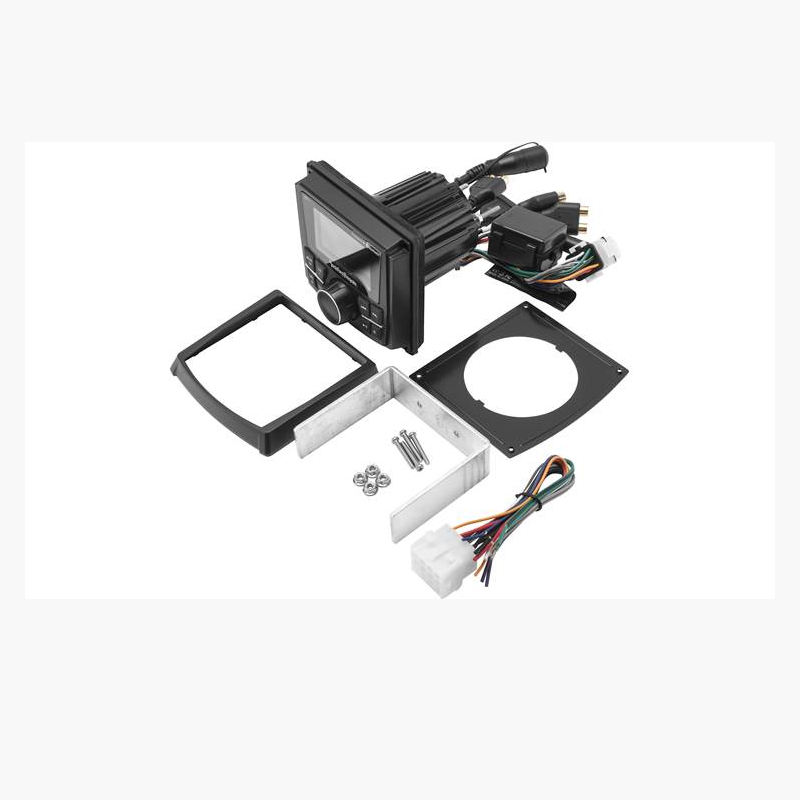

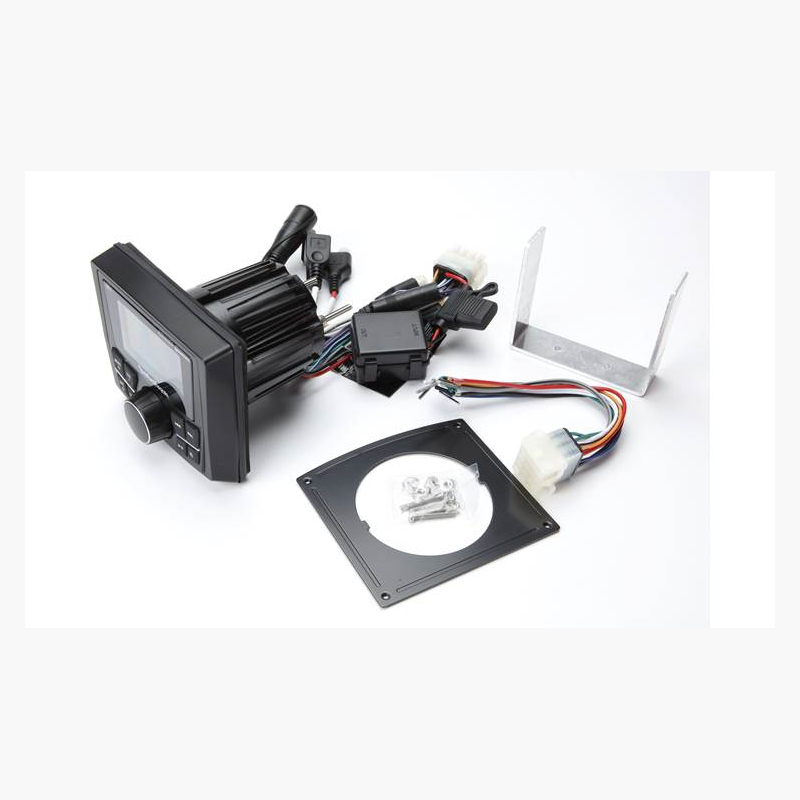

What's Inside?
- • Marine Digital Media Receiver
- • Trim-Ring
- • Mounting Plate
- • Mounting Bracket
- • Wiring Harness
- • Backstrap
- • (4) Machine Screws
- • (4) Hex-Nuts
- • Owner's Manual
Why Choose Rockford Fosgate PMX-3 Marine Receiver?
Built for the Elements and Ready for Anything
The Rockford Fosgate PMX-3 Marine Compact Digital Media Receiver is made for environments where ordinary head units would not last. Designed with Element Ready protection, it stands strong against water, dust, UV exposure, and vibration so you can enjoy your music whether you are on the road, trail, or out on the water. It is a compact control hub that brings reliability and performance together in one tough package.
Bright Display and Seamless Media Control
The 2.7 inch optically bonded TFT display is easy to read even under direct sunlight, giving you clear access to your music and system settings at a glance. Built-in Bluetooth lets you stream wirelessly while controlling tracks and viewing album information right from the screen. You also get USB playback, direct smartphone connectivity, and auxiliary input support so you can connect just about any device and keep your music going without limits.
Full System Control With Powerful Audio Tuning
This receiver is not just about playback, it gives you full control over your sound. With a 7-band equalizer, selectable crossovers, and Punch EQ, you can fine-tune your system to match your listening style. It also includes AM FM and weather band radio, plus compatibility with SiriusXM and Pandora for expanded entertainment options. With built-in MOSFET amplification, preamp outputs for system expansion, camera input support, and smart voltage monitoring, the PMX-3 becomes the command center that keeps your entire audio setup running smooth and sounding great.
Frequently Asked Questions (FAQ)
- • Why is the FM reception weak or unable to hold local stations?
Some owners have reported poor FM reception, particularly on boats and motorcycles. Check the antenna connection first; an external antenna may be needed for stronger reception in weak-signal areas.
- • Why won't the receiver turn on?
Check the fuse, battery voltage, ground, and wiring connections. The unit requires approximately 10.5–16 volts, so insufficient or excessive voltage can prevent normal operation.
- • Why isn't my USB drive being recognized?
Make sure the USB connection is secure and the drive is compatible. The receiver supports USB storage but does not support Android devices through USB, and damaged or loose connectors can also cause recognition problems.
- • Why does the display say "No File" when my USB drive is connected?
The drive may not contain supported MP3 or WMA files. Check the file format and folder structure, then try another properly formatted USB drive if necessary.
- • Why does music from USB skip or sound noisy?
Incorrectly encoded MP3 or WMA files can cause skipping and noise. Try properly encoded files and test another USB device to determine whether the problem is with the media or receiver.
- • Why won't my phone connect reliably through Bluetooth?
Older Bluetooth versions or compatibility issues can sometimes interfere with pairing and streaming. Remove the receiver from the phone's Bluetooth list, pair it again, and check for available software updates.
- • Why does SiriusXM show "Check Antenna"?
The message can indicate a disconnected, damaged, or kinked antenna cable. Check the SiriusXM tuner connection and inspect the antenna cable for damage before replacing components.
- • Why can't I get SiriusXM channels even though the tuner is connected?
Check the SiriusXM subscription, antenna placement, and tuner connection. Messages such as "Channel Not Subscribed" or "Channel Not Available" can be related to the service rather than the receiver itself.
- • Why is the touchscreen or display difficult to use in certain conditions?
The compact 2.7-inch display is designed for marine use, but some user feedback notes that display responsiveness can vary in certain lighting situations. Keep the screen clean and check the unit's software version.
- • Why is there no sound even though the receiver appears to be working?
Check the source selection, volume, mute settings, RCA connections, speaker wiring, and amplifier connections. If the display works but there is no audio, test another source to isolate the signal path.
- Satellite Radio Ready : Yes
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Color : Black
Features:
- Element Ready Marine Certified Digital Media Control Hub: The Rockford Fosgate PMX-3 is engineered for extreme environments with protection against dust, UV exposure, water intrusion, corrosion, temperature fluctuations, and vibration, ensuring consistent performance in marine and motorsports applications.
- High Visibility Optically Bonded TFT Display Interface: Features a 2.7 inch color LCD with optical bonding technology for enhanced sunlight readability while preventing moisture and dust intrusion, paired with adjustable brightness settings for optimal viewing.
- Integrated Bluetooth Audio Streaming and Media Control: Supports wireless playback via Bluetooth with AVRCP compatibility, enabling track control, metadata display including album art, and browsing of music libraries from compatible smart devices.
- Multi Source Playback and Device Integration System: Includes USB input for MP3 and WMA playback, direct iPod and iPhone connectivity with full control and charging, and auxiliary RCA input for external audio sources.
- Advanced Audio Tuning and Equalization Suite: Equipped with a 7 band equalizer, multiple preset sound profiles, Punch EQ enhancement, and selectable high pass and low pass crossovers for precise system tuning.
- Built In AM FM and Weather Band Tuner Capability: Provides access to radio entertainment with preset storage, local and distance tuning modes, and integrated weather band frequencies for real time environmental updates.
- SiriusXM Ready and Pandora Streaming Integration: Compatible with SiriusXM tuner for satellite radio expansion and supports Pandora control with station management, track interaction, and on screen information display.
- MOSFET Powered Internal Amplification Section: Delivers 25 watts RMS x 4 channels with efficient low distortion performance and 4 volt preamp outputs for external amplifier integration.
- Flexible Connectivity with Camera and Remote Expansion Support: Offers composite video input for backup camera integration, wired remote compatibility for multi zone control, and configurable rear or subwoofer pre outputs.
- Smart System Monitoring and Memory Retention Features: Includes onboard voltage display with warning alerts and EEPROM memory to retain user settings even after power loss.
Specifications:
- Pandora® Internet Radio (Yes/No): Yes
- SiriusXM-Ready® (Yes/No): Yes
- USB Charging (Yes/No): Yes
- Bluetooth® (Yes/No): Yes / 3.0+EDR, A2DP 1.3
- Apple®/Android™ Compatible (Yes/No):
- Yes
- Limited functionality on Android. See owners manual.
- Steering Wheel Control Ready (Yes/No): No
- Clock (Yes/No): No
- Multi-Zone/Multi-Source (Yes/No): No
- Speaker Outputs (Yes/No): Yes
- AUX Input (Yes/No): Yes (1pr)
- Frequency Range: 87.5 MHz - 107.9 MHz
- Number Of Presets: 18 FM / 12 AM / 6 WB
- Frequency Range: 530 kHz - 1710 kHz
- Sensitivity: 8 dB
- Usable Sensitivity: 40 dB
- RCA Output Voltage:
- 2V RMS
- Does not clip at full output
- RCA OUTPUTS:
- (1 pr) Front
- (1 pr) Rear (or Sub-out)
- Frequency Range: 162.40 - 162.55 (US & Canada)
- RCA Output Impedance: 500 Ohms
- Speaker Impedance: 2-Ohms
- Power Output
- CEA-2006 Power Rating
- 25W x 4 @ 4? RMS
- 50W x 4 @ 2? Peak
- ≤1.0% THD+N
- Device Type: Digital-Media Receiver
- Frequency Response: 20 Hz - 20 kHz
- Audio Format Compatibility
- Made for iPod Models:
- iPod Touch (5th generation)
- iPod Touch (4th generation)
- iPod Nano (7th generation)
- iPod Nano (6th generation)
- Made for iPhone ModelsiPhone XS (pending)
- iPhone XS Max
- iPhone XR (pending)
- iPhone X
- iPhone 8
- iPhone 8 Plus
- iPhone 7
- iPhone 7 Plus
- iPhone 6s
- iPhone 6s Plus
- iPhone 6
- iPhone 6 Plus
- iPhone 5S
- iPhone 5C
- iPhone 5
- iPhone 4
- iPhone 4S
- Phone 3GS
- Android Compatibility: Bluetooth® Only
- USB Capacity
- 32Gb max
- 999 Folders max
- 999 Songs max
- USB Version: 2.0
- USB Output Current: 1A
- Compatible Remotes
- PMX-1R
- PMX-0R
- (3 Remote Limit, 100 ft Total Wired Distance)
- Operating Voltage: 10.5 V - 16 V
- Display Size: 2.7” Color TFT
- Back Panel Cutout: 3" (77mm)
- Fuse Rating: 20 A
- Dimensions (HxWxD)
- Width 4.5" (11.5cm)
- Face Depth 1.5" (3.8cm)
- Mount Depth 2.9" (7.4cm)
- Height 4.2" (10.6cm)
- UPC: 780687350635
- Weight: 4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
