Rockford Fosgate PMX-5CAN 2.7" Punch Marine AM/FM/WB Digital Media Receiver Display with CAN Bus
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

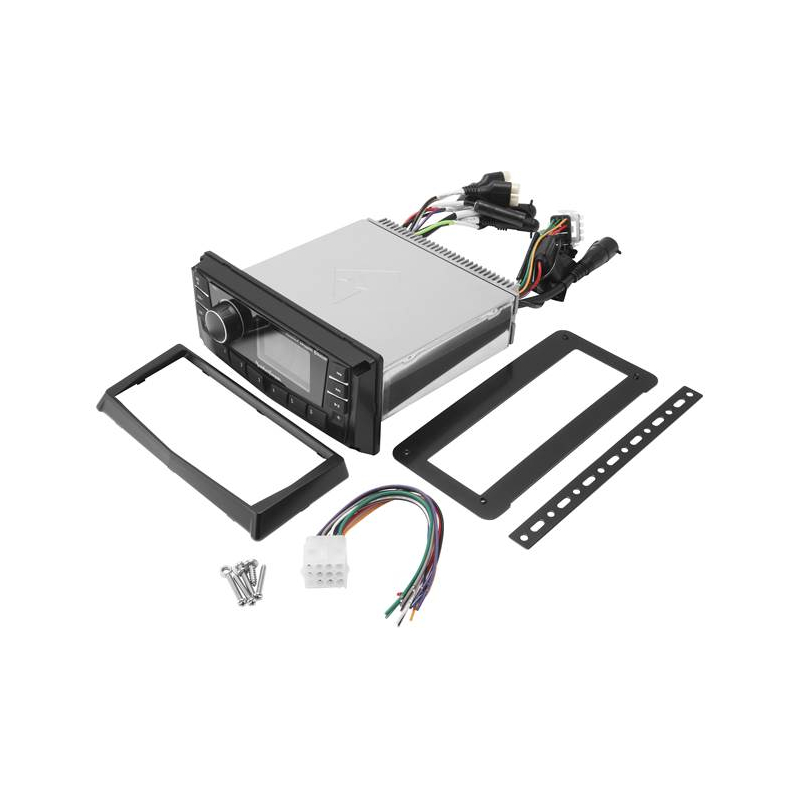

What's Inside?
- • Marine digital media receiver
- • Trim-ring
- • Mounting plate
- • Wiring harness
- • Backstrap
- • 4 Machine screws
- • Self-tapping screw
- • Hex-nut
- • Lock-washer
- • Flat-washer
- • Installation/Operation booklet
- • User's Manual

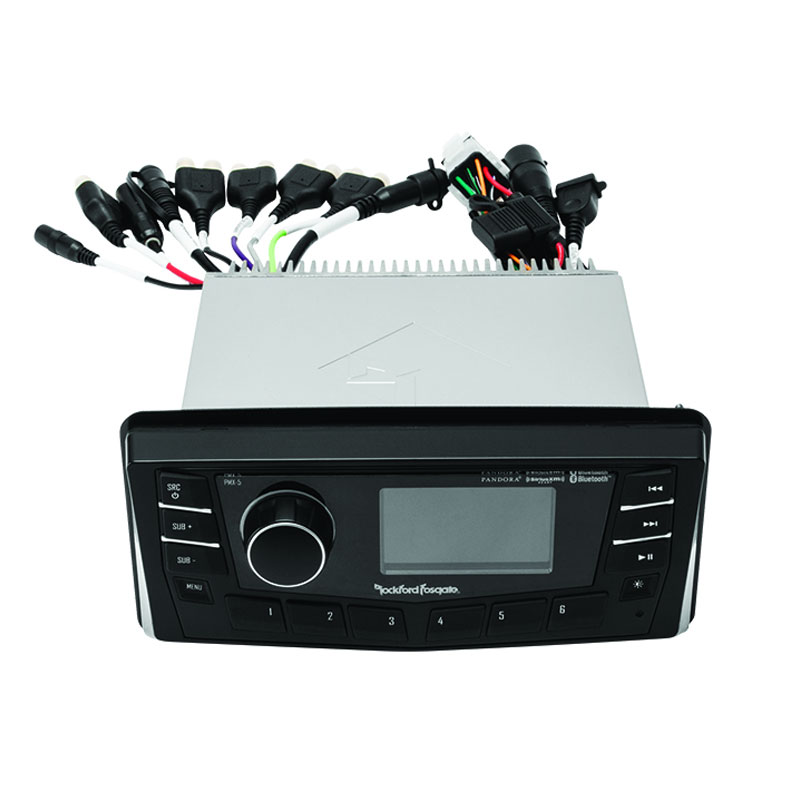

Digital Media Receiver with Marine-Rated Design

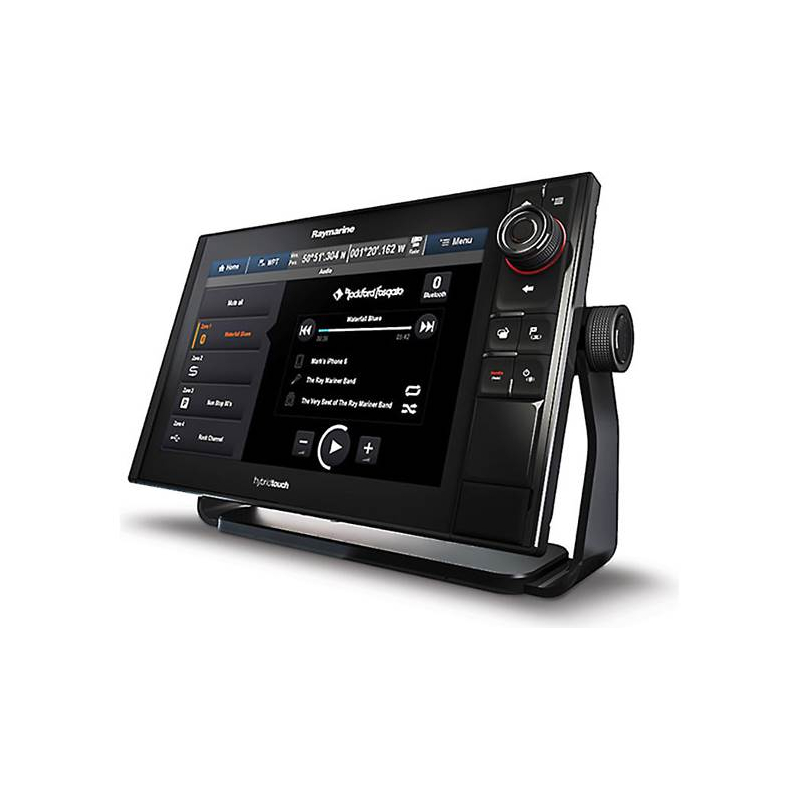

Rockford Fosgate's PMX-5CAN receiver combines marine-rated design with high-tech features that will make your boat a rockin' place to be – in the good way. This digital media receiver (there's no CD player) gives you lots of ways to stay entertained and informed when you're on the water. And with built-in CANbus functionality, you can connect to Raymarine Multi-Function Display (MFD) systems with the help of Rockford Fosgate's PMX-CAN adapter. This allows you to choose all your entertainment and control the audio through your vessel's MFD.
Works with Apple and Android Smartphones
The PMX-5CAN packs plenty of features into a compact package that's ideal for your boat. You can use the built-in Bluetooth to stream downloaded tracks or your favorite Pandora playlists on your Apple and Android smartphone. The Punch EQ gives you everything you need to fine-tune your sound the way you like it. If you have a larger vessel, you'll appreciate the 2-zone control, especially when you're at the helm listening to the game and your crew is jammin' on the bow.
SiriusXM Ready
The global AM/FM/WB tuner hauls in plenty of stations when you're within range, plus this receiver is SiriusXM-ready – with a subscription and an add-on tuner, you can enjoy satellite radio's amazing variety of music, news, and sports when you're up to 100 miles offshore. With the 2.7" color display, you'll know who's playing and from which source.
Best for Entertainment
Rockford Fosgate designed this receiver to be the centerpiece of your boat's entertainment system. If you want to upgrade your sound with new speakers, amps, and a subwoofer, you can take advantage of the receiver's 6-channel Zone 1 preamp outputs (plus 2-channel outputs for Zone 2) to build a truly impressive system. Add a wired remote to control the music from wherever you're sitting.
Made for Marine Use
Like all Rockford Fosgate marine gear, the PMX-5CAN is designed to handle the extremes of life on the water. It features a rugged frame, a conformal coating that protects the internal circuitry, and an IPX6-rated front panel that resists moisture, dust, and punishing UV rays.
- Frequency Response : 20-20000 Hz
- RMS Power Output : 4x50 Watts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Rear USB Input : 1
- Color : Black
Features:
- ISO8846/SAE J1171 Ignition Protection Certified
- Stainless Steel Rear Chassis
- Pandora Internet Radio
- SiriusXM-Ready™
- Steering Wheel Control Interface Compatible
- A2DP and AVRCP Bluetooth Wireless Streaming
- Low Voltage Warning Alert
- Multi Region Radio Frequencies
- FCC, CE, IC, and C-Tick Certified
- AUX and USB Inputs with USB Charging
- Independent Subwoofer Level Control
- On Board Punch EQ Control
- Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
- IPX6 Marine Grade for prevention of water intrusion
- 7-Band Graphic EQ

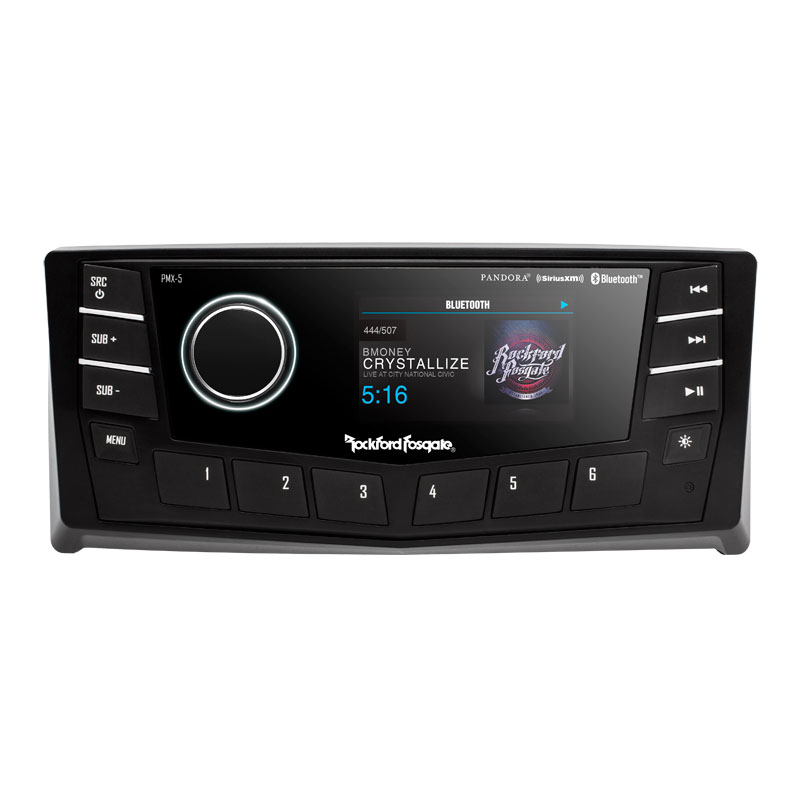

- 2.7" full color display w/ auto dimming backlightning
- Zone Control: 2 Zone / 2 Source (F/R/S + F)
- AM/FM/WB Tuner
- CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
- Compatible with a Multi-Function Display using NMEA2K entertainment standard. See our MFD Compatibility Chart
- *Antenna not included
- 2-Year Warranty
Specifications:
- Display Size: 2.7” Color TFT
- Frequency Response: 20 Hz - 20 kHz
- Device Type: Digital-Media Receiver
- Power Output:
- CEA-2006 Power Rating
- 25W x 4 @ 4? RMS
- 50W x 4 @ 2? Peak
- ≤1.0% THD+N
- Operating Voltage: 10.5 V - 16 V
- Compatible Remotes
- PMX-1R
- PMX-0R
- (3 Remote Limit, 100 ft Total Wired Distance)
- Pandora® Internet Radio (Yes/No): Yes
- SiriusXM-Ready® (Yes/No): Yes / Requires SXV300
- Dimensions (HxWxD)
- Width 8" (20.3cm)
- Face Depth 1.5" (3.8cm)
- Mount Depth 7.1" (18.2cm)
- Height 3.5" (8.9cm)
- Chassis to Face Top 0.9" (2.3cm)
- Chassis to Face Bottom 0.59" (1.5cm)
- Speaker Impedance: 2-Ohms
- Fuse Rating: 15 A
- Multi-Zone/Multi-Source (Yes/No): Yes
- Apple®/Android™ Compatible( Yes/No): Yes
- Speaker Outputs (Yes/No): Yes
- USB Charging (Yes/No): Yes
- Clock (Yes/No): No
- Steering Wheel Control Ready (Yes/No): Yes
- Steering Wheel Control Ready (Yes/No): Yes
- Frequency Range: 87.9-107.9 MHz
- Number Of Presets: 18 FM / 12 AM / 6 WB
- Sensitivity: 8 dB
- Frequency Range: 530 kHz - 1710 kHz
- Usable Sensitivity: 40 dB
- Frequency Range: 162.40 - 162.55 (US & Canada)
- RCA Output Voltage: 4V
- RCA Frequency Response: 87.5 MHz - 107.9 MHz
- RCA Output Impedance:500 Ohmd
- Audio Format Compatibility
- Made for iPod Models
- iPod Touch (5th generation)
- iPod Touch (4th generation)
- iPod Nano (7th generation)
- iPod Nano (6th generation)
- Made for iPhone ModelsiPhone XS (pending)
- iPhone XS Max
- iPhone XR (pending)
- iPhone X
- iPhone 8
- iPhone 8 Plus
- iPhone 7
- iPhone 7 Plus
- iPhone 6s
- iPhone 6s Plus
- iPhone 6
- iPhone 6 Plus
- iPhone 5S
- iPhone 5C
- iPhone 5
- iPhone 4
- iPhone 4S
- Phone 3GS
- USB Capacity
- 32Gb max
- 999 Folders max
- 999 Songs max
- Android Compatibility: Bluetooth® Only
- USB Output Current: 1A
- USB Version: 2.0
- UPC: 780687351441
- Weight: 3
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
