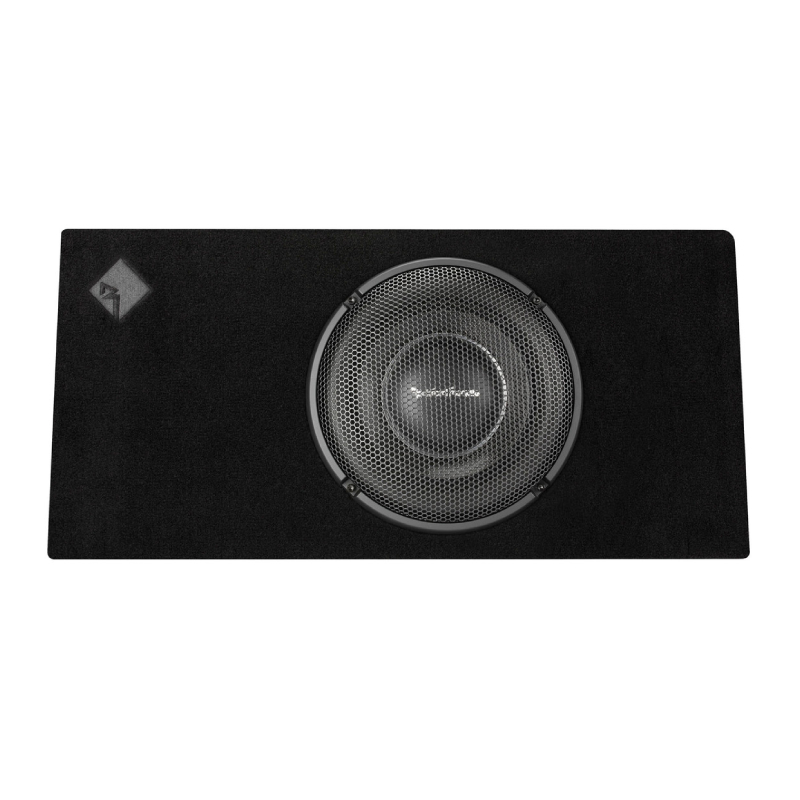

Rockford Fosgate T1S-1X10 Power Series 10” 500W RMS 1 Ohm, Single Slim Sealed Loaded Enclosure
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Sealed enclosure loaded with one 10" Subwoofer
- • Four 5/8" Mounting screws
- • Owner's Manual
Why Choose Rockford Fosgate T1S-1X10 Enclosed Car Subwoofer?
Features Space Saving

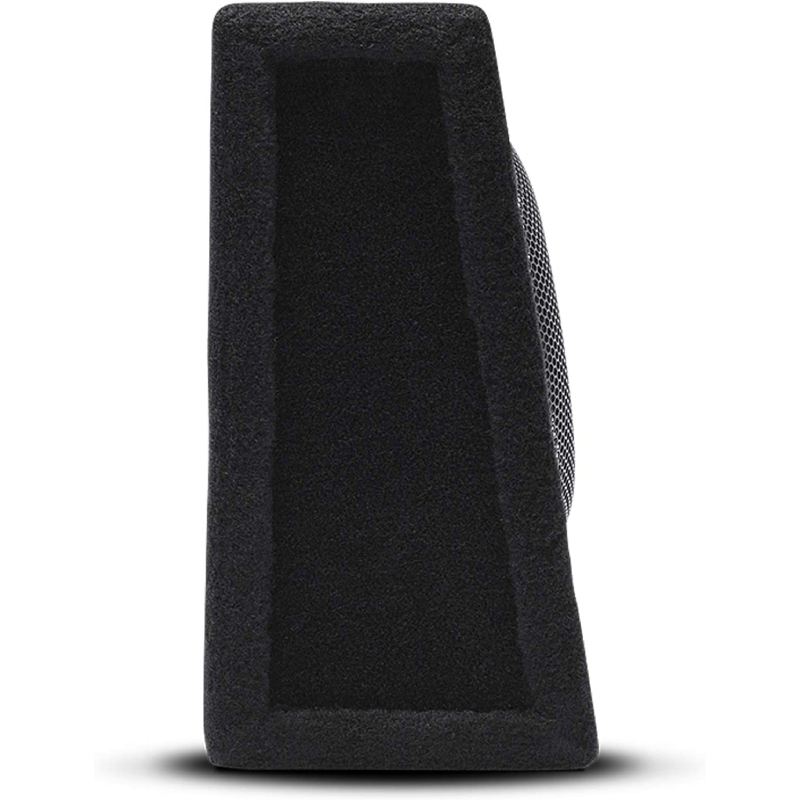

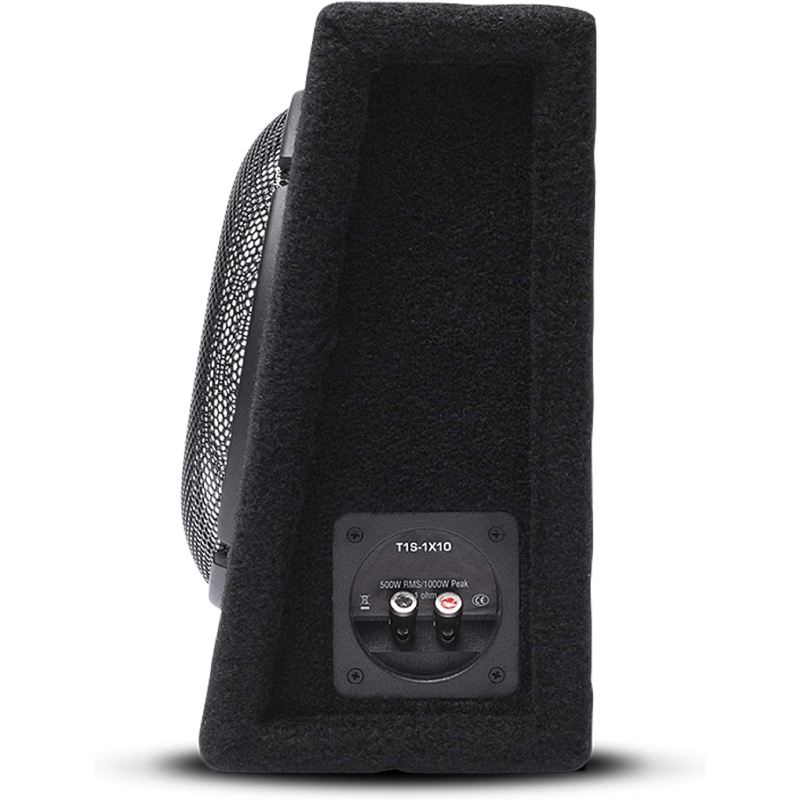

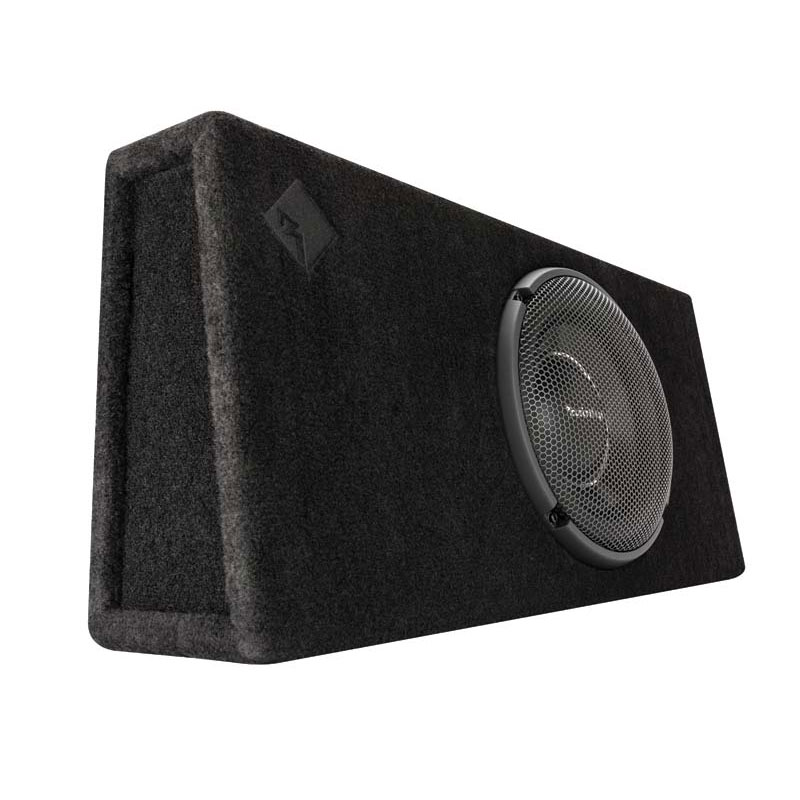

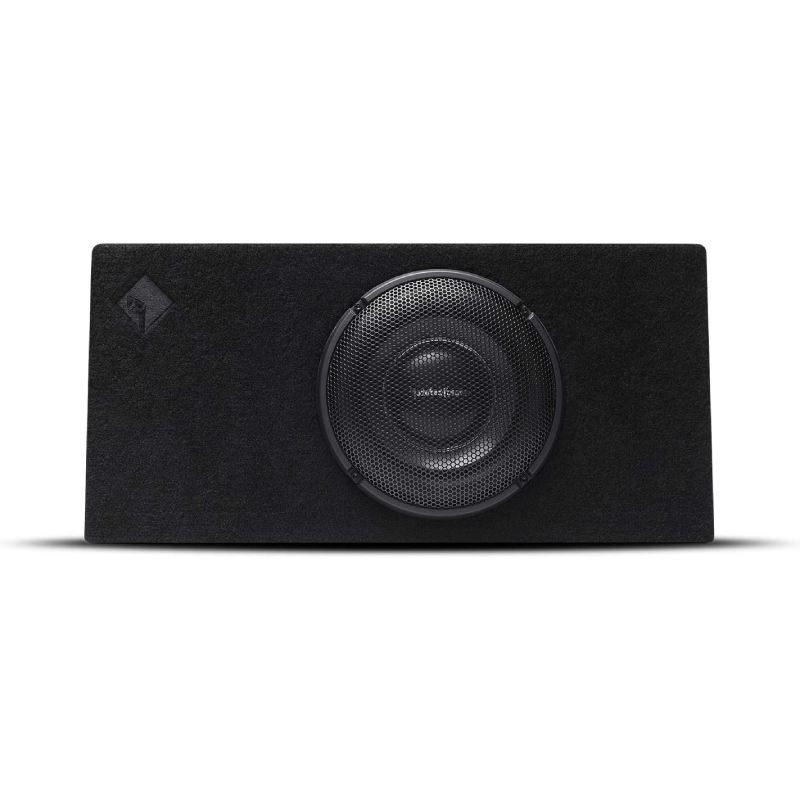

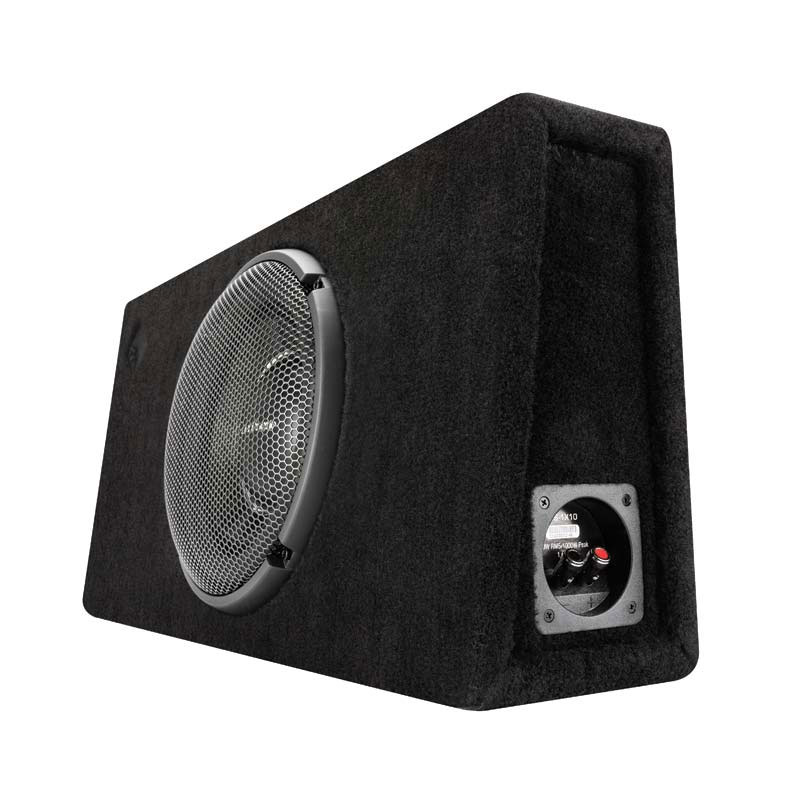

Need a slim subwoofer system to fit behind your truck seat, but has high power handling? Rockford Fosgate has the solution to your problem with the Power T1 slim 10” sealed loaded enclosure. It may look small, but it plays loud thanks to its whopping 500 Watt RMS power handing capacity, and since it’s prewired to 1-Ohm, you can really push it with some serious power. Features space-saving, slim-line wedge design, premium carpet with stitched Rockford Fosgate logo, and quick-release input terminals.
Ready to Bring on the Boom
Rockford Fosgate took care to build the enclosure to last, with a cabinet constructed of 5/8" MDF that's protected by industrial-grade carpeting. It'll stand up to the knocks of life on the street and come back for more. If you've got the room, Rockford Fosgate's ready to bring on the boom.
Frequently Asked Questions (FAQ)
- • Why does my T1S-1X10 need a 1-ohm-stable amplifier?
The enclosure is prewired for a 1-ohm load, which can be demanding for an amplifier that is only designed for higher impedances. Users should verify the amplifier's minimum impedance rating before connecting the subwoofer.
- • Why am I getting clipping even though the subwoofer is rated for 500 watts?
A real installation discussion involving a T1S-1X10 reported clipping elsewhere in the system before the speakers reached their expected maximum volume. This shows that amplifier gain, source level, DSP settings, and overall system setup can matter just as much as the subwoofer's power rating.
- • Why does my T1S-1X10 not hit as hard as a larger full-depth 10-inch sub?
The T1S-1X10 uses a shallow sealed enclosure specifically to save installation space. Users expecting the same output characteristics as a larger ported or full-depth enclosure may notice a different bass response, even though Rockford designed the slim driver for substantial excursion.
- • Why does the bass sound tight but not extremely boomy?
The sealed enclosure naturally favors controlled bass rather than the boosted character associated with many ported boxes. This can be beneficial for users who want definition, but it may disappoint someone specifically looking for maximum low-frequency boom.
- • Why won't the T1S-1X10 fit behind my truck seat?
Although it is designed for behind-seat installations, the enclosure still measures about 26.8 inches wide and varies from roughly 4.3 to 6.3 inches deep. Seat rails, floor contours, and reclining mechanisms can reduce the usable space, so measuring the exact mounting area is important.
- • Why does my subwoofer move or rattle when the bass gets loud?

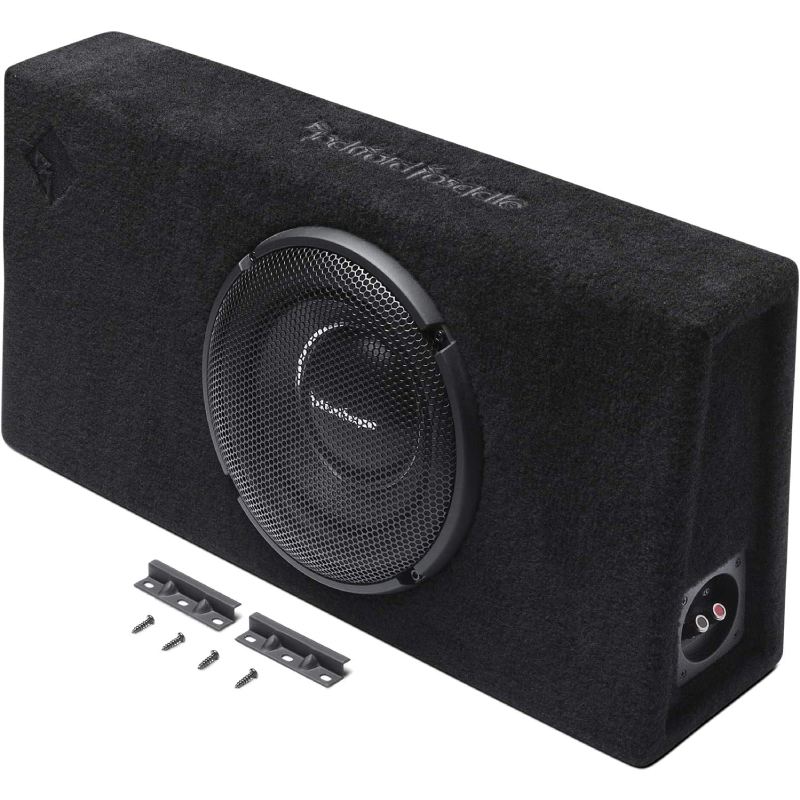

A loose enclosure can vibrate against the vehicle and create unwanted noise. Rockford includes two hold-down brackets specifically so the enclosure can be secured to the vehicle floor, which is especially useful in truck installations.
- • What should I check if the T1S-1X10 suddenly has very little bass?
Start with the amplifier's power and ground, speaker terminals, RCA signal, gain, crossover settings, and impedance. Because the enclosure is a 1-ohm, 500-watt RMS design, both the amplifier and wiring need to be suitable for the load.
- • Can I use thinner speaker wire because the enclosure is compact?
The small enclosure does not mean the power requirements are small. Rockford provides a terminal that accepts wiring up to 12 AWG, and the company specifically notes that appropriate wire is important for efficient power delivery with the low-impedance design.
- • Why does the T1S-1X10 take up more room than its shallow depth suggests?
Its slim profile saves front-to-back space, but it still occupies roughly 27 inches of width and more than a foot of height. Buyers sometimes focus only on the shallow depth and overlook the width and seat-clearance requirements.
- • Is the T1S-1X10 a good choice if I want strong bass without losing truck space?
That is its primary purpose, and Rockford specifically developed the enclosure for situations where installation space is limited. Real-world installations show it being used with full systems in trucks, while its sealed design and 500-watt RMS rating make it more focused on powerful, controlled bass than simply maximizing enclosure size.
- Diameter : 10 Inch
- Sensitivity : 82 dB
- Impedance : 1 Ohm
- Frequency Response : 32-250 Hz
- Peak Power Handling : 1000 Watts
- Number Of Subwoofers : 1
- Enclosure Type : Sealed
- RMS Power Handling : 500 Watts
Features:
- Nominal Impedance (ea): 1-Ohm
- Power Handling (Watts RMS): 500 Watts RMS
- 1000 Watts Max
- Enclosure Type: Shallow
- Enclosure Material: 5/8" MDF (Medium Density Fiberboard)

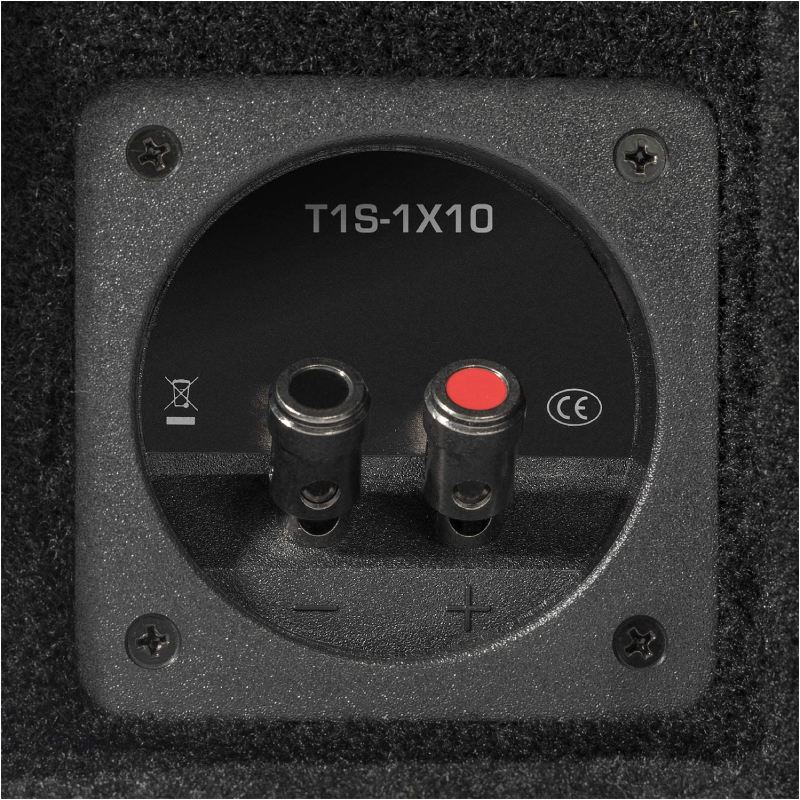

- Speaker Connector: Up to 12 AWG compression terminals
- Frequency Response: 20 Hz - 200 Hz
- Sealed truck box style enclosure
- Constructed with 5/8" MDF
- Black carpet finish with black stitching
- 12 AWG spring loaded input terminals
- Grill included
Specifications:
- Woofer Size (inches): 10
- Speakers Per Box: 1
- Woofer Material: Carbon/PMI/Glass
- Enclosure Type: Sealed
- Color: Black
- Pieces in System: 1
- Width (inches): 27
- Height (inches): 12-3/4
- Depth (inches): 8
- Connector Type: Spring post
- Frequency Response: 32-250 Hz
- Power Range (Watts RMS): 500
- Maximum Wattage: 1000
- Sensitivity: 82 dB
- Impedance: 1 ohms
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- UPC: 780687346874
- Weight: 28
