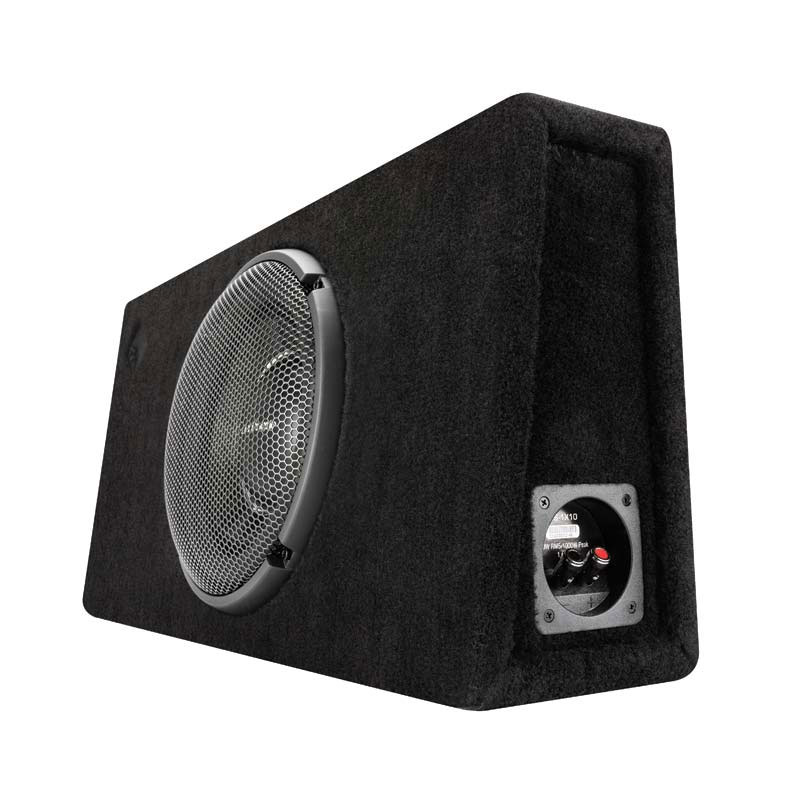

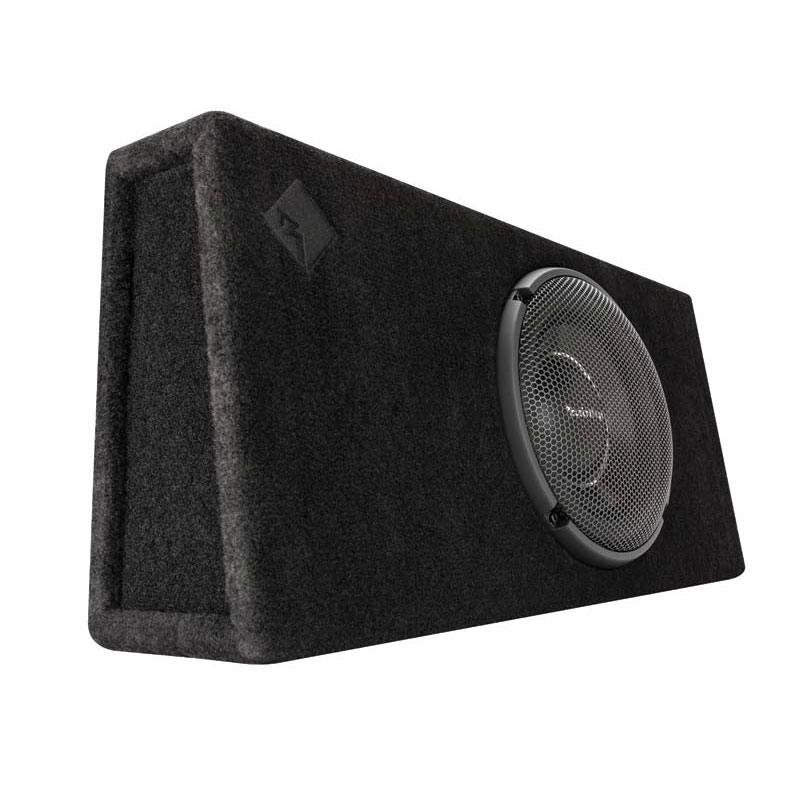

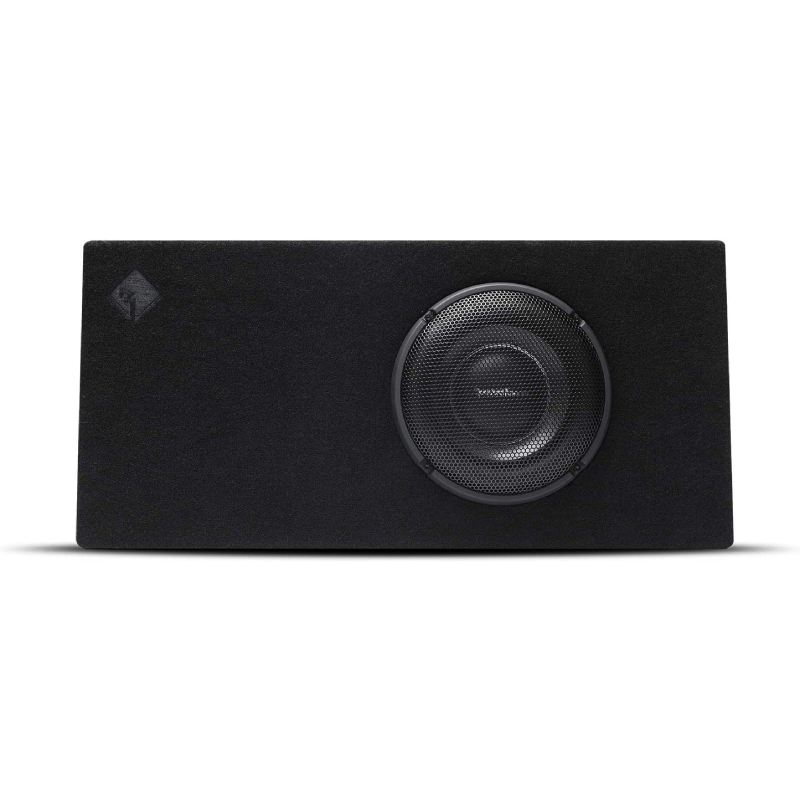

Rockford Fosgate T1S-1X10P Power Series 10" 500W RMS (1000W Peak Power Handling) 1 Ohm Single, Slim Vented Loaded Enclosure
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

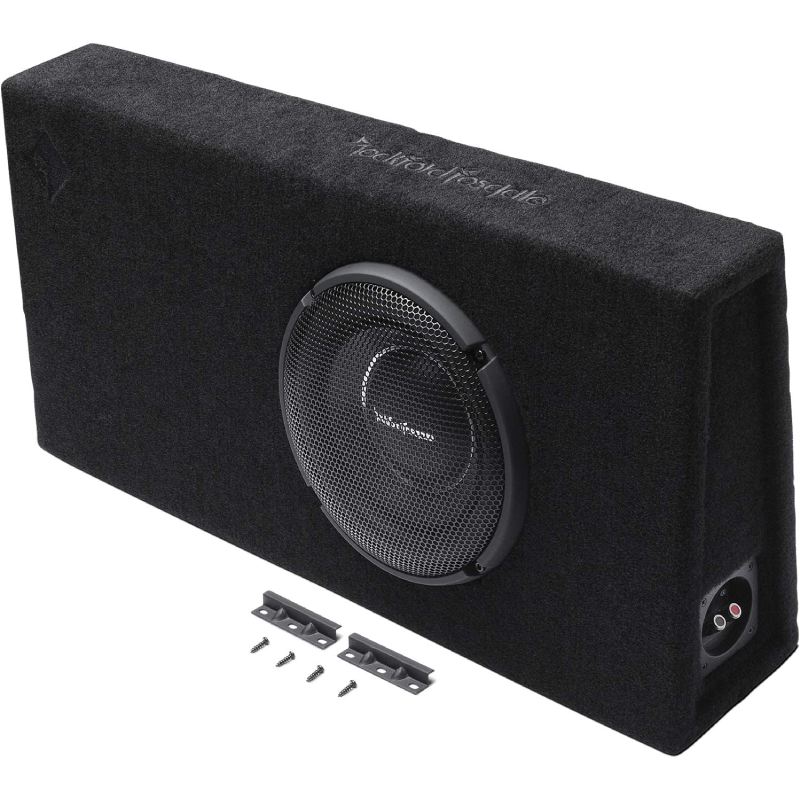

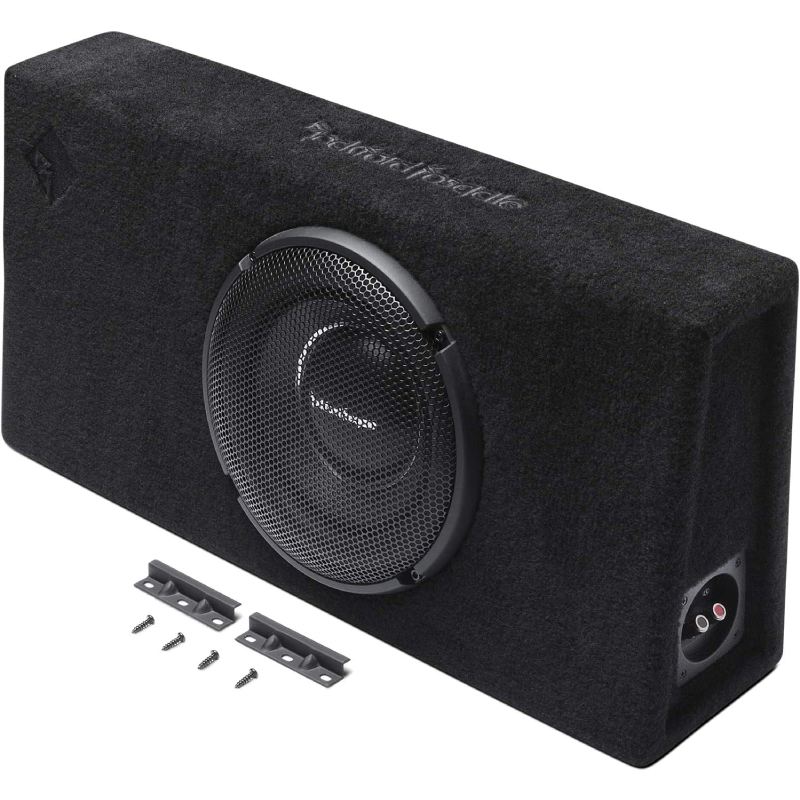

What's Inside?
- • 10" Power Series Slim Vented Loaded Enclosure
- • (4) 5/8" Mounting screws
- • (2) Mounting brackets
- • Owner's Manual
Why Choose Rockford Fosgate T1S-1X10P Enclosed Car Subwoofer?
Tight Bass Power in a Slim, Pro-Grade Build
If you want serious bass without turning your trunk into a science project, the Rockford Fosgate T1S-1X10P Slim Vented Loaded Enclosure brings exactly that kind of punch. Built from rigid 5/8" MDF, this enclosure is engineered to stay solid even when the bass hits hard, keeping panel flex and unwanted resonance under control so your low end stays clean and tight. It is loaded with a high-performance 10" T1S1-10 1-ohm subwoofer, delivering deep, controlled output with up to 500 watts RMS and 1000 watts peak power handling, perfect for enthusiasts who want loud and accurate bass that does not fall apart when you crank it.
Smart Engineering That Hits Hard and Installs Easy
This setup is not just about power, it is about smart design that works in real-world installs. The side-firing low-noise slot port boosts efficiency and keeps airflow smooth, reducing distortion while giving you stronger bass response in tight spaces. Its slim profile makes it easier to fit in more vehicles, while still maintaining serious output thanks to advanced technologies like Klippel-verified motor optimization, EVCC, and SYMS for better control and reliability. Add in VAST surround design and an anodized aluminum voice coil former for better heat handling, plus secure spring-loaded binding posts for clean wiring, and you get a compact enclosure that hits way above its size and is built to keep playing hard every day.
Frequently Asked Questions (FAQ)
- • Why does the T1S-1X10P need a special amplifier?
The enclosure presents a 1-ohm load, so users need an amplifier that is stable at 1 ohm. Connecting it to an amp that cannot handle the impedance can lead to overheating, protection shutdowns, or other performance issues.
- • Why does my T1S-1X10P sound different from a sealed 10-inch sub?
The T1S-1X10P uses a vented enclosure, which emphasizes stronger, more energetic low-frequency output. Users who prefer tighter and more controlled bass may find a sealed design more suitable.
- • Why am I getting less bass than expected from this 10-inch system?
Improper amplifier matching, gain settings, crossover configuration, or vehicle placement can reduce perceived output. A professional test of the T1S-1X10P found strong bass performance when paired with a properly matched 500-watt amplifier.
- • Can I use the full 500 watts without damaging the T1S-1X10P?
The enclosure is rated for 500 watts RMS and 1,000 watts maximum, but the amplifier should still be correctly matched and tuned. Simply using a powerful amplifier without setting the gain properly can create clipping or excessive heat.
- • Why does the bass become boomy in some vehicles?
Because the enclosure is ported and specifically tuned for hard-hitting bass, cabin acoustics can make certain frequencies sound more pronounced. One technical review found a system tuning around 37 Hz, which helps explain its strong low-end character.
- • Is the T1S-1X10P actually shallow enough to fit behind a truck seat?
That is one of its main purposes, but available space still needs to be measured carefully. The enclosure is approximately 31.5 inches wide, with a wedge depth of about 4.2 to 6.3 inches.
- • Why does the enclosure vibrate when the bass is turned up?
Strong bass can cause cabinet or surrounding vehicle panels to vibrate if the enclosure is not firmly secured. The T1S-1X10P uses a 5/8-inch MDF enclosure with internal bracing specifically intended to help control cabinet vibration.
- • What should I check if the T1S-1X10P suddenly stops producing bass?
Start with the amplifier's protection status, power and ground connections, speaker terminals, RCA signal, and the 1-ohm wiring. Since the enclosure uses spring-loaded/compression terminals and a demanding impedance, loose connections or an incompatible amplifier can create misleading symptoms.
- • Why does the T1S-1X10P take up more usable width than I expected?
Its slim depth can be misleading because the enclosure is still about 31.5 inches wide. Owners planning a behind-seat installation should measure both the available depth and horizontal clearance before mounting it.
- • Can the T1S-1X10P deliver full-size bass despite its compact design?
Yes, but its strength is producing substantial bass while saving installation depth rather than competing with large multi-subwoofer systems for maximum SPL. A detailed listening test described the bass as strong, smooth, deep, and powerful when properly powered.
- Diameter : 10 Inch
- Sensitivity : 82 dB
- Impedance : 1 Ohm
- Frequency Response : 32-250 Hz
- Peak Power Handling : 1000 Watts
- Enclosure Type : Ported
- RMS Power Handling : 500 Watts
Features:
- Rigid MDF Cabinet Engineering: Constructed from premium 5/8" medium-density fiberboard, the enclosure is engineered to minimize panel flex and suppress unwanted resonance for tighter, more accurate low-frequency response.
- High Output Power Capability: Designed to support up to 500 watts RMS and 1000 watts peak power handling, delivering strong, sustained bass performance for demanding audio systems.

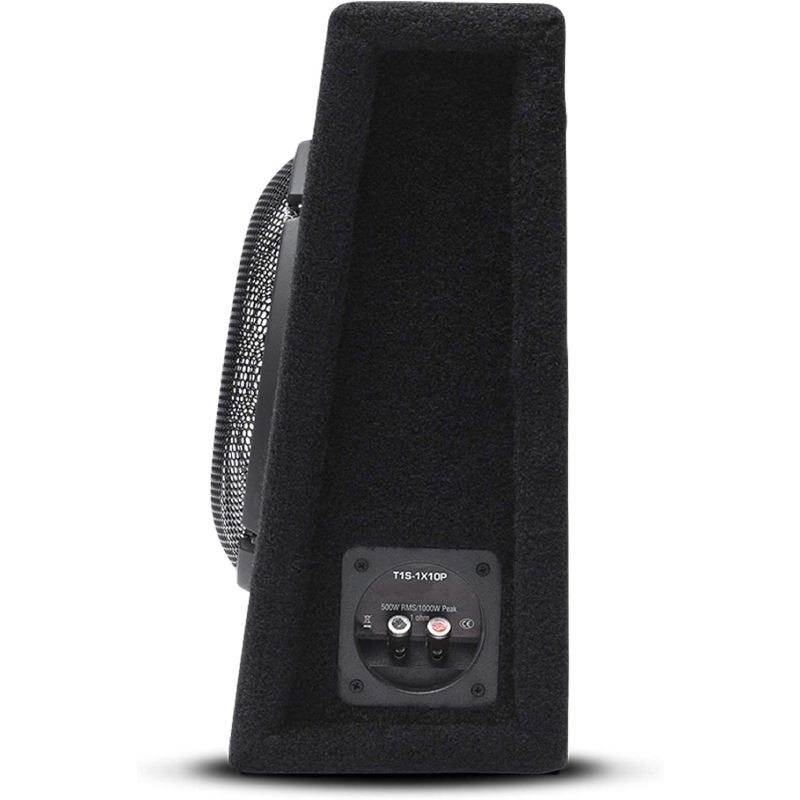

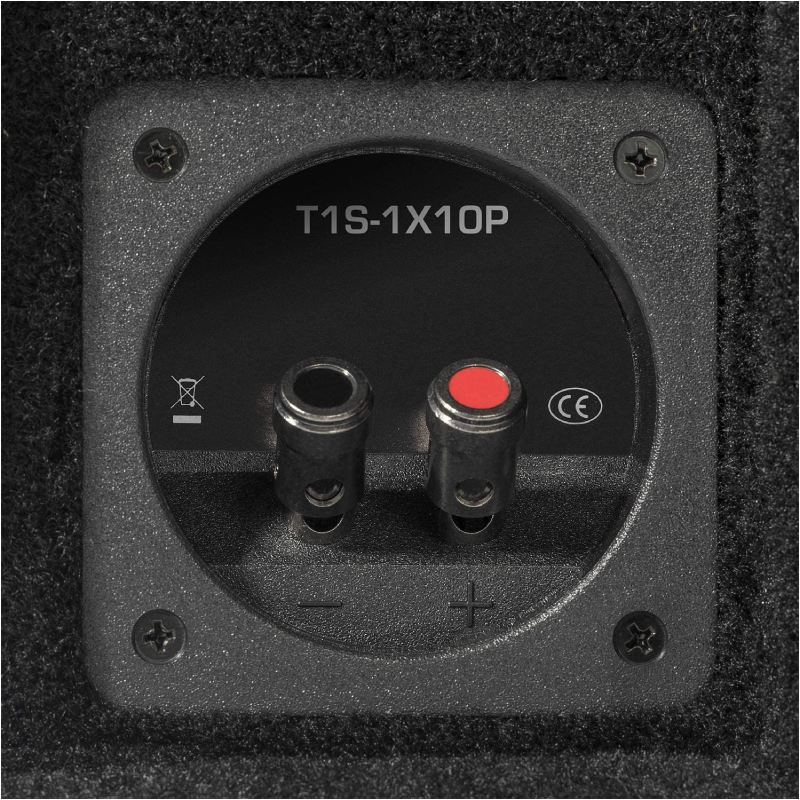

- Secure High-Current Connectivity: Equipped with spring-loaded binding posts capable of accepting pin connectors, banana plugs, or up to 10-gauge bare wire, ensuring stable and efficient signal transfer.

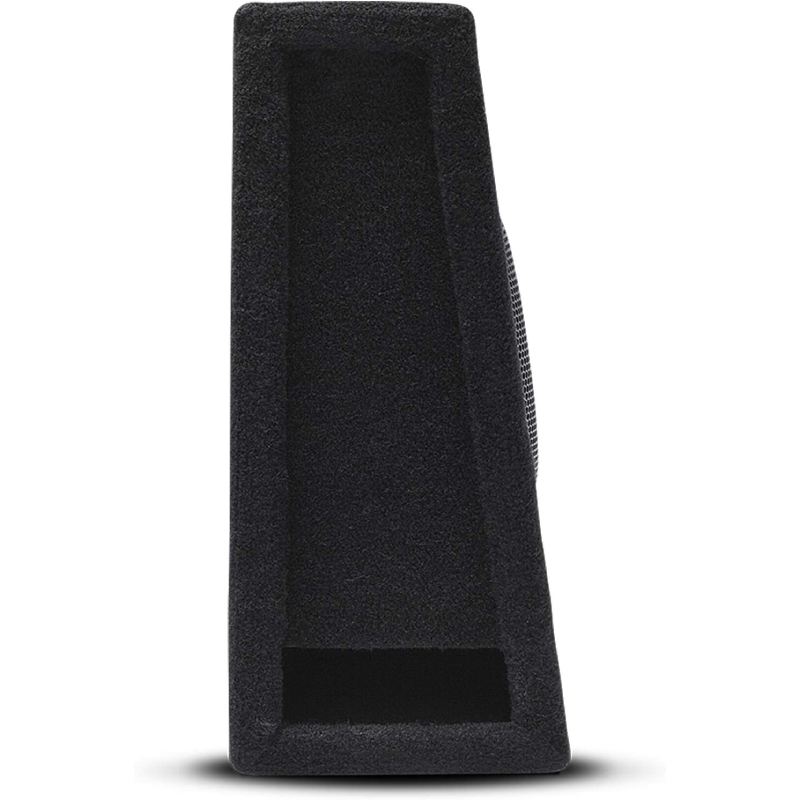

- Optimized Side-Firing Port Design: Features a low-noise, high-flow slot port positioned on the side panel to enhance bass efficiency while reducing port turbulence and distortion.
- Precision-Fit Compact Architecture: Engineered with a shallow profile, offering installation flexibility; enclosure depth measures 6-3/8" at base and 4-3/8" at top, with grille and bracket considerations for accurate fitment planning.
- High-Performance T1S1-10 Subwoofer Integration: Integrated with a 10" Rockford Fosgate T1S1-10 1-ohm driver, delivering deep, controlled bass output tailored for high-performance mobile audio systems.
- Advanced Motor and Thermal Control: Incorporates Klippel-verified motor optimization, EVCC (Encapsulated Voice Coil Coupling), and Split Yoke Motor (SYMS) technology to maximize excursion, stability, and long-term reliability.
- Expanded Radiating Efficiency Design: Utilizes VAST surround technology and an anodized aluminum voice coil former to increase effective cone area while improving heat dissipation and power endurance under heavy load conditions.
Specifications:
- Woofer Size (inches): 10
- Speakers Per Box: 1
- Woofer Material: Carbon/PMI/Glass
- Enclosure Type: Ported
- Color: Black
- Pieces in System: 1
- Width (inches): 31-3/4
- Height (inches): 14-3/4
- Depth (inches): 8
- Connector Type: Spring post
- Frequency Response: 32-250 Hz
- Power Range (Watts RMS): 500
- Maximum Wattage: 1000
- Sensitivity: 82 dB
- Impedance: 1 ohms
- UPC: 780687346881
- Weight: 35
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
