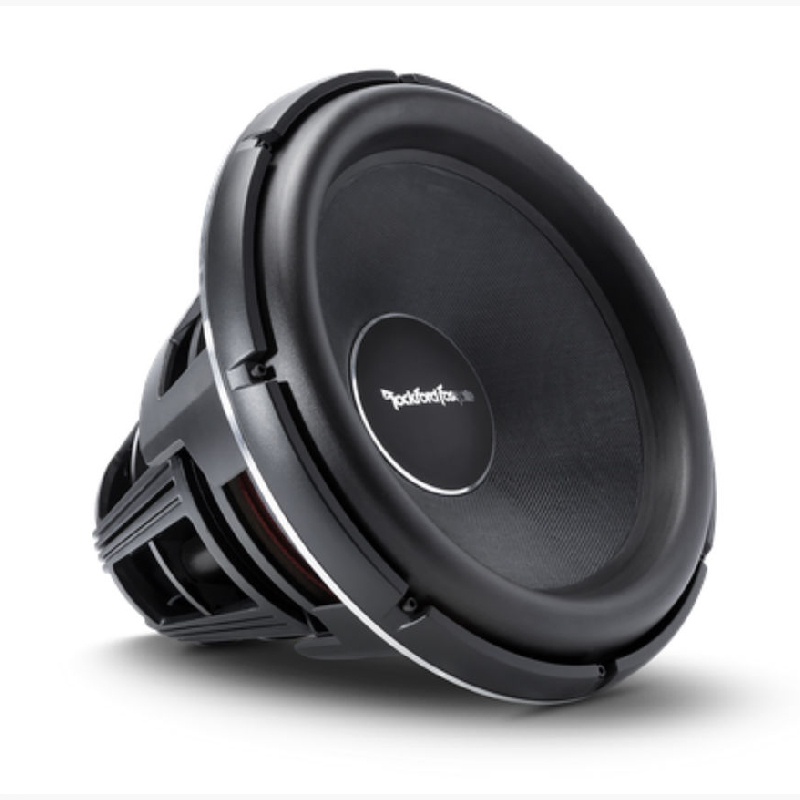

Rockford Fosgate T3S1-19 Power T3 Series 19" 3000W RMS (6000W Peak Power Handling) Single 1 Ohm Voice Coil Subwoofer
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 19" Power T3 Series Subwoofer
- • Owner's Manual
Why Choose Rockford Fosgate T3S1-19 Component Car Subwoofer?
Rockford Fosgate Power T3 Series Car Subwoofer
High-performance subwoofer system designed to deliver powerful and accurate bass. The T3S1-19 features a 19-inch woofer with a 3-inch voice coil, a motor structure with an anodized aluminum cone, and a cast-aluminum frame. Its dual-stacked magnets and vented pole piece ensure superior power handling and bass response.
Largest & Most Powerful Rocksford Fosgate has ever built!
This subwoofer is considered as their largest & most powerful they ever built. It has a power rating of 3000 watts RMS and 6000 watts peak, making it perfect for heavy-hitting applications.
Injection Molded Foam Surround
Making the foam strong and durable like a rubberized material. The Edge Wound voice coil allows the windings to be very close with no air gaps so it stays cool for high power handling capacity. We also engineered a very efficient "Push/Pull" voice coil design with a huge Neodymium magnet for a very efficient motor assembly.
Frequently Asked Questions (FAQ)
- • Why isn't the bass as strong as expected?
Check the enclosure volume, amplifier output, polarity, and gain settings. The wrong box can noticeably reduce bass performance and overall output.
- • What amplifier power should I use?
Use an amplifier matched to the subwoofer's RMS rating and 1-ohm load. Clean power and proper gain settings help deliver strong performance.
- • How much enclosure space does it need?
This 19-inch woofer requires substantial enclosure space. Follow the recommended internal volume and provide enough clearance for proper installation.
- • Why does the enclosure make unusual noises?
Air leaks, loose panels, or poorly secured components can create unwanted noise. Inspect the enclosure joints and mounting hardware carefully.
- • Why does the vehicle rattle at high volume?
The large cone and high output can vibrate panels and trim. Tighten loose hardware and add sound-deadening material where needed.
- • Why does it distort when I increase the volume?
Clipping, excessive gain, or insufficient electrical power can cause distortion. Lower the gain and verify stable amplifier and battery voltage.
- • Why is the bass weaker inside the cabin?
Vehicle acoustics, enclosure placement, and orientation affect cabin response. Check the enclosure position and polarity for possible phase cancellation.
- • Can I use a smaller enclosure?
A smaller box may change the intended response and limit performance. Follow the recommended enclosure specifications for the best results.
- • Why does the amplifier seem underpowered?
This is a high-output subwoofer requiring substantial clean power. Check the amplifier's RMS output, impedance, wiring, and electrical supply.
- • What should I check if there is little or no bass?
Check the amplifier, fuse, speaker wiring, terminals, polarity, crossover, and enclosure. Verify the 1-ohm load and audio signal first.
- Diameter : 19 Inch
- Maximum Power : 6000 Watts
- Sensitivity : 91 dB
- Impedance : 1 Ohm
- Frequency Response : 21-250 Hz
- Peak Power Handling : 6000 Watts
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 0.3 Cubic ft.
- Suggested Ported Box Volume : 8.00 Cubic ft.
- Mounting Depth : 15.62 Inches
- RMS Power Handling : 3000 Watts
Features:
- Three layer glass fiber/Aramid honeycomb/Glass fiber cone
- Aluminum dustcap
- Injection molded foam surround with VAST™
- Dual Nomex progressive spiders with integrated lead wires
- Proprietary surround mechanical clamping ring
- Custom push spring insulated 4 AWG terminals
- Aluminum diecast frame with integrated heat sink fins and venting
- Since voice coil design with dual (push/pull) windings
- Single layer edge wound aluminum 5" voice coil
- Integrated die cast aluminum trim ring
- Dual gap multi-pole Neodymium push/pull motor structure
- 1 Year Warranty
Specifications:
- Power Handling (Watts RMS):
- 3000 Watts RMS
- 6000 Watts Peak
- Nominal Impedance: 1-Ohm
- Voice Coil Type: Single Voice Coil
- Voice Coil Diameter: 5.0" (127 mm)
- Magnet Weight (oz): 115 oz. (3.26 Kg)
- Speaker Connector: 4 AWG Compression Terminal
- Vented Box Volume (Vb): 8.0 cu. ft. (226.5 Liters)
- Woofer Displacement: 0.339 cu. ft. (9.6 Liters)
- Cutout Diameter: 17.54 in. (445 mm)
- Mounting Depth: 15.62 in. (396 mm)
- Size: 19"
- Subwoofer Type: Superwoofer
- Fs (Hz): 27
- Re (Ohms): 0.8
- Le (mH): 0.45
- Qts: 0.32
- Qms: 1.93
- Qes: 0.38
- Vas (Liters): 104.9
- Sd (cm2): 1472
- SPL (dB @ 1w/1m): 91
- Xmax (mm): 34
- UPC: 780687343569
- Weight: 106.3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
