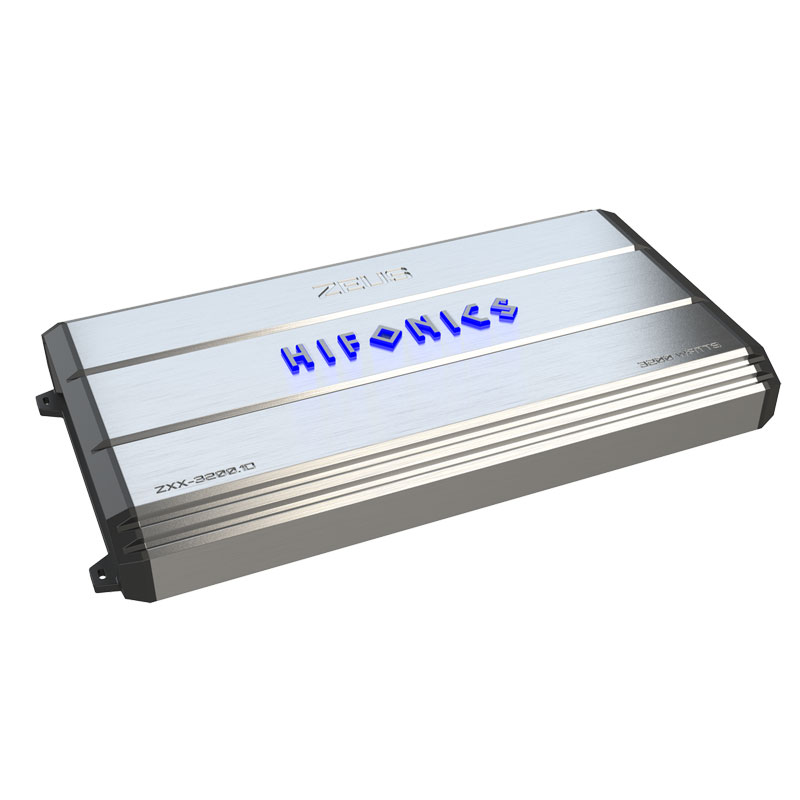

A classic Hifonics aluminum heatsink with a Zeus 3200 Watt, 1 ohm stable, Class D mono subwoofer car audio amplifier. Features include onboard electronic crossover and boost EQ. Bass remote included
Maximum Power : 3200 Watts
Low Frequency Response : 10 Hz
High Frequency Response : 300 Hz
Number of Channels : 1
Frequency Response : 10-300 Hz
Built In Crossovers : Yes
Amplifier Class : D
Fuse Rating : 250 A
Features & Benefits
PRE-AMP CIRCUITRY: Low Noise PreAmplifier Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion
INPUTS: Nickel Plated High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
HI LEVEL INPUTS: Low Level RCA Inputs and Outputs Highest sound quality connection
OPERATION MODE: Mono mode Purpose built 1 channel amplifier for driving subwoofers and subwoofer systems
CLASS / TOPOLOGY: Class D High efficiency with big power in a small footprint
OUTPUT DEVICES TECHNOLOGY: PWM MOSFET Power Supply Stable power through the PC board with minimal heat generation
HEAT SINK: Aluminum Old School Hifonics Heat sink for Superior Heat Dissipation
POWER SUPPLY: Simpatico Coil Design The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
BASS REMOTE: Included Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.
OUTPUT CONNECTIONS: RCA Outputs Daisy chain multiple amplifier to eliminate additional signal cables from the source unit
CONNECTIONS TYPE : Molded / Angled Secure connection for all system wires. Angled for ease of access for installation
DIAGNOSTICS: Diagnostic Indicators DC, Short Circuit, Thermal and Overload Protection Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
ILLUMINATION: Illuminated Logo The Hifonics logo illuminates when the amplifier is powered, making a #PowerFromTheGods statement in the dark
CLASS: Class D
VARIABLE VOLTAGE: 6V - 0.2V
SIGNAL TO NOISE RATIO: >95dB
FREQUENCY RESPONSE: 10Hz-300Hz
CROSSOVER TYPE: Variable Electronic
LOW PASS CROSSOVER : 12DB PER OCTAVE / 40Hz-300Hz
BASS BOOST: 0~12dB
SUBSONIC FILTER: 10Hz-40Hz
POWER @ 1-OHM: 1x3200W
POWER @ 2-OHMS: 1x1600W
POWER @ 4-OHMS: 1x800W
TOTAL CHANNELS: Mono
AUDIO INPUTS: RCA Jack
AUDIO OUTPUTS: RCA Jack
POWER TERMINAL 12V/GND: 2 gauge
SPEAKER TERMINAL WIRE GAUGE: 10 gauge
FUSING: External ANL (250A Recommended)
DIMENSIONS: 20.0 x 2.4 x 10 in
WEIGHT: 13.3 lbs (6.03 kg)
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
It said it wasn’t going to ship for 2 weeks, but I received it within a week! Very fast shipping, works great
All I can say is wtf I bought 2 of these beast they are worth every penny they are beating down my 4 15s this is definitely the power of the gods
