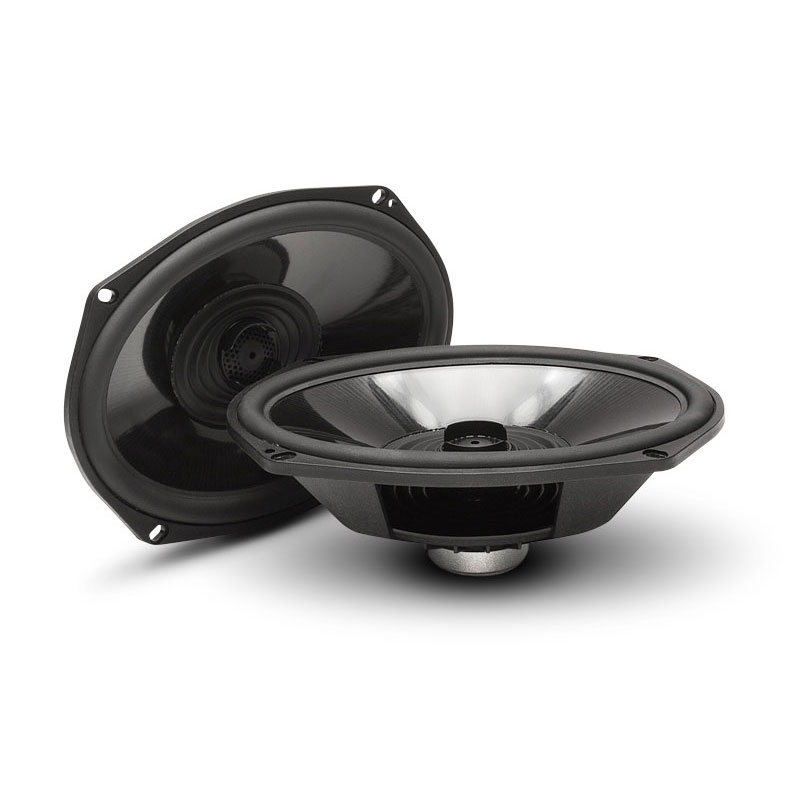

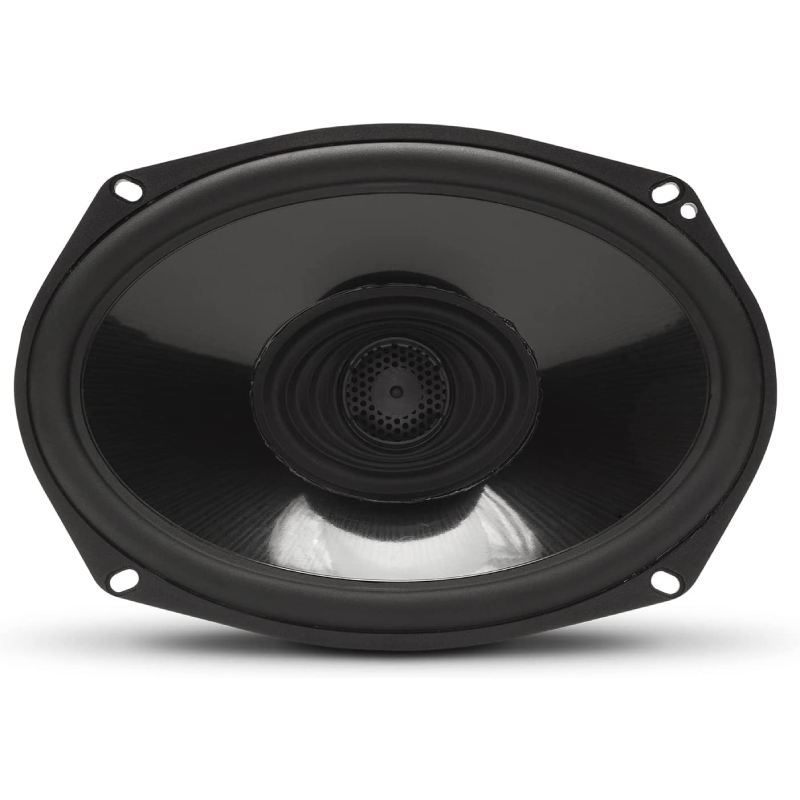

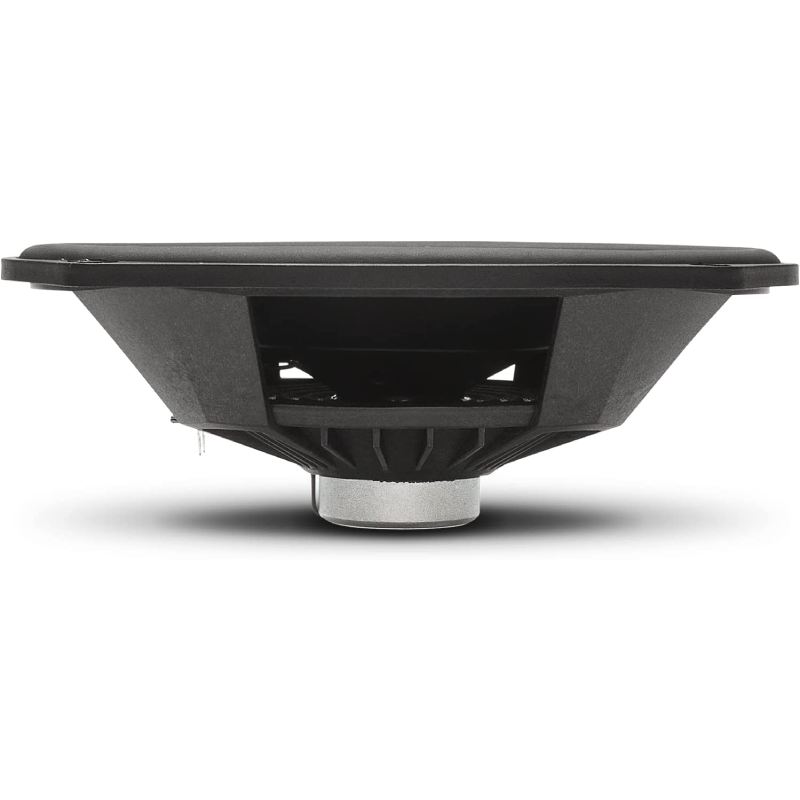

Rockford Fosgate TMS69 Power Series 6"x9" 200W Peak Power Handling 4 Ohms Full-range Speakers for Motorcycle Bag Lids
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 6"x9" Power Series Full-range Speakers for Motorcycle Bag Lids
- • (2) 2-way speakers
- • (8) 1/2" Screws
- • Owner's Manual
Built for Weather, Built for the Ride
The Rockford Fosgate TMS69 full-range speakers are made for riders who want serious sound that can handle real outdoor conditions. With all-weather construction featuring a Santoprene front isolation spider, the tweeter and woofer are securely integrated to resist moisture and environmental exposure. Whether you are riding through sudden rain or long sunny highways, these speakers are built to stay reliable and keep your music clean and consistent without fading out or breaking up.
Clear, Loud, and Engineered for Real Performance
These speakers are not just tough, they are tuned to sound excellent at higher volumes where it really matters. Klippel Verified engineering uses advanced laser-based analysis to fine tune the motor structure, voice coil alignment, and suspension, helping reduce distortion and keep sound clarity sharp even when pushed hard. They are also built to meet CEA-2031 continuous power standards, meaning they are designed for long term output instead of short bursts. Add in VAST cone technology with a Santoprene surround, and you get stronger sound projection from a compact design that fits perfectly in motorcycle bag lids while still delivering bold, full range audio on every ride.
Frequently Asked Questions (FAQ)
- • Why Do My TMS69 Speakers Cut Out When I Turn the Volume Up?
If the speakers work normally at moderate volume but disappear at higher levels, the amplifier may be entering protection or the system may have a power, grounding, or wiring issue. Harley audio users have reported multi-speaker systems cutting out when volume approaches 75% or higher.
- • Why Does the TMS69 Sound Distorted After Playing for a While?
Distortion that develops during longer rides can be related to amplifier heat, excessive gain, or a stressed electrical system. One Harley owner reported rear Rockford speakers becoming distorted and cutting out after the system had been running loudly for some time.
- • Why Is My TMS69 Not Producing Sound on One Side?
A single silent speaker can be caused by a loose connector, damaged wire, amplifier-channel failure, or a problem in the signal path. Testing the speaker on the opposite channel can help determine whether the fault follows the speaker or the wiring.
- • Can I Install TMS69 Speakers Without Changing My Existing Amplifier?
The answer depends on the amplifier and its available power. Before connecting the TMS69, verify its impedance and power requirements against the amplifier rather than assuming the factory system will provide the desired output.
- • Why Does My Saddlebag Vibrate After Installing the TMS69?
The larger 6×9-inch speaker can transfer considerable vibration into the saddlebag lid. Loose lid hardware, mounting screws, trim, or insufficiently rigid panels can become noticeable once the new speakers are producing stronger bass.
- • Why Does the TMS69 Magnet Get Hot Inside My Saddlebag?
Heat around the rear of the speaker is a known installation concern. Rockford Fosgate introduced speaker protectors for TMS69 installations so luggage can be packed around the speaker without contacting the rear basket or magnet area.
- • Why Won't the TMS69 Fit My Motorcycle's Existing Speaker Opening?
The TMS69 is designed around specific Harley-Davidson applications, so physical fitment should be confirmed before cutting the saddlebag. Rockford's installation documentation specifically advises checking the motorcycle's exact model and aftermarket accessories because configurations can differ between years.
- • Why Does My TMS69 Sound Different After Reinstalling the Saddlebag Lid?
Changes in the lid's mounting, sealing, wiring position, or surrounding components can affect the speaker's acoustic performance. Make sure the speaker is firmly secured and that no wires or bag components are touching the cone or grille.
- • Why Does My Rockford System Lose Audio While the Motorcycle Is Running?
If audio works with the motorcycle stationary but cuts out while riding, investigate the power and ground connections, charging voltage, and amplifier wiring. A Harley owner with Rockford saddlebag speakers reported music cutting in and out while riding even after replacing wiring, while the system worked normally when the bike was off.
- • Why Did My TMS69 Installation Work but Suddenly Stop Producing Sound?
Before replacing the speakers, check the amplifier's protection status, speaker connections, signal wiring, and grounds. Rockford Fosgate advises diagnosing installation problems first because products sent for service can sometimes be returned with no trouble found due to incorrect installation.
Features:
- All-Weather Speaker Construction: Designed with a Santoprene front isolation spider that securely integrates the tweeter and woofer assembly, providing resistance against moisture and environmental exposure during outdoor use.
- Advanced Acoustic Optimization: Klippel Verified engineering utilizes laser-based measurement systems to fine-tune motor structure, voice coil alignment, and suspension for reduced distortion and improved clarity at high output levels.
- Continuous Power Performance Standard: Built in compliance with CEA-2031 certification to ensure reliable long-term power handling under continuous demand rather than short-duration peaks.
- Enhanced Cone Efficiency Technology: Incorporates VAST (Vertical Attach Surround Technique) with Santoprene rubber surround to increase effective cone area for stronger sound projection without increasing overall speaker size.
Specifications:
- 6"x9" full-range motorcycle speakers
- designed for bag lid locations
- Element-Ready design is weather and water resistant
- carbon-fiber reinforced polypropylene cone
- glass-reinforced polymer frame
- 1" film dome tweeter with integrated phase plug
- integrated 6 dB crossover with polyester capacitor
- mounting hardware included; grilles are not included
- Santoprene VAST surround — gives you more cone area for better bass
- handles up to 100 watts RMS (200 watts peak)
- frequency response: 56-20,000 Hz
- sensitivity: 89 dB
- impedance: 4 ohms
- warranty: 2 years
- UPC: 780687353506
- Weight: 3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
