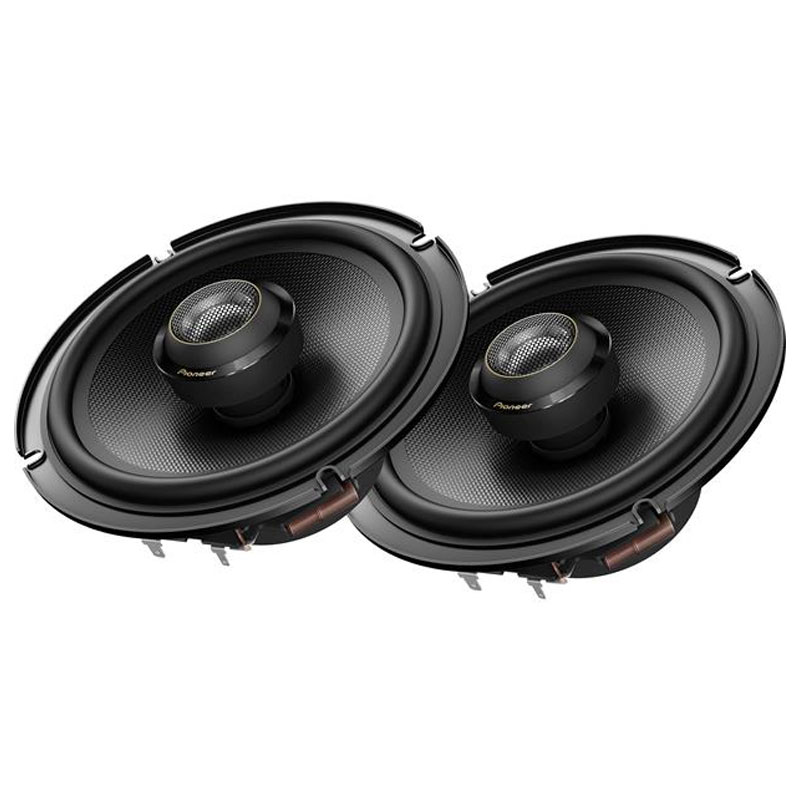

Pioneer TS-Z65C Z-Series 6.5" 330W Peak Power Handling at 4 Ohms, 2-Way Coaxial Car Speakers (Pair)
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 6.5 Z-Series 2-Way Coaxial Car Speakers
- • (8) 3/4" Screws
- • Warranty information
- • Owner's Manual
Why Choose Pioneer TS-Z65F Full Range Car Speakers?
Stage Your Sound like a Pro
Hi-Res Audio certified with a massive 32 Hz to 96 kHz frequency range, the Pioneer TS-Z65F coaxials pack 110W RMS into a rigid Twaron aramid fiber woofer. Coupled with an aluminum dome tweeter, they deliver studio-grade mid-bass, crisp vocals, and crystal-clear highs straight to your driver's seat.
Total Control Over Highs & Imaging

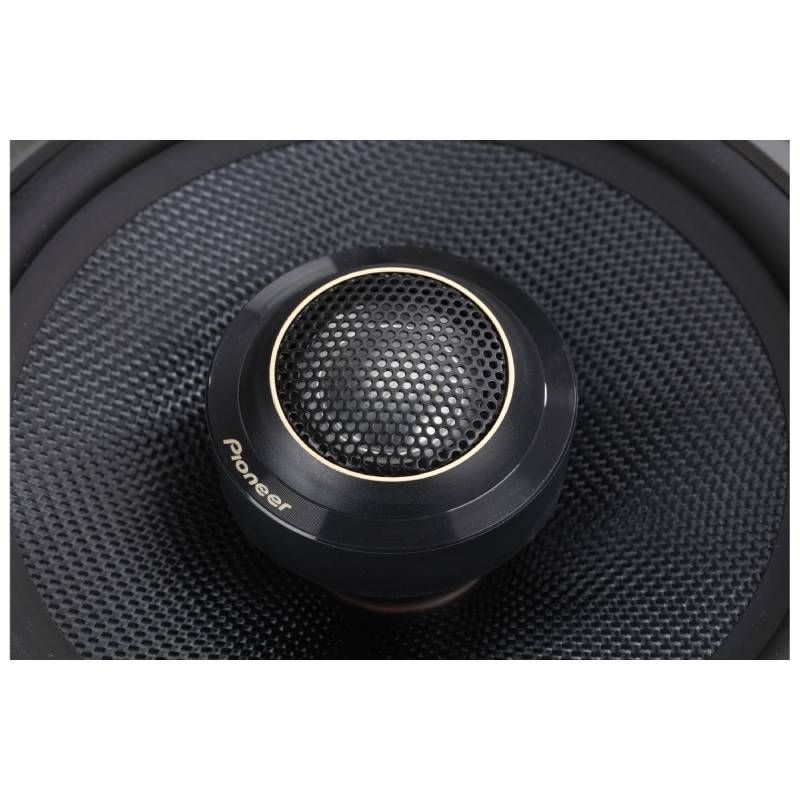

The precision pivoting tweeter lets you angle high frequencies directly toward your ears instead of your ankles. This articulation fine-tunes sound dispersion, dramatically sharpening stereo focus and bringing realistic, accurately staged audio to your cabin.
Big Performance, Easy OEM Upgrade
Built to replace factory speakers, these coaxials pair a heavy-duty stamped steel basket with a durable butyl rubber surround. Rated in the 6.5-inch size class, note that they require a cutout closer to 6.75 inches—giving you extra cone area for richer, more impactful sound.
Frequently Asked Questions (FAQ)
- • Why don't the speakers produce enough bass after installation?
Weak bass is commonly caused by reversed speaker polarity or factory radio limitations. Check the wiring polarity and adjust the EQ settings to improve low-frequency response.
- • Can I use these without an external amplifier?
Yes. They work with most factory and aftermarket head units, although an amplifier will provide cleaner power and better overall performance.
- • Why do the speakers sound distorted during loud music?
Distortion usually occurs when the amplifier or head unit is clipping or when the equalizer is set too aggressively. Lower the volume or adjust the audio settings to reduce distortion.
- • Will these fit my factory door openings?
Fitment depends on your vehicle's speaker size, mounting depth, and available clearance. Always confirm compatibility with your specific vehicle before installation.
- • Why is one speaker louder than the other?
This is often caused by loose wiring, incorrect balance settings, or a damaged speaker connection. Verify all wiring and reset the balance and fade controls on your receiver.
- • Why do my door panels rattle after upgrading the speakers?
More powerful speakers can reveal vibrations in loose trim panels or mounting hardware. Installing sound-deadening material and tightening the panels will help minimize rattles.
- • Can I mix these with my existing factory speakers?
Yes, but the sound signature may not be perfectly balanced between old and new speakers. Replacing all speakers at the same time generally provides the best listening experience.
- • Why do I hear static or popping noises while listening to music?
Loose wiring, damaged speaker cables, or a failing head unit can cause intermittent noise. Inspect all connections and test the speakers with another audio source if possible.
- • Why do the speakers sound brighter after a few days of use?
New speakers typically require a short break-in period before reaching their intended sound characteristics. After several hours of playback, the sound often becomes smoother and more natural.
- • Should I replace the factory speaker wiring during installation?
Factory wiring is usually sufficient for standard installations if it is in good condition. Upgrading the wiring may provide additional benefits when using high-powered aftermarket amplifiers.
- Diameter : 6.5 Inch
- Sensitivity : 85 dB
- Impedance : 4 Ohm
- Frequency Response : 32-96000 Hz
- Peak Power Handling : 330 Watts
- Design : 2 Way
- RMS Power Handling : 110 Watts
Features:
- Precision Pivoting Tweeter Design: Features adjustable tweeters that pivot within their housings, allowing directional tuning to optimize sound imaging, improve stereo focus, and enhance in-cabin audio staging accuracy.
- Enhanced Fitment Size Classification: Designed as a 6-1/2 inch class speaker by manufacturer standards, while requiring a larger cutout similar to a 6-3/4 inch installation, providing improved compatibility awareness for accurate vehicle fitment selection.
- Optimized Sound Direction Control: Engineered tweeter articulation enables fine adjustment of high-frequency dispersion, ensuring better alignment with listener position for clearer vocals and improved spatial detail.
- Balanced 2-Way Coaxial Audio Architecture: Integrates woofer and tweeter in a unified design to deliver consistent full-range output with improved tonal balance across lows, mids, and highs.
- Installation-Ready OEM Replacement Design: Built for straightforward replacement of factory-installed speakers while maintaining structural stability and reliable performance across varied automotive environments.
Specifications:
- System Type: 2-way Coaxial
- Sound Pressure Level (Sensitivity): 85 dB (+- 1.5dB)
- Frequency Range: 32 Hz to 96 kHz
- Hi-Res Certfied: Yes
- Continuous Power Handling (RMS): 110 Watts
- Maximum Peak Power Handling: 330 Watts
- Nominal Impedance: 4 ohms
- Diameter: 6.5”
- Cone Material: Twaron Aramid Fiber
- Surround Material: Butyl Rubber
- Basket Material: Stamped Steel
- Magnet Material: Ferrite
- Magnet Weight: 11.3 oz
- Mounting Depth: 2.6”
- Type: Balanced Dome
- Diameter: 29mm
- Diaphragm Material: Aluminum
- Magnet Material: Neodymium
- Magnet Weight: 6.4 g
- Swivel Type: Yes
- Crossover Frequency: 2200 Hz
- UPC: 0884938374637
- Weight: 3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
