29mm Aluminum Alloy Dome Tweeter with Vertex Drive System
Twaron® Aramid Fiber Construction
Designed for Hi-Res Audio
Features:
DESIGNED FOR HI-RES AUDIO The quality of music recordings available to listeners has evolved. Hi-Res Audio recordings contain significantly more data compared to a standard CD recording and require a loudspeaker that is capable of smoothly reproducing frequencies of 40kHz or higher. The Z speakers are designed to deliver sound that’s clearer, sharper and more complex - reproducing music that is closer to the original performance.
29mm ALUMINUM ALLOY BALANCED DOME TWEETER The Z tweeter's aluminum alloy diaphragm allows the tweeter to remain pistonic and linear at ultrasonic frequencies. The unique diaphragm shape, developed using HSDOM (Harmonized Synthetic Diaphragm Optimum Method) computer analysis, accurately controls differential vibration produced by the diaphragm and improves high frequency dispersion.
Pioneer's Vertex Drive System improves the mechanical coupling of the voice coil and the tweeter diaphragm, reducing distortion and coloration caused by low damping and increasing power handling.
Diameter : 6.5 Inch
Sensitivity : 85 dB
Frequency Response : 32-96000 Hz
Peak Power Handling : 300 Watts
Shallow Mount : No
RMS Power Handling : 100 Watts
Specifications:
SYSTEM

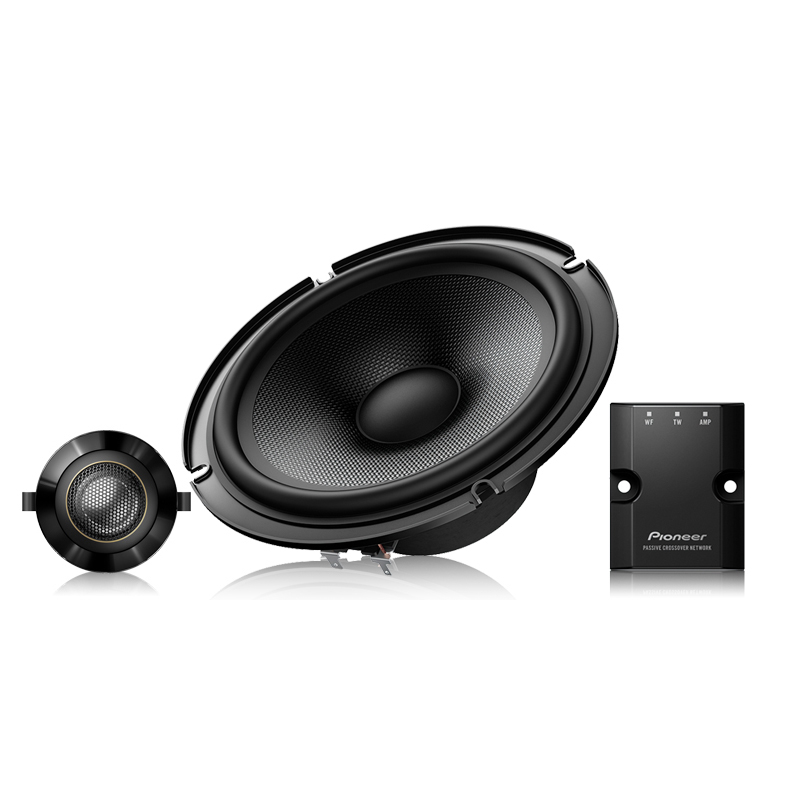

System Type: 2-way Coaxial
Sound Pressure Level (Sensitivity): 85 dB (± 1.5dB)
Frequency Range: 32 Hz to 96 kHz
Hi-Res Certfied: Yes
Continuous Power Handling (RMS): 100 Watts
Maximum Peak Power Handling: 300 Watts
Nominal Impedance: 4 ohms

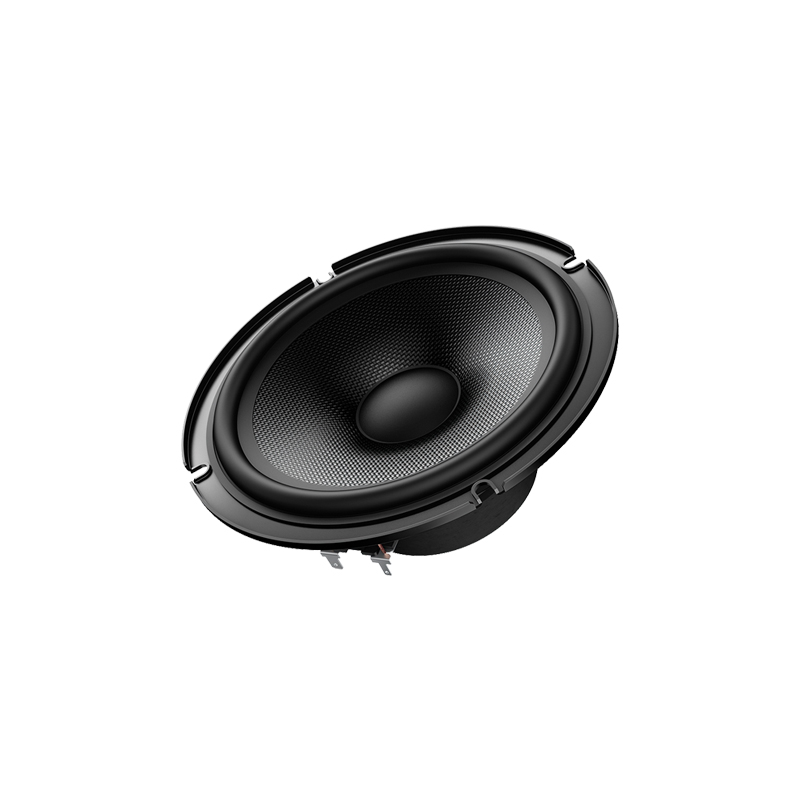

WOOFER
Diameter: 6.5"
Cone Material: Twaron Aramid Fiber
: Polypropylene
Surround Material: Butyl Rubber
Basket Material: Stamped Steel
Magnet Material: Ferrite
Magnet Weight: 11.3 oz
Mounting Depth: 2.6"

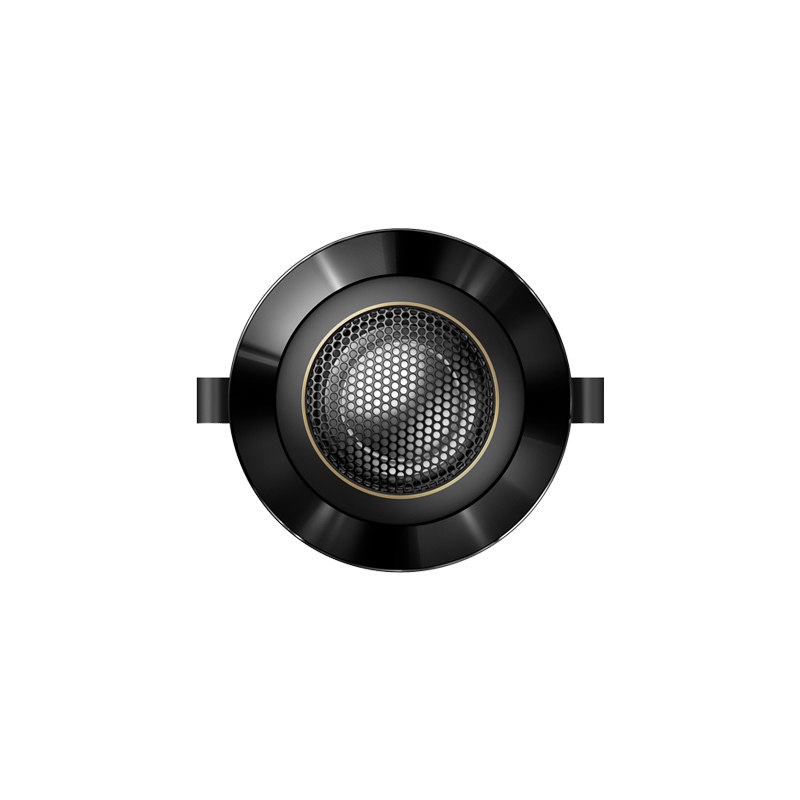

TWEETER
Type: Balanced Dome
Diameter: 29mm
Diaphragm Material: Aluminum
Magnet Material: Neodymium
Magnet Weight: 6.4 g
Swivel Type: Yes

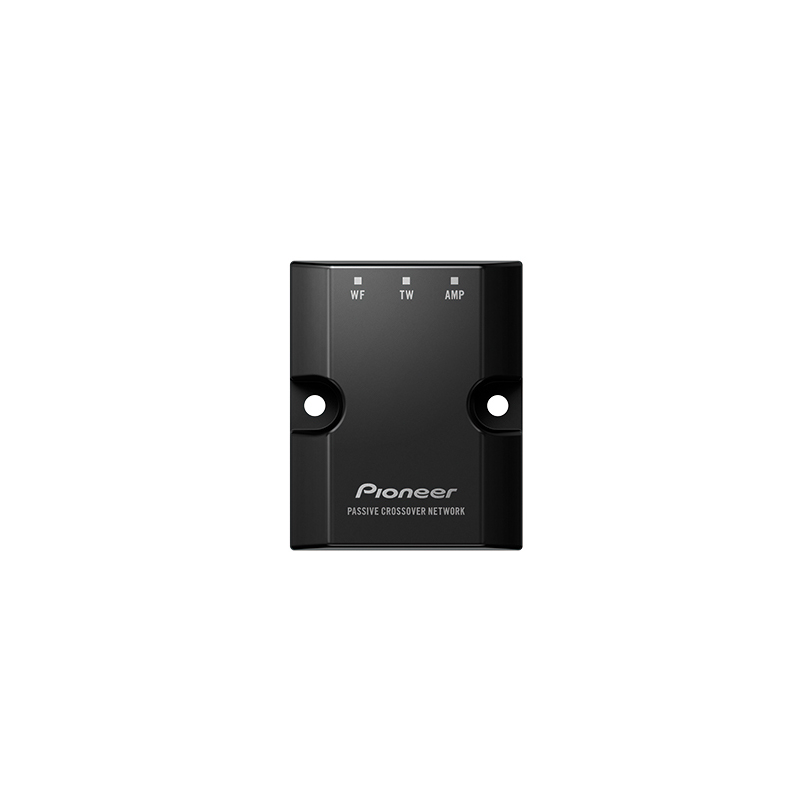

CROSSOVER NETWORK
Crossover Frequency: 1800 Hz
Approximate Weight:
Shipping: 8 lbs
UPC: 884938374590
Weight: 7.01
