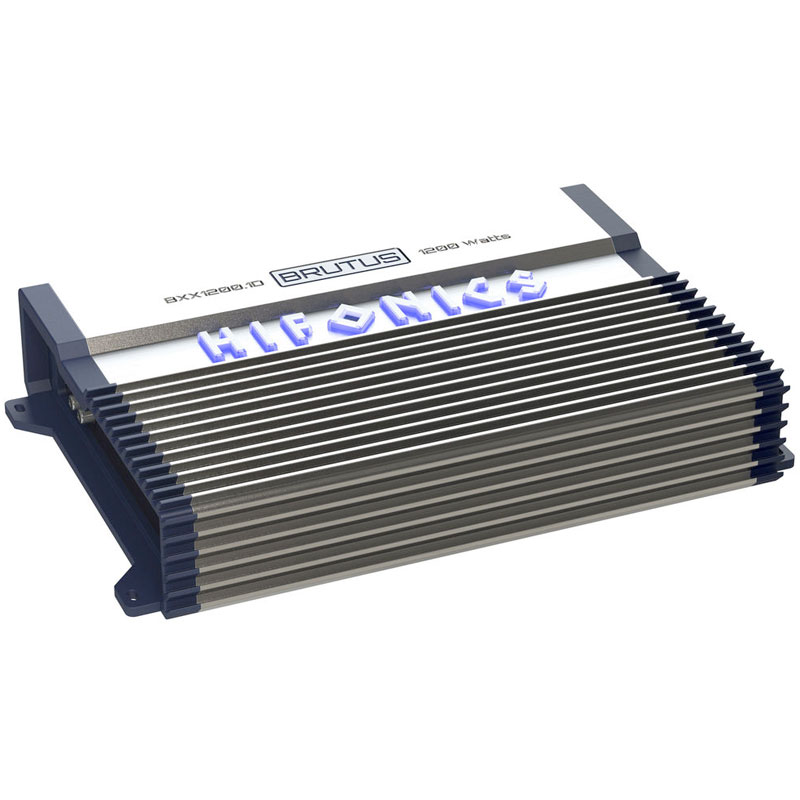

The BXX1200.1D is a 1200 watt mono amplifier featuring Super Class D™ technology with an NGSD digital chip to provide you with an extremely efficient, low temperature, high amplification system that others only dream about. The rock solid Ultra-Fi™ MOSFET outputs are selected for both balance and output power. This keeps power smooth even during demanding peak in the music. All Mono and five channel amplifiers include a bass remote to put the bass control at arm’s length. The amplifiers protection condition is also shown by blue illumination for normal operation and red for a short being present and requires the attention of an installer.
With Onlinecarstereo, you are always sure that you are getting authentic Hifonics products all the time with the necessary warranties to protect your investment. We always strive to provide 100% total customer satisfaction and after-market service.
- Maximum Power : 1200 Watts
- Low Frequency Response : 10 Hz
- High Frequency Response : 50000 Hz
- Number of Channels : 1
- Frequency Response : 10-50000 Hz
- Amplifier Class : D

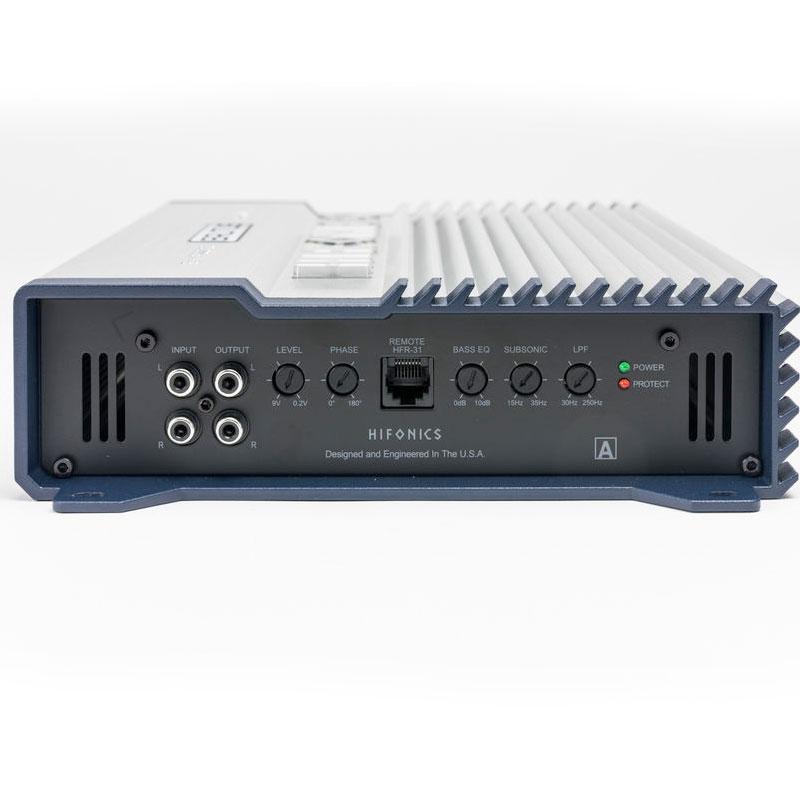

Features & Benefits
- Low Noise Pre-Amplifier Circuitry
Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion
- RCA Inputs
Nickel-plated RCA jacks create the most effiecient audio connection and resist corrosion
- Operation Mode
Mono only
- Crossover Type
Variable electronic crossovers allow for complete control of the sound
- Electronic Equalizer
Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
Check specifications for specific frequencies for this amplifier
- Class / Topology
Super D-Class™ designs which employ high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption. At very high listening levels, Hifonics amplifiers with Super D-Class circuitry result in lower distortion, higher current efficiencies and less heat than conventional D-Class amplifier designs
- Output Device Technology
The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion
- Heat Sink
Classic aluminum Hifonics design to minimize heat build up on the Ultra-Fi™ output devices
- Power Supply
Simpatico Coil Design
The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices

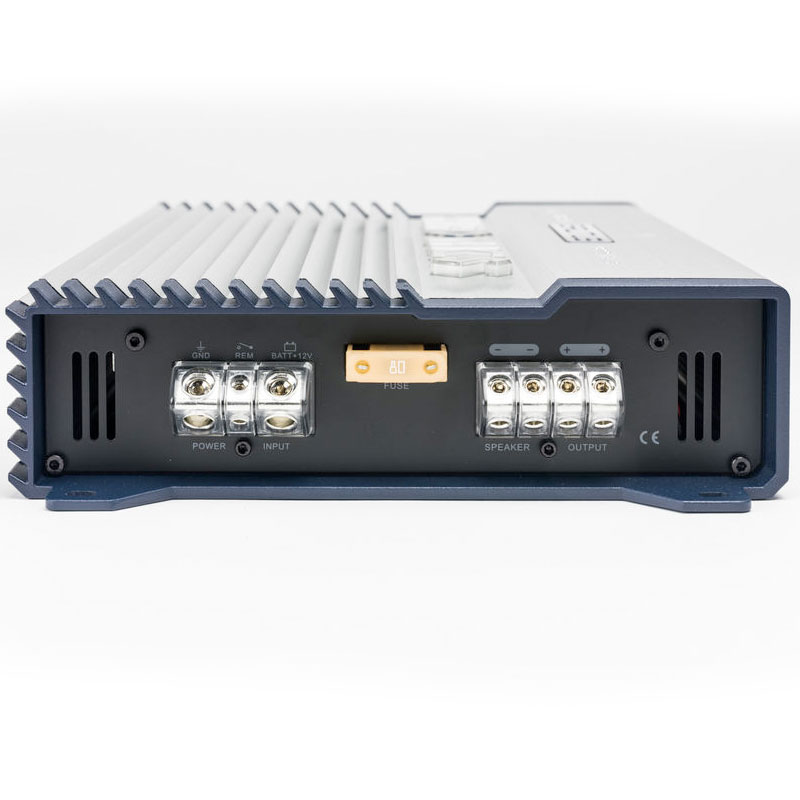

- Output Connections
High temperature impact resistant nickel plated connectors with allen head set screws which allow for secure termination of wire and creates an erosion resistant seal
- Connection Type
Molded and Angled
Secure connection for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile
- LED System Protection Circuitry Diagnostics
Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel
- Bass Remote Included
Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle.
- Phase Adjustment
Phase 0-180°
Specifications
- Class
Super D Class™
- Variable Voltage
9V - 0.2V
- Signal to Noise
>95dB
- Frequency Response
10Hz - 50kHz
- Crossover
Electronic
- Variable Low Pass Crossover 12dB per Octave
30Hz - 250Hz
- Bass Boost
0 - 10dB
- Subsonic Filter
15Hz - 35Hz
- Phase Shift
0° - 180°
- Power @ 1 Ohm
1 x 1200 Watts
- Power @ 2 Ohms
1 x 600 Watts
- Power @ 4 Ohms
1 x 400 Watts
- Mono Bridged @ 4 Ohms
N/A
- Total Channels
1
- Audio Inputs
RCA
- Audio Outputs
RCA
- Power Terminal 12v/GND
4 AWG
- Speaker Terminal Wire Gauge
12 AWG
- Fusing
80Ax1
- Total Harmonic Distortion (THD)
<0.10%
- UPC: 806576227939
- Weight: 11
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
