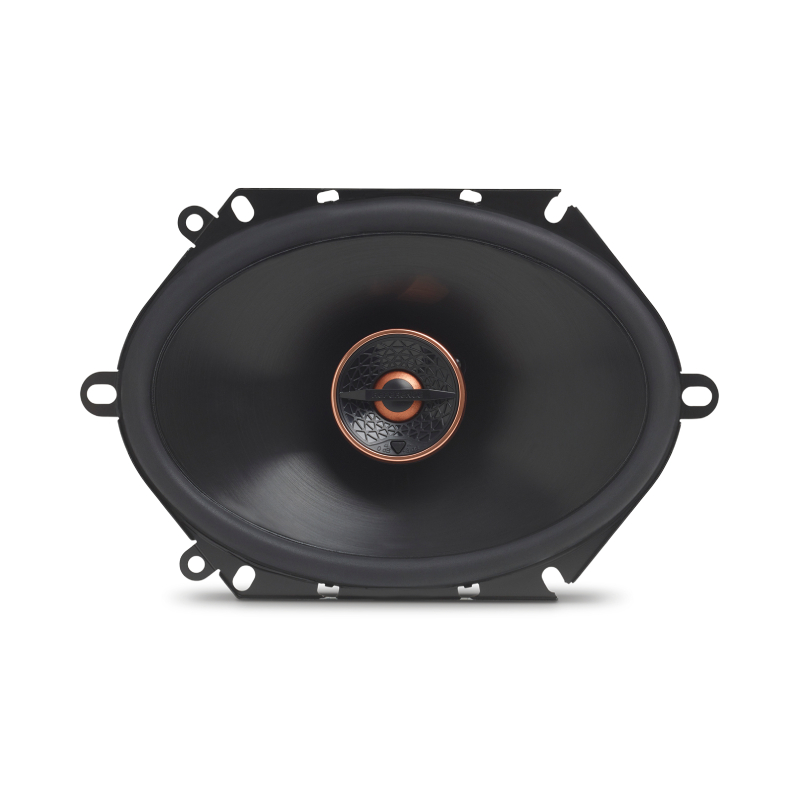

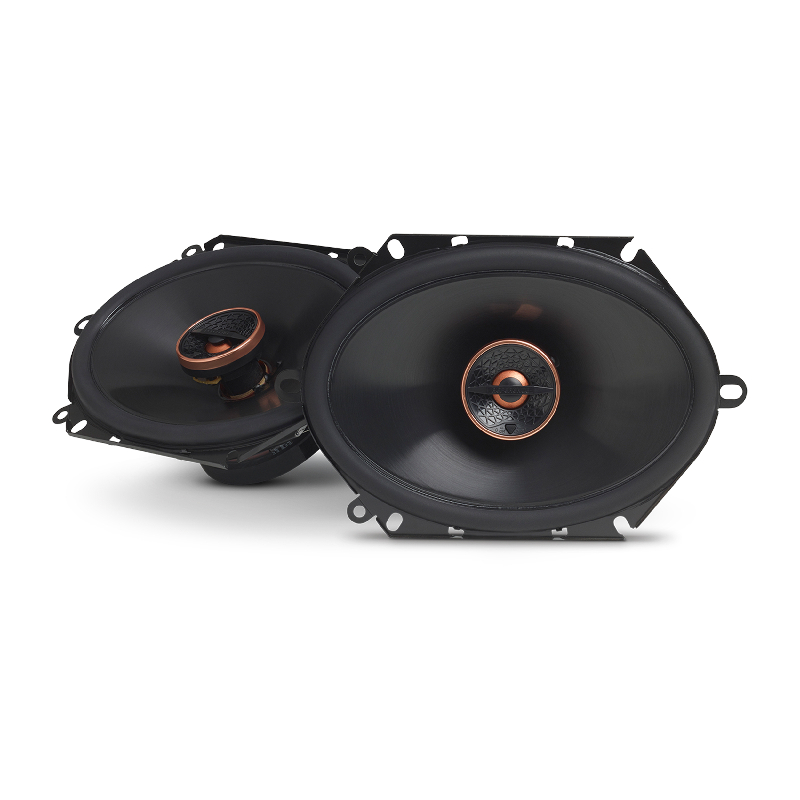

Infinity Reference REF-8632cfx Reference Series 6x8" 60W RMS (180W Peak Power Handling) 2-Way Car Speaker
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

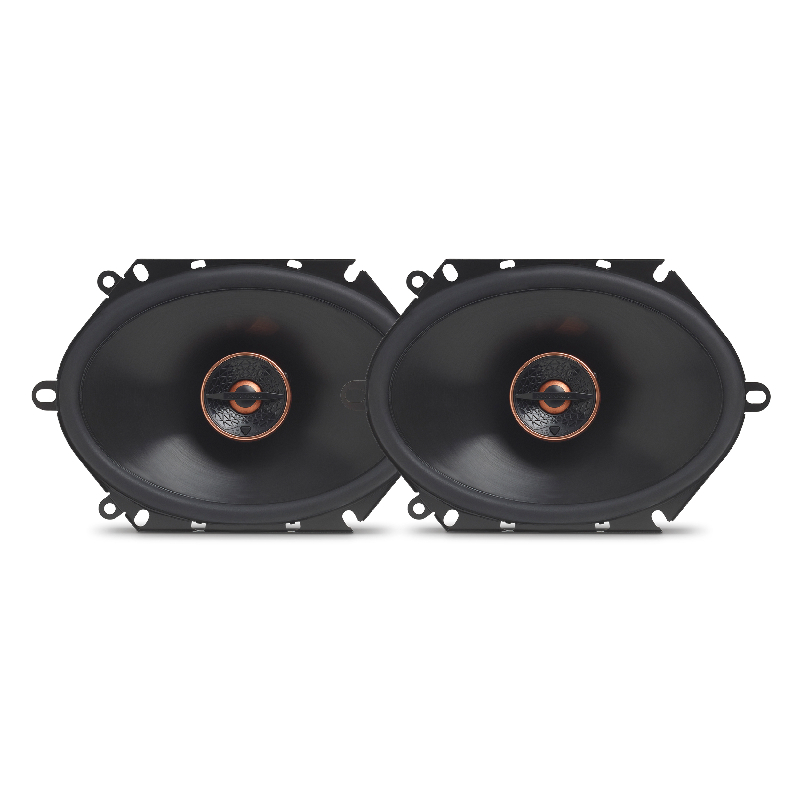

•(2) 2-way speakers
• Adhesive backed foam gaskets
High Quality 2-Way Speaker
The market has been flooded by aftermarket car speakers lately; however, there is one thing that we can say about this: there is no mistake if you are going for Infinity Reference speakers, such as its REF-8632CFX. A 2-way speaker that is made to reproduce the famous Infinity signature sound, there is really no reason not to go for this one if you are upgrading.
It comes with a Plus One woofer cone made of polypropylene and a hi-roll rubber surround, allowing the speaker to produce accurate mid and low frequencies with minimal distortion. Its woofer also has a larger surface area compared to other speakers, resulting in a bigger airflow and louder bass output.
It also comes with a one-inch edge-driven tweeter with a dome design, giving the speaker smooth and sparkling highs with less distortion and minimal breakup. With its adjustable push-button tweeter level, you can fix its high-frequency performance so you can get the highs that suit your taste.
The 6"x8" Reference 8632CFX speaker can handle a power output of 60 Watts RMS and can go up to 180 Watts of maximum power at 3 ohms. It has a sensitivity rate of 93 dB and a frequency response of 49 Hz up to 21 kHz, which means you won't have any issues with its sound getting distorted, even if you crank up its volume at high levels.
Diameter : 6x8 Inch
Sensitivity : 93 dB
Impedance : 4 Ohm
Frequency Response : 49-21000 Hz
Peak Power Handling : 180 Watts
Design : 2 Way
Shallow Mount : No
RMS Power Handling : 60 Watts
Plus One+ Woofer Cones: Each speaker uses a cone larger than other speakers of the same size. This is accomplished by using a unique basket design and hi-roll surround. The Plus One+ design offers greater bass output and an increase in efficiency.

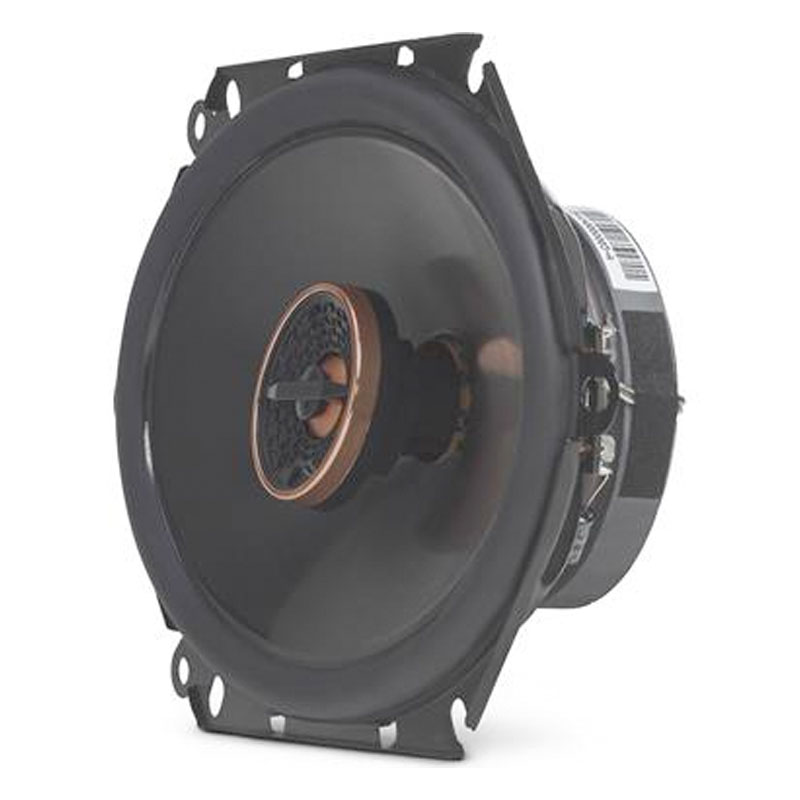

Angled Tweeter: The tweeters are mounted at an angle (fixed), so they can be directed toward the listeners to improve imaging.
Tweeter Level Control: A switch on the front of the tweeter allows you to boost the tweeter output to +3dB, useful if the speakers are mounted low in a door where high frequencies are easily absorbed.
High-Output Design: The 3Ω voice coil design compensates for the high in-line resistance of small gauge factory wiring, extracting more power from factory (or aftermarket) receivers.
Mounting Applications: Infinity describes these speakers as 6x8, but they also fit many 5x7 applications. Please enter your vehicle information to confirm fit.
Edge-driven, textile tweeters
Adjustable tweeter output level
Plus One™ woofer cone architecture
compatible with virtually all factory or aftermarket car stereos

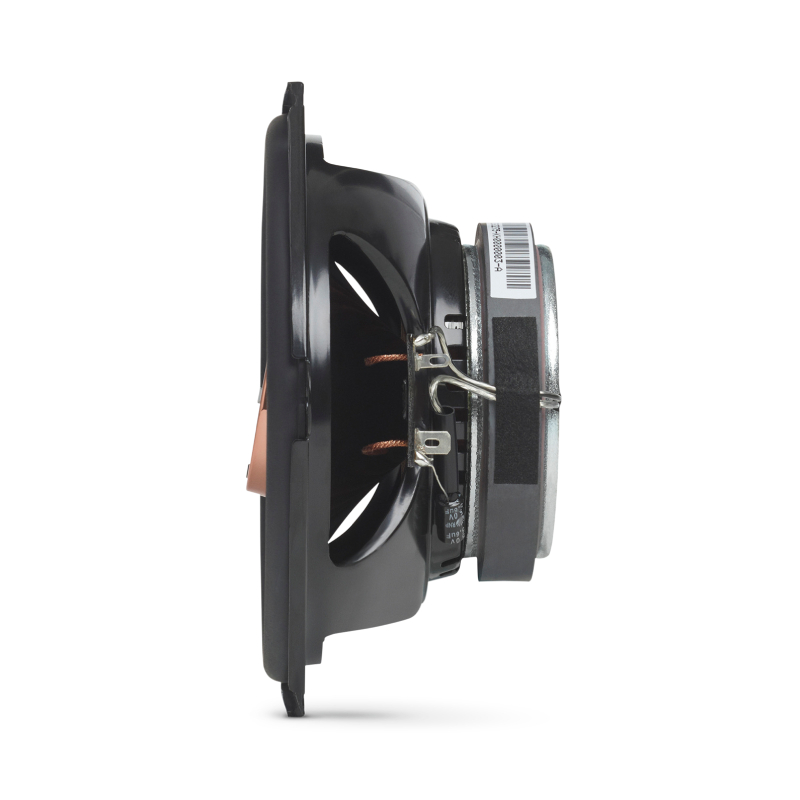

Top-mount depth: 2-5/16"
Optimized Frame Size
Description: 6" x 8" (152mm x 203mm) coaxial car speaker
Power Handling: 60W RMS, 180W peak
Sensitivity (@ 2.83V): 93dB
Frequency Response: 49Hz – 21kHz
Impedance: 3.0 ohms
Speaker Size: 6X8
Tweeter Design: Edge-Driven Dome
Impedance (Ohms): 3
Tweeter Composition: Textile
Woofer Composition: Polypropylene
Woofer Surround: Rubber
Parts Warranty: 1 Year
Labor Warranty: 1 Year
Sensitivity (1W at 1 meter): N/A
Sensitivity at 2.83 volts: 93
Frequency Response: 49 - 21k Hz
Minimum RMS Wattage: ---
Maximum RMS Wattage: 60
Peak Power Handling (Watts): 180
Top-mount Depth (Inches): 2 3/8
Bottom-mount Depth (Inches): N/A
Cutout Diameter or Length (inches): 0
Mounting Height (Inches): 0.504
