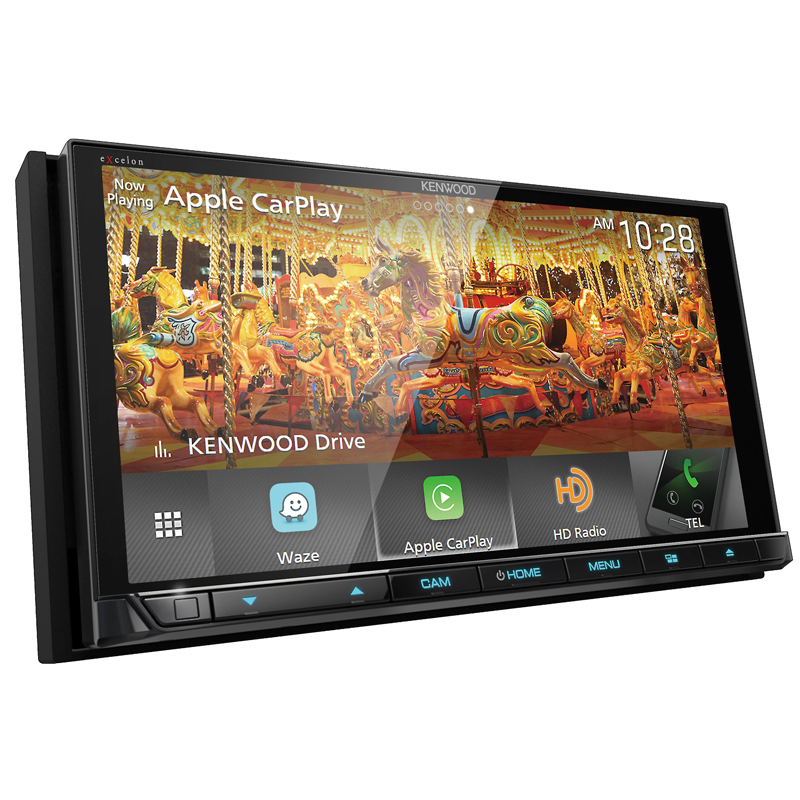

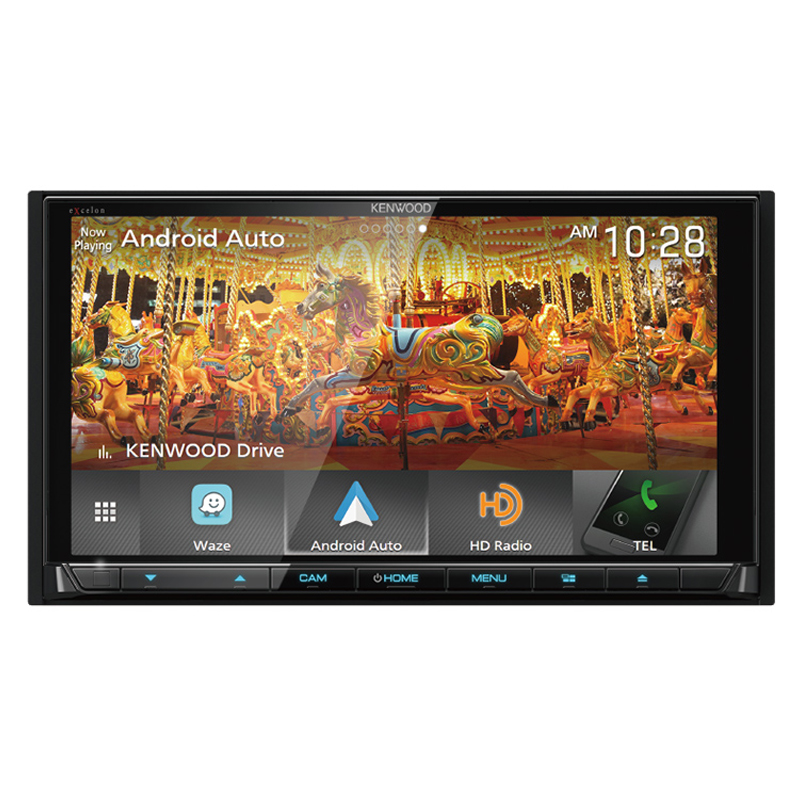

The Kenwood Excelon DDX9905S is perfect for high-fidelity afficionados, but also for anyone looking for a high quality touchscreen receivers. This receiver is a 6.75" high definition display with anti-glare capacitive touch panel. DDX9905S boasts 2,764,800 pixels compared to DDX9705S or DMX7705S which both have 1,152,000 pixels. With its built-in Apple Carplay and Android auto, journeys have never been easier and safer. Access help from your smartphone on the road without taking your hands off the wheel. Apple Carplay and Android Auto let you get directions, engage with your contacts, and control audio playback using voice commands. Just connect your Android phone or iPhone via cable to access real-time navigation assistance from Google Maps. Use voice commands for messaging, taking calls, getting directions and even playing your favorite music. Also compatible with a wide range of audio file formats from high-res audio such as FLAC and WAV to MP3, WMA and AAC. Users can now listen to their favorite music in any file format while still providing the best sound quality possible.
Excelon products incorporate the latest technologies and deliver the highest sonic performance. From advanced audio tuning capabilities, crossover and equalizer systems, high voltage preouts, excelon represents the very best product available.
- Maximum Power : 200 Watts
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : Yes
- Remote Control : Yes
- RMS Power Output : 22x4 Watts
- Built-in EQ : Yes
- DIN : 2
- Display Size : 6.75 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Rear USB Input : 2
- Rear View Camera Input : Yes
| Model Name |
DDX9905S |
| Monitor Section |
Picture Size |
6.75 inches(diagonal) wide |
| Display System |
AAS LCD panel |
| Drive System |
TFT active martrix system |
| No. of Pixels |
2,764,800| 1280H x 720V x RGB | 99.99% |
| Back lighting |
LED |
|
DVD Section
|
Video Decoder |
MPEG1/2,MPEG4 / WMV / H.264 / MKV |
| Audio Decoder |
MP3 / WMA / AAC / WAV / FLAC / Vorbis
Dolby Audio
Linear PCM
|
| Frequency Response |
96k Sampling 20-44000 Hz
48k Sampling 20-22000 Hz
44.1k Sampling 20-20000 Hz
|
| Total Harmonic Distortion |
.010% |
| Signtal to Noise Ratio |
90.5d |
| General |
Operating Voltage |
14.4V (10.5V to 16V) |
| Maximum Current consumption |
15A |
| Installation Dimensions WxHxD |
7 x 3-15/16 x 6-5/16 inch |
| Operational temperature range |
-10°C to +60°C |
| Audio |
Maximum Power Output (Front&Rear) |
50Wx4 |
| Typical Power Output (Front&Rear) |
Full Bandwidth Power |
| (at less than 1%THD) |
| 22Wx4 |
| Output frequency band |
20 - 88,000Hz |
| Preout level (V) |
5V / 10kOhms |
| Preout impedance (Ω) |
=< 300 Ohms |
| Speaker Impedance (Ω) |
4-8 Ohms |
| VIDEO |
Color system of external video input |
NTSC/PAL |
| External video input level (Mini jacks) |
1 Vp-p / 75 Ohms |
| External audio max input level (Mini jacks) |
2 V / 25 kOhms |
| Video Input level (RCA jacks) |
1 Vp-p / 75 Ohms |
| Video Output level (RCA jacks) |
1 Vp-p / 75 Ohms |
| Audio Output level (Mini jacks) |
1.2 V / 10 kOhms
|
- UPC: 0019048222282
- Weight: 5.3
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
