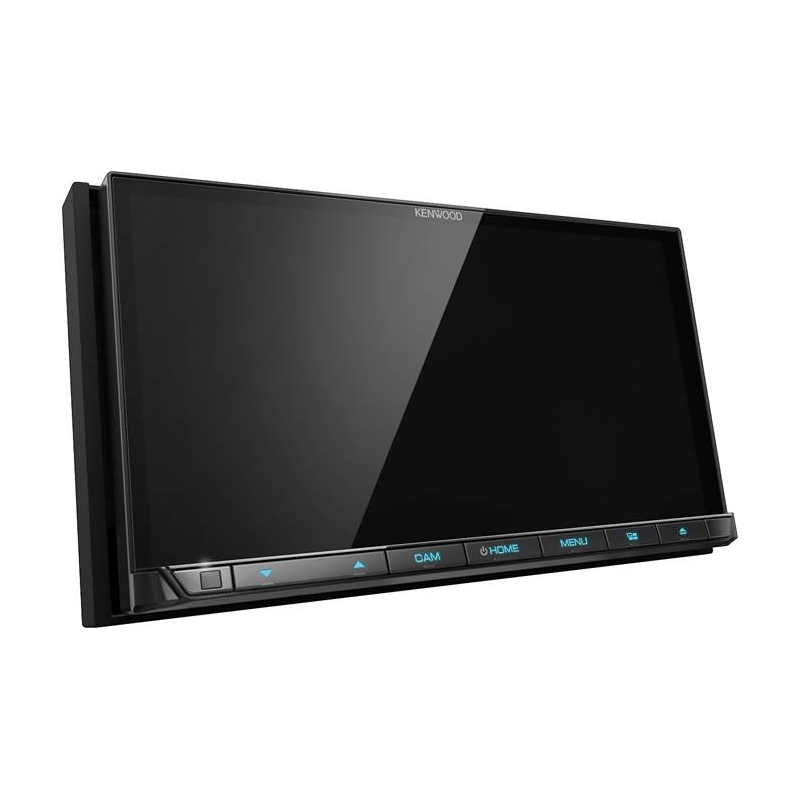

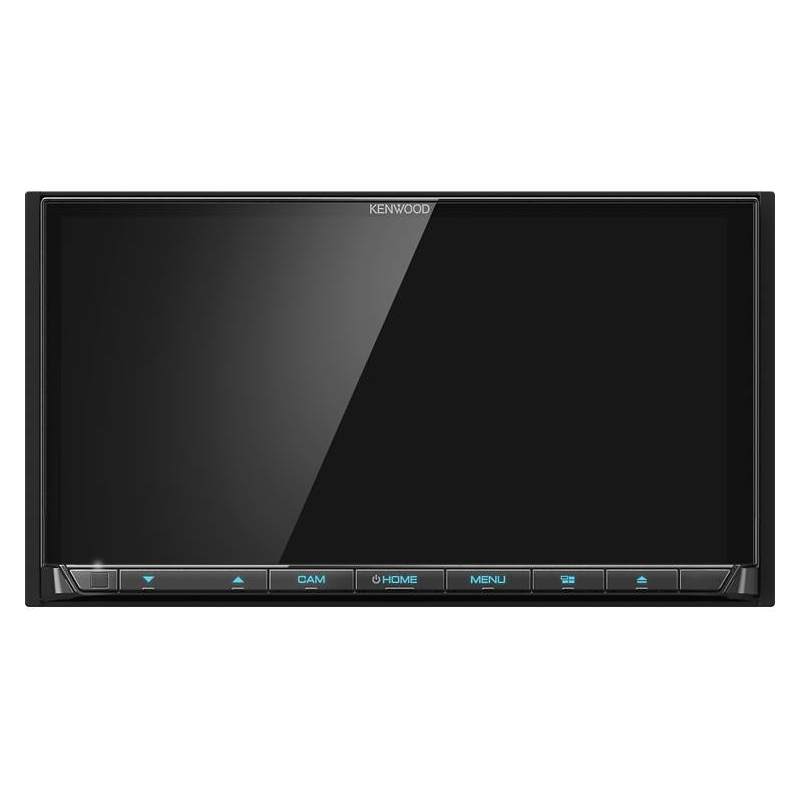

Kenwood DDX9705S DVD Receiver
Apple CarPlay, Android Auto, iDatalink Maestro, Made for iPhone/iPod, Bluetooth, Weblink, Pandora, Spotify, SiriusXM, HD Radio, Hi-Res Audio, Capacitive Touch Panel, Music Mix, Dual Phone Connection, Wireless Music Browsing, 13 Band EQ/DTA, Drive EQ, FLAC&DSD, Dash Cam Ready, Dual Camera Input, Parking Guide Lines, Dual USB, Detachable USB.

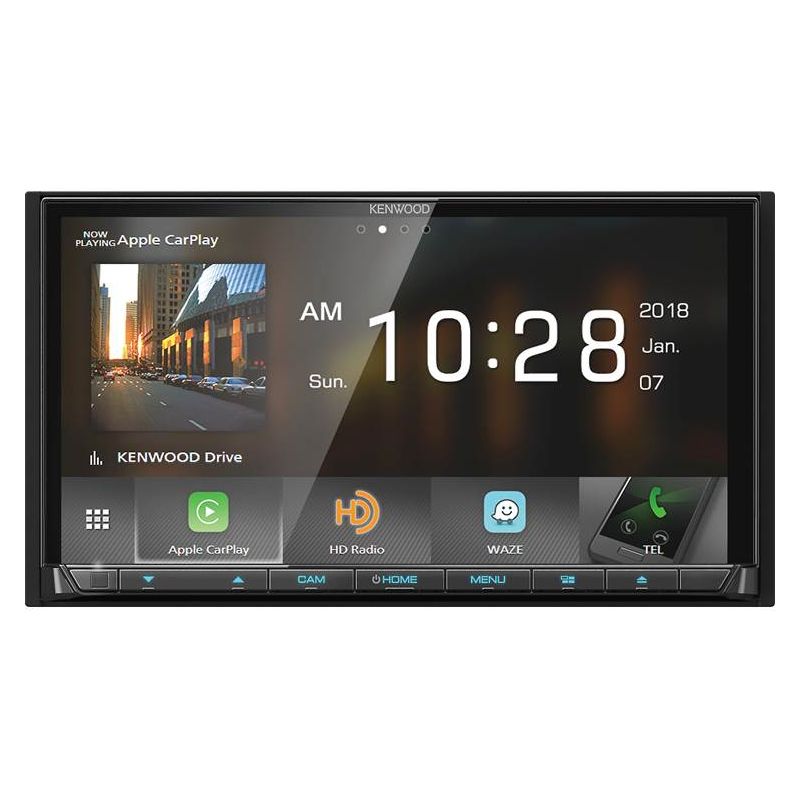

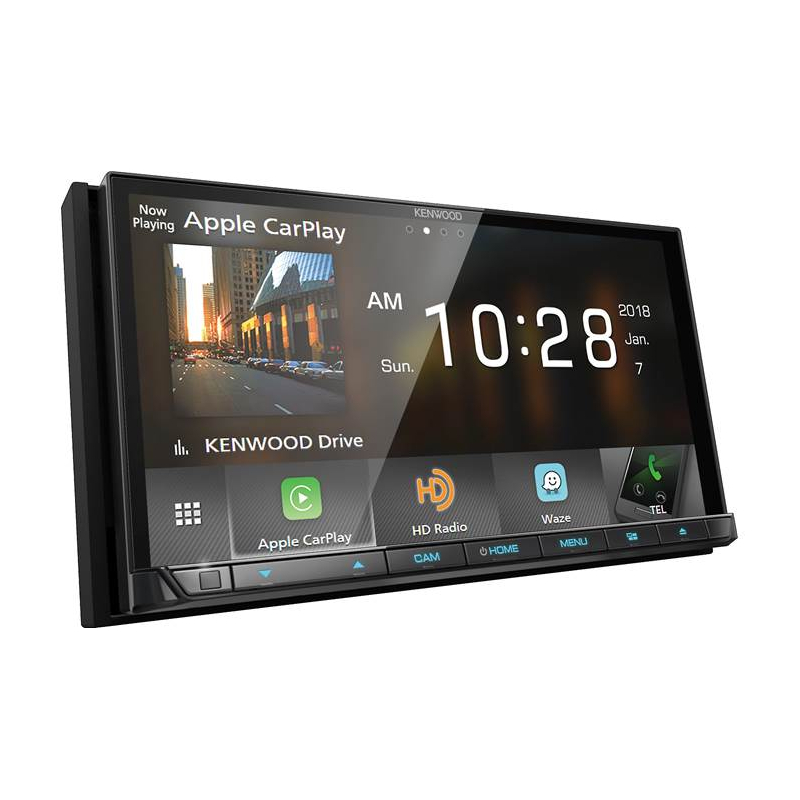

CarPlay is the smarter and safer in-vehicle interface to operate your iPhone, and the experience is taken to another level when featured in a KENWOOD multimedia receiver. Simply talk to Siri, or touch the receiver’s display and get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music all in a way that allows you to stay focused on the road.

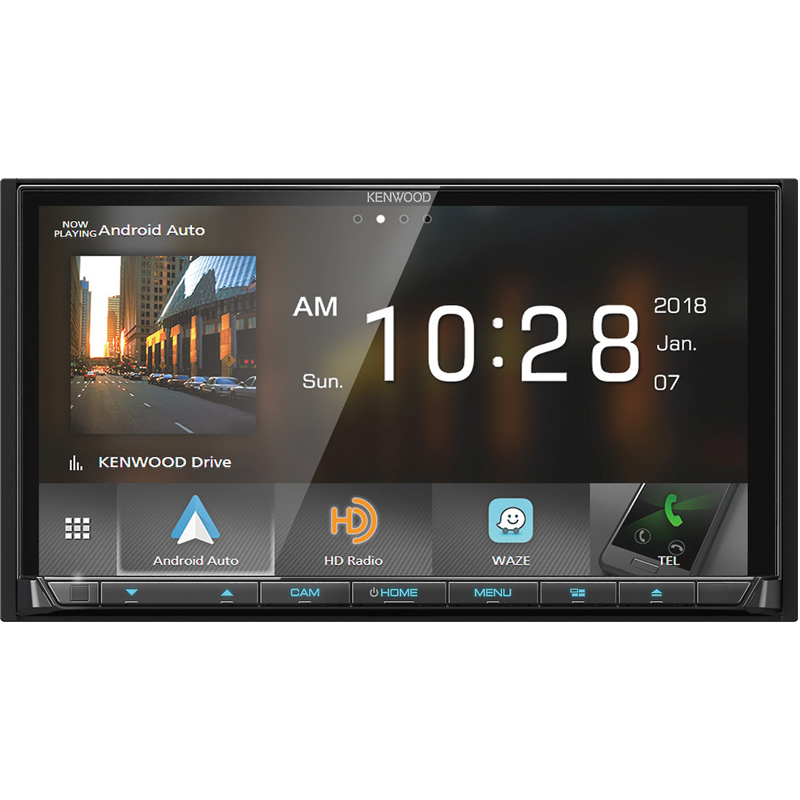

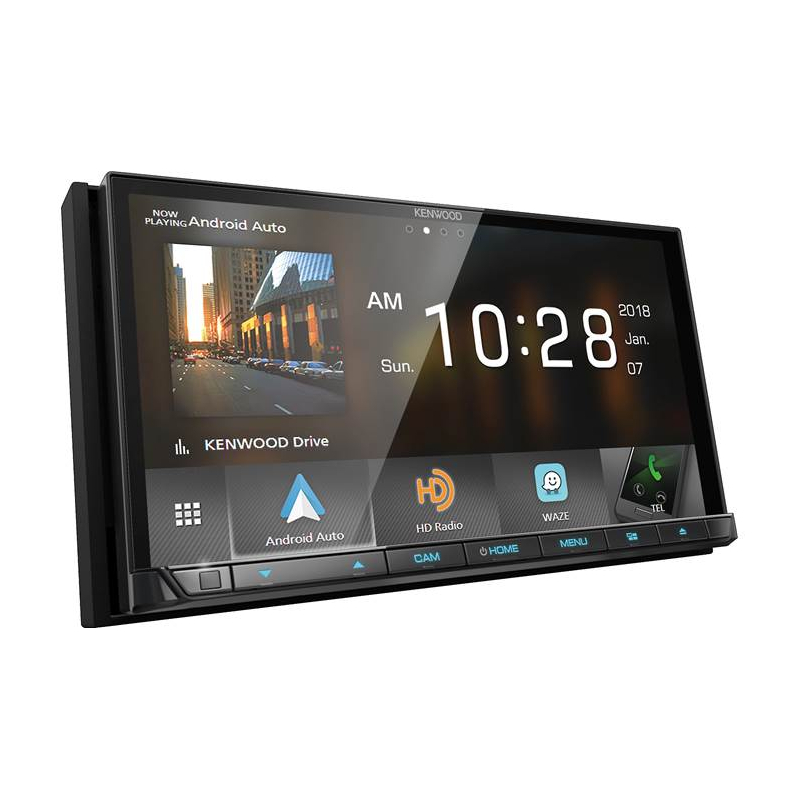

Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. And now you can connect wirelessly, so you can enjoy all of your smartphone’s features without the fuss of any cables. KENWOOD’s multimedia receivers combine Android Auto’s intuitive voice controlled interface, a large touch screen and superior sound quality. Making it the perfect complement for your in-car life.
WebLink - Your Portal to Waze, Youtube and More
WebLink is the new way to get the most out of your in-car receiver. Download the KENWOOD WebLink app and you can connect your smartphone wirelessly or with USB to access some of your favourite apps such as Waze, Youtube and Yelp. Using your apps through the large and clear touchscreen makes WebLink the safest and easiest way to use your smartphone on the road.
Dual Phone Connection Allows You to Operate up to Two Phones Hands-Free
Allows two phones to be connected for hands-free operation at any time. Easily switch between both phones for incoming call. Also includes wide-band hands-free profile ver.1.6 for high quality clear calling.
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the head unit at the same time and you can enjoy audio streaming just by switching the devices with your friends or family.
Equipped with Dual USB Ports
Play your music from one USB port and use the other to charge your device, or charge both at the same time.
Playable in Various Audio File Formats
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC. Also plays DSD (Direct Stream Digital) format les with a broader reproduction frequency band for life-like high-resolution sound reproduction. DSD playback up to 11.2 MHz ensures the very highest sound quality, with both the outstanding clarity of digital sound, coupled with the characteristic smoothness of analog sound sources.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
Dual Camera Input
Two Camera inputs for Front and Rear cameras. A rear view camera can be used for the front as it has the ability to reverse the image.
iDatalink Maestro RR
When an Automotive Data Solutions iDatalink Maestro RR is connected to a compatible KENWOOD receiver, it provides a seamless interface with factory infotainment features such as Satellite Radio, USB Media Player, Bluetooth hands-fr
Model Name: DDX9705S
- Picture Size: 6.95" (diagonal) wide
- Display System: TN LCD panel
- Drive System: TFT active martrix system
- No. of Pixels: 1,152,000 | 800H x 480V x RGB | 99.99% Effective pixels
- Back lighting: LED
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis | Dolby Audio | Linear PCM
- Frequency Response
- 96k Sampling 20-44000 Hz
- 48k Sampling 20-22000 Hz
- 44.1k Sampling 20-20000 Hz
- Total Harmonic Distortion: .010%
- Signtal to Noise Ratio: 90.5d
- Operating Voltage: 14.4V (10.5V to 16V)
- Maximum Current consumption: 15A
- Installation Dimensions(WxHxD): 7 x 3-15/16 x 6-5/16 inch
- Operational temperature range: -10°C to +60°C
- Maximum Power Output (Front&Rear): 50Wx4
- Typical Power Output (Front&Rear): Full Bandwidth Power | (at less than 1%THD) | 22Wx4
- Output frequency band: 20 - 88,000Hz
- Preout level (V): 4V / 10kOhms
- Preout impedance (Ω): =< 300 Ohms
- Speaker Impedance (Ω): 4-8 Ohms
- Color system of external video input: NTSC/PAL
- External video input level (Mini jacks): 1 Vp-p / 75 Ohms
- External audio max input level (Mini jacks): 2 V / 25 kOhms
- Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
- Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
- Audio Output level (Mini jacks): 1.2 V / 10 kOhms
- UPC: 019048222299
- Weight: 8.05
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
