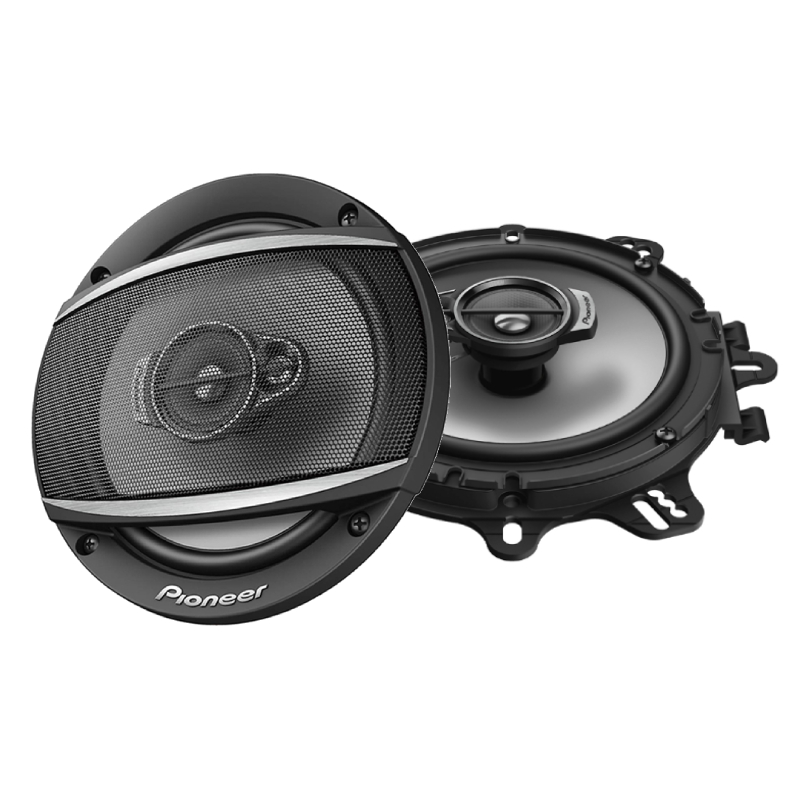

Pioneer TS-A652F 6.5" 3-Way 4-Ohm Coaxial Speaker System
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 3-way speakers

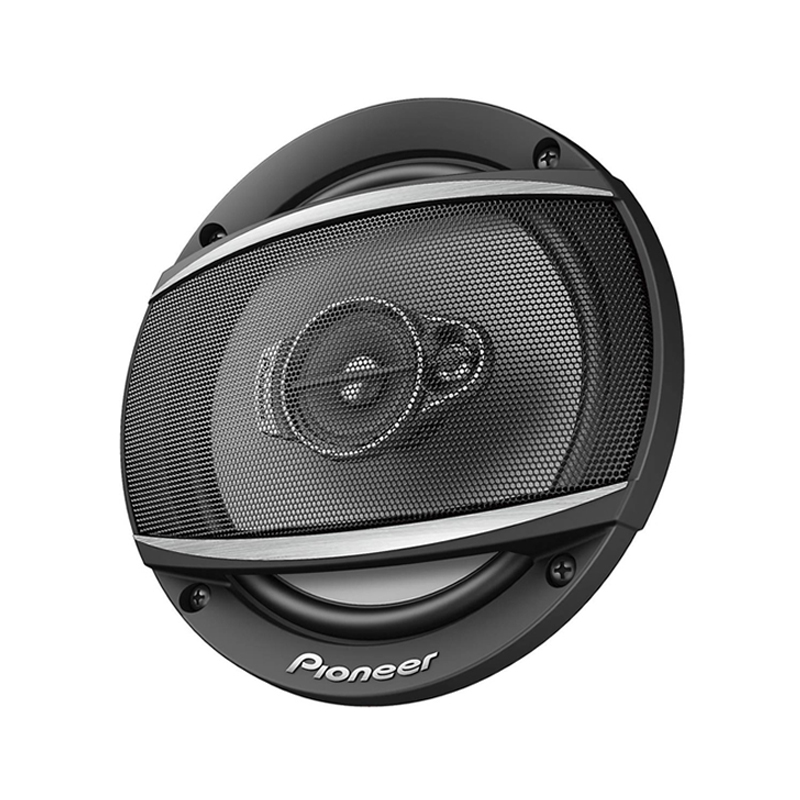

- • (2) Grilles
- • (2) Multi-application mounting brackets
- • (2) 12" lengths of speaker wire (female quick slides on one end and bare wire on the other)
- • (8) 3/4" Screws
- • (8) 3/8" Screws
- • (8) Flat washers
- • (1) Warranty information
- • (1) Specs and template on box
Easily Upgrade to High Performance
The Pioneer A Series speaker sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music. Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears. The A Series lineup expands flexibility and improves acoustic performance. The integrated inline crossover network allows for increased installation flexibility without the need of an outboard module. Included with the Pioneer A Series, are multi-fit installation adapters and tweeter mounts (when applicable).
Easy Installation

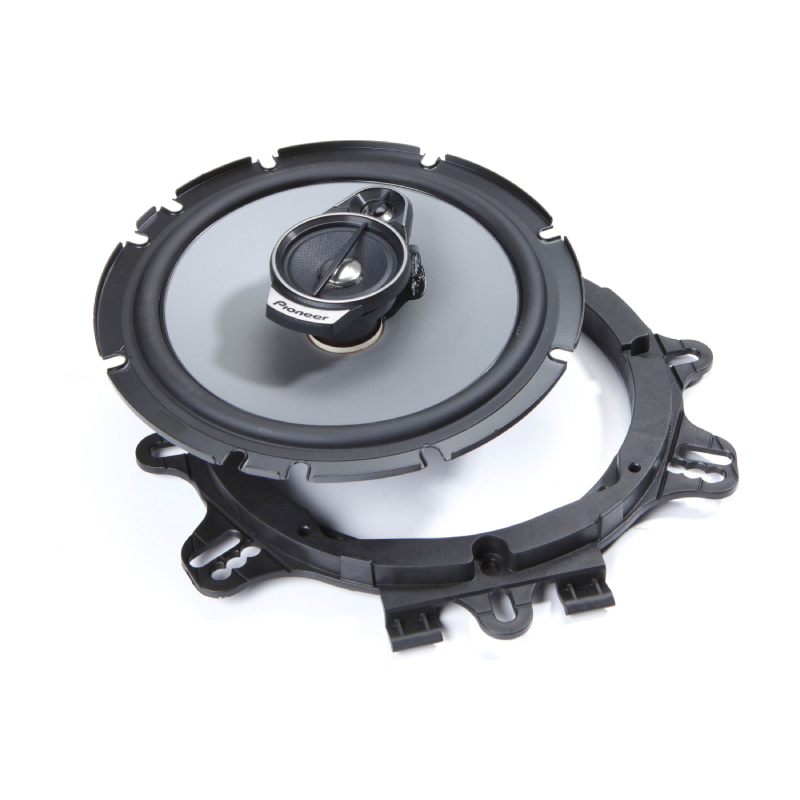

Included with the component system are 6-1/2" multi-fit installation adapters that expand flexibility and improve acoustic performance. The included Pioneer multi-fit installation adapters can be easily modified to fit a variety of different applications by simply breaking off or cutting off the easy to remove tabs until the shape and mounting points match the original speaker. Replacing your factory speakers has never been easier.
OPEN & SMOOTH
Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.
In-Car Simulator
Pioneer’s CarSoundFit app is a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and Pioneer audio upgrades and immerse yourself within the sound quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.
- Diameter : 6.5 Inch
- Sensitivity : 87 dB
- Impedance : 4 Ohm
- Frequency Response : 34 to 24000 Hz
- Peak Power Handling : 320 Watts
- Design : 3 Way
- Top Mount Depth : 1-15/16 Inches
- RMS Power Handling : 70 Watts
Features:
- System Type : 3 Way Coaxial
- Sound Pressure Level (sensitivity): 87dB (+/- 1.5dB)
- Frequency Range 34Hz to 24 kHz
- Continuous Power Handling (RMS): 70 Watts
- Maximum Peak Power Handling: 320 Watts
- Nominal Impedance: 4 ohms
- Woofer Cone Diameter 6 - 1/2"
- Woofer Cone Material Carbon and mica reinforced IMPP in moonstone gray
- Surround Material Elastic polymer
- Woofer Magnet Material Ferrite
- Woofer Magnet Weight 7.6 oz

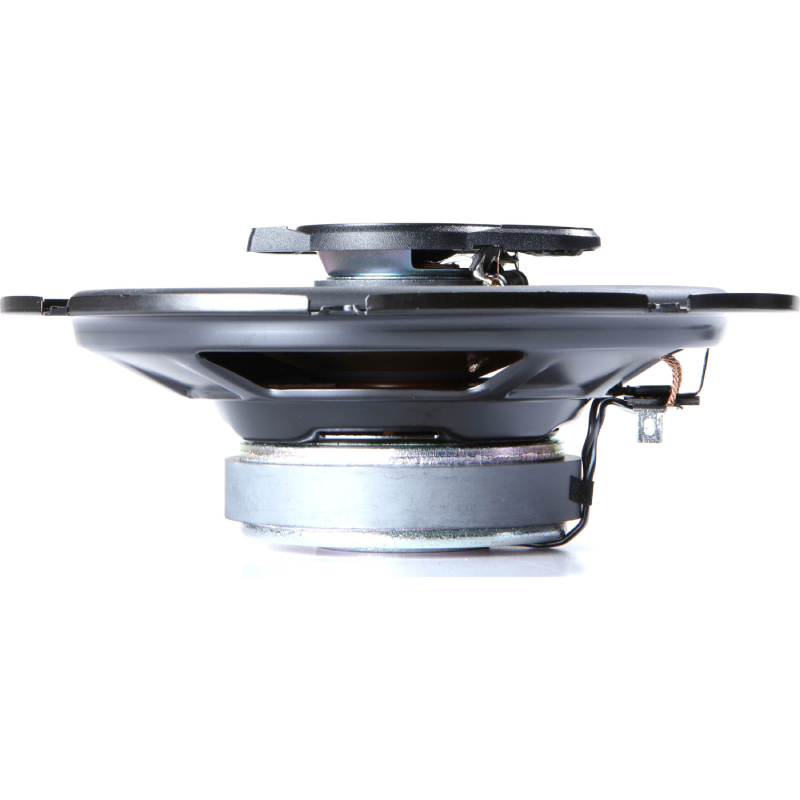

- Mounting Depth 1- 7/8"

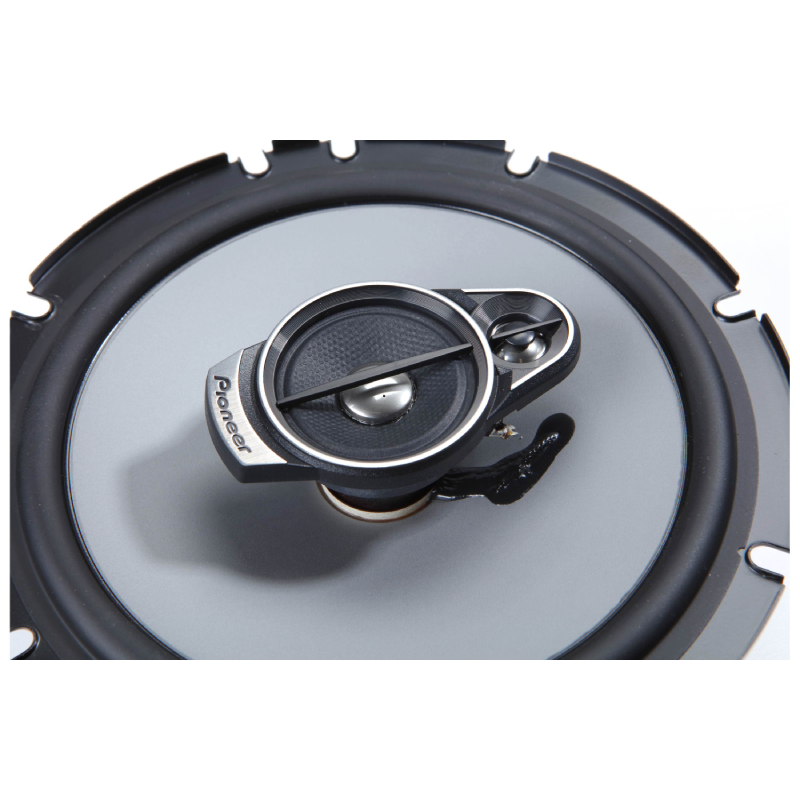

- Tweeter Type 11mm PET dome tweeter 1-5/8" cellulose fiber cone midrange
- Crossover Frequency 4,600 Hz
- Multi-fit Installation Adaptors: Included
General:

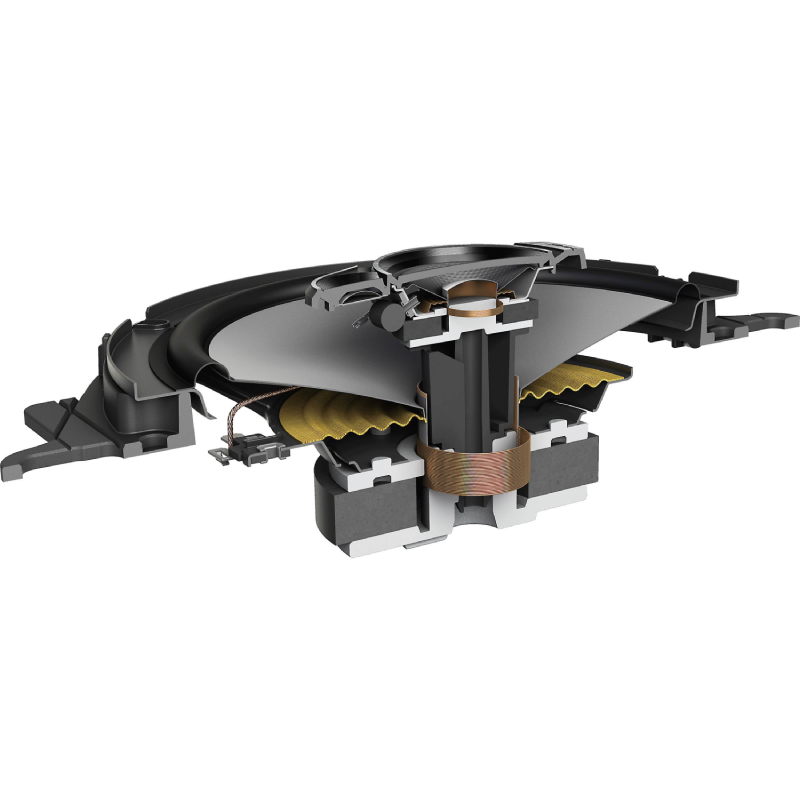

- 11mm polyethylene terephthalate (PET) hard dome tweeter
- 1-5/8" cellulose fiber cone midrange
- 6-1/2" carbon and mica reinforced injection molded polypropylene (IMPP) cone construction

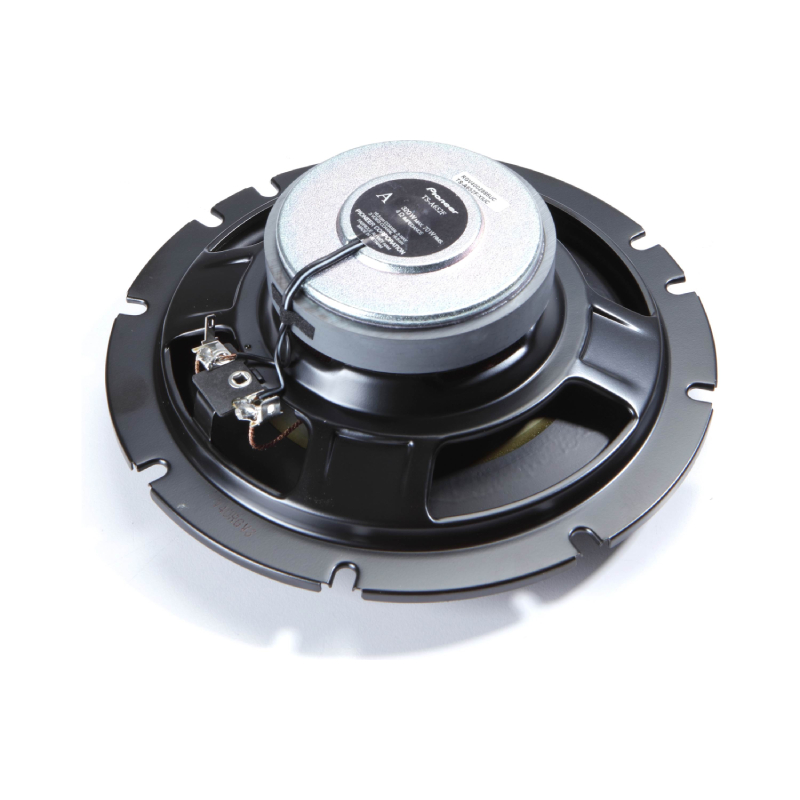

- Universal woofer basket design expands installation flexibility for maximum bass and sound quality

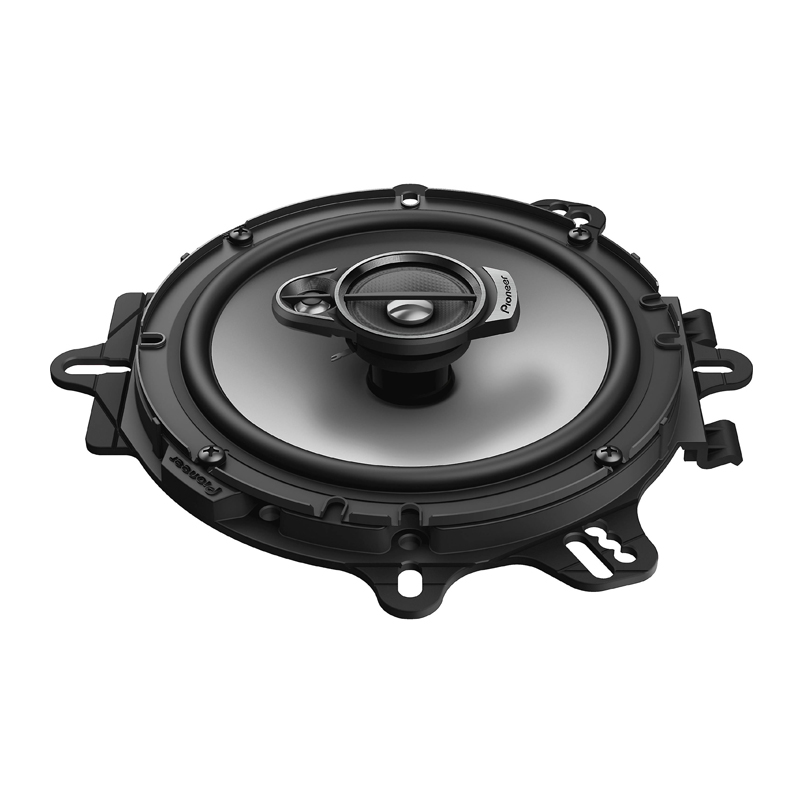

- Included multi-fit installation adapter to optimize fitment in applicable original equipment (OE) speaker locations
- Unique moonstone gray colored cone
- UPC: 884938409780
- Weight: 5.01
