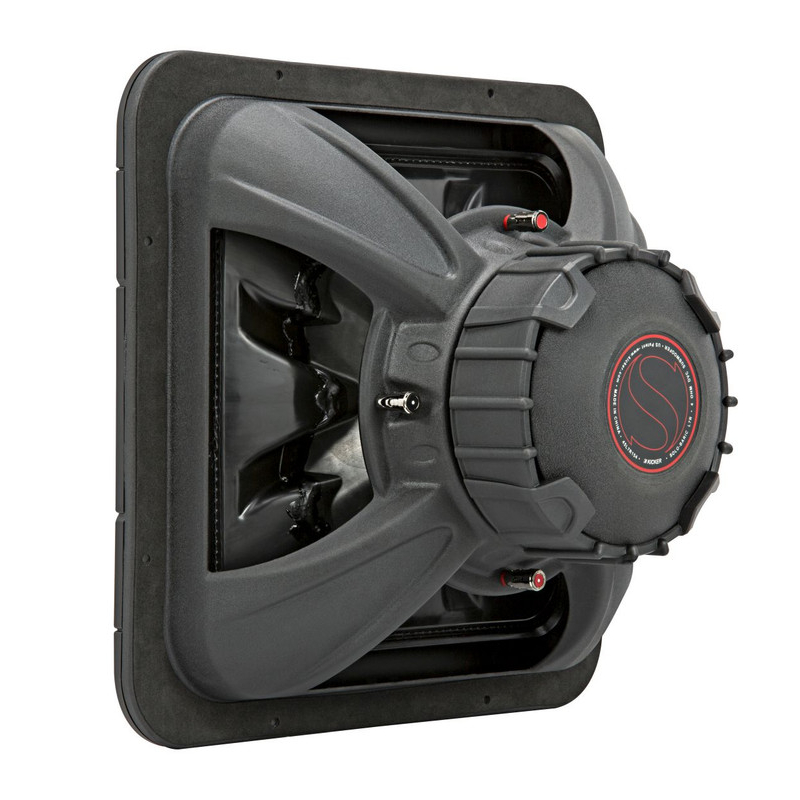

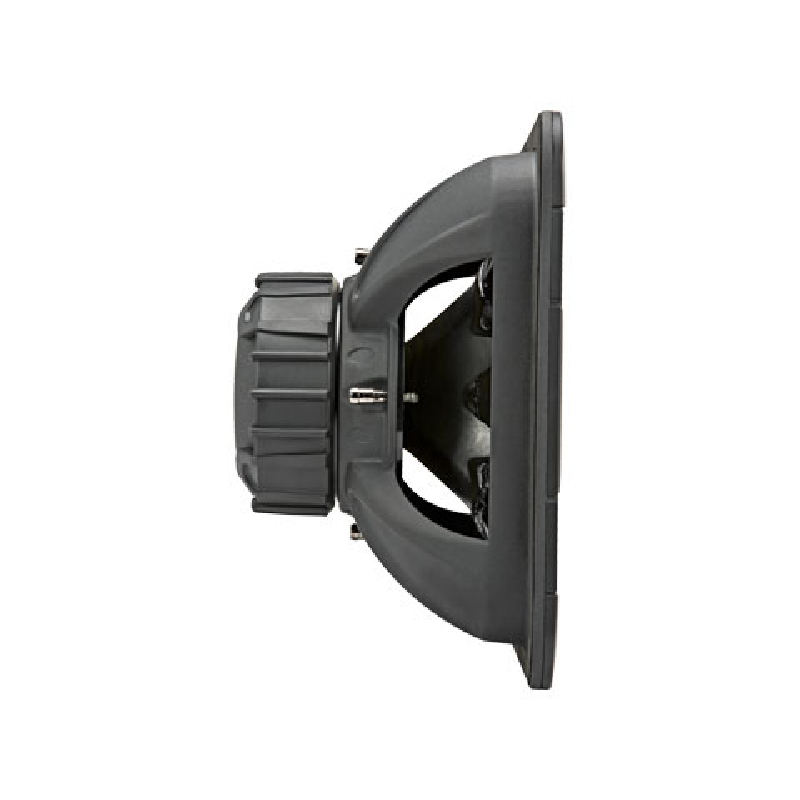

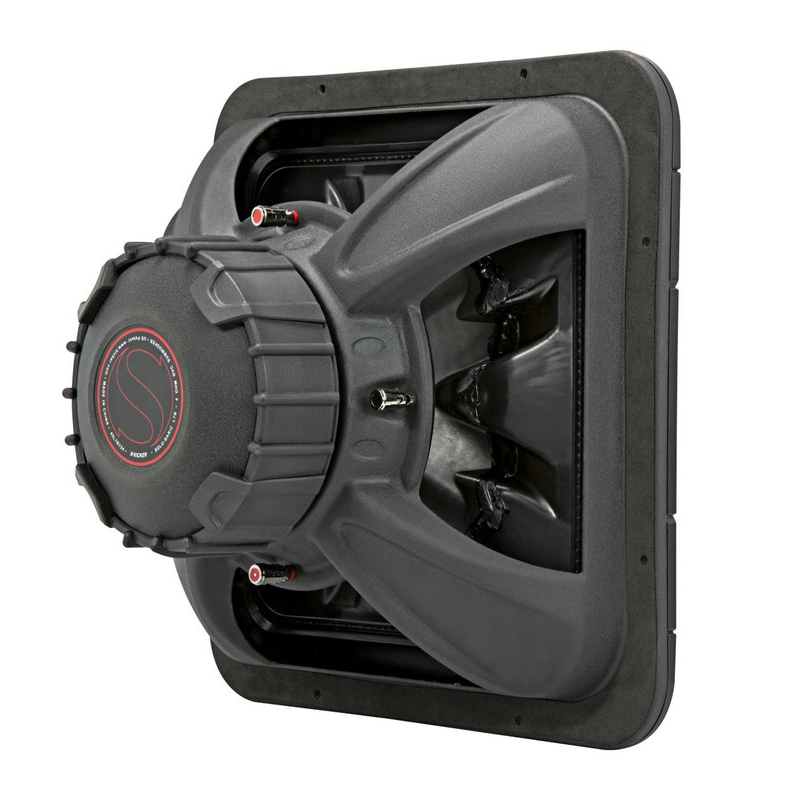

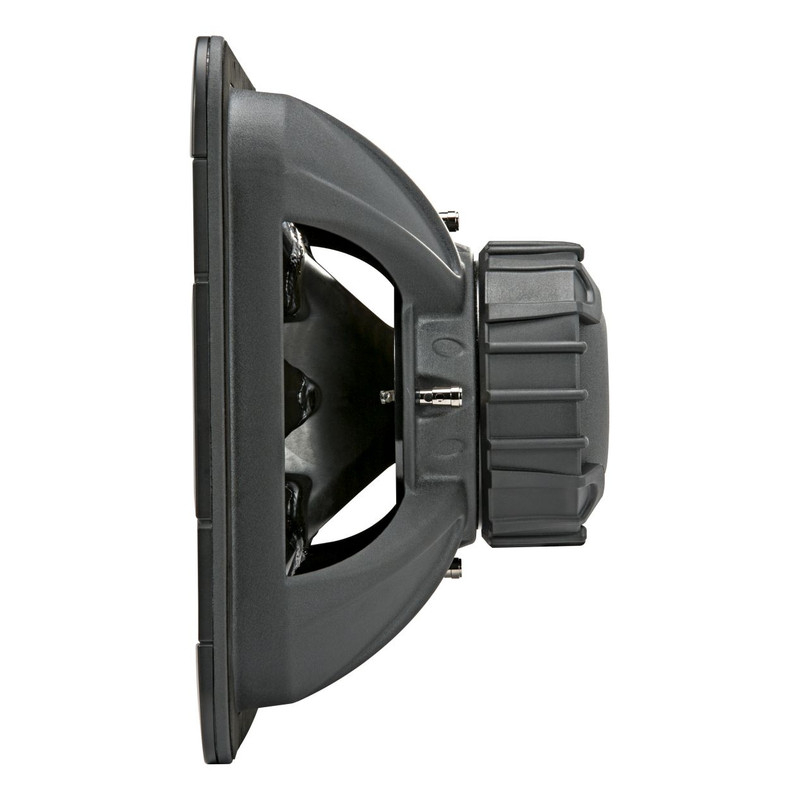

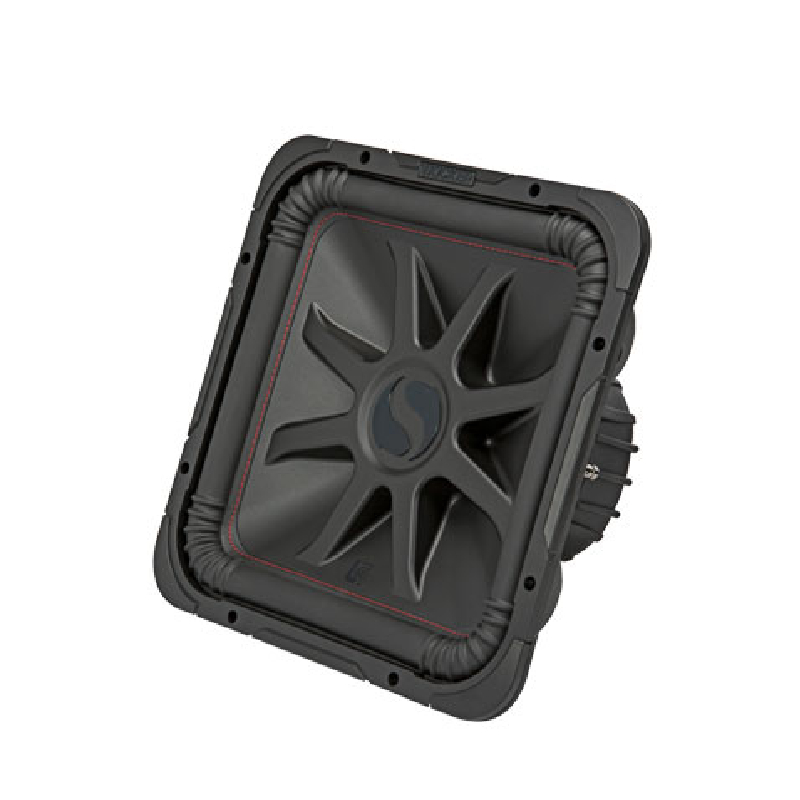

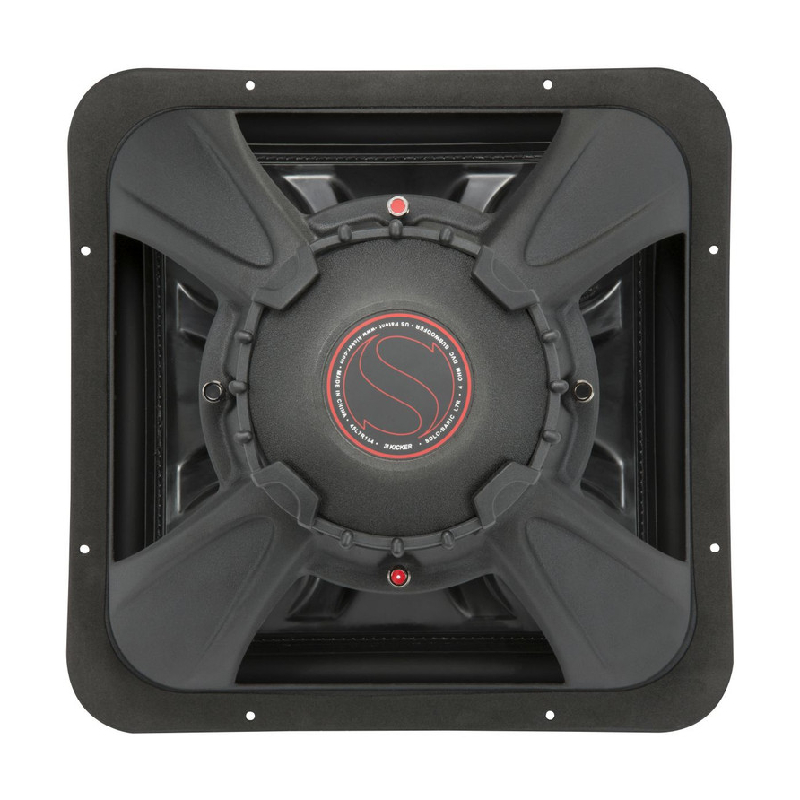

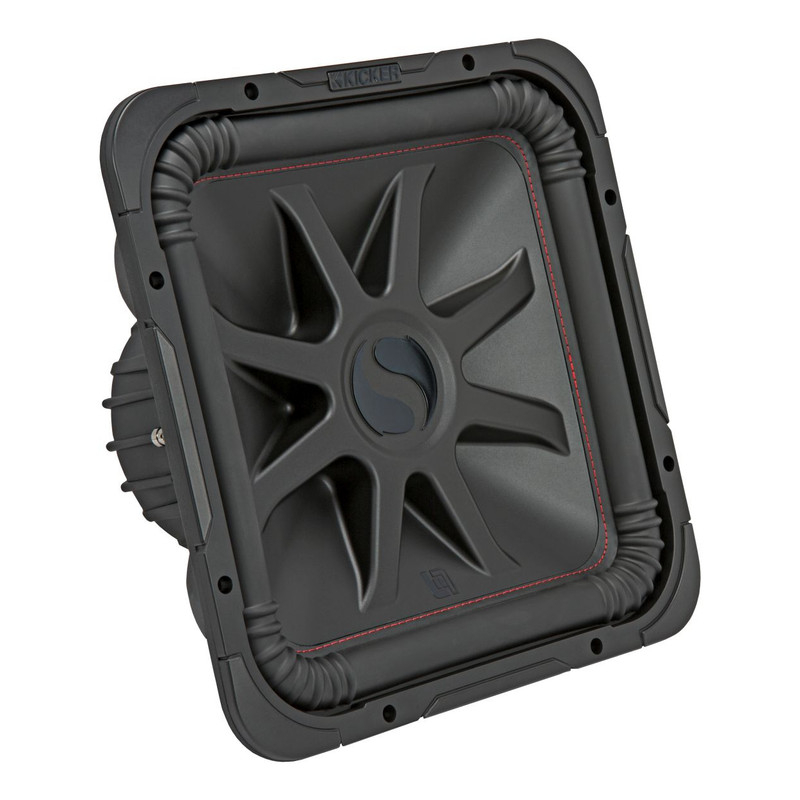

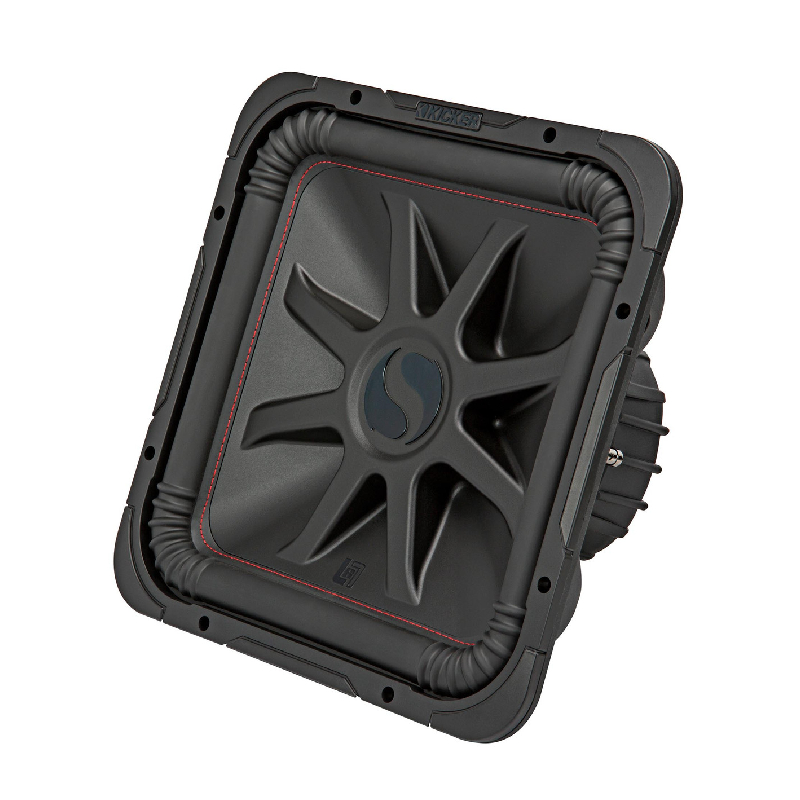

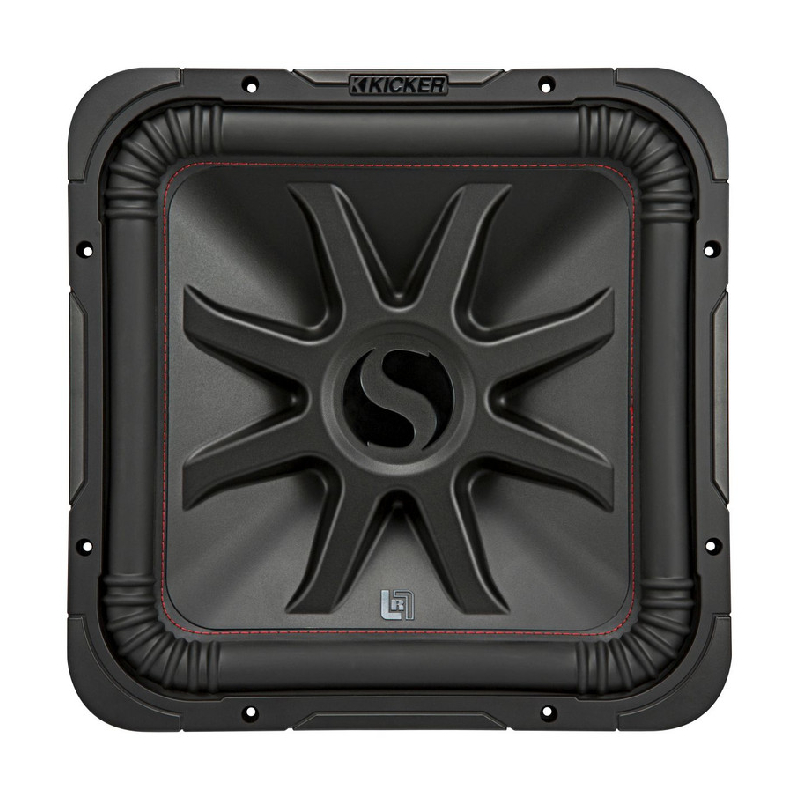

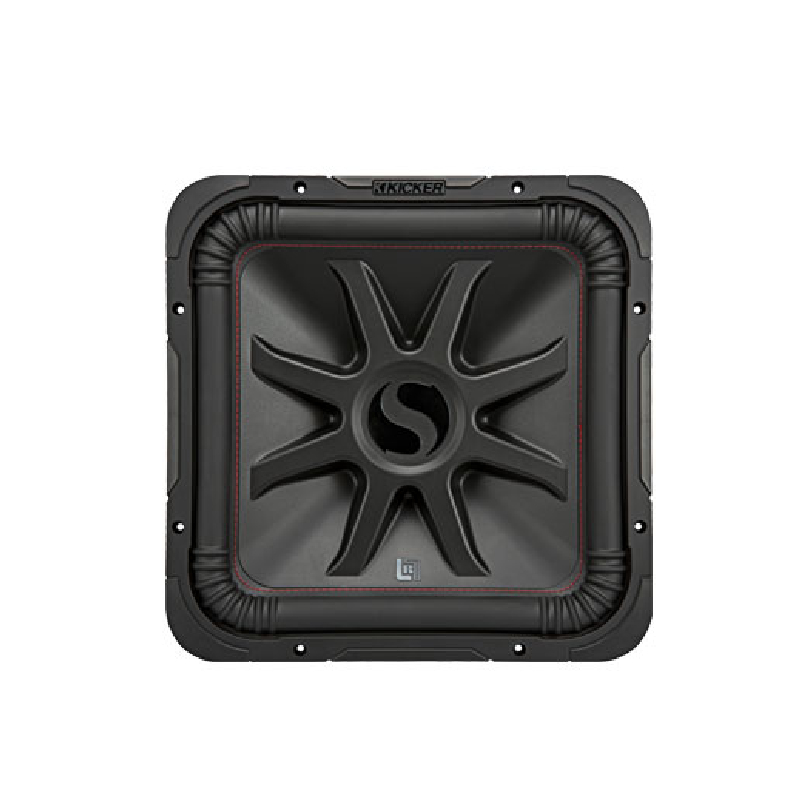

Kicker 45L7R154 L7R Series 15" 900W RMS (1800W Peak Power Handling) 4 Ohms, Dual Voice Coil Component Car Subwoofer
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 15" L7R Series Dual Voice Coil Component Car Subwoofer
- • Owner's Manual
Why Choose Kicker 45L7R154 Component Car Subwoofer?
High-performance Subwoofer
The Kicker 45L7R154 is a high-performance subwoofer designed to deliver deep and powerful bass in your car audio system. With its impressive specifications and innovative design, this subwoofer takes your listening experience to the next level.
Flexibility in Wiring Options
Equipped with a dual 4-ohm voice coil configuration, the 45L7R154 offers flexibility in wiring options to match your amplifier's impedance requirements. The stitched surround enhances cone control and improves overall sound quality.
Ensure Even Magnetic Flux Distribution

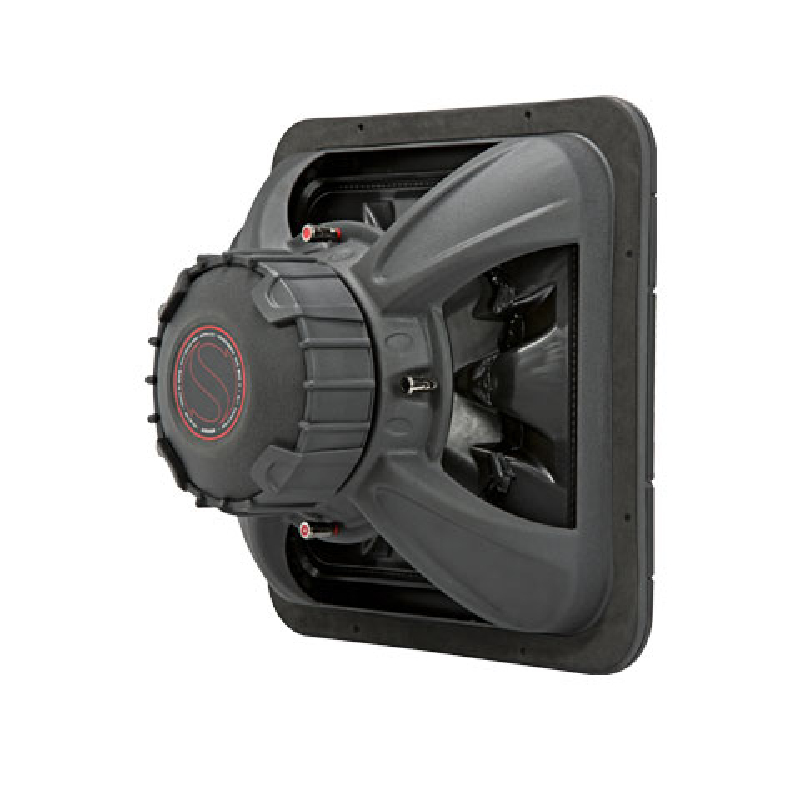

The subwoofer's robust construction includes a vented steel basket, which provides excellent heat dissipation to keep the subwoofer cool during intense use. The UniPlate backplate and pole piece ensure even magnetic flux distribution for improved performance.
Frequently Asked Questions (FAQ)
- • Why does my square subwoofer sound weak after installation?
Weak bass is usually caused by an enclosure that doesn't meet the recommended specifications or incorrect amplifier tuning. Check the box volume, crossover settings, and speaker polarity to improve performance.
- • Can I use this in a sealed enclosure instead of a ported box?
Yes. It performs well in both sealed and ported enclosures when they are built according to the recommended internal dimensions.
- • Why does my amplifier keep going into protection mode?
This often happens because of an impedance mismatch, wiring fault, or insufficient power supply. Verify all wiring connections and confirm that the amplifier supports the final speaker load.
- • Can I connect this to a factory car stereo?
Yes. You'll need an external amplifier, and many factory audio systems also require a line output converter for proper signal integration.
- • Why does the bass become distorted when I turn up the volume?
Distortion is commonly caused by amplifier clipping or gain settings that are too high. Properly adjusting the amplifier and crossover will produce cleaner bass and reduce the risk of damage.
- • Does it need a break-in period before it reaches full performance?
Yes. Playing music at moderate listening levels for several hours allows the suspension to loosen naturally and improves bass response.
- • Why do I hear rattling from my trunk during heavy bass?
Loose trim panels, license plates, or enclosure hardware are often responsible for unwanted vibrations. Tightening loose components and adding sound-deadening material can significantly reduce rattling.
- • Can I use an amplifier that produces more RMS power than the subwoofer is rated for?
Yes. A properly tuned amplifier with clean output is generally safer than an underpowered amplifier that clips when pushed too hard.
- • Why does the cone move but produce very little bass?
This usually indicates incorrect crossover settings, reversed polarity, or an air leak in the enclosure. Inspect the wiring and enclosure before assuming the subwoofer is defective.
- • Can I wire two subwoofers to the same mono amplifier?
Yes. Calculate the final impedance carefully and make sure it matches the amplifier's supported operating range before connecting both subwoofers.
- Diameter : 15 Inch
- Sensitivity : 88.05 dB
- Impedance : 4 Ohm
- Frequency Response : 20-100 Hz
- Peak Power Handling : 1800 Watts
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 3.0 Cubic ft.
- Suggested Ported Box Volume : 6.0 Cubic ft.

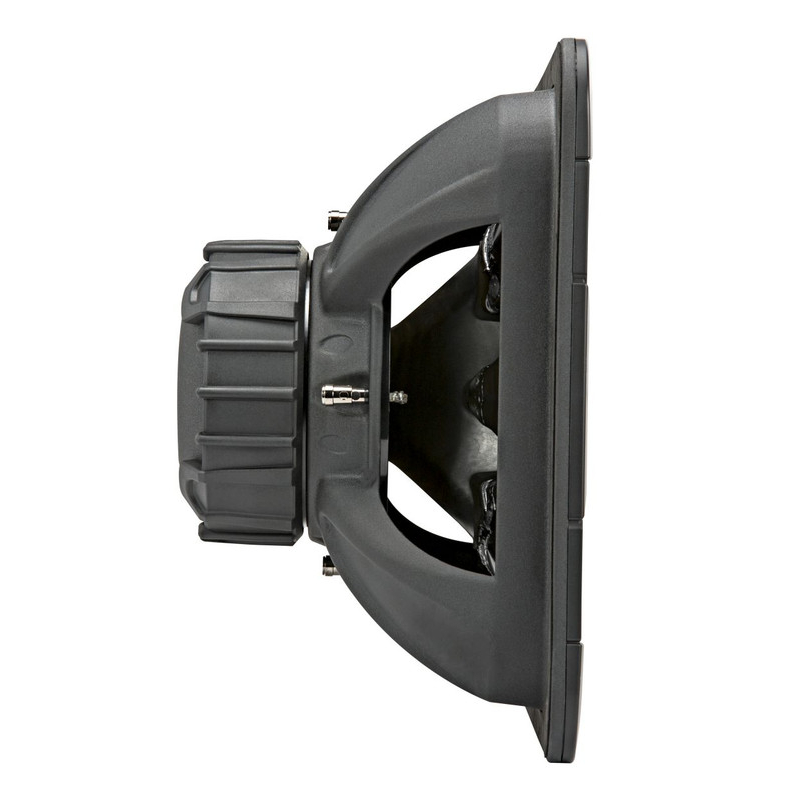

- Mounting Depth : 8-3/8 Inches
- RMS Power Handling : 900 Watts
Features:
- Dual 4-Ohm Voice Coils: Provides flexible wiring options for series, parallel, or multiple amplifier setups.
- Original Square Design: Moves more air than a standard round sub for bigger, deeper bass without extra enclosure space.
- Injection-Molded SoloKon Woofer: Ensures rigid, distortion-free cone performance for powerful, accurate low frequencies.
- 360-Degree Back Bracing & UniPlate Back Plate: Adds structural support and superior heat dissipation for reliable performance.
- Bumped Back Plate & Thick Tinsel Leads: Enhances durability and ensures consistent bass under high power conditions.
- Large Ceramic Magnet & Steel Basket with Spoke Design: Provides stable, accurate motion for long-lasting performance and reduced distortion.
- Wrap-Around Gasketing & Patented Ribbed Corners: Improves cone sealing and strength, maintaining optimal airflow and bass output.
Specifications:
- Size: 15" (38 cm)
- Impedance: 4 Ohm (Dual Voice Coil)
- Recommended Amplifier Power (RMS): 900 watts
- Peak Power Handling: 1800 watts
- Sensitivity (1W/1m): 88.05 dB
- Mounting Depth: 8-3/8" (21.5 cm)
- Mounting Diameter: 13-3/4" (34.9 cm)
- Sealed Box Volume (Min/Max): 1.5 – 3 cu. ft (42.48 – 85 L)
- Vented Box Volume (Min/Max): 3 – 6 cu. ft (85 – 170 L)
- UPC: 713034085744
- Weight: 26.8
