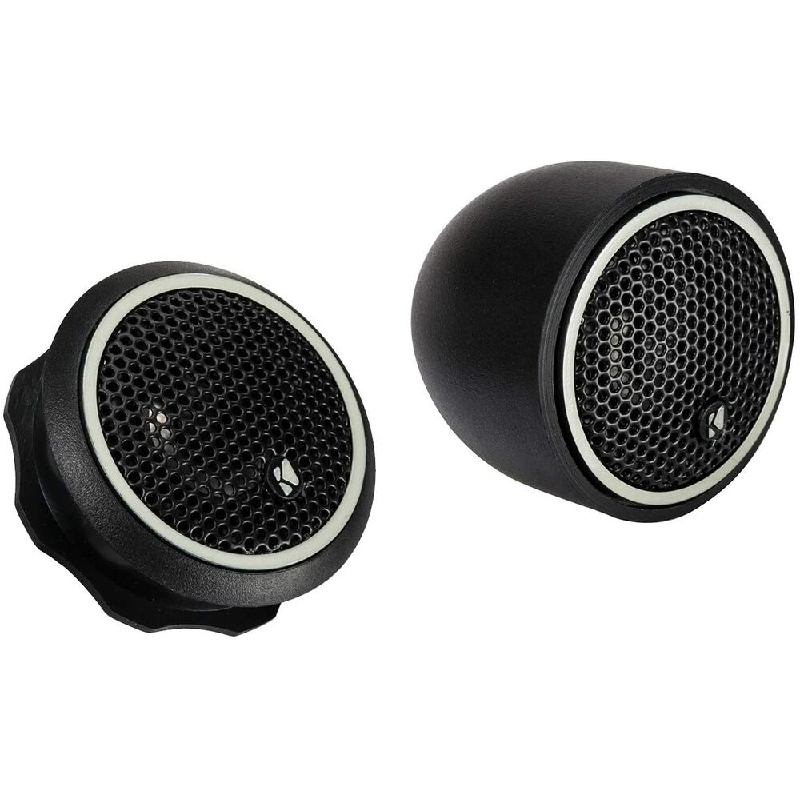

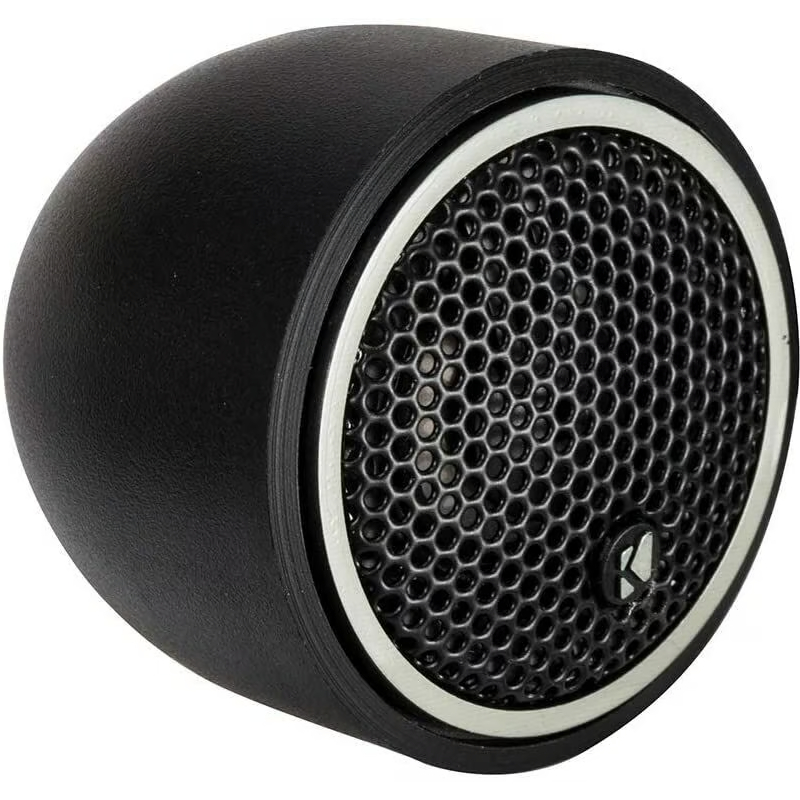

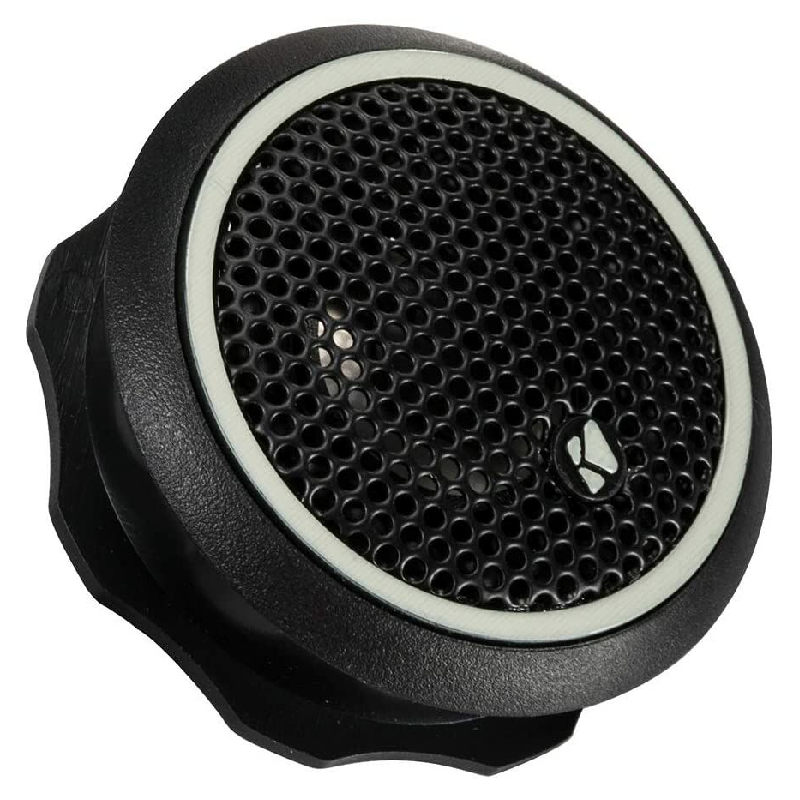

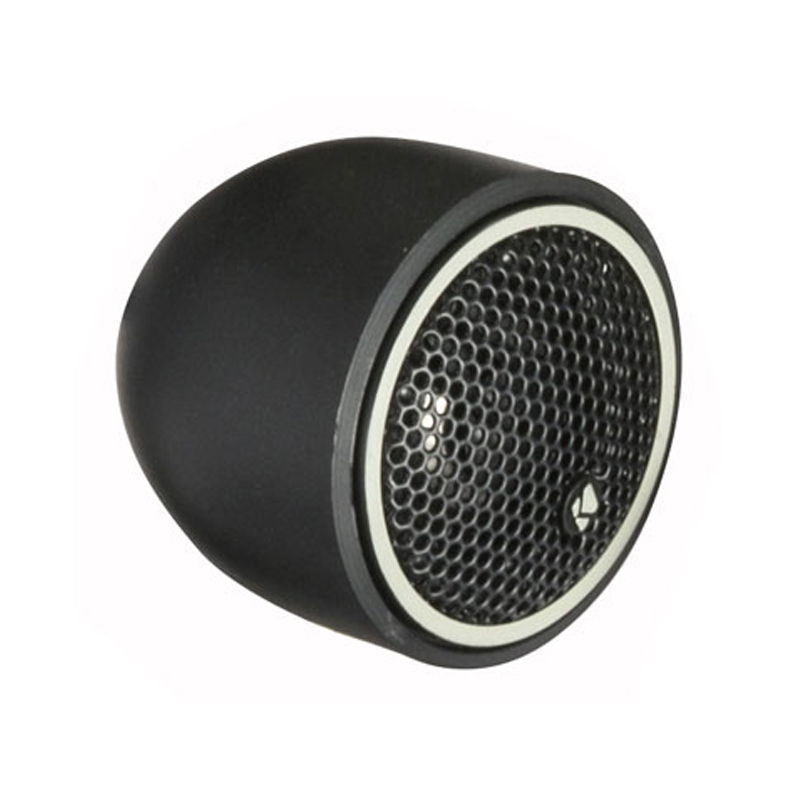

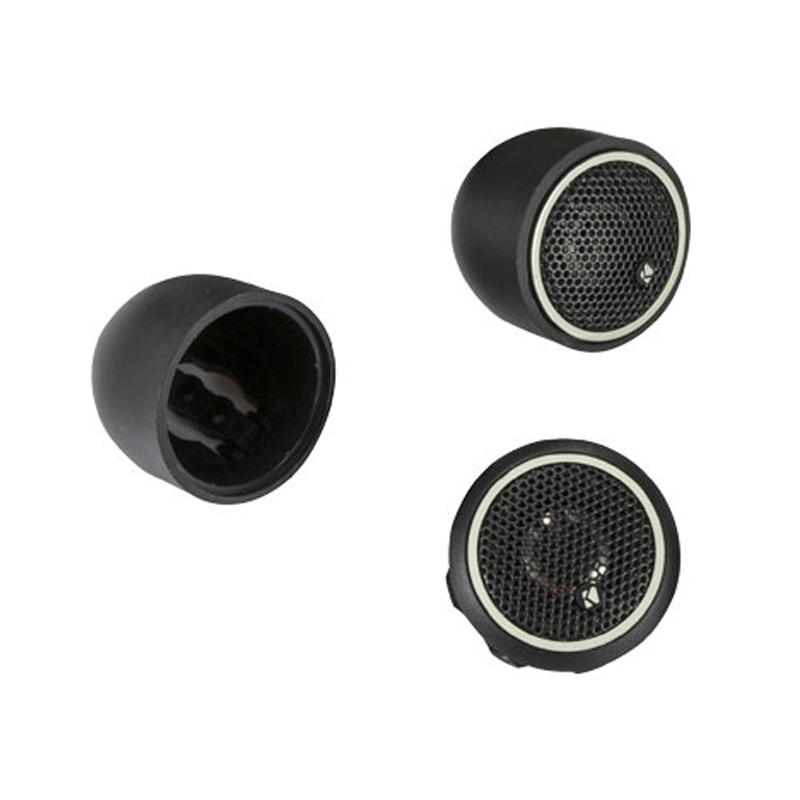

Kicker 46CST204 CS Series 0.75" 50W RMS (150W Peak Power Handling) 4 Ohms, Titanium Dome Tweeters
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 0.75" CS Series Titanium Dome Tweeters
- • (2) 3.5" Lengths of speaker wire with in-line crossovers
- • (2) Flush mount tweeter rings
- • (2) Short tweeter mounting nuts
- • (2) Long tweeter mounting nuts
- • (2) Back angled tweeter rings
- • (2) Front angled tweeter rings
- • (2) Angled surface mount tweeter housings
- • (4) 5/8" Screws
- • (4) Red plastic wire caps
- • Owner's Manual
Why Choose Kicker 46CST204 Car Tweeters?
Designed to Reproduce Your Audio Car System
The Kicker 46CST204 is a 0.75-inch titanium dome tweeter designed to reproduce your audio car system with high-quality sound. It features a 4-ohm impedance, a frequency response range of 4,500 to 21,000 Hz, and a sensitivity rating of 92 dB, making it capable of producing clear and accurate sound across a wide range of frequencies.
Lightweight and Durable Titanium Dome
One of the key features of the Kicker 46CST204 is its construction. The tweeter is built around a lightweight and durable titanium dome, which provides an excellent high-frequency response with minimal distortion. The dome is also surrounded by a rubber surround, which helps to reduce vibrations and improve overall sound quality.
Features a Compact and Versatile Design
The Kicker 46CST204 also features a compact and versatile design that makes it easy to install in various car audio applications. It has a mounting depth that allows it to fit in tight spaces without compromising on sound quality. Another feature of the Kicker 46CST204 is its power-handling capability. It has a maximum power rating of 150 watts and an RMS rating of 50 watts, which means it can handle much power without distortion.
Frequently Asked Questions (FAQ)
- • Can I add these tweeters without replacing my factory door speakers?
Yes, many owners install them alongside factory woofers for improved high-frequency detail. For the best sound balance, pairing them with upgraded speakers is recommended.
- • Why do the highs sound too bright after installation?
Excessive treble is usually caused by incorrect positioning or aggressive EQ settings. Adjusting the equalizer or changing the mounting angle can produce a smoother sound.
- • Will these work with my factory stereo?
Yes, they are compatible with many factory head units when installed correctly. An external amplifier can further improve clarity and overall performance.
- • Why is one tweeter louder than the other?
This is commonly caused by wiring issues, incorrect polarity, or an installation problem. Inspecting the wiring and crossover connections usually fixes the imbalance.
- • Where should I mount the tweeters for the best imaging?
Factory sail panels and A-pillars are popular mounting locations for improved stereo imaging. Proper positioning helps create a more natural listening experience.
- • Do I need to use the included crossovers?
Yes, the supplied crossovers help protect the tweeters from damaging low frequencies. They also improve the transition between the tweeters and your other speakers.
- • Why do the tweeters distort at high volume?
Distortion usually occurs when the amplifier clips or the gain is set too high. Proper tuning and crossover settings help keep the sound clean at higher volumes.
- • Can I use these tweeters without an external amplifier?
While you can run them off a head unit, many users find that the clarity is significantly improved with a dedicated amplifier. If you choose not to use an amp, ensure your head unit is powerful enough to drive them clearly without distortion.
- • Will these make vocals and instruments sound clearer?
Yes, quality tweeters reproduce high frequencies with greater accuracy than many factory speakers. Most users notice improved vocal clarity and better instrument separation.
- • Are the grilles removable if I want to mount them behind a factory panel?
The tweeters are designed to be compact, but the grilles are typically an integrated part of the housing to protect the delicate titanium dome.
- Diameter : .75 Inch
- Sensitivity : 92 dB
- Frequency Response : 45-21000 Hz
- Peak Power Handling : 100 Watts
- RMS Power Handling : 50 Watts
Features:
- Titanium Precision: ¾" titanium dome tweeters deliver crisp, detailed highs, revealing subtle elements in your music that factory speakers often miss.
- High-Fidelity Sound: Experience cleaner, more natural highs with exceptional clarity and resolution for every genre.
- Flexible Mounting Options: Hardware included for flush, surface, pod, and angled mounting — making installation in nearly any vehicle simple and precise.
- Compact & Easy Installation: Low-profile design allows fitment in factory speaker locations without interference.
- Power Handling: Handles up to 50 watts RMS (150 watts peak), maintaining clarity at higher volumes.
- Wide Frequency Response: Extends from 4,500 Hz to 21,000 Hz, providing a smooth, high-frequency listening experience.
- Neodymium Magnets: Lightweight yet powerful magnets provide high sensitivity and efficiency, keeping your highs loud and clear.

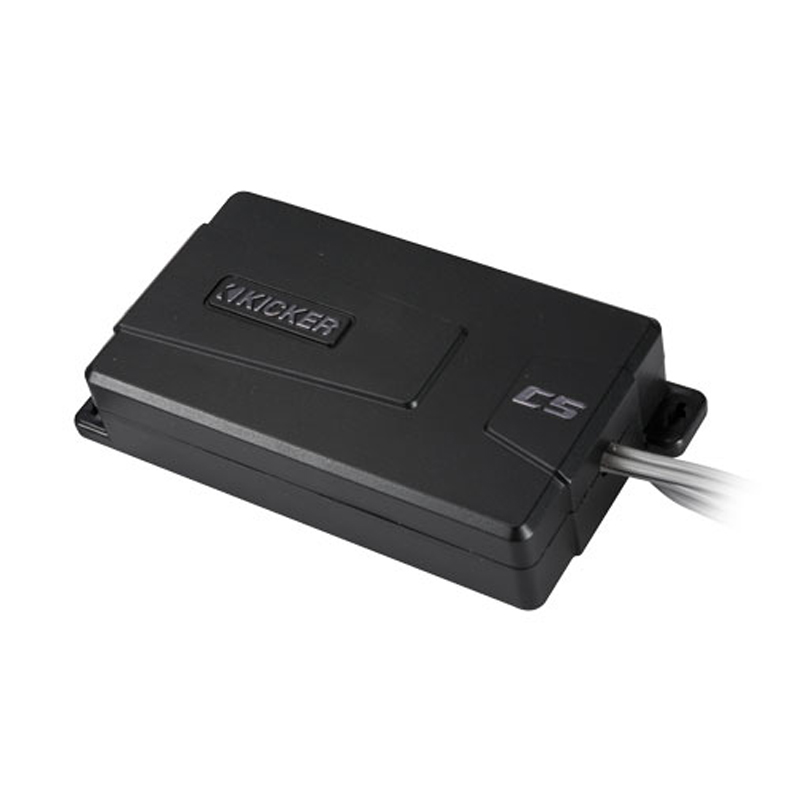

- In-line Crossover: Built-in 6 dB/octave crossover simplifies installation and directs frequencies properly for optimal performance.
- Poly-Switch Protection: Protects your tweeters from occasional overloads, ensuring durability at higher volumes.
- Stylish Grilles Included: Black steel fixed grilles protect the tweeters while providing a sleek appearance.
Specifications:
- Speaker Design: 1-Way Tweeter
- Speaker Size: ¾"
- Tweeter Design: Dome
- Tweeter Material: Titanium
- Tweeter Magnet Material: Neodymium
- Impedance: 4 Ω
- Sensitivity (1W, 1m): 92 dB
- Frequency Response: 4,500 – 21,000 Hz
- Recommended RMS Power: 50 W
- Peak Power Handling: 150 W
- Crossover Type: In-line (6 dB/octave at 4,500 Hz)
- Mounting Options: Flush, Surface, Pod, and Angle Mount
- Top Mount Depth: 9/16" (14.5 mm)
- Flush Mount Tweeter Hole Diameter: 1-9/16" (40 mm)
- Cutout Diameter: 1 5/8" (41 mm)
- Mounting Height: 0.275" (7 mm)
- Frame Width: 1.975" (50 mm)
- Frame Length: 1.975" (50 mm)
- Grilles Included: Yes (Black Steel, Fixed)
- Weather-Resistant: No
- UPC: 713034088448
- Weight: 0.3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
