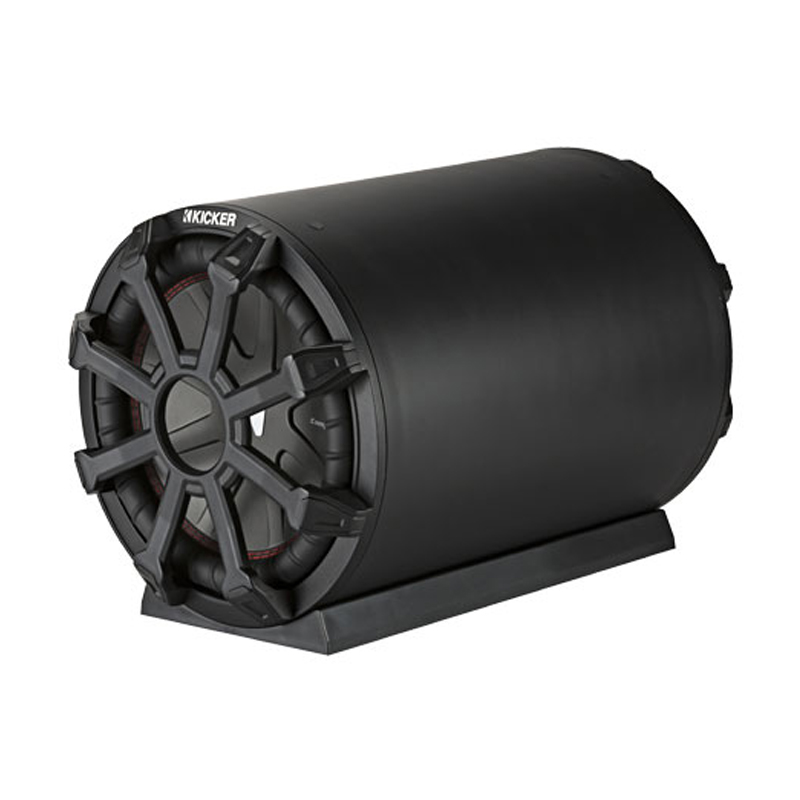

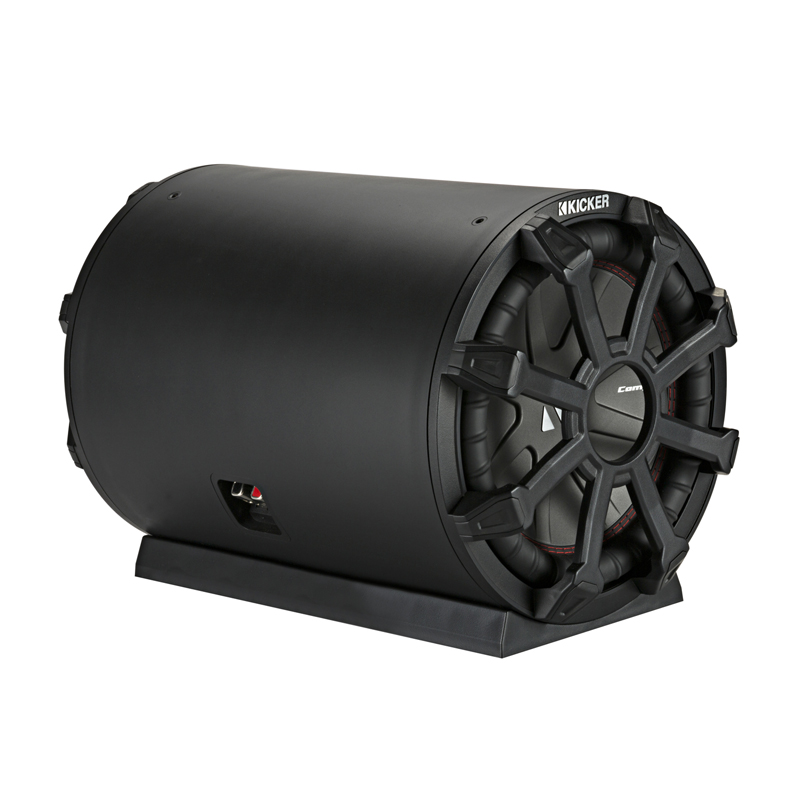

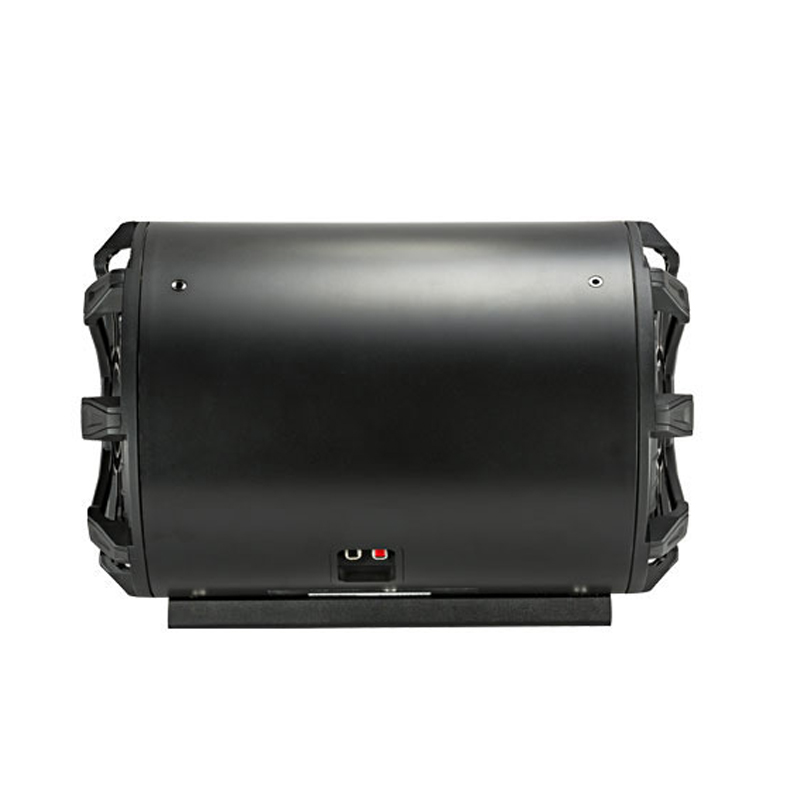

TB Loaded Enclosures
Great bass from a tiny space! The KICKER TB Sub Enclosures deliver serious bump from any corner of your trunk, or even behind your truck’s seat.
The New Tube
Great bass from a tiny space! The weatherproof TB Sub System delivers serious bump from any corner of your trunk, behind your truck’s seat, or even in your boat or side-by-side!
Mount It Up - Or Down

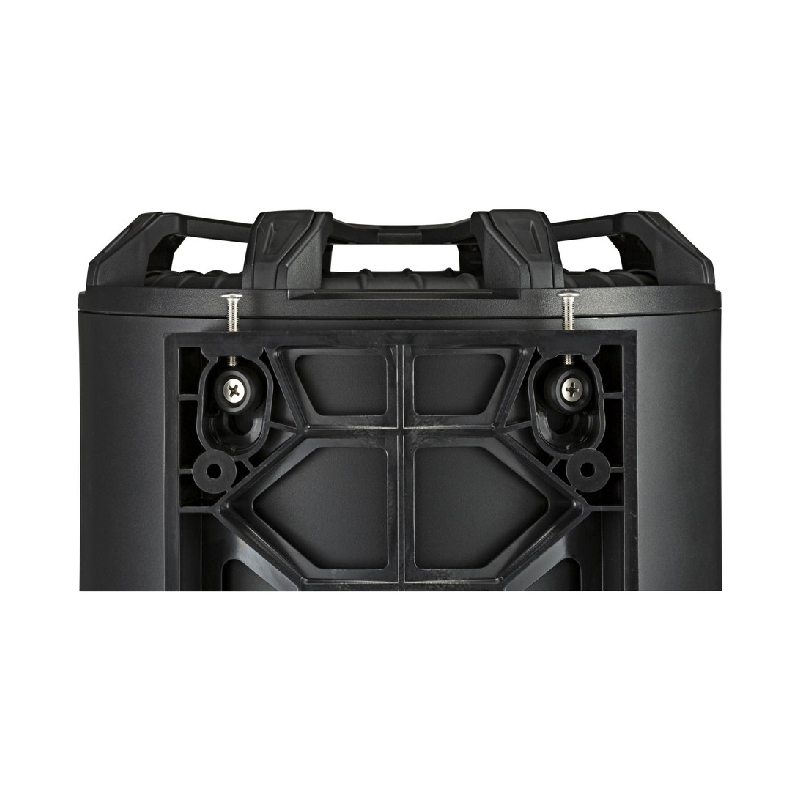

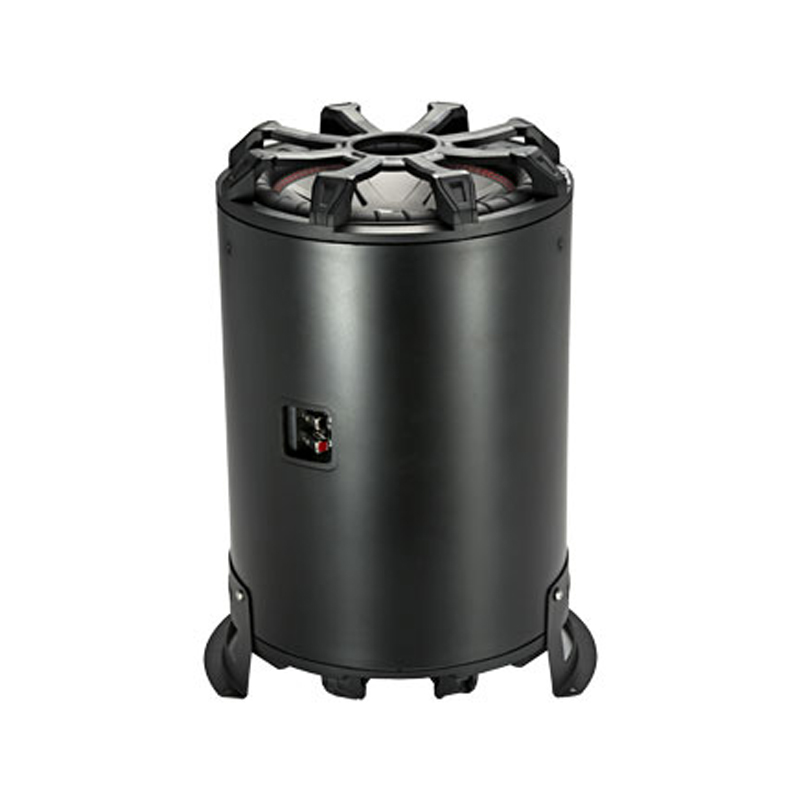

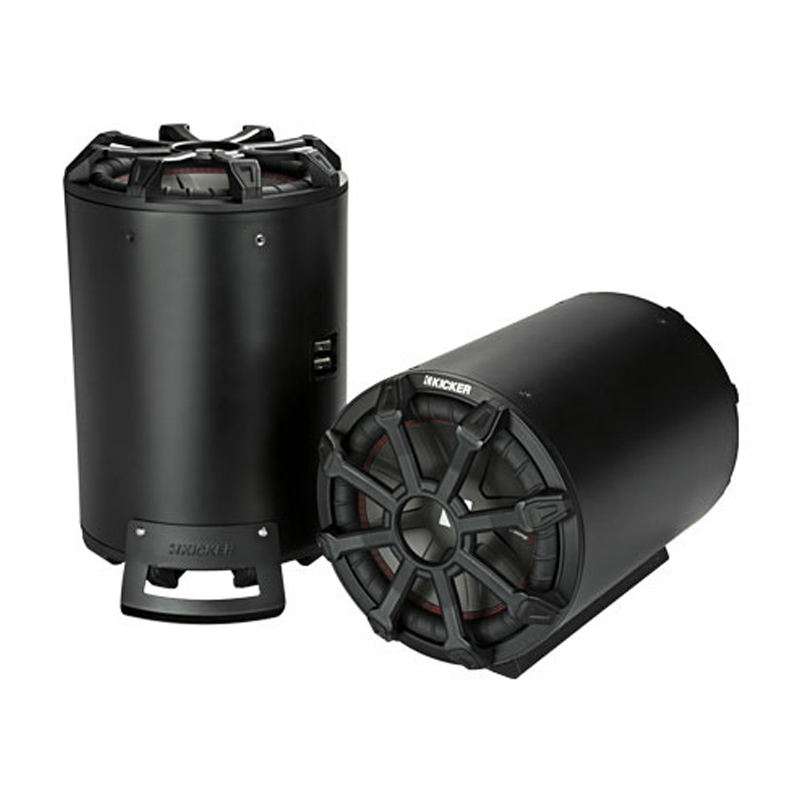

An innovative bracket system allows the TB to be mounted with ease, horizontally or vertically. Put it anywhere. In nearly any vehicle. In a boat, works best horizontally and inside furniture. Now you have the flexibility to install your sub, your way.
All CompR

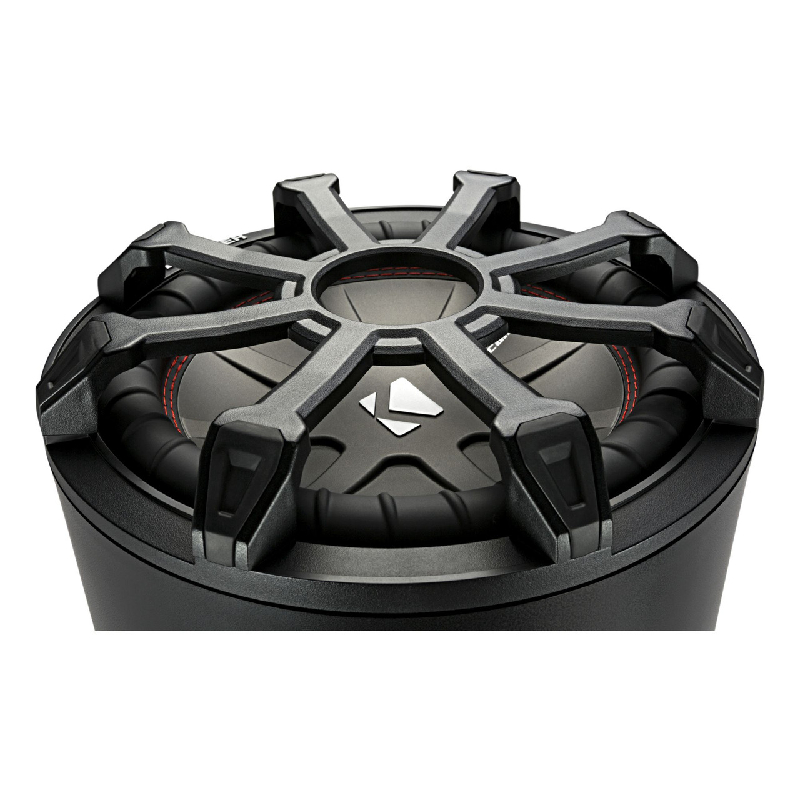

The CompR sub mounted in the TB features a powerful ceramic magnet, an advanced suspension and superior heat management system for big bass and long life on the road. KICKER's signature double red stitching creates an outstanding bond between the Santoprene® surround and Polypropylene woofer cone for reliable performance under extreme conditions. KICKER's SoloKon™ technology joins the cone to the vented back brace - both cooling the motor and eliminating distortion for clean, smooth bass. You get all this CompR innovation and technology is in every TB.
RE FLEX
Made with the same surround and cone materials as the active sub, the Reflex Subwoofer is mounted on the opposite side of the TB - creating even deeper, louder bass.
Weather-Proof
The all-weather TB loves to play outdoors. Hook it up on your boat, UTV or Jeep for fun on the trail, in the water or at the dunes. It keeps pounding as hard as you want - wherever you want.
- Diameter : 10 Inch
- Sensitivity : 85.7 dB
- Impedance : 4 Ohm
- Frequency Response : 25-500 Hz
- Peak Power Handling : 800 Watts
- RMS Power Handling : 400 Watts
TUBE POWER
Ultra-deep and surprisingly loud, TB subs mount in your trunk or your truck with equal ease. You get the bump you want without losing the space you need.
Features:
- Four Ohm Speaker
- Thick ABS Tube Construction
- Flexible Horizontal or Vertical Mounting System
- Spring-Loaded Speaker Terminals
- CompR Woofer and Reflex Sub
- Ceramic Magnet
- Advanced Heat Management System
- Signature Double Red Stitching
- Grilles included
This TB 10-Inch Tube Speaker works best with 400 watts of recommended power.
| Specifications |
| Type |
Reflex |
| Size (in., cm) |
10, 25 |
| Impedance (ohms) |
4 |
| Power Watts (peak/RMS) |
800/400 |
| Sensitivity (dB 1w/1m) |
85.7 |
| Box Top Depth (in, cm) |
- |
| Box Bottom Depth (in, cm) |
16-9/16, 42.1 |
| Box Height (in, cm) |
Vert. Mount: 17-1/16, 43.4; Horiz. Mount: 10-3/4, 27.3 |
| Box Width (in, cm) |
10-5/8, 27 |
What's Included?
- 1 - enclosure assembly
- 2 - vertical mounting brackets
- 1 - horizontal mount base
- 1 - Horizontal mount hook(retainer)
- 1 - Horizontal mount plate(retaining clamp)
- 7 - stainless steel M5 x 12mm button head screws for horizontal mount plate to base and mounting brackets to enclosure
- 11 - nylon flat washers (to be used on all mounting fasteners)
- 4 - stainless steel pan head phillips M4 x 25mm (for mount base to vehicle)
- 1 - owner’s manual
- 2 - Kicker stickers
- UPC: 713034089452
- Weight: 25
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
