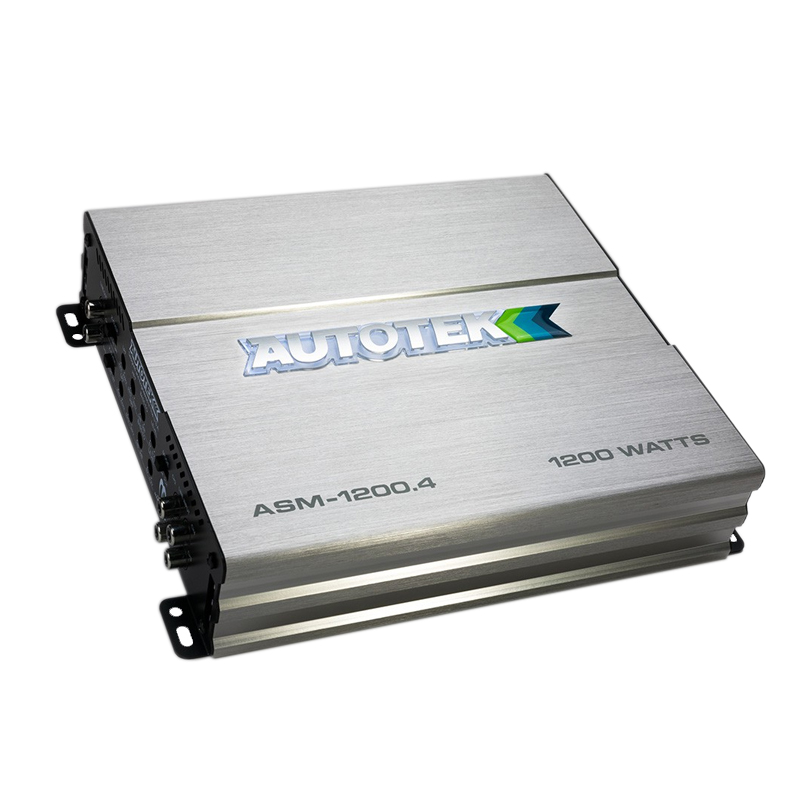

Autotek ASM Series delivers huge power in an efficient heatsink. Features include built-in electronic crossovers and high-level inputs. 1200 watt four channel car audio amplifier.
Maximum Power : 1200 Watts
Low Frequency Response : 30-250 Hz
High Frequency Response : 60-1200 Hz
Number of Channels : 4
Frequency Response : 10-45000 Hz
Built In Crossovers : Yes
RMS Power Output : 300x4 Watts
Channel Separation : Yes
Amplifier Class : A/B
Fuse Rating : 15x2 A
LOW NOISE PREAMPLIFIER CIRCUITRY
Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process
RCA inputs and outputs provide the highest sound quality connection
HI LEVEL INPUTS
High level inputs easily tie into OEM audio systems that do not offer RCA output. Molex connector is included
4 channel operation mode allows either stereo or mono bridged operation
FULL / LPF / HPF for complete control of amplifier signal which is essential when using two or more amplifiers
Electronic equalizer provides control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers
CLASS / TOPOLOGY
Class A/B amplifiers have larger heatsinks with very musical bass
OUTPUT DEVICE TECHNOLOGY
ROAD WORTHY™ TCID (Twin Coil Isolation Design) and PRO-FI™ High Speed MOSFETS bring extreme power with high sound quality and minimum distortion levels
Heavy-duty aluminum alloy heatsink with illuminated connectors provide a blue wash of light from the heatsink underside
High energy PWM (Pulse Width Modulated) power supply provides MAXXimum power with minimal electrical impact
High tension connection terminals allow for secure connection and resist erosion
High torque connectors provide easy access for hand tools allowing a quick and secure connection
FULL-RANGE RCA OUTPUTS FOR SIGNAL PASS THROUGH
Preamp RCA outputs to daisy chain multiple amps eliminate additional signal cables from the source unit
LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel
PARAMETRIC / SIGNAL CONTOURING
Variable High Pass Crossover: 60Hz-1.2kHz: 12dB per Octave
Variable Low Pass Crossover: 30Hz-250Hz: 12dB per Octave
Bass Boost: 0 - 9dB
POWER @ 1 OHM
POWER @ 2 OHMS
4 x 300 @ 2 Ohms
POWER @ 4 OHMS
4 x 150 @ 4 Ohms
MONO BRIDGED @ 4 OHMS
2 x 600 Watts @ 4 Ohms Bridged
Switchable : Full/HPF/LPF
VARIABLE HIGH PASS CROSSOVER 12DB PER OCTAVE
VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE
TONE CONTROL/PARAMETRIC EQ
Built-in bass control
0 - 9dB
6V - 0.2V
SIGNAL TO NOISE
TOTAL HARMONIC DISTORTION (THD)
SPEAKER LEVEL AUDIO INPUTS
Small Connector (MOLEX) to drive "Hi Input"
PRE AMP AUDIO OUTPUTS
POWER TERMINAL 12V/GND
SPEAKER TERMINAL WIRE GAUGE
15 x 2
