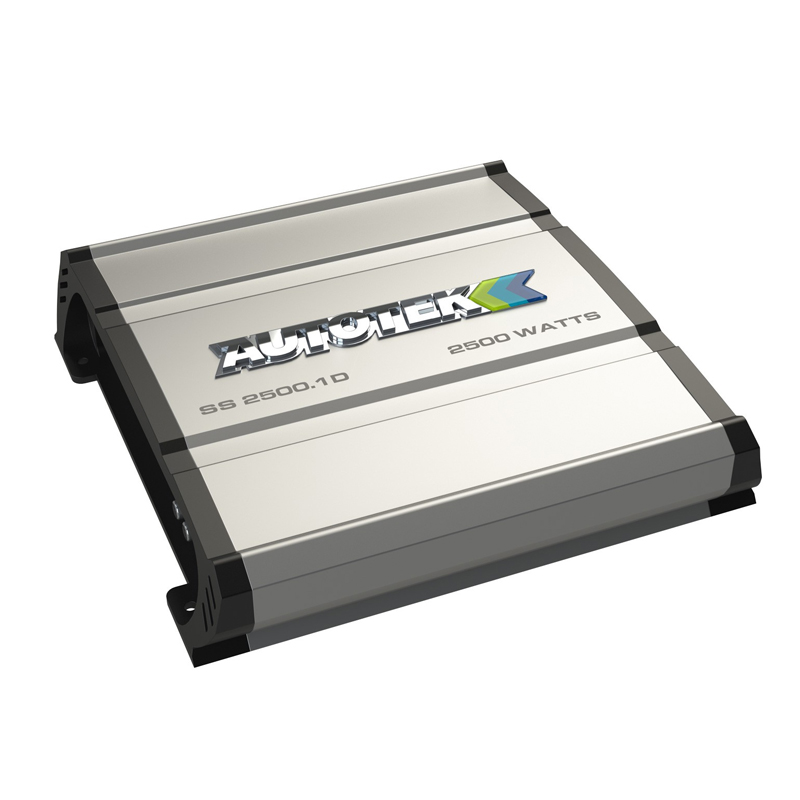

Autotek SUPER SPORT Series is designed with Class-D technology to deliver high power in an efficient heatsink specifically designed to power a mono subwoofer system. Features include built-in electronic crossovers and a bass remote.
- Maximum Power : 2500 Watts
- Low Frequency Response : 40-300 Hz
- Number of Channels : 1
- Frequency Response : 20-250 Hz
- Built In Crossovers : Yes
- RMS Power Output : 1250x1 Watts
- Channel Separation : No
- Amplifier Class : D
- Fuse Rating : 40x2 A
Features:
- PRE-AMP CIRCUITRY Low Noise PreAmplifier
- Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process
- INPUTS Low voltage RCA Inputs
- Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path
- HI LEVEL INPUTS No
- OPERATION MODE 1
- CROSSOVER / SIGNAL SHAPING Electronic
- Whether variable or switched, all Autotek amplifier incorporate internal 12dB crossovers networks allow for audiophile control of equalization circuits
- EQUALIZER Electronic
- Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier
- CLASS / TOPOLOGY Class D
- Very efficient D-Class to drive additional power to subwoofer frequencies while remaining a small footprint
- OUTPUT DEVICES TECHNOLOGY Pro- Fi™
- Pro- Fi™ High Speed MOSFET’s components maximize power efficiency while improving sound quality and minimizing distortion
- HEAT SINK Sound Shield™
- Sound Shield™ Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool while shielding music from distortions that can be caused by heat
- POWER SUPPLY PWM Power Supply
- High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system
- BASS REMOTEIncluded
- Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.
- OUTPUT CONNECTIONS Nickel Plated
- Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion
- CONNECTIONS TYPE Screw Down Connectors
- Easy access for hand tool allowing a quick and secure connection
- SIGNAL PASS THROUGH RCA Outputs - Full Range
- Daisy chain multiple amplifier to eliminate additional signal cables from the source unit
- DIAGNOSTICS LED System Protection Circuitry
- Monitor overload and speaker short protection with lighted indicators on the amplifier end panel
Specifications:
- CLASS
- VARIABLE VOLTAGE
- SIGNAL TO NOISE
- FREQUENCY RESPONSE
- CROSSOVER TYPE
- Variable Electronic 12dB Per Octave
- LOW PASS CROSSOVER:
- 12DB PER OCTAVE:
- 40Hz-300Hz
- TONE CONTROL
- BASS BOOST
- SUBSONIC FILTER
- PHASE SHIFT
- POWER OUTPUT @ 1 OHM:
- POWER OUTPUT @ 2 OHMS:
- POWER OUTPUT @ 4 OHMS
- TOTAL CHANNELS
- AUDIO INPUTS:
- AUDIO OUTPUTS:
- POWER TERMINAL:
- SPEAKER TERMINAL WIRE GAUGE
- FUSING
- DIMENSIONS
- 10 x 10.25 x 2 in
- 25.4x 26 x 5 cm
- WEIGHT
- UPC: 806576226598
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
