Autotek SUPER SPORT Series is designed with Class-D technology to deliver high power in an efficient heatsink specifically designed to power a mono subwoofer system. Features include built-in electronic crossovers and a bass remote.
Maximum Power : 5000 Watts
Low Frequency Response : 40-300 Hz
Number of Channels : 1
Frequency Response : 20-250 Hz
Built In Crossovers : Yes
RMS Power Output : 2500x1 Watts
Channel Separation : No
Amplifier Class : D

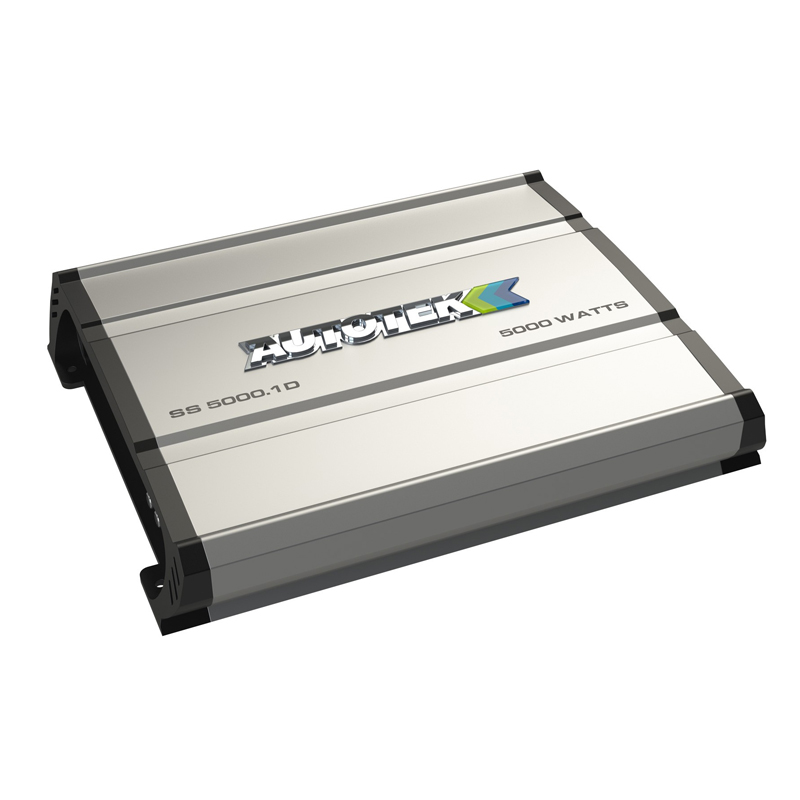

SS5000.1D Mono Subwoofer Amplifier
PRE-AMP CIRCUITRY Low Noise PreAmplifier
Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process
INPUTS Low voltage RCA Inputs
Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path
HI LEVEL INPUTS No
OPERATION MODE 1
CROSSOVER / SIGNAL SHAPING Electronic
Whether variable or switched, all Autotek amplifier incorporate internal 12dB crossovers networks allow for audiophile control of equalization circuits
Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier
CLASS / TOPOLOGY Class D
Very efficient D-Class to drive additional power to subwoofer frequencies while remaining a small footprint
OUTPUT DEVICES TECHNOLOGY Pro- Fi™
Pro- Fi™ High Speed MOSFET’s components maximize power efficiency while improving sound quality and minimizing distortion
HEAT SINK Sound Shield™
Sound Shield™ Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool while shielding music from distortions that can be caused by heat
POWER SUPPLY PWM Power Supply
High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system
Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.
OUTPUT CONNECTIONS Nickel Plated
Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion
CONNECTIONS TYPE Screw Down Connectors
Easy access for hand tool allowing a quick and secure connection
SIGNAL PASS THROUGH RCA Outputs - Full Range
Daisy chain multiple amplifier to eliminate additional signal cables from the source unit
DIAGNOSTICS LED System Protection Circuitry
Monitor overload and speaker short protection with lighted indicators on the amplifier end panel
Selectable 2 - 0.2V
SIGNAL TO NOISE
Variable Electronic 12dB Per Octave
LOW PASS CROSSOVER:
12DB PER OCTAVE:
Bass EQ @45Hz
Variable 0 - 12dB
10 Hz - 40 Hz
POWER OUTPUT @ 1 OHM:
1 x 5000W
POWER OUTPUT @ 2 OHMS:
1 x 2500W
POWER OUTPUT @ 4 OHMS
1 x 1250W
SPEAKER TERMINAL WIRE GAUGE
11.8 x 10.25 x 2 in
30.1 x 10.25 x 2cm
6.2 lbs (2.8 kg)
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
