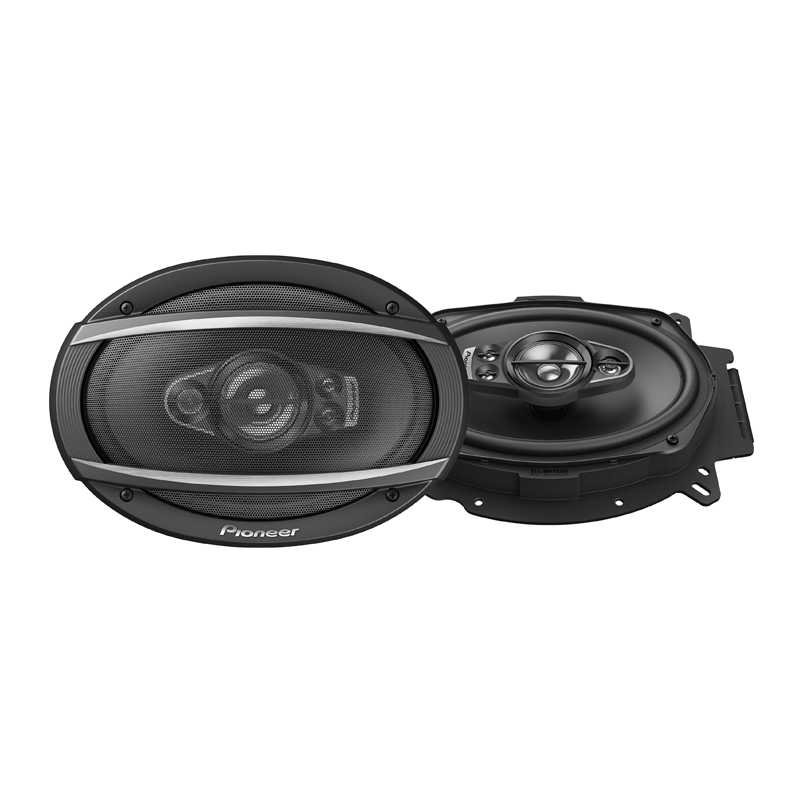

Pioneer TS-A6970F A-Series 6x9" 100W RMS (600W Peak Power Handling) 4 Ohms 5-Way Coaxial Car Speakers
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •(2) 5-way speakers

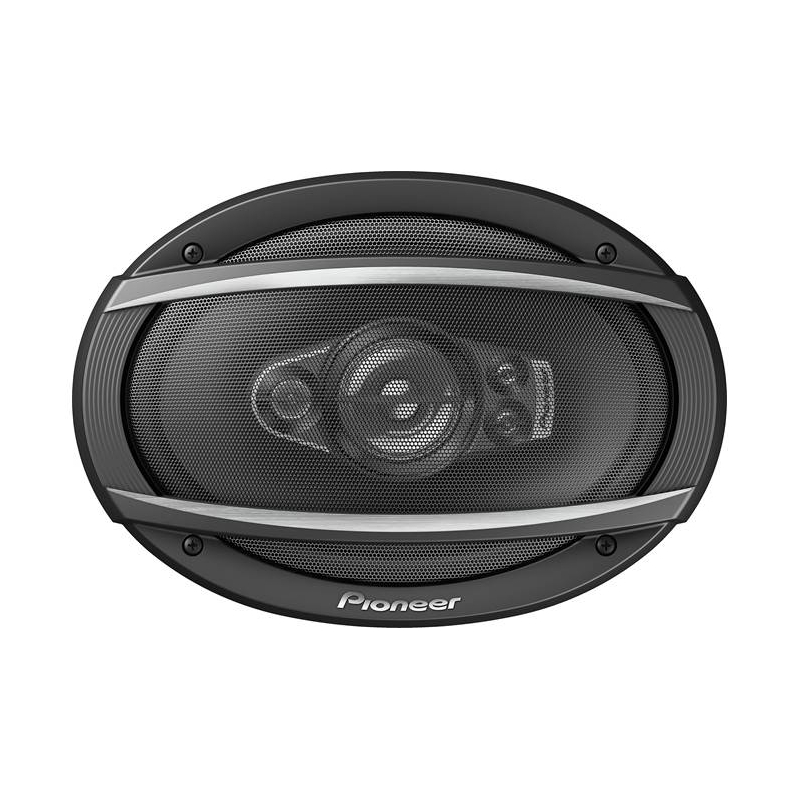

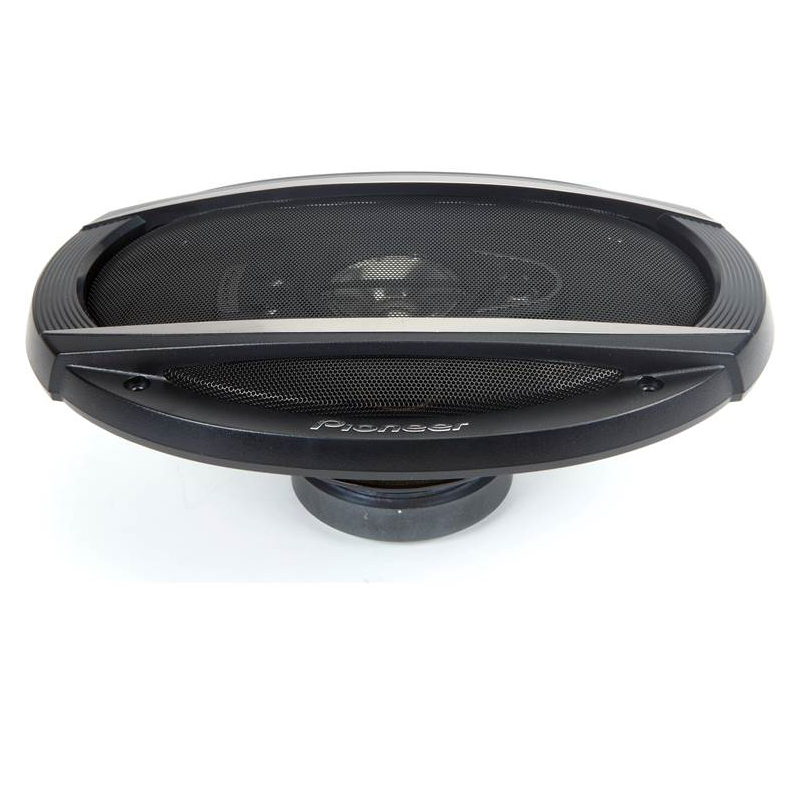

- •(2) Grilles

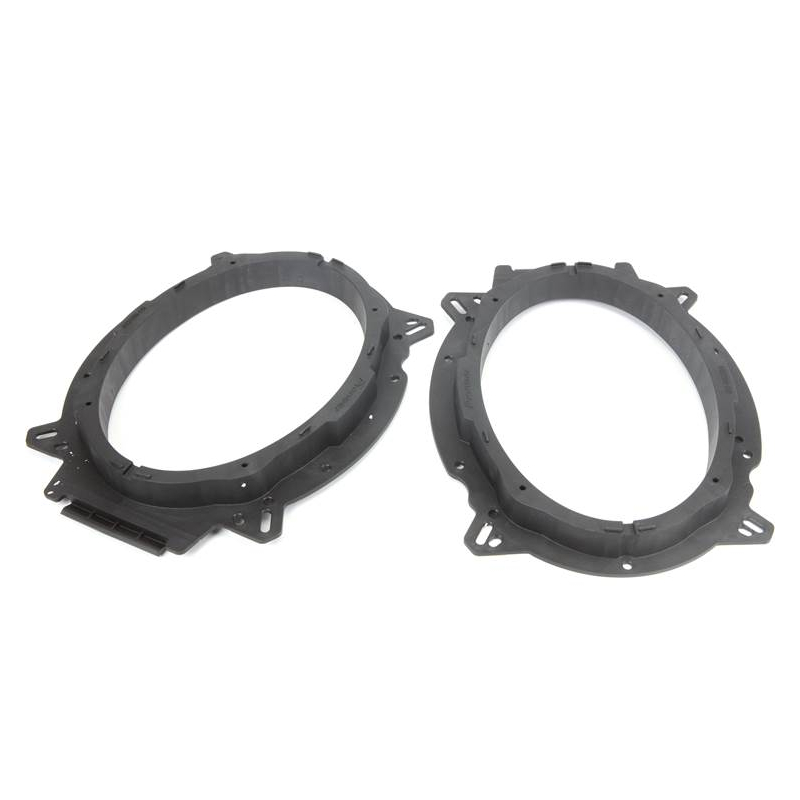

- •(2) Multi-application mounting brackets
- •(2) 12" lengths of speaker wire (female quick slides on one end and bare wire on the other)
- •(8) 1-1/8" Screws
- •(8) 3/8" Screws
- •Warranty information
- •Specs and template on box
potent music performance

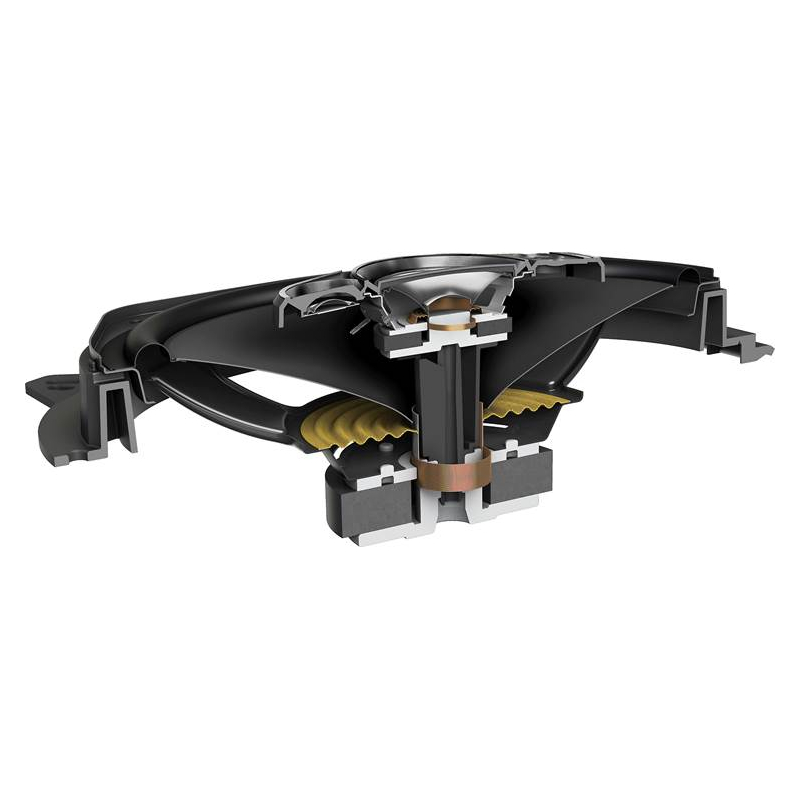

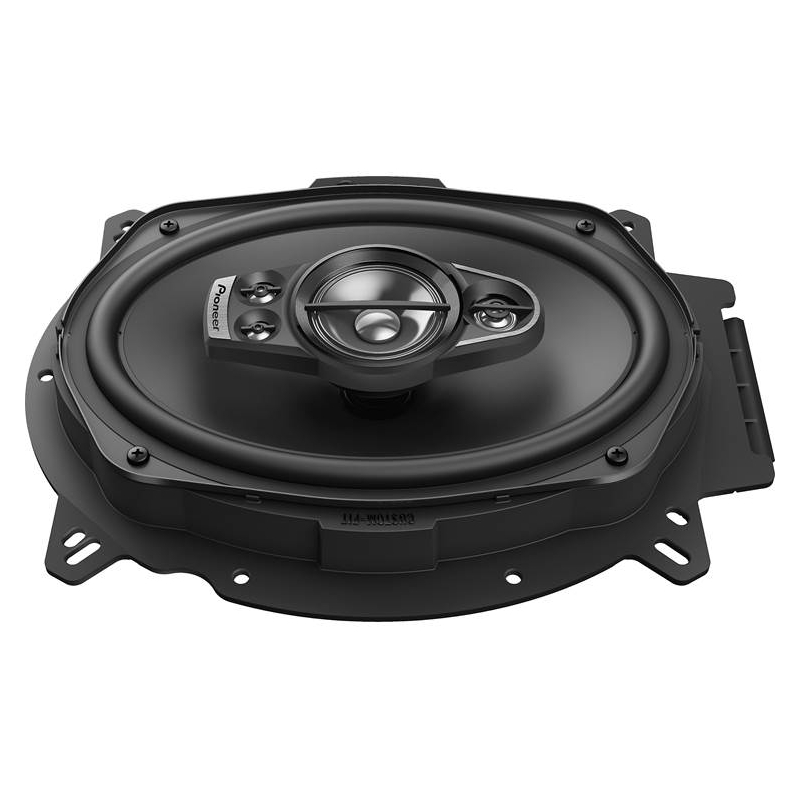

The 6x9-inch 5-way coaxial Pioneer TS-A6970F speaker system is made to deliver superb sound quality and potent music performance in your car. This speaker system is a fantastic option for automotive audio aficionados looking for a premium music experience thanks to its cutting-edge technologies and durable construction. The Multilayer Mica Matrix Cone on the TS-A6970F improves stiffness and responsiveness for precise and powerful sound reproduction.
High-frequency Response
This speaker system, which includes a 3/8-inch super tweeter, a 2-1/4-inch midrange driver, and two hard dome tweeters, provides a wide frequency response range and great sound dispersion. The mix of drivers guarantees a smooth middle reproduction, a clear and detailed high-frequency response, and improved presence. The TS-A6970F can manage high power levels without distortion and can handle up to 600 watts of peak power, resulting in dynamic and immersive audio performance
Speaker System in Your Automobile
It can reproduce a wide range of sounds because to its frequency response range of 34 Hz to 25 kHz. The Pioneer TS-A6970F's common 6x9-inch dimension and a variety of mounting choices make it straightforward to install. Enjoy strong, precise, and well-balanced music on your travels by upgrading the speaker system in your automobile.Polymer surrounds the cone, limiting cone movement and enhancing sound quality overall.
- Diameter : 6x9 Inch
- Sensitivity : 89 dB
- Impedance : 4 Ohm
- Frequency Response : 34-25000 Hz
- Peak Power Handling : 600 Watts
- Design : 5 Way
- Top Mount Depth : 2-7/8 Inches
- Woofer Composition : Carbon and mica reinforced IMPP
- Tweeter Composition : Triple Polyethylene terephthalate (PET) dome
- RMS Power Handling : 100 Watts
Features:
- 600 Watts Max Power (100 Watts Nominal)
- 18mm Tweeter, 11mm Super Tweeter, and 9mm Super Tweeter
- 2-1/4" polyetherimide (PEI) film cone midrange

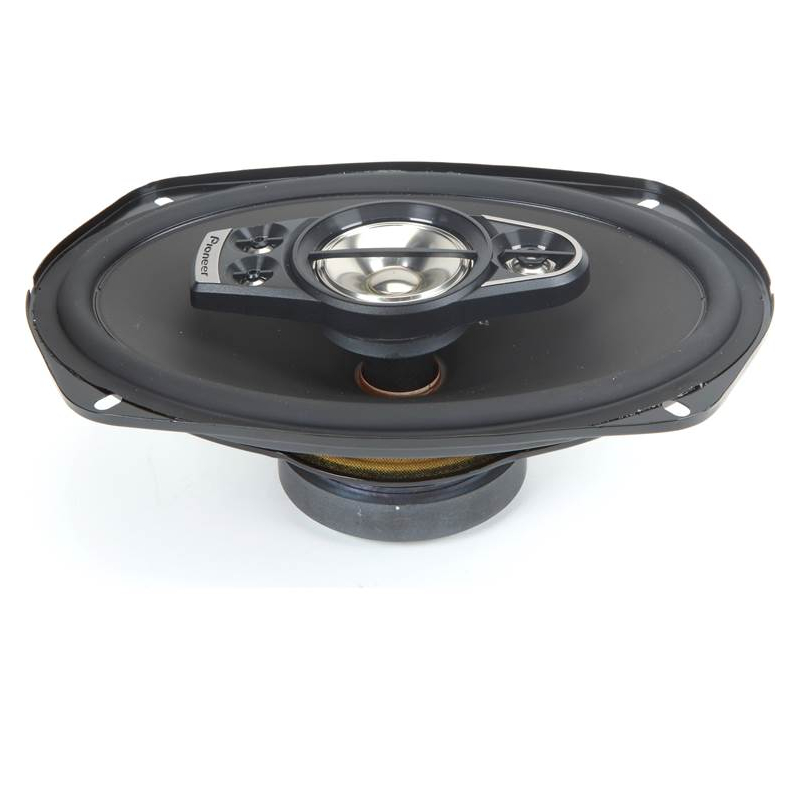

- 6 x 9" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
Specifications:
- System Type: 5-way Coaxial
- Sound Pressure Level (Sensitivity): 89 dB (+- 1.5dB)
- Frequency Range: 34 Hz to 25 kHz
- Continuous Power Handling (RMS): 100 Watts
- Maximum Peak Power Handling: 600 Watts
- Nominal Impedance: 4 ohms
- Tweeter Composition PET
- Woofer Composition Carbon and Mica reinforced IMP
- Diameter: 6 x 9"
- Cone Material: Carbon and mica reinforced IMPP
- Surround Material: Elastic polymer

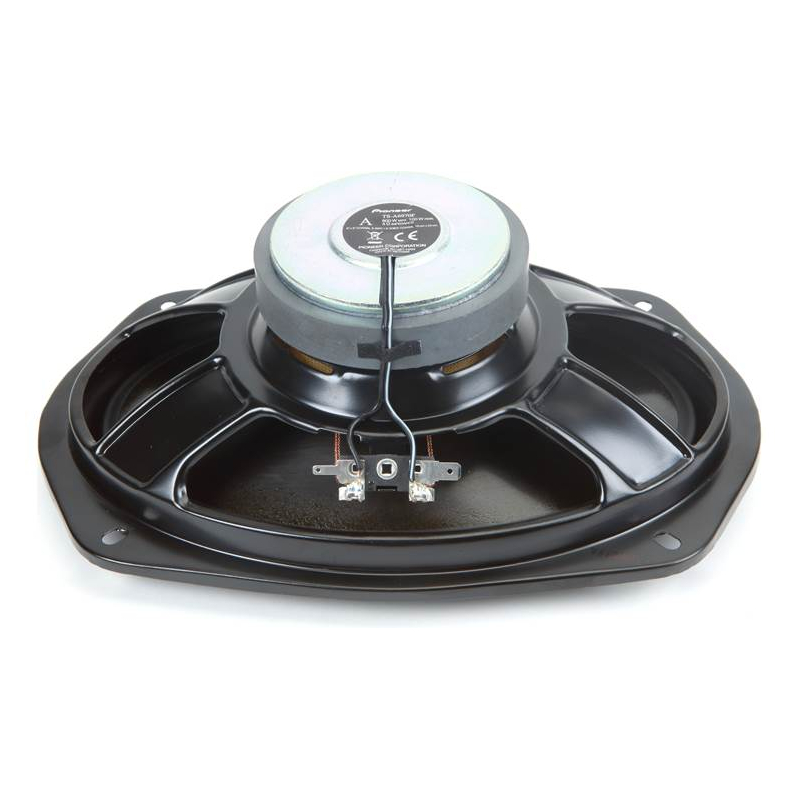

- Magnet Material: Ferrite
- Magnet Weight: 12.7 oz

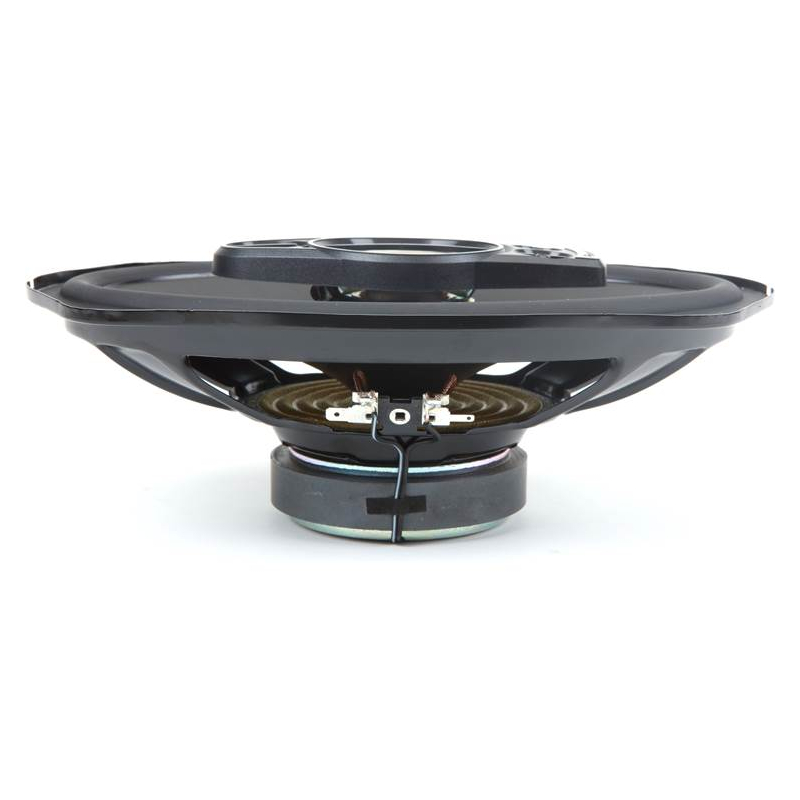

- Mounting Depth: 2-7/8"
- Type: Triple Polyethylene terephthalate (PET) dome tweeter
- Diameter: 9 mm (Super), 11 mm, and 18 mm
- Crossover Frequency: 4,300 Hz
- UPC: 884938409889
- Weight: 7
