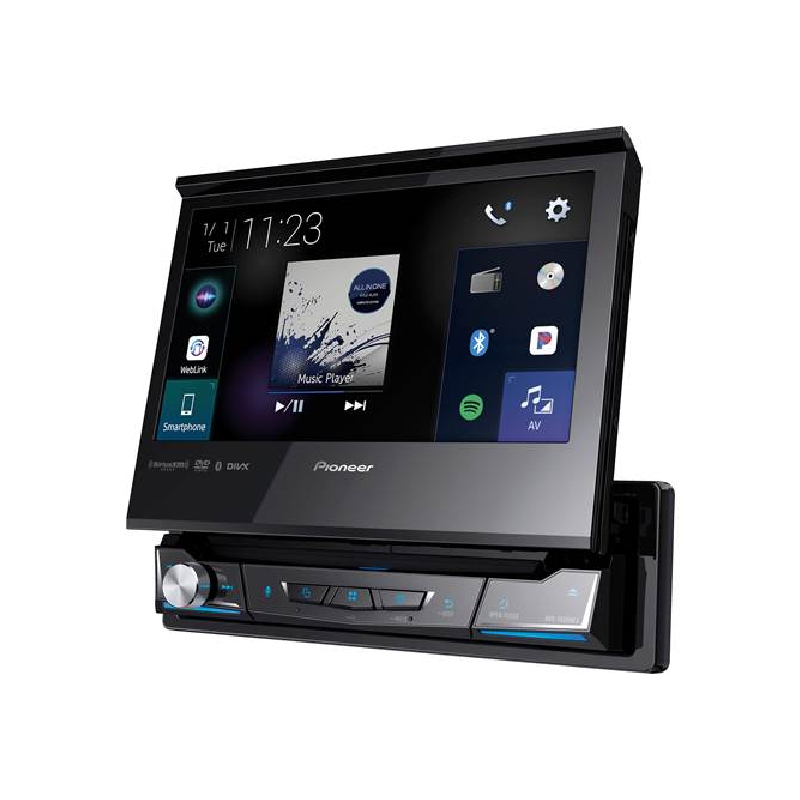

Pioneer AVH-3500NEX 1-DIN 6.8" Multimedia DVD Receiver with Amazon Alexa, Apple CarPlay™, Android Auto™, Bluetooth®, and SiriusXM-Ready™
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • DVD receiver w/ motorized-retractable 6.94" touchscreen monitor (10A fuse inserted in chassis)
- • Trim-ring (attached)
- • Sleeve (installed w/ 4 screws)
- • Wiring harness
- • Remote control (CXE5116)
- • CR2025 3V lithium battery (installed in remote)
- • 58" USB extension cable
- • Microphone w/ visor-bracket (attached 13' cable terminated by a right-angled 2.5mm connector)
- • Two-sided tape
- • Four M5x9mm pan-head screws
- • Four M4x3mm pan-head screws
- • Two M5x3mm counter-sunk screws
- • Installation Manual
- • Quick Start Guide
- • Warranty Sheet
Why Choose Pioneer AVH-3500NEX Apple CarPlay Receiver?
High-End Multimedia Receiver
A receiver that lets you use your classic DVDs while still having the latest technologies that come with high-end multimedia receivers nowadays, the Pioneer AVH-3500NEX has the perfect mix of vintage and modern features to make your entertainment experience so much better than before.

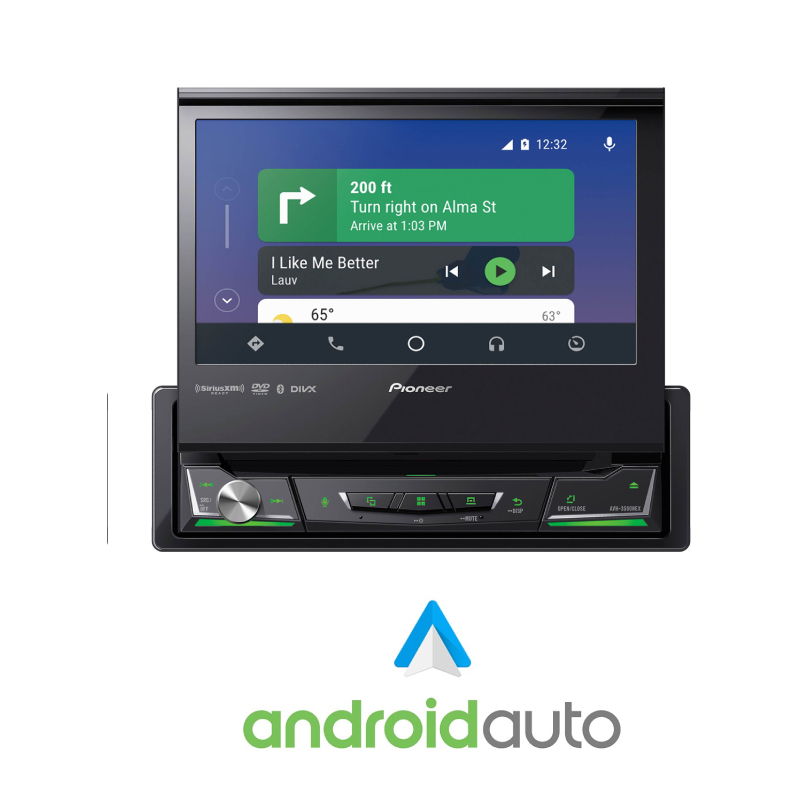

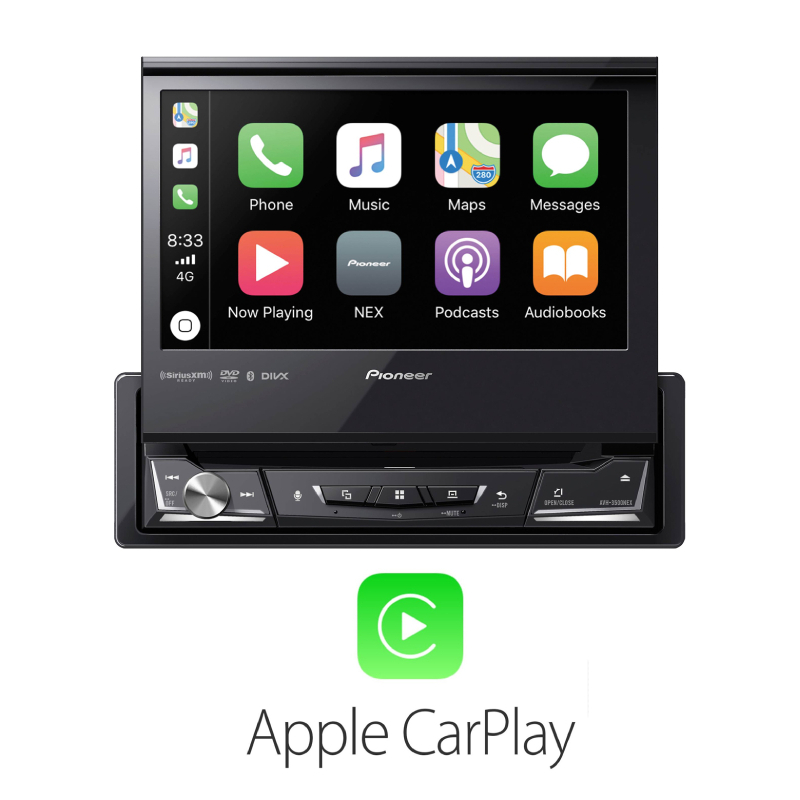

Apple CarPlay and Android Auto Compatible
Apple CarPlay and Android Auto-ready, you can comfortably ask for directions, listen to voicemails, read and send text messages, make and take calls, and play music using voice commands with the help of Siri and Google Assistant. Its Bluetooth connectivity option also allows you to stream music and answer phone calls hands-free.
Wireless Connectivity
Using its WebLink feature, you can access third-party mobile apps like Youtube from your smartphone and display it on the receiver's 7-inch touchscreen. Aside from being able to control Spotify and Pandora from your phone, you can also connect a SiriusXM radio tuner, so you won't have to miss out on your favorite shows while on the road.
Built-In Amplifier
The Pioneer AVH-3500NEX comes with a built-in amplifier that can deliver a power output of 14 Watts RMS and can reach up to 50 Watts of peak power per channel. Its six-channel preamp output allows you to connect two pairs of speakers and a pair of subwoofers for a full-range frequency performance.
13-Band Graphic EQ
It has a 13-band graphic EQ to shape up your receiver's frequency response and has high and low-pass filters to filter out unwanted frequencies that could muddy up the sound quality while it also protects your car audio system from blowing off. It has an Auto-EQ feature as well, though you will need a separate microphone for it to work.
Frequently Asked Questions (FAQ)
- • Why won't Apple CarPlay connect to the receiver?
Connection issues are commonly caused by an incompatible USB cable, outdated iPhone software, or incorrect settings. Use an Apple-certified cable and verify that CarPlay is enabled on your iPhone.
- • Can I use Android Auto with this receiver?
Yes. The receiver supports Android Auto with compatible Android smartphones, allowing access to navigation, messaging, and music apps.
- • Why isn't the backup camera showing when I shift into reverse?
This is usually caused by incorrect reverse trigger wiring or disabled camera settings. Check the camera connections and confirm the rear camera input is enabled in the receiver's menu.
- • Why is there no sound even though the display is working?
Incorrect audio settings, amplifier problems, or loose speaker wiring can prevent sound output. Verify all audio connections and ensure the receiver is not muted.
- • Why does Bluetooth disconnect while I'm driving?
Bluetooth interruptions may be caused by outdated phone software, wireless interference, or pairing conflicts. Removing the saved pairing and reconnecting the phone often resolves the issue.
- • Can I keep my factory steering wheel controls?
Yes. A compatible steering wheel control interface is typically required to retain your vehicle's factory audio controls.
- • Why does the receiver forget my settings after I turn off the car?
This usually indicates the constant 12-volt memory wire is connected incorrectly. Verify the wiring harness to ensure the receiver has uninterrupted memory power.
- • Why won't DVDs or video files play while driving?
The receiver includes safety features that disable video playback while the vehicle is moving. Proper parking brake wiring is required for video playback when the vehicle is safely parked.
- • Can I connect an external amplifier to improve sound quality?
Yes. The receiver includes preamp outputs that make it easy to connect aftermarket amplifiers for greater power and improved audio performance.
- • Why is the touchscreen slow or occasionally unresponsive?
Software glitches or outdated firmware can affect touchscreen performance. Restart the receiver and install the latest firmware update if one is available.
- Satellite Radio Ready : Yes
- DIN : 1
- Preamp Voltage : 4 volts
- Display Size : 6.8 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Preamp Outputs : Front, Rear & Sub
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Features:
- Screen Size/Aspect Ratio: 7", 16:9
- Resolution: WVGA (800 x 480)
- Touchscreen: Clear Resistive
- LED Backlight: Yes
- Motorized Display: Yes
- Last Angle Memory: Yes
- Display Off Mode: Yes
- Color Customization: 5 Display Colors, 112-Key Colors
- Display Customization: 13-Backgrounds, 13-Backgrounds, Splash Screen
- Dimmer Setting (ON/OFF): Yes
- Brightness Control: Yes
- Home Screen Shortcuts Customization: Yes
Navigation
- Navigation Ready: AVIC-U280 Required
Bluetooth®
- Built-in Bluetooth®
- Hands-Free Profile (HFP): HFP 1.6
- Audio/Video Remote Control Profile (AVRCP): AVRCP 1.6
- Advanced Audio Distribution Profile (A2DP): Yes
- Secure Simple Pairing (SSP): Yes
- Serial Port Profile (SPP): Yes
- Dual Phone Connection: Yes
Tuner
- SiriusXM-Ready™ (tuner sold separately): Yes
- SiriusXM Tune Start & Tune Scan: Yes
- SiriusXM Album-Art Display: Yes
- Presets: 18 FM, 6 AM
- Best Station Memory (BSM): Yes
- Local Seek Tuning: Yes
- RDS: Yes
- Supertuner® IIID: Yes
Smartphone Integrations
- Voice Control: Yes
- Apple CarPlay™: Wired USB connection
- Android Auto™: Wired USB connection
- Siri® Eyes Free: Yes
- Miracast: Yes
- Pandora® Control:iPhone, Android
- Pandora® Station Creation: Yes
- WebLink®: iPhone, Android
- Wireless Control: Pandora, Spotify
- Android™ Music Support: Yes
Digital Media Playback
- CD/CD-R/RW Playback: Yes
- MP3 Audio Playback: DVD, CD, USB
- WMA Audio Playback: DVD, CD, USB
- AAC Audio Playback: DVD, CD, USB
- WAV Audio Playback: DVD, CD, USB
- FLAC Audio Playback: USB
- DVD/DVD-R/RW/DVD-Video Playback: Yes
- MPEG-1 Video Playback: DVD, CD, USB
- MPEG-2 Video Playback: DVD, CD, USB
- MPEG-4 Video Playback: DVD, CD, USB
- AVI/DivX Video Playback: DVD, CD, USB
- WMV Video Playback: USB
- JPEG Photo Slideshow Viewer: USB
Audio
- RCA Preouts: 3(4V)
- Built-in Amplifier: MOSFET 50 W x 4
- Auto EQ (CD-MC20 required): Yes
- Easy EQ (EEQ) Preset Equalizer: Yes
- Customizable Graphic Equalizer: 13-Band
- D/A Converter: 24-Bit
- Time Alignment (CD-MC20 required): Auto/Manual
- Crossover Network: HPF/LPF
- 3-Way Audio Network Mode: Yes
- Subwoofer Control: Yes
- Loudness: Yes
- Listening Position Selector: Yes
- Advanced Sound Retriever: Yes
Expandability
- USB: Single, Rear (1.5 Amp)
- AUX Input: Rear
- Back-Up Camera Input: Yes
- Wired Remote Input: Yes
- Composite Video Output: Yes
- Mini-jack AV Cable: 1 (Audio/Video)
- USB Direct Control for iPhone®: Yes
General
- Detachable Face Security: Fixed
- Remote Control: Included
- Multi-Language Display: English, Chinese (Simplified), French, Spanish, Portuguese
- Warranty (must be purchased from an Authorized Pioneer Dealer): 1 Year
- 2006 CEA Compliant: Yes
- UPC: 884938426091
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
If you want modern stereo with every possible mosern option plus a few, and have a single Din slot this is fir you
-
Compatible with Carplay. Lots of other nice features too and its remote control is very nifty too. Got this one installed on my old Corvette and it works really well from what I imagined it to be.
-
Awesome upgrade for a single-DIN setup! The motorized screen is smooth, and the Carplay and Android Auto both works great. Sound quality is solid, and installation was easy with the harness recommended to me by the customer service guy. Definitely worth it!
-
i like its design. lots of nice features. unfortunately it does not work with wireless carplay or android auto. still good option for the price
