Pioneer RD-RGB150A RGB Extension (1.5m) Including Power and Radio Antenna Leads, for Installation of Hideaway Module (Pioneer Modular Receivers)
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

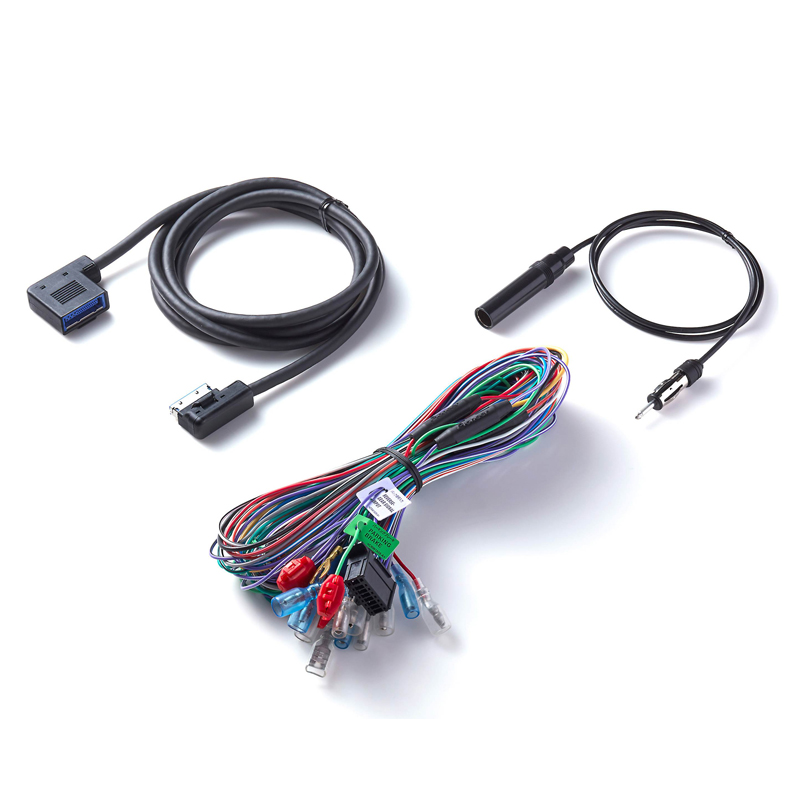

- • 1.5m RGB Extension Including Power and Radio Antenna
- • Owner's Manual
Why Choose Pioneer RD-RGB150A Wire and Cable?
Clean Install Freedom Made Easy

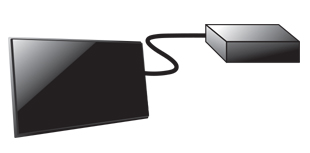

The RGB extension kit separates your receiver's chassis and display for a cleaner, more flexible dashboard layout. Featuring a 63-inch display cable, a 31-inch antenna adapter, and a 5-foot wiring harness with a structured 16-pin layout, it ensures reliable signal transmission and seamless cable management for custom, professional-grade installations.
Frequently Asked Questions (FAQ)
- • Why isn't the hideaway module powering on after I installed the extension cable?
Check that all power connectors are fully seated and that the wiring matches the installation diagram. A loose power lead or blown fuse can prevent the module from receiving power.
- • Can I extend the cable beyond the supplied 1.5-meter length?
Using additional extension cables may affect signal integrity or power delivery depending on the installation. Follow the manufacturer's recommendations before extending the wiring further.
- • Why is my radio reception weaker after installing the extension?
Inspect the antenna lead to ensure it is securely connected and not damaged during installation. Poor antenna connections are a common cause of weak radio reception.
- • Can I route this cable alongside my vehicle's power wires?
It's generally recommended to keep signal cables separated from high-current power wires whenever possible. This helps reduce electrical interference and maintains reliable performance.
- • Why doesn't the RGB lighting respond after connecting the extension?
Verify that the RGB connectors are aligned correctly and fully inserted into the matching ports. An incomplete connection can prevent lighting signals from reaching the module.
- • Is this extension compatible with every Pioneer multimedia receiver?
No. It is designed for compatible Pioneer systems that support a hideaway module and RGB expansion. Always verify compatibility with your specific receiver before installation.
- • Why do I hear radio interference after routing the cable?
Electrical interference may occur if the cable is routed too close to ignition components or high-current wiring. Repositioning the cable away from potential interference sources often resolves the issue.
- • What should I check if the system isn't recognized after installation?
Confirm that every connector is attached to the correct port and that the receiver firmware supports the connected hardware. Restarting the receiver after verifying the wiring may also help complete the connection.
Features:
- Pioneer RD-RGB150A Modular RGB Extension Integration Kit: Designed to enable remote installation of compatible Pioneer modular receivers, allowing flexible placement of the hideaway chassis and touchscreen monitor for cleaner and more customizable dash setups.
- Extended 63-Inch Display Connection Cable: Provides a long, dedicated link between the receiver’s chassis and touchscreen display, ensuring stable signal transmission even when components are installed separately within the vehicle.
- 31-Inch Antenna Adapter Interface: Includes a Motorola-style antenna extension with male and female connectors, enabling seamless connection between the vehicle’s antenna and the relocated head unit chassis.
- 5-Foot Replacement Wiring Harness System: Comes with an extended wiring harness that replaces the factory harness, supporting reliable power, signal routing, and speaker connections in remote-mount installations.
- Comprehensive 16-Pin Power and Speaker Layout: Features a clearly defined pin configuration supporting constant power, accessory input, ground, illumination, parking brake, reverse trigger, amplifier turn-on, and full speaker output channels.
- Optimized for Modular Receiver Compatibility: Specifically engineered to work with select Pioneer modular receivers, ensuring proper connectivity, signal integrity, and system reliability when extending installation layouts.
- Clean Installation and Cable Management Solution: Helps reduce clutter behind the dashboard by allowing better routing of cables and components, improving airflow, accessibility, and overall installation aesthetics.
Specifications:
- Product Type: RGB Extension Kit
- Compatibility: Pioneer modular receivers (DMH-C5500NEX, DMH-C2550NEX, DMH-C2500NEX)
- RGB Extension Cable Length: 63 inches
- Antenna Adapter Cable Length: 31 inches
- Wiring Harness Length: 5 feet
- Antenna Connector Type: Male Motorola to Female Motorola
- Harness Connector Type: 16-pin black connector
- Primary Functions Supported: Power, speaker outputs, illumination, reverse signal, amp turn-on, parking brake
- Yellow: +12V Constant
- Red: +12V Accessory
- Orange/White: Illumination
- Light Green: Parking Brake
- Black: Ground
- Violet/White: Reverse Gear Signal
- Blue/White: Amplifier Turn-On
- Speaker Outputs:
- White / White-Black: Front Left (+ / -)
- Gray / Gray-Black: Front Right (+ / -)
- Green / Green-Black: Rear Left (+ / -)
- Violet / Violet-Black: Rear Right (+ / -)
- UPC: 884938431682
- Weight: 5
