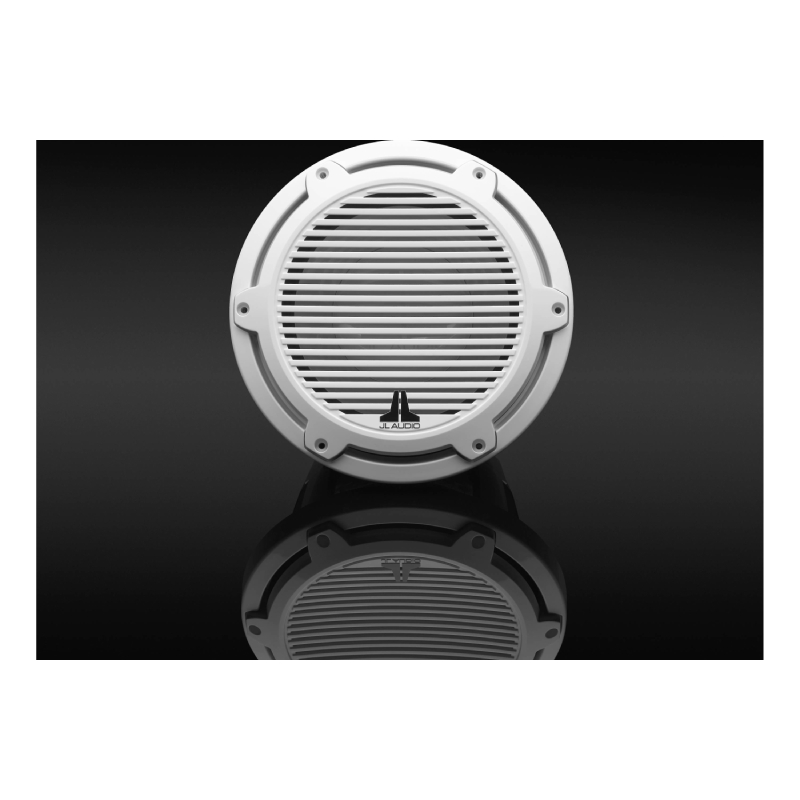

JL Audio M6-10IB-C-GwGw-4 M6 Series 10" 250W RMS (500W Peak Power Handling) 4 Ohms Impedance Marine Subwoofer
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •(1) 10" Marine subwoofer
- •(1) Grille
- •(6) 1-5/8" Stainless-steel screws
- •(6) Stainless-steel flat washers
- •Owner's manual
Built for Real Marine Duty
The JL Audio M6-10IB-C-GwGw-4 is a marine-grade 10-inch subwoofer designed to deliver powerful and high-quality bass in marine audio systems. Built to withstand the harsh marine environment, this subwoofer combines durability with impressive audio performance. Featuring a 10-inch diameter, the M6-10IB-C-GwGw-4 produces deep and impactful bass for a thrilling audio experience on your boat or watercraft.
Deliver Years of Listening Enjoyment
It is equipped with a 4-ohm voice coil configuration, allowing for easy integration with a variety of amplifier setups. Built with marine-grade materials, the M6-10IB-C-GwGw-4 is resistant to moisture, UV exposure, and saltwater conditions. Its weatherproof design includes a sealed motor structure and a marine-grade synthetic rubber surround, ensuring long-lasting performance in challenging marine environments.
Sold Individually
The subwoofer features a cone and dust cap made of mica-filled polypropylene, providing excellent rigidity and durability while delivering accurate bass reproduction. The corrosion-resistant basket and stainless steel mounting hardware ensure effortless installation and secure mounting.
Installation is Made Easy
With its marine-grade construction and powerful bass performance, the JL Audio M6-10IB-C-GwGw-4 is an excellent choice for marine audio enthusiasts seeking robust and reliable bass in their on-water adventures.
- Diameter : 10 Inch
- Sensitivity : 86.1 dB
- Impedance : 4 Ohm
- RMS Power Range : 250 Watts
- Peak Power Handling : 500 Watts
- Color : White
- Mounting Depth : 5.90 Inches
- Free Air : Yes
Specifications:
- Subwoofer Size: 10"
- Peak Power Handling: 500 watts
- RMS Power Handling: 250 watts
- Voice Coil(s): Single
- Impedance (Per Voice Coil): 4 ohms
- Woofer Surround: Synthetic Rubber
- Woofer Composition: Polypropylene-Mica
- Minimum Sealed Box Volume: 2 cubic feet
- Minimum Ported Box Volume: 2.5 cubic feet
- Sensitivity: 86.1 dB
- Top-Mount Depth: 5"
- Recommended Enclosure Type: Ported / Vented Sealed
- Subwoofer Grilles Included
Physical Specifications:
- Nominal Diameter: 10.0 in / 250 mm
- Overall Diameter: 10.75 in / 273 mm
- Bolt Hole Circle Diameter: 9.70 in / 247 mm
- Frontal Grilles Protrusion*: 1.66 in / 42 mm
- Mounting Hole Diameter: 8.875 in / 225 mm
- Mounting Depth: 5.90 in / 150 mm
- Driver Displacement: 0.052 cu ft / 1.47 L
- Net Weight: 8.70 lbs / 3.90 kg
*Frontal grille protrusion measured from mounting surface
Parameters:
- Free Air Resonance (Fs): 43.76 Hz
- Electrical “Q” (Qes): 0.907
- Mechanical “Q” (Qms): 11.315
- Total Speaker “Q” (Qts): 0.84
- Equivalent Compliance (Vas): 0.54 cu ft / 15.29 L
- One-Way Linear Excursion (Xmax)*: 0.52 in / 13.2 mm
- Reference Efficiency (no): 0.28%
- Efficiency (1 W / 1 m)**: 86.1 dB SPL
- Effective Piston Area (Sd): 50.11 sq in / 0.0323 sq m
- DC Resistance (Re): 4.543-ohm
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
- UPC: 699440936330
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Years Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
