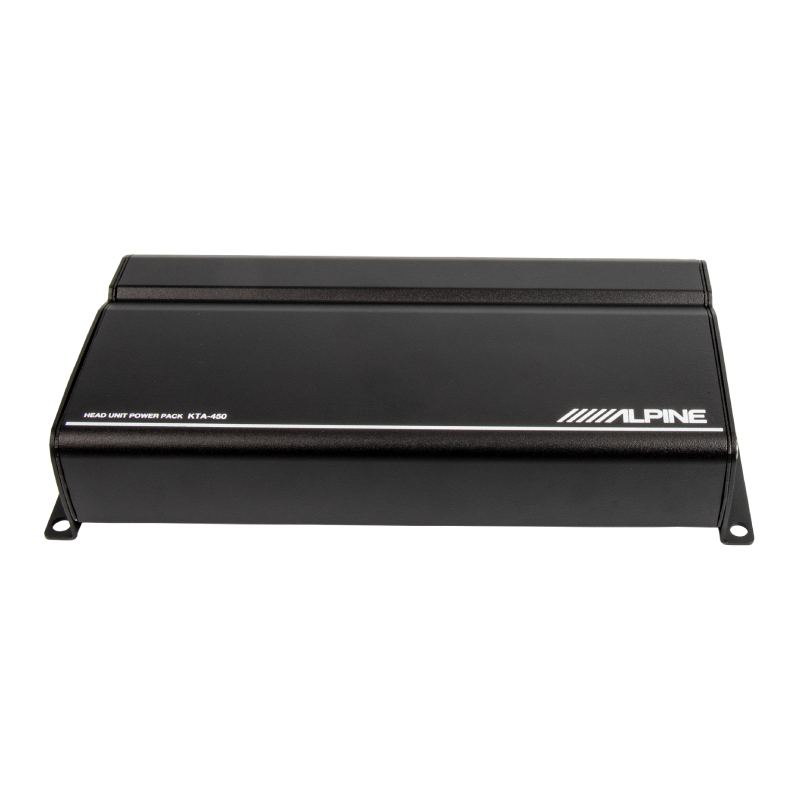

Alpine KTA-450 Power Pack Series 4-Channel 45W RMS x 4 at 2 Ohm, Class-D Compact Full Range Car Amplifier
We are an Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
-
- • 4-Channel Class-D Compact Full Range Car Amplifier

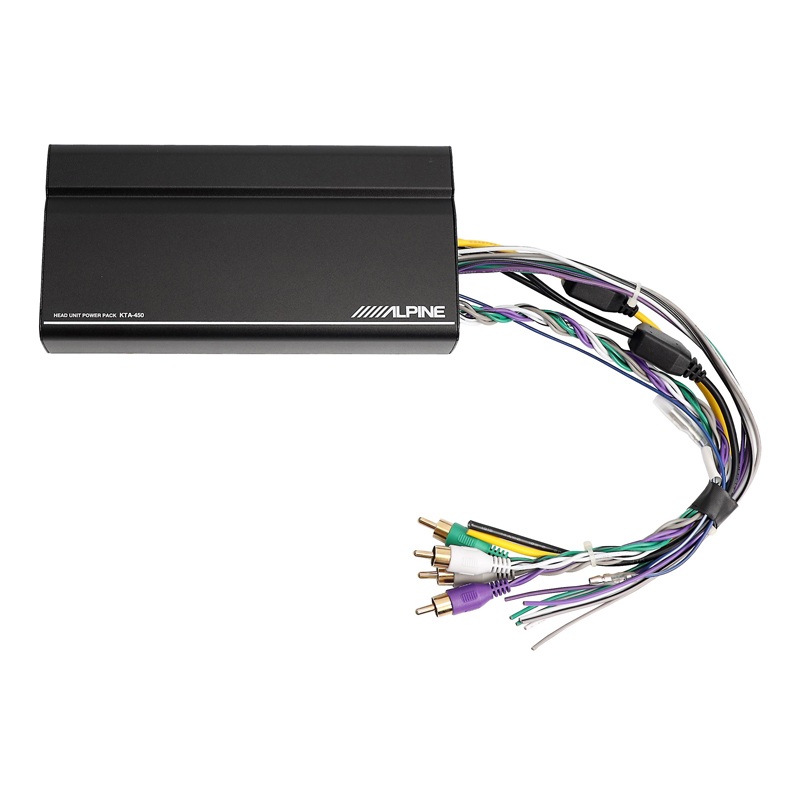

- • 12" Input/Output/Power harness
- • Head unit (iLX-W650) mounting bracket
- • (2) Universal mounting brackets
- • (4) M5x6mm Allen head machine screws (3mm)
- • (2) M2.6x8mm Machine screws
- • (4) 3/8" Screws
- • (4) 7" Zip Ties
- • Warranty information
- • On-line product registration information
- • Owner's Manual
Why Choose Alpine KTA-450 4-Channel Amplifier?
Award-Winning PowerStack Compatibility

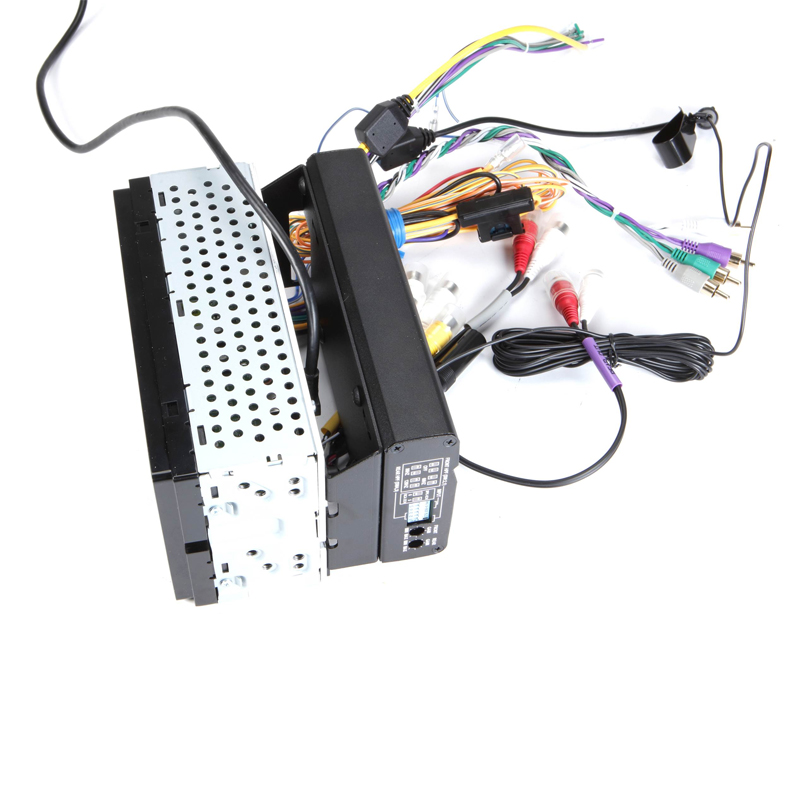

Maximize your 2-DIN setup with the KTA-450, designed to mount seamlessly behind select Alpine mech-less head units like the iLX-W650. Its recessed harness receptacle keeps wiring tidy, allowing both units to fit in a standard 2-DIN space. This innovative PowerStack design, a 2019 CES Innovation Awards winner, delivers one of the most powerful 2-DIN audio experiences available.
Exclusive Amplifier Technology
Experience unmatched performance with the KTA-450, featuring Alpine’s exclusive Dynamic Peak Power (DPP). This intelligent system adapts gain in real time, delivering up to double the power for sudden musical peaks without clipping. Hear music the way it was meant to sound at high volumes, with DPP boosting the KTA-450 to 400 watts peak power—all in a compact, space-saving design.
Compact Design for Hidden Installations
The KTA-450 packs big power into a small 7” W x 3.5” H x 1.25” D frame, making it perfect for tight spaces. Easily tuck it behind the radio, inside a glove box, a motorcycle saddlebag, or even on a boat—delivering high-performance sound without taking up valuable space.
Effortless Installation with Any Radio

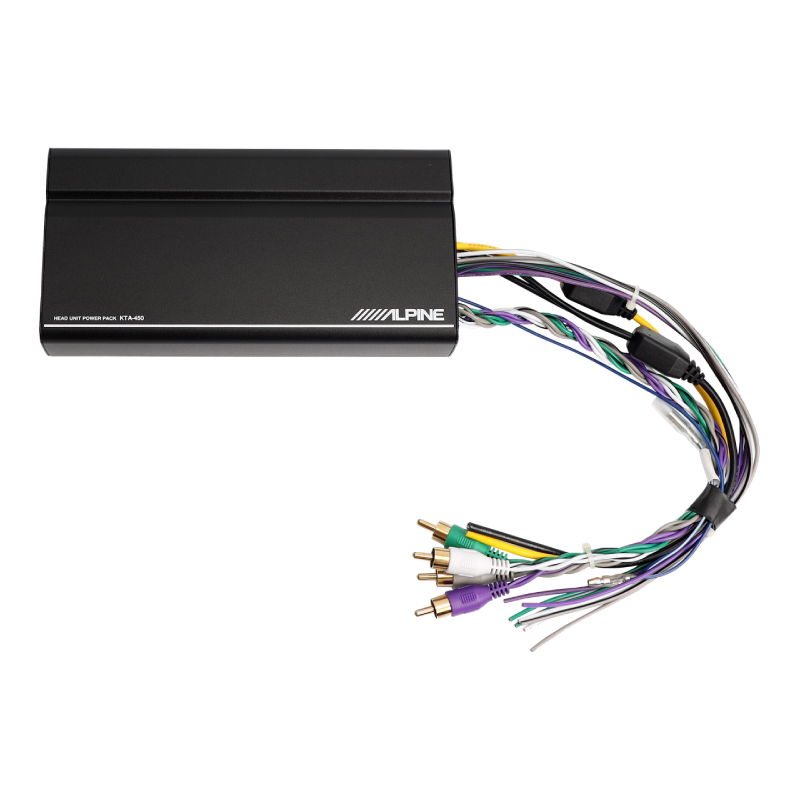

The KTA-450 features a 22-pin recessed power harness, allowing cables to be neatly tucked away for a clean, compact installation with virtually any radio.
Frequently Asked Questions (FAQ)
- • Can I install this amplifier behind my factory radio?
Yes, its compact design allows it to fit in many tight installation locations, including behind compatible head units. Always verify the available space in your vehicle before installation.
- • Will this work with my factory stereo?
Yes, it can be connected to many factory audio systems when the proper wiring interface or line output converter is used. This makes it easy to improve sound quality without replacing your original radio.
- • Can this power a subwoofer on its own?
No, it's designed and rated specifically for door, dash, or deck speakers rather than sub-level bass duty.
- • Can I bridge the channels to power larger speakers?
Yes, the amplifier supports bridged operation for compatible speaker loads. Always follow the recommended impedance specifications to prevent overheating or damage.
- • Why do I hear engine noise or alternator whine through my speakers?
This is commonly caused by poor grounding, improperly routed signal cables, or electrical interference. Improving the grounding and separating power wires from RCA cables usually eliminates the noise.
- • Why is there no sound even though the power light is on?
The amplifier may not be receiving an audio signal, or the input settings may be configured incorrectly. Checking the RCA connections, speaker wiring, and source unit settings usually restores audio output.
- • Does this amplifier get hot during normal use?
Yes, it is normal for an amplifier to become warm while operating, especially at higher output levels. Make sure it is installed in a well-ventilated location to maintain reliable performance.
- • How should I set the gain for the best sound quality?
The gain should be adjusted to match your source unit's output rather than being used as a volume control. Proper gain adjustment minimizes distortion while maximizing clean audio performance.
- • Can this amplifier power both front and rear speakers?
Yes, its four channels allow you to power a complete front and rear speaker system. This provides balanced sound throughout the vehicle while improving overall audio clarity.
- Number of Channels : 4
- Frequency Response : 15-50000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 4x45 Watts
- Amplifier Class : D
- Fuse Rating : 20 A
Features:
- Compact Design: Measures just 7” W x 3.5” H x 1.25” D for easy installation in tight spaces.
- Class D Amplifier Circuit: Efficient and powerful amplification in a small package.
- Dynamic Peak Power (DPP): Doubles power output during dynamic musical passages for impactful sound.

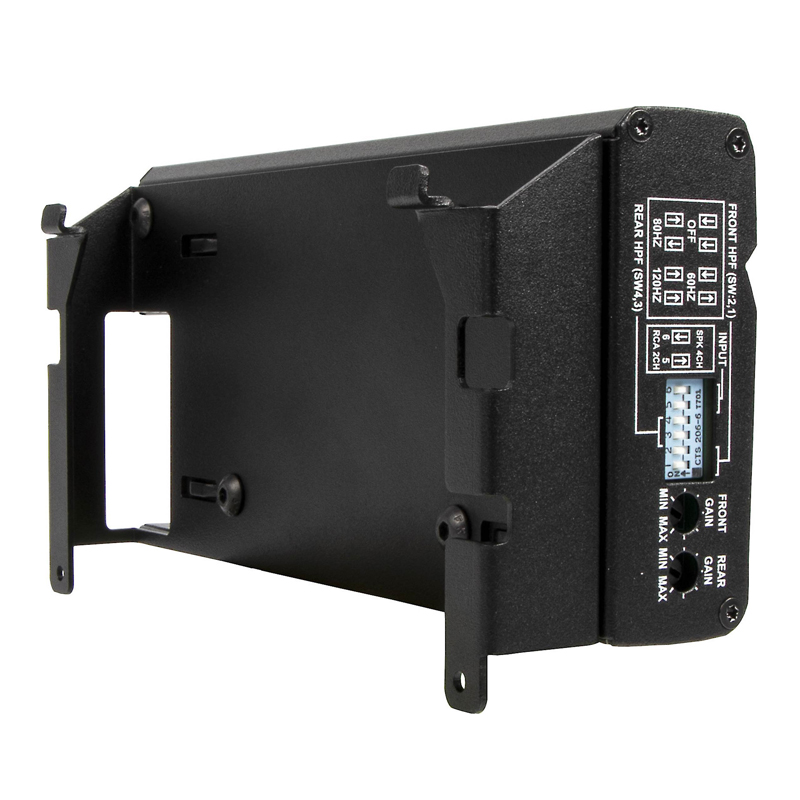

- PowerStacking Bracket: Included for secure mounting to the iLX-W650 7” Mech-less AV Receiver (sold separately).
- Award-Winning Technology: The KTA-450 paired with the iLX-W650 received the 2019 CES Innovation Award.
Specifications:
- RMS Power Output: 50W x 4
- Peak Power Output: 100W x 4
- Power at 2 Ohms: 45W x 4
- Power at 1 Ohm: ---
- Bridged Power: 100W x 2
- Minimum Impedance (Bridged): 4 Ω
- Minimum Impedance (Unbridged): 2 Ω
- Frequency Response: 15 Hz – 50,000 Hz
- THD at Rated RMS Power: 1%
- Signal-to-Noise Ratio: 82 dB
- Input Voltage: 14.4 V
- Amplifier Class: D
- Built-in DSP: No
- Remote Control: No
- Low-Pass Crossover Frequency: N/A
- Low-Pass Slope: N/A
- High-Pass Crossover Frequency: Off, 60, 80, 120 Hz
- High-Pass Slope: 12 dB/octave
- Bass Boost: No
- Bass Boost Frequency: N/A
- Fan Cooled: No
- Fuse Rating: 20 A
- Speaker Level Inputs: Yes
- Preamp Outputs: No
- Dimensions (W x H x D): 7" x 1.375" x 3.5625"
- UPC: 793276242822
- Weight: 4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
