Alpine  PDR-V75-Bundle

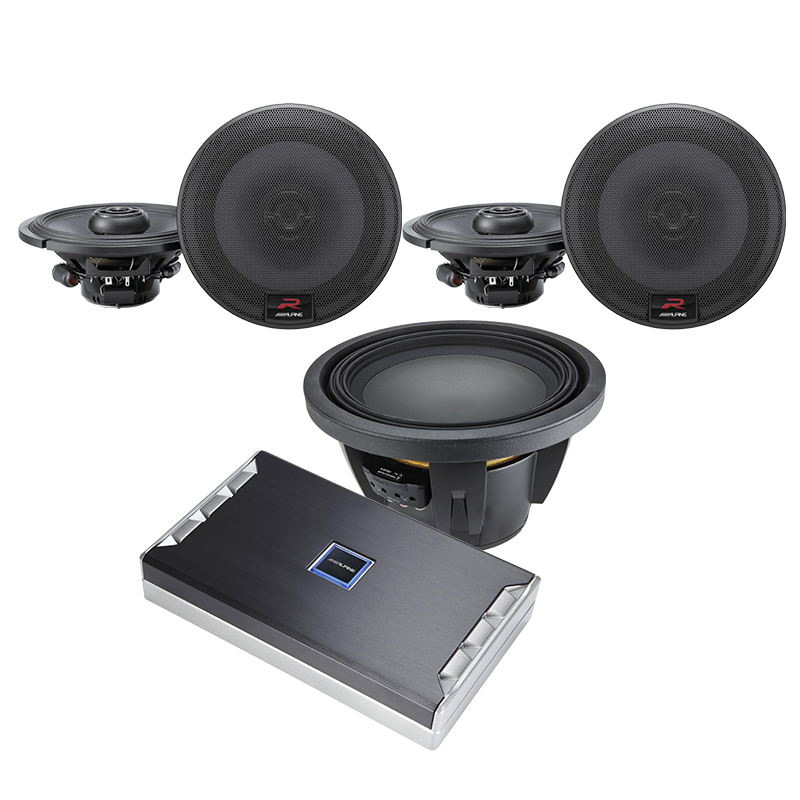

Alpine PDR-V75 + Two Alpine R-S65 + Alpine R-W12D2 Exclusive Bundle

Item #53471

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


OCS Bundle Banner

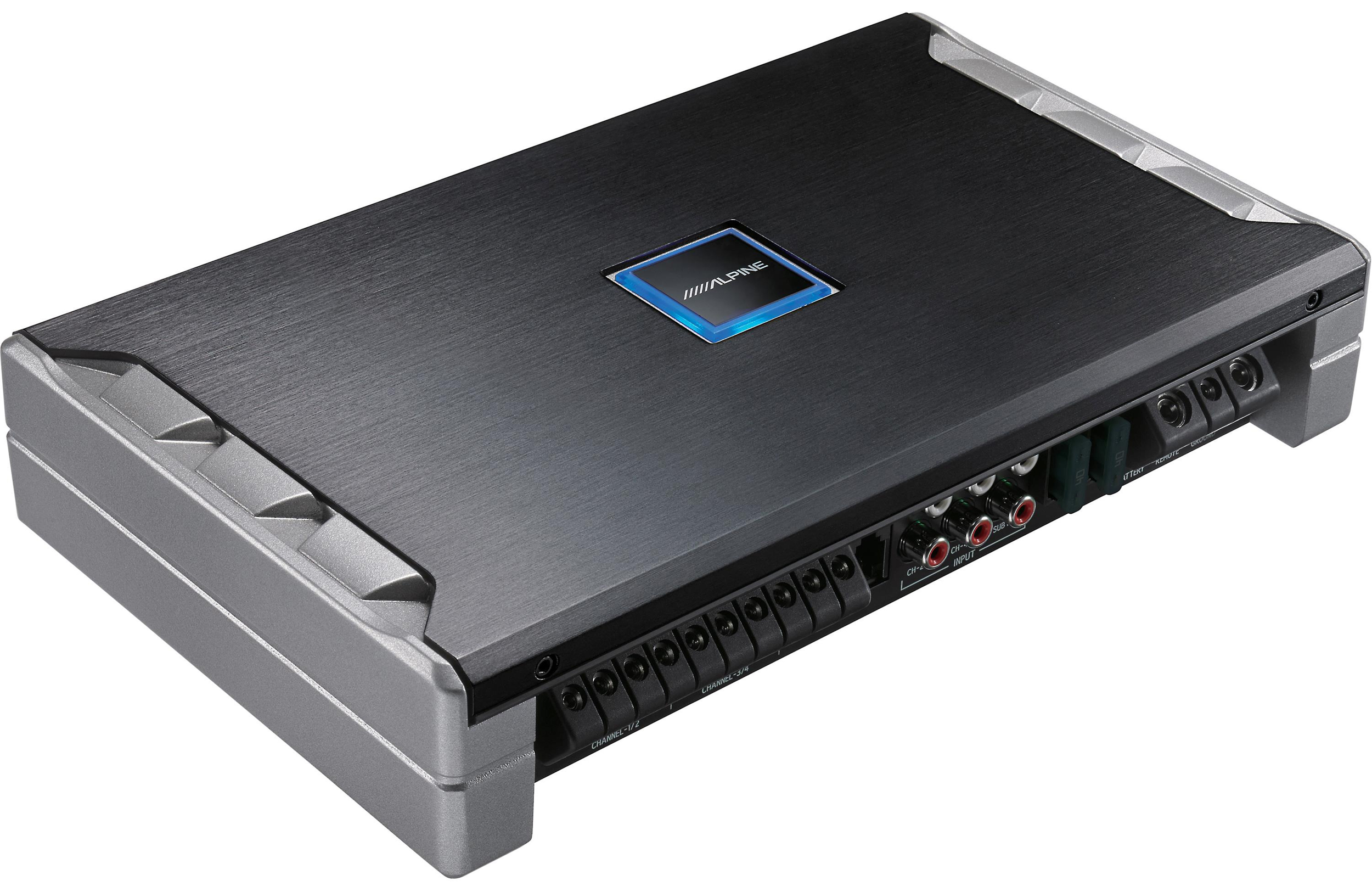

Alpine PDR-V75

Welcome the new digital PDR-Power series of Class-D amplifiers. The PDR-Power amplifiers incorporate many of Alpine’s best in class digital technologies, high performance and signature sound.

Alpine PDR-V75

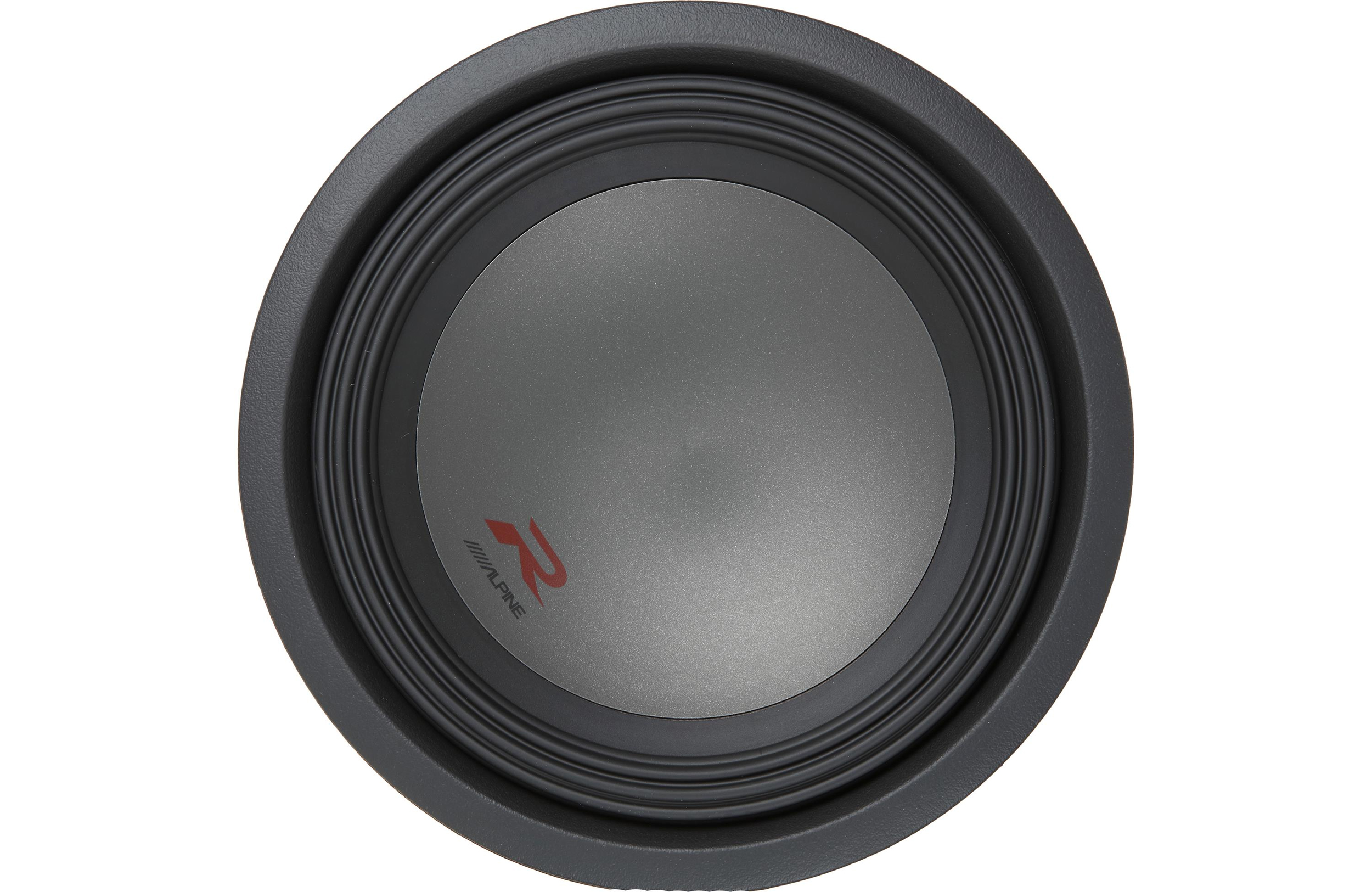

Alpine R-W12D2

Alpine is proud to announce the introduction of the new R-Series Subwoofer lineup that is built off the highly esteemed Type R platform. The new R-Series subwoofers take a great platform to the next level. Although the R-Series subwoofers are new for 2017, they actually come from an impressive Alpine lineage – the Type-R subwoofers.

Alpine R-W12D2

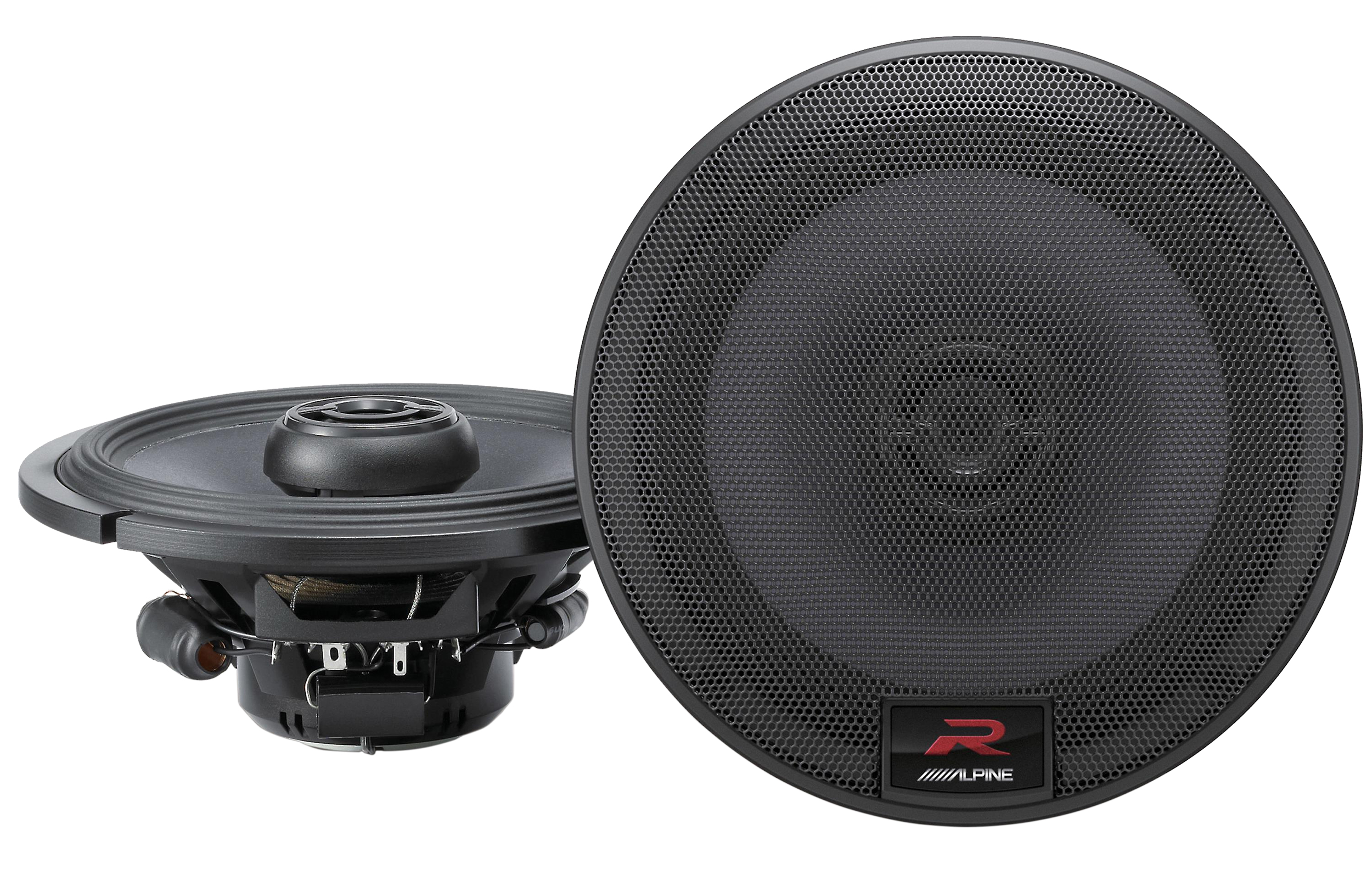

Alpine R-S65

Type-R speakers have been known for their dependability and sound performance at a mid-line price. Chances are, you’ve heard the Type-R speakers and appreciated the loud & fun listening experience.

Alpine R-S65


SPECIFICATIONS



FEATURES


PDR-V75 5-channel Car amplifier

CEA-2006 Power Ratings
  • CEA-2006 Power Rating: 75W RMS x 4 + 250W RMS x 1 (4-ohm, 14.4V at <1% THD+N)
  • RMS Power Ratings
  • Per channel into 4 Ohms: 75W RMS x 4 + 250W RMS x 1 (14.4V at <1% THD+N)
  • Per channel into 2 Ohms: 100W RMS x 4 + 350W RMS x 1 (14.4V at <1% THD+N)
  • Bridged 4 Ohms: 200W RMS x 2 (CH-1/2/3/4, 14.4V at <1% THD+N)
Sound Tuning
  • Crossover Frequency (CH1/2/3/4, HPF): 50 Hz - 400 Hz, -12 dB/oct.
  • Crossover Frequency (Subwoofer, LPF): 50 Hz - 400 Hz, -24 dB/oct.
  • Subsonic Filter (Subwoofer): 8 Hz -40 Hz, -24dB/oct. (Variable)
  • BASS EQ (Subwoofer): 0 to +12 dB, fc=50Hz (Variable)
Dimensions
  • Foot Print (WxHxD) mm: 270 x 50.8 x 165 mm
  • Foot Print (WxHxD) in: 10-3/4'' x 2'' x 6-1/2''
General
  • Power Requirements: 14.4 V.DC (11-16V allowable)
  • Input Impedance: >10k ohms
  • Frequency Response (+0, -3dB: 1W into 4 Ohms) for CH-1/2/3/4: 8 Hz - 45k Hz
  • Frequency Response (+0, -3dB: 1W into 4 Ohms) for Subwoofer: 8 Hz - 400 Hz
  • THD+N (10W into 4 Ohms) for CH-1/2/3/4: 0.02 %
  • THD+N (10W into 4 Ohms) for Subwoofer: 0.02 %
  • Damping Factor for CH-1/2/3/4: >500
  • Damping Factor for Subwoofer: >1000
  • Signal to Noise (Rated Power into 4 Ohms) for CH-1/2/3/4: 105 dB
  • Signal to Noise (Rated Power into 4 Ohms) for Subwoofer: 110 dB
  • Weight: 2.76 kg/6lb 1.4oz
  • Input Sensitivity (RCA Input,CH-1/2/3/4): 0.2 - 4.0 V
  • Input Sensitivity (RCA Input, Subwoofer): 0.1 - 4.0 V


R-S65 6.5" 600 Watts Max Power Type R 2-Way Coaxial Car Speakers

  • 6.5 R-Type 2-Way Coaxial Car Speakers
  • Peak: 600W per pair/ 300W each
  • RMS: 200W per pair/ 100W each
  • Recommended power range: 10 - 100W RMS
  • Multi-layer hybrid fiber cone
  • H.A.M.R. surround
  • 1" Silk dome tweeter
  • Tweeter swivels to give better control of your sound
  • Large square wire dual-layer voice coil
  • High-performance linear drive motor
  • Top-mount Depth: 2-3/8"
  • Cutout Dimensions: 8-3/8"
  • 4 ohms impedance
  • Frequency Response: 65 - 29,000 Hz
  • Sensitivity: 88dB

R-W12D2 12" R-Series 2250 Watts Max Power Dual 2-Ohm Car Subwoofer

  • Peak: 2250watts
  • RMS: 750 watts
  • Recommended power range: 300 - 750W RMS
  • CTA-2031 compliant power ratings
  • Parabolic pulp/kevlar cone
  • H.A.M.R. surround
  • Polypropylene, mica and talc dust cap
  • Reinforced cone neck and spider joint
  • Cast aluminum frame with integral shorting sleeve
  • 8AWG push terminals with VC configuration jumpers
  • 2.6" High excursion overhung voice coil
  • 127 oz. Strontium ferrite segmented magnet
  • Top-mount depth: 6-3/8"
  • Cutout diameter: 10-7/8"
  • Frequency Response: 24 - 200Hz
  • Sensitivity: 84.3dB
  • Resonance Frequency (Fs): 27Hz
  • UPC: 713783635245
  • Weight: 40
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
