Alpine  PDR-V75-Bundle4

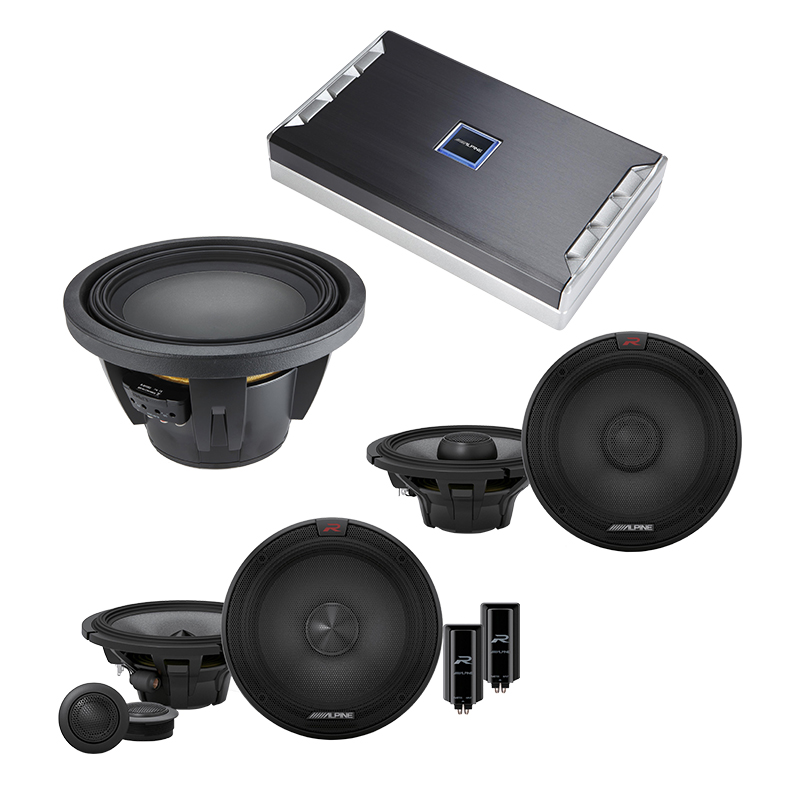

Alpine PDR-V75 + Alpine R-S65C.2 + Alpine R-S65.2 + Alpine R-W12D2 Exclusive Bundle

Item #53474

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

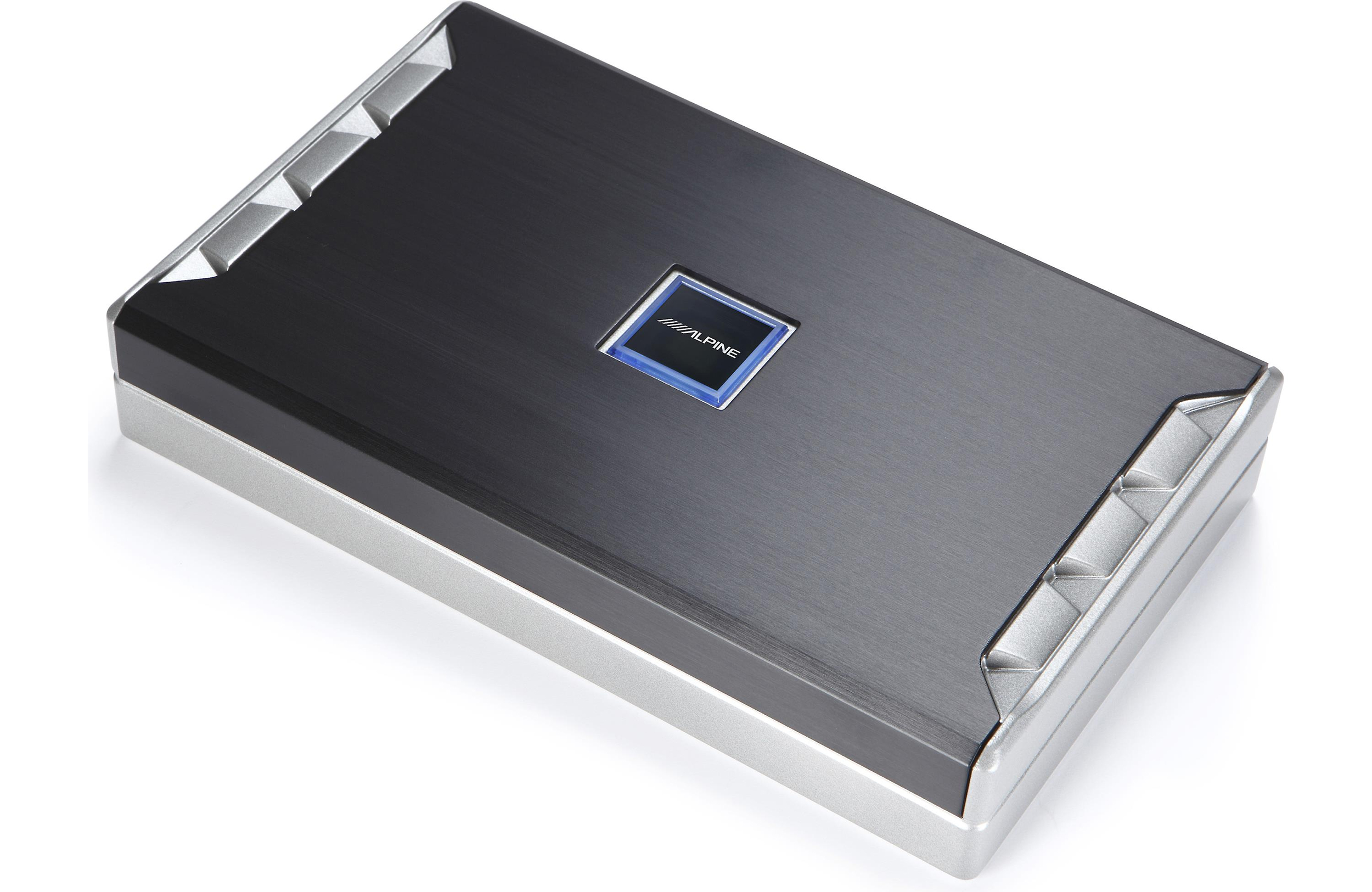

Alpine PDR-V75

Small, Powerful Design

The S-Series amplifiers contain technology that was previously only available in Alpine's premium line up of amplifiers, the R- and X-Series models. The S-Series models are based on Alpine’s intelligent amplifier platform that ensures superior sound reproduction and precision imaging. With an improved heat sink, and protection circuit design that eliminates thermal shut-down, your music will keep playing no matter where your drive takes you.

SMALL, POWERFUL DESIGN

Alpine R-S65C.2

Exclusive Cone Technology

The R-Series speakers use Alpine’s exclusive cone technology, Carbon Fiber Reinforced Polymer (CFRP), which is a high-strength, lightweight material. CFRP can be custom-formed so that its fibers align in the same direction as the curve and shape of the cone, thereby reducing resonant peaks and increasing the speakers’ mid-bass performance and dynamic range. CFRP is also used as a tweeter diaphragm, enabling the speakers to perform into the 45kHz range and making them compliant with High-Resolution Audio playback.

Exclusive Cone Technology

Alpine R-S65.2

Better Fitment Without Sacrificing Motor Force

The R-Series speakers use a neodymium magnet which gives them a shorter overall height, compared to other speaker brands. The R-Series speakers also use a new, shallower grill design. The result: An improved fitment design that lets the R-Series speakers fit into tighter install locations without sacrificing motor force.

Better Fitment Without Sacrificing Motor Force

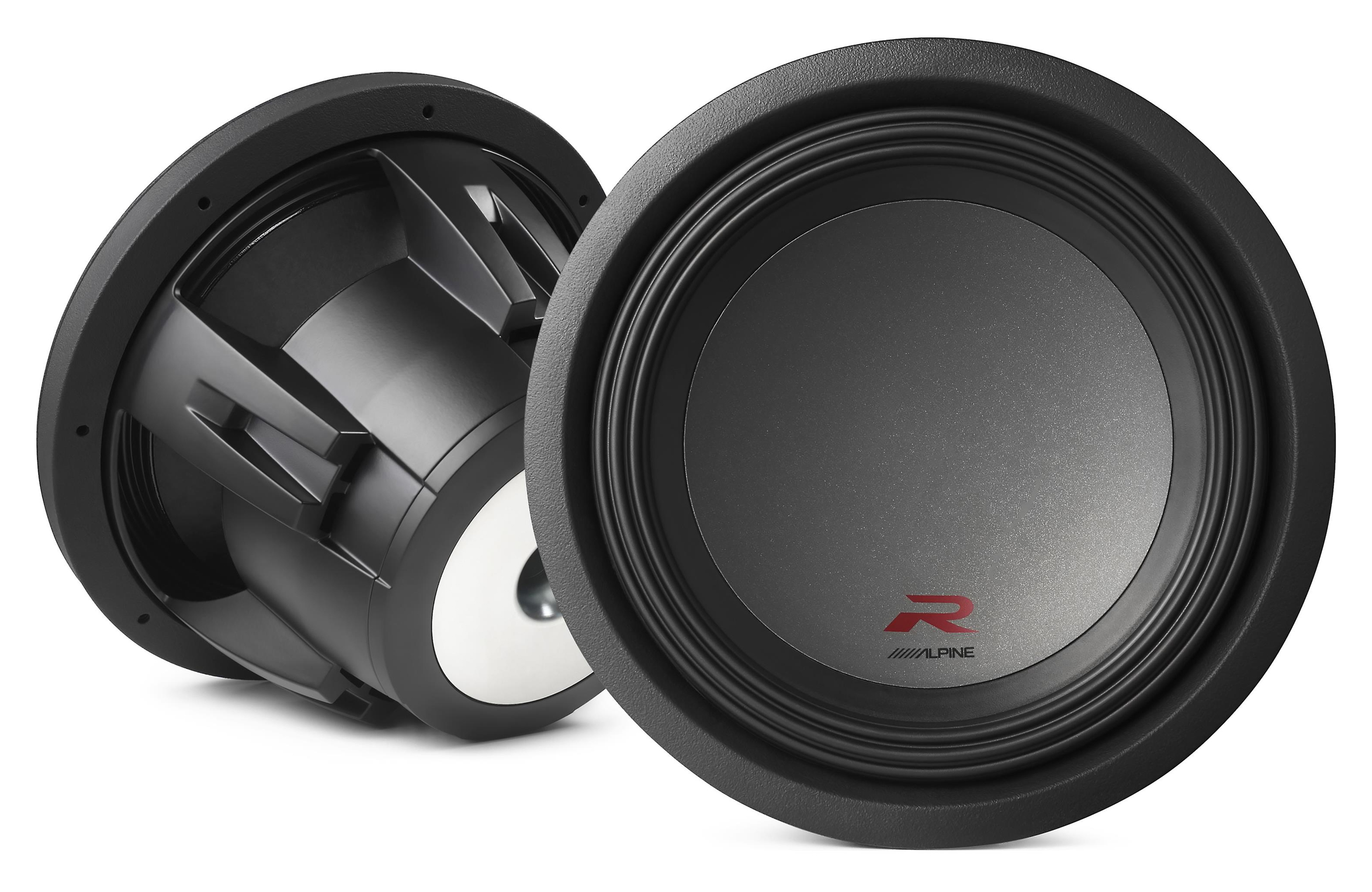

Alpine R-W12D2

More Rigid Dust Cap

Talc, a common mineral used in products such as baby powder and paint, has been found to have incredible damping properties while being less dense than the traditional Mica filler used in dust caps. By adding a calculated amount of talc to the mica polypropylene in the dust cap, Alpine were able to increase vibration absorption of the cap while lowering the density. The resulting lighter dust cap contributes to a faster attack and a more accurate reproduction of low frequencies.

More Rigid Dust Cap


SPECIFICATIONS



FEATURES


PDR-V75 5-Channel Class D Digital Amplifier

CEA-2006 Power Ratings
  • CEA-2006 Power Rating: 75W RMS x 4 + 250W RMS x 1 (4-ohm, 14.4V at <1% THD+N)
  • RMS Power Ratings
  • Per channel into 4 Ohms: 75W RMS x 4 + 250W RMS x 1 (14.4V at <1% THD+N)
  • Per channel into 2 Ohms: 100W RMS x 4 + 350W RMS x 1 (14.4V at <1% THD+N)
  • Bridged 4 Ohms: 200W RMS x 2 (CH-1/2/3/4, 14.4V at <1% THD+N)
Sound Tuning
  • Crossover Frequency (CH1/2/3/4, HPF): 50 Hz - 400 Hz, -12 dB/oct.
  • Crossover Frequency (Subwoofer, LPF): 50 Hz - 400 Hz, -24 dB/oct.
  • Subsonic Filter (Subwoofer): 8 Hz -40 Hz, -24dB/oct. (Variable)
  • BASS EQ (Subwoofer): 0 to +12 dB, fc=50Hz (Variable)
Dimensions
  • Foot Print (WxHxD) mm: 270 x 50.8 x 165 mm
  • Foot Print (WxHxD) in: 10-3/4'' x 2'' x 6-1/2''
General
  • Power Requirements: 14.4 V.DC (11-16V allowable)
  • Input Impedance: >10k ohms
  • Frequency Response (+0, -3dB: 1W into 4 Ohms) for CH-1/2/3/4: 8 Hz - 45k Hz
  • Frequency Response (+0, -3dB: 1W into 4 Ohms) for Subwoofer: 8 Hz - 400 Hz
  • THD+N (10W into 4 Ohms) for CH-1/2/3/4: 0.02 %
  • THD+N (10W into 4 Ohms) for Subwoofer: 0.02 %
  • Damping Factor for CH-1/2/3/4: >500
  • Damping Factor for Subwoofer: >1000
  • Signal to Noise (Rated Power into 4 Ohms) for CH-1/2/3/4: 105 dB
  • Signal to Noise (Rated Power into 4 Ohms) for Subwoofer: 110 dB
  • Weight: 2.76 kg/6lb 1.4oz
  • Input Sensitivity (RCA Input,CH-1/2/3/4): 0.2 - 4.0 V
  • Input Sensitivity (RCA Input, Subwoofer): 0.1 - 4.0 V


R-S65C.2 R Series 6.5" 300 Watts Peak Power 2-Way Component Speaker System

  • Speaker Diameter: 6-1/2
  • Design: 2-way
  • Tweeter Design: Dome
  • Tweeter Composition: Carbon-fiber
  • Woofer Composition: Carbon-fiber
  • Woofer Surround: Multi-roll synthetic rubber
  • Sensitivity (1W at 1 meter): 88dB
  • Frequency Response: 65-40kHz
  • Maximum RMS Wattage: 100
  • Peak Power Handling (Watts): 300
  • Top-mount Depth (Inches): 2 5/16


R-S65.2 R Series 6.5" 300 Watts Peak Power 2-Way Car Speakers

  • Speaker Diameter: 6-1/2"
  • Design  2-way
  • Tweeter Design: Dome
  • Tweeter Composition: Carbon-fiber
  • Woofer Composition: Carbon-fiber reinforced polymer
  • Woofer Surround: Multi-roll synthetic rubber
  • Sensitivity (1W at 1 meter): 88
  • Frequency Response: 65 - 40k Hz
  • Maximum RMS Wattage 100
  • Peak Power Handling (Watts) 300
  • Top-mount Depth (Inches): 2-5/16


R-W12D2 12" R-Series 2250 Watts Max Power Dual 2-Ohm Car Subwoofer

  • Peak: 2250watts
  • RMS: 750 watts
  • Recommended power range: 300 - 750W RMS
  • CTA-2031 compliant power ratings
  • Parabolic pulp/kevlar cone
  • H.A.M.R. surround
  • Polypropylene, mica and talc dust cap
  • Reinforced cone neck and spider joint
  • Cast aluminum frame with integral shorting sleeve
  • 8AWG push terminals with VC configuration jumpers
  • 2.6" High excursion overhung voice coil
  • 127 oz. Strontium ferrite segmented magnet
  • Top-mount depth: 6-3/8"
  • Cutout diameter: 10-7/8"
  • Frequency Response: 24 - 200Hz
  • Sensitivity: 84.3dB
  • Resonance Frequency (Fs): 27Hz
  • UPC: 713783635276
  • Weight: 40
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
