Alpine  S-A55V-Bundle77

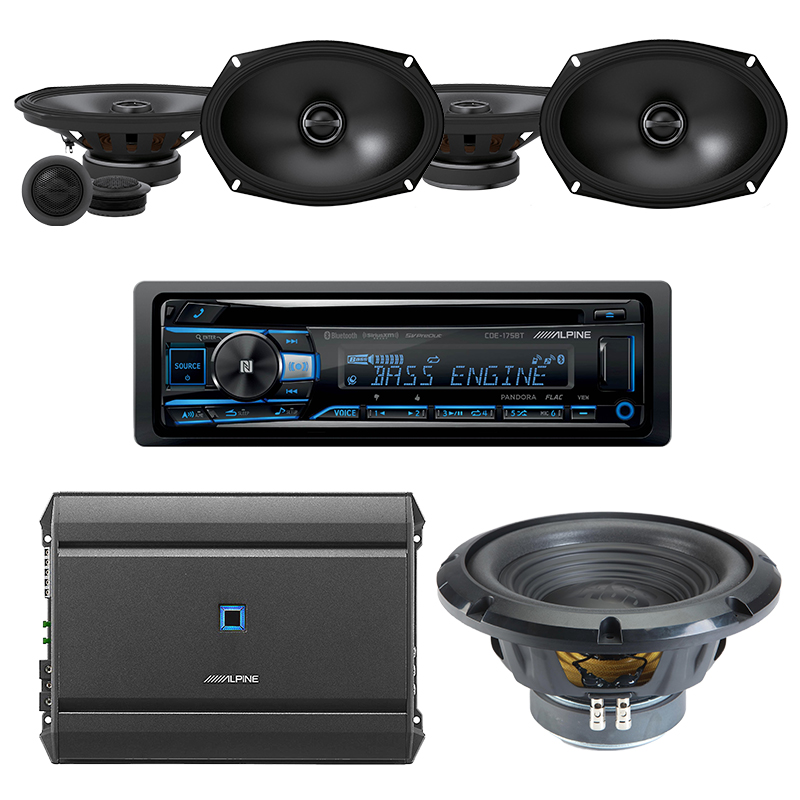

Alpine S-A55V + Alpine CDE-175BT + Alpine S-S69C + Alpine S-S69 + Alpine W10S4 Exclusive Bundle

Item #53541

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Satellite Radio Ready : Yes

FEATURES


S-A55V 80x4 Watts RMS @ 2-ohms 4-Channel Class D Power Amplifier

Features:
  • High Efficiency Digital Circuit Design
  • Adaptive Feedback Global Modulation Topology
  • Selectable Input Level
  • Selectable 2/4/6 Ch Input
  • Variable High/Low Pass Crossover
  • Variable Bass EQ
  • Auto Turn-on with Remote Sensing
  • Remote Bass Control Ready
Specifications:
  • Amplifier Class: D
  • Low-Pass Crossover Frequency: 50-400 Hz
  • High-Pass Crossover Frequency: 50-400 Hz
  • Low-Pass Slope: 24 dB/oct
  • High-Pass Slope: 12 dB/oct
  • Bass Boost: 0-12 dB
  • Bass Boost Frequency: 50 Hz
  • Fuse Rating: 60
  • Speaker Level Inputs: RCA
  • RMS Power Output: 40 x 4 / 180 x 1
  • Peak Power Output: N/A
  • Power at 2 Ohms: 60 x 2
  • Bridged Power: 120 x 2
  • Minimum Impedance Bridged: 4
  • Minimum Impedance Unbridged: 2
  • Frequency Response: +0/-3 dB 50Hz - 30kHz
  • Frequency Response: +0/-1 dB 60Hz - 20kHz
  • Signal to Noise Ratio: 1 W into 4 Ohms: >83dB
  • Preamp Outputs: No
  • Width: 11-1/4"
  • Height: 2-1/4"
  • Depth: 8"


CDE-175BT Single DIN Bluetooth Media Car Stereo Receiver

  • Peak: 50 watts x 4 channels
  • RMS: 18 watts x 4 channels
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • AM/FM tuner with 18FM/12AM presets
  • CD/CD-R/RW/MP3/WMA/AAC Playback
  • MP3/WMA/AAC/MP4/FLAC Playback via USB
  • Compatible with Apple iPhone 6/6+ and iOS 8 software
  • 3-band parametric equalizer with 7 selectable tone curves
  • 3.5mm Front Audio Auxiliary Input
  • Front USB Input
  • Built-in Bluetooth technology for hands-free talking and audio streaming


S-S69C 6x9" 260 Watts Peak Power Car Component 2-Way Speakers

  • Max RMS Power Capacity: 120W
  • Peak Power Capacity: 360W
  • Incredible sound quality
  • Perfect for an OEM upgrade with many sizes to choose from to suit almost any vehicle
  • Now available in a 6x9-inch component set, perfect for newer trucks and SUVs
  • Larger voice coil and new CFRP (Carbon Fiber Reinforced Plastic) cone
  • Now with Alpine’s patented HAMR (High Amplitude Multi-Roll) Surround, allowing for large amounts of linear air movement
  • 1-inch silk dome tweeter (3/4-inch silk dome tweeter on the S-S40 speaker)
  • Grilles available for 6x9-inch, 6.5-inch, and 5.25-inch models (grilles sold separately)
  • S-Series speakers deliver the winning combination of incredible sound and value within an entry-level category.


S-S69 6X9" 260 Watts Peak Power 2 Way Coaxial Car Speaker

  • Max RMS Power Capacity: 85W
  • Peak Power Capacity: 260W
  • Incredible sound quality
  • Perfect for an OEM upgrade with many sizes to choose from to suit almost any vehicle
  • Now available in a 6x9-inch component set, perfect for newer trucks and SUVs
  • Larger voice coil and new CFRP (Carbon Fiber Reinforced Plastic) cone
  • Now with Alpine’s patented HAMR (High Amplitude Multi-Roll) Surround, allowing for large amounts of linear air movement
  • 1-inch silk dome tweeter (3/4-inch silk dome tweeter on the S-S40 speaker)
  • Grilles available for 6x9-inch, 6.5-inch, and 5.25-inch models (grilles sold separately)
  • S-Series speakers deliver the winning combination of incredible sound and value within an entry-level category


W10S4 10" 750 Watts Peak Power 4-ohm Impedance Subwoofer

  • Size: 10"
  • Impedance: 4ohms
  • Cone Material: Polypropylene and Mica
  • Sensitivity: 86.6dB at 1 watt
  • Frequency Response 24-200 Hz
  • RMS Power: 250 Watts
  • Power Power: 750 Watts
  • 5-1/16" mounting depth
  • Recommended Sealed box volume: 0.83 cu. ft
  • Recommended Ported box volume: 1.51 cu. ft
  • UPC: 713783636044
  • Weight: 35
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
