Alpine  INE-W960HDMI-Bundle81

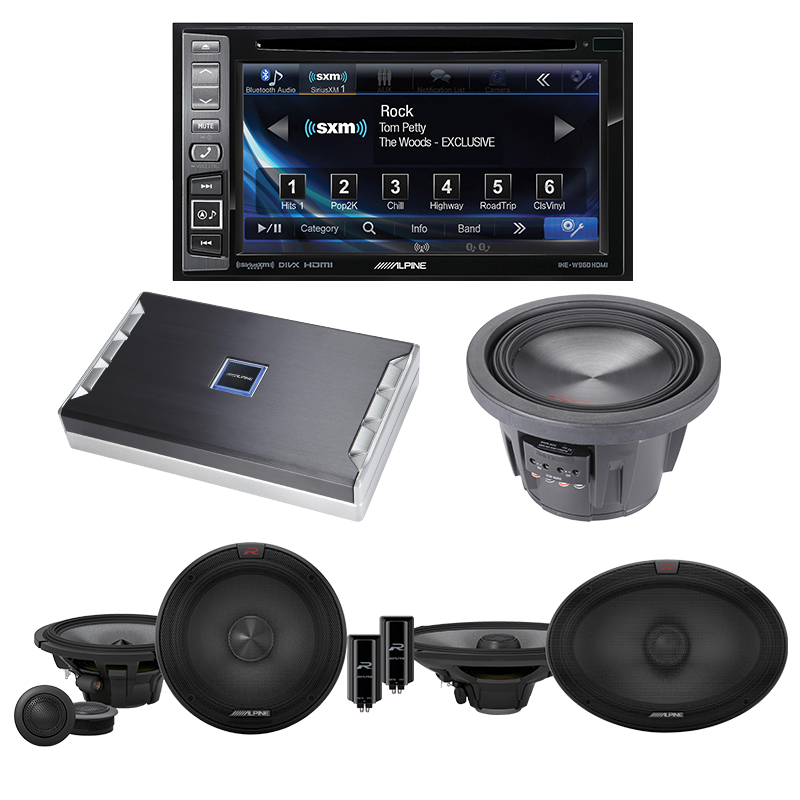

Alpine INE-W960HDMI + Alpine PDR-V75 + Alpine R-S65C.2 + Alpine R-S69.2 + Alpine SWR-8D2 Exclusive Bundle

Item #53623

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS



FEATURES


INE-W960HDMI 6.1" Navigation CD DVD Bluetooth Car Receiver with SiriusXM Tuner

General Features:
  • DVD/CD receiver with 6.1" touchscreen and AM/FM tuner
  • internal amp (18 watts RMS CEA-2006/50 peak x 4 channels)
  • includes SiriusXM satellite radio tuner plus 3 free months of All Access programming with tuner activation and subscription
  • built-in Bluetooth for hands-free calling and audio streaming
  • fits double-DIN (4" tall) dash openings
Navigation Features:
  • maps of United States, Canada, Puerto Rico, and the Virgin Islands, plus 7 million points of interest
  • text-to-speech announces actual street names at turns
  • lane guidance and junction view
  • 3D representations of landmarks and buildings
Smartphone Features:
  • built-in Pandora control for connected smartphones (iPhone requires USB or Bluetooth connection; Android requires HDMI or Bluetooth connection)
  • built-in iPod, iPhone, and iPad control
  • HDMI input for Android smartphone connectivity
Audio/video Features:
  • plays CDs, DVDs, and USB memory devices (see Details for full capabilities)
  • 24-bit digital-to-analog converter
  • 9-band parametric equalizer
  • Time Correction feature for a stronger stereo image
  • MediaXpander Pro compensates for compressed music sources


PDR-V75 5-channel car amplifier

CEA-2006 Power Ratings
  • CEA-2006 Power Rating: 75W RMS x 4 + 250W RMS x 1 (4-ohm, 14.4V at <1% THD+N)
  • RMS Power Ratings
  • Per channel into 4 Ohms: 75W RMS x 4 + 250W RMS x 1 (14.4V at <1% THD+N)
  • Per channel into 2 Ohms: 100W RMS x 4 + 350W RMS x 1 (14.4V at <1% THD+N)
  • Bridged 4 Ohms: 200W RMS x 2 (CH-1/2/3/4, 14.4V at <1% THD+N)
Sound Tuning
  • Crossover Frequency (CH1/2/3/4, HPF): 50 Hz - 400 Hz, -12 dB/oct.
  • Crossover Frequency (Subwoofer, LPF): 50 Hz - 400 Hz, -24 dB/oct.
  • Subsonic Filter (Subwoofer): 8 Hz -40 Hz, -24dB/oct. (Variable)
  • BASS EQ (Subwoofer): 0 to +12 dB, fc=50Hz (Variable)
Dimensions
  • Foot Print (WxHxD) mm: 270 x 50.8 x 165 mm
  • Foot Print (WxHxD) in: 10-3/4'' x 2'' x 6-1/2''
General
  • Power Requirements: 14.4 V.DC (11-16V allowable)
  • Input Impedance: >10k ohms
  • Frequency Response (+0, -3dB: 1W into 4 Ohms) for CH-1/2/3/4: 8 Hz - 45k Hz
  • Frequency Response (+0, -3dB: 1W into 4 Ohms) for Subwoofer: 8 Hz - 400 Hz
  • THD+N (10W into 4 Ohms) for CH-1/2/3/4: 0.02 %
  • THD+N (10W into 4 Ohms) for Subwoofer: 0.02 %
  • Damping Factor for CH-1/2/3/4: >500
  • Damping Factor for Subwoofer: >1000
  • Signal to Noise (Rated Power into 4 Ohms) for CH-1/2/3/4: 105 dB
  • Signal to Noise (Rated Power into 4 Ohms) for Subwoofer: 110 dB
  • Weight: 2.76 kg/6lb 1.4oz
  • Input Sensitivity (RCA Input,CH-1/2/3/4): 0.2 - 4.0 V
  • Input Sensitivity (RCA Input, Subwoofer): 0.1 - 4.0 V


R-S65C.2 R Series 6.5" 300 Watts Peak Power 2-Way Component Speaker System

  • Speaker Diameter: 6-1/2
  • Design: 2-way
  • Tweeter Design: Dome
  • Tweeter Composition: Carbon-fiber
  • Woofer Composition: Carbon-fiber
  • Woofer Surround: Multi-roll synthetic rubber
  • Sensitivity (1W at 1 meter): 88dB
  • Frequency Response: 65-40kHz
  • Maximum RMS Wattage: 100
  • Peak Power Handling (Watts): 300
  • Top-mount Depth (Inches): 2 5/16


R-S69.2 R Series 6"x9" 300 Watts Peak Power 2-Way Speakers

  • Speaker Diameter: 6"X9"
  • Design: 2-way
  • Tweeter Design: Dome
  • Tweeter Composition: Carbon-fiber
  • Woofer Composition: Carbon-fiber polymer
  • Woofer Surround: Multi-roll synthetic rubber
  • Sensitivity (1W at 1 meter): 90
  • Frequency Response: 60 - 40k Hz
  • Maximum RMS Wattage: 100
  • Peak Power Handling (Watts): 300
  • Top-mount Depth (Inches): 2-7/8


SWR-8D2 R Series 8" 1000 Watts Peak Dual 2-ohm High Performance Subwoofer

  • Size: 8"
  • RMS Power Handling: 350 Watts RMS
  • Peak Power Handling: 1000 Watts Peak
  • Frequency Response: 30-200Hz
  • Diaphram
    • Material: Reinforced Parabolic Cone Structure with Poly-Mica Dust Cap & Pulp-Kevlar Cone Body
    • Design: 2-Piece Structural Parabolic
  • Surround
    • Material: Injected Molded Santoprene®
    • Design: High Amplitude Multi-Roll
  • Spider
    • Material: Nomex®
    • Design: Progressive Conex® Spider with Reinforced Layer Tinsel Leads
  • Voice Coil
    • Material: 38mm Voice Coil with High-Temp
    • Design: 4-Layer DVC Winding on Spiral Cut
  • Motor Structure
    • Pole Geometry: Extended Pole Geometry
    • Configuration: Compound Radius Curve
  • Frame
    • Material: Cast Aluminum
    • Design: Perimeter Vented Heat Transfer
  • Terminals
    • Layout: One Side
    • Design: Heavy Duty 8 gauge Push with Housing, Banana Plug Jumper
  • Tinsel Leads
    • Design: Reinforced Layer Spider Integration (Patent #6,810,988)
  • Gasket
    • Design: Concealed Mount Gasket (Integrated Grille System Ready, US Pat #7,760,900)
  • UPC: 798418835979
  • Weight: 40
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
