JL Audio MediaMaster-Bundle2

Item# 53670

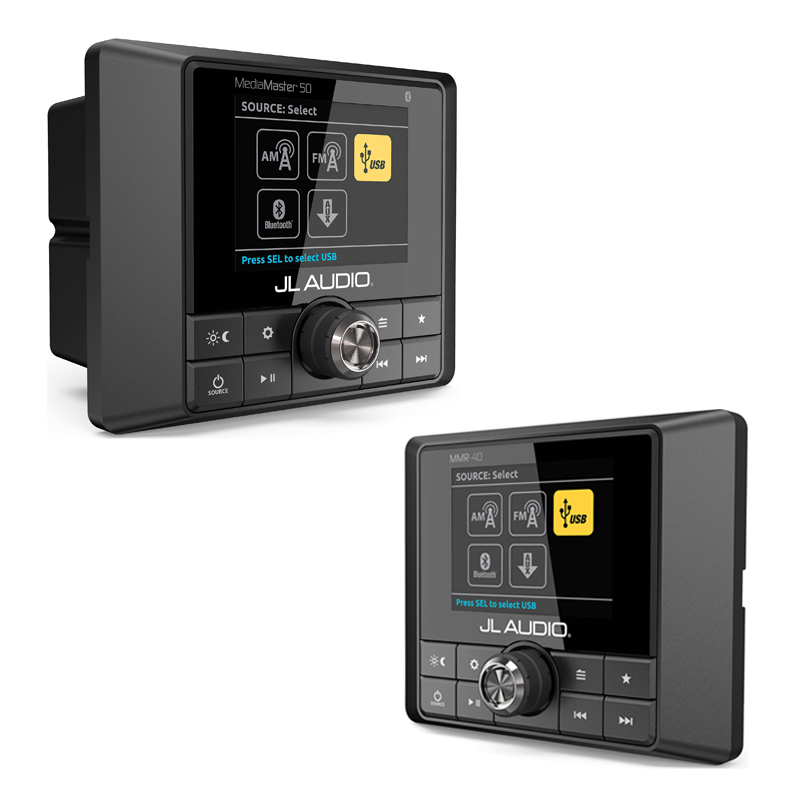

JL Audio MM50 + JL Audio MMR-40 MediaMaster® Bundle Promotion

Sorry, this product is no longer available.

What other people bought after viewing this product.

affirm financing small logo
affirm financing extra small logo

JL Audio MediaMaster® Bundle Promotion

The MediaMaster® product line features source units and controllers with a host of modern connectivity for when a weatherproof solution is required. Smart features like Day/Night display themes and lighting, plus large user controls make the MediaMaster family easy to use while in motion. Extend MediaMaster® flexibility further with available remote controllers and network accessories.


JL Audio MM50

The MediaMaster® 50 is a high-performance, single-chassis, powered source unit, engineered to deliver outstanding fidelity and advanced audio features on your boat, UTV and many other outdoor applications. Equipped with a variety of mechless audio source options, the MM50 includes a Digital AM/FM Tuner, Bluetooth® connectivity, a USB connection for a USB drive or iPhone® and an Analog AUX input, all designed to ensure non-stop playback of your favorite soundtracks, no matter how bumpy the ride. A rugged, weatherproof (IP66 rated) chassis houses a 2.8-inch full-color LCD display, with separate Day/Night lighting themes for visibility, even in bright sunshine. When in motion, you will also appreciate the clean, uncluttered user interface with big text and large backlit controls.

JL Audio MM50

JL Audio MMR-40

The MMR-40 is equipped with independent display theme and lighting controls for maximum mounting location flexibility, regardless of the settings on the host source unit. Engineered for real-world marine (and many outdoor) applications, its weatherproof (IP66 rated) chassis is built to withstand the harshest environments.

JL Audio MMR-40


MM50 25x4 Watts 4-ohm Impedance Full Color LCD Display Weatherproof Source Unit

General Specs
  • Input Operating Voltage: 10 - 16 VDC
  • Standby Current Draw: 100 mA
  • Operating Current Draw: 15 A
  • Recommended Fuse Value: 15 A
  • Remote Turn-on Capacity: 500 mA (max)
  • Operating Temperature Range: -4 F to +158 F (-20 C to +70 C)
  • Display Size / Type: 2.8-inch / TFT LCD backlighted
  • Display Resolution: 320 x 240
  • Output Channels: Zones 1&2: Two stereo pairs of RCA plugs (4V RMS) Sub: One mono pair of RCA plugs (4V RMS)
  • Output Zones: Zones 1&2: Variable, Fixed or Off Sub: 500 Hz Low-Pass only
  • Maximum Output Voltage: 4V RMS (Variable), Selectable 4V/2V/1V RMS (Fixed)
Connectivity
  • Tuner
    • FM Tuner with RDS: 87.5 MHz to 107.9 MHz (0.2 MHz step)
    • AM Tuner: 530 kHz to 1710 kHz (10 kHz step)
    • NOAA Weather Band Tuner: 162.400 MHz to 162.550 MHz (0.025 MHz step)
    • Favorites: 90.0 dB @ 1 W / 1 m
    • System Nominal Impedance: 18 presets across all tuners
  • Bluetooth®
    • Profile: A2DP v1.2, AVRCP v1.4
    • Core Specification: Version 2.1 + EDR
    • Codec: SBC
    • Connection Range: Up to 35 ft / 11 m
  • USB
    • Interface: USB 2.0 host
    • Maximum Current Output: 2.1 A
    • Supported Audio Formats: MP3, WAV, WMA
    • Apple Compatibility: iPhone 5 or beyond (functionality contingent upon compatible iOS release)
Physical Specifications
  • Height (H): 3.74 in / 95 mm
  • Width (W): 4.65 in / 118 mm
  • Depth (D1): 2.36 in / 60 mm
  • Depth (D2): 3.67 in / 93 mm
  • Mounting Hole Height (A): 3.12 in / 80 mm
  • Mounting Hole Width (B): 3.74 in / 95 mm

MMR-40 Wired NMEA 2000 Remote Control with Full-Color LCD Display for use with MediaMaster® Receivers

General Specifications:
  • Operating Temperature Range: -4 F to +158 F (-20 C to +70 C)
  • Display Size / Type: 2.8-inch / TFT LCD backlighted
  • Display Resolution: 320 x 240
Physical Specifications:
  • Height (H): 3.74 in / 95 mm
  • Width (W): 4.65 in / 118 mm
  • Depth (D1): 0.55 in / 14 mm
  • Depth (D2): 1.96 in / 50 mm
  • Mounting Hole Height (A): 3.12 in / 80 mm
  • Mounting Hole Width (B): 3.74 in / 95 mm
  • Weight: 15
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
