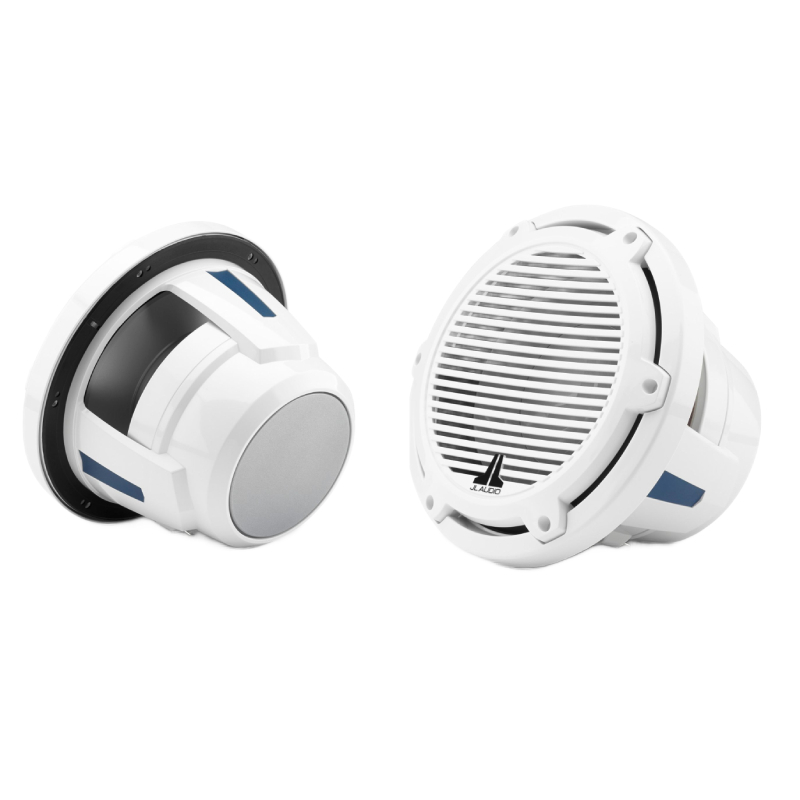

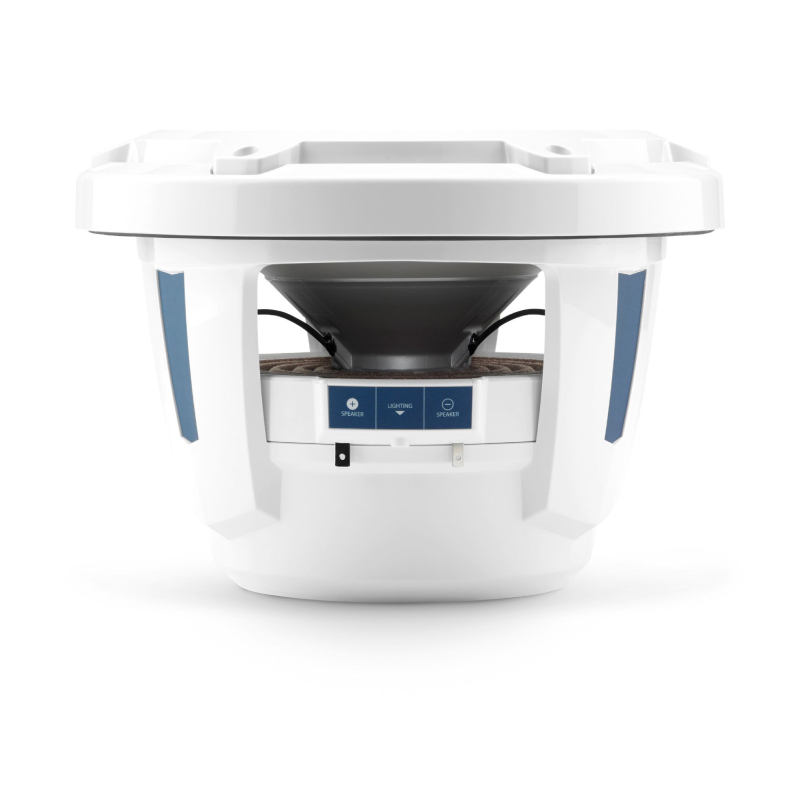

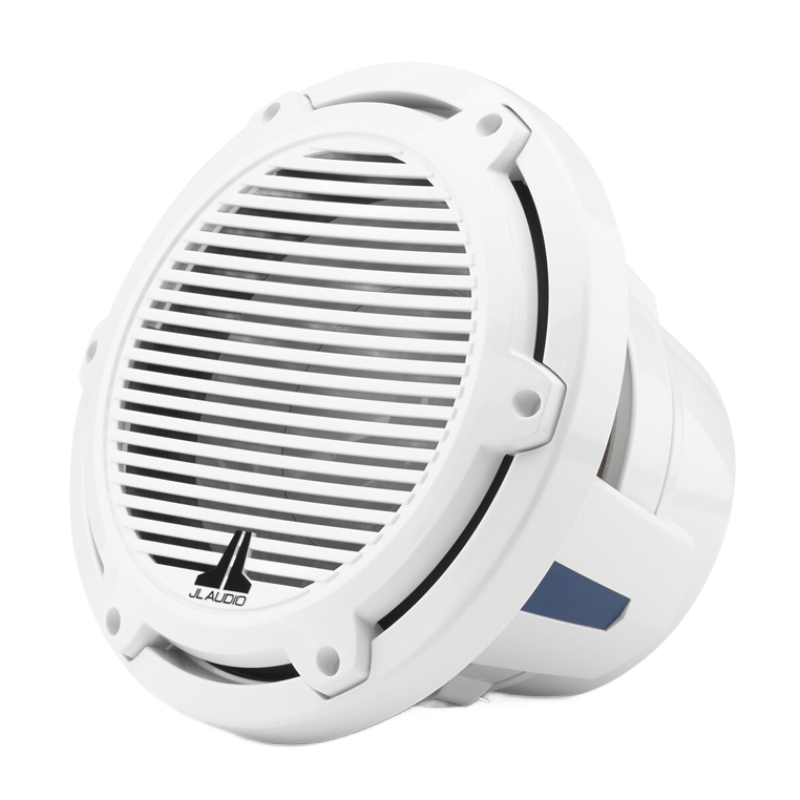

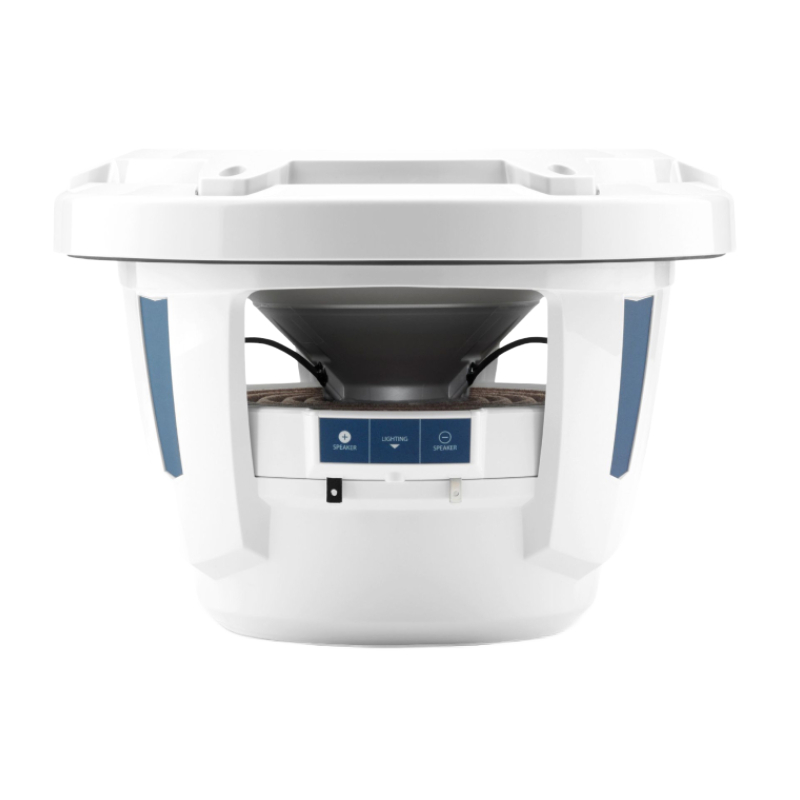

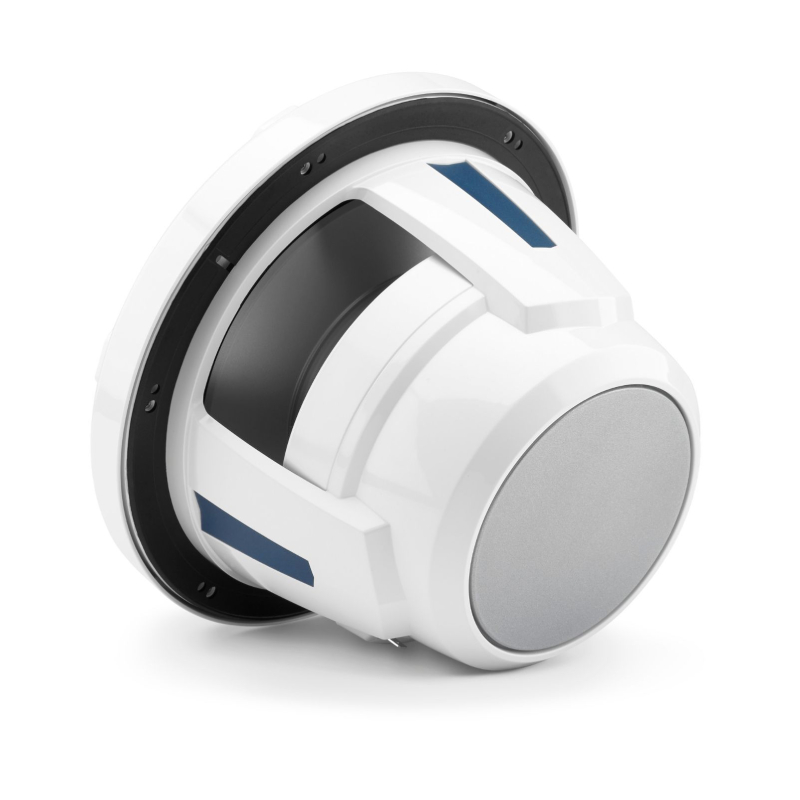

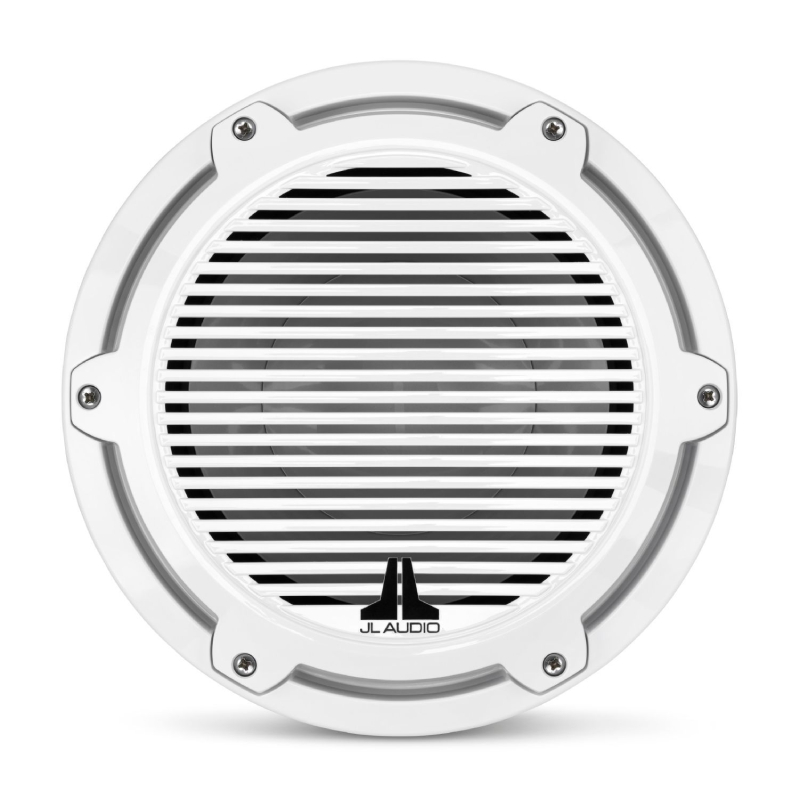

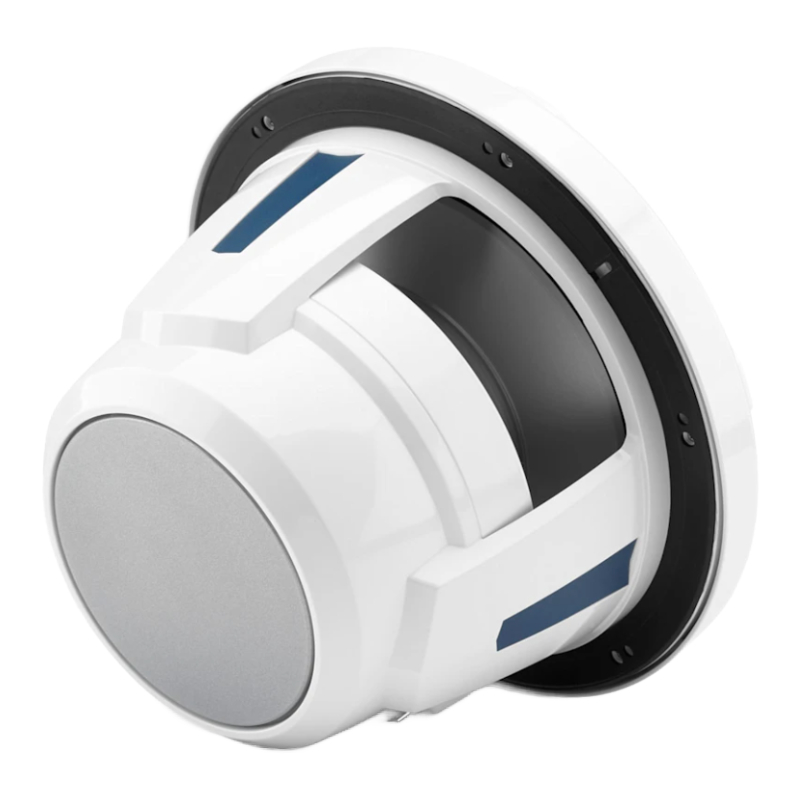

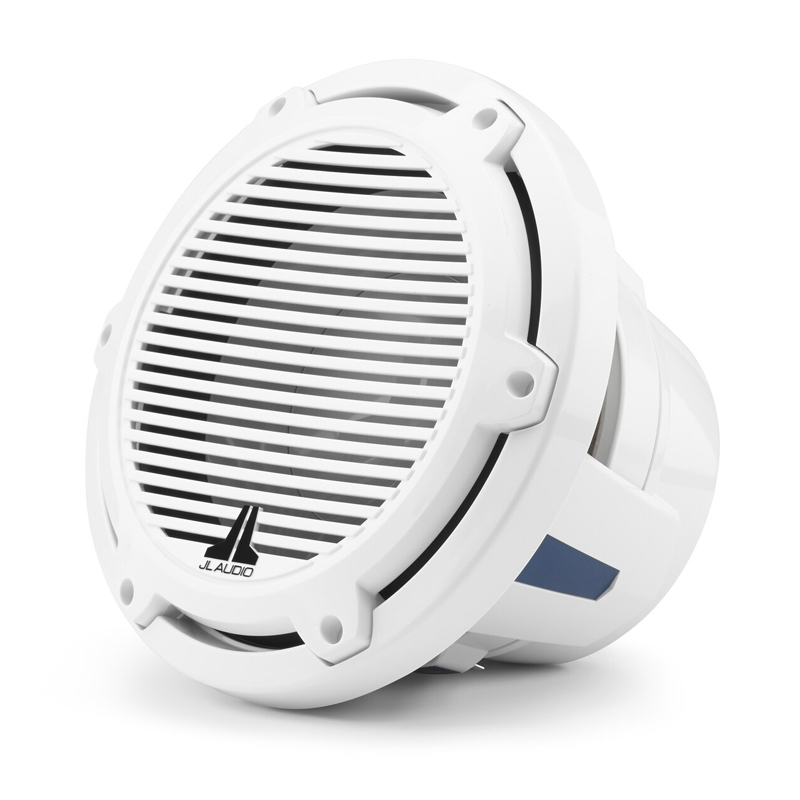

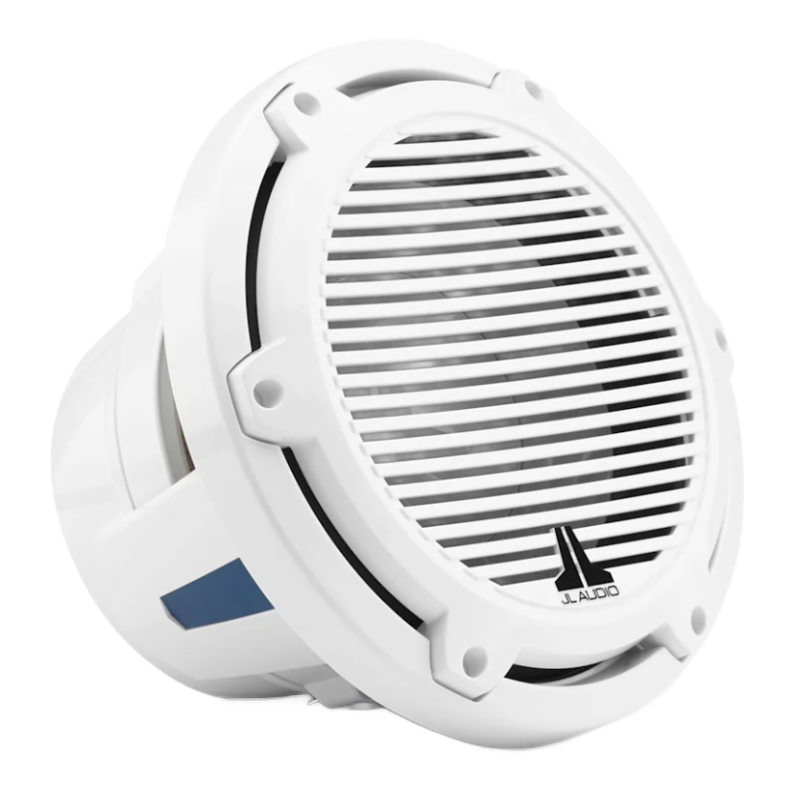

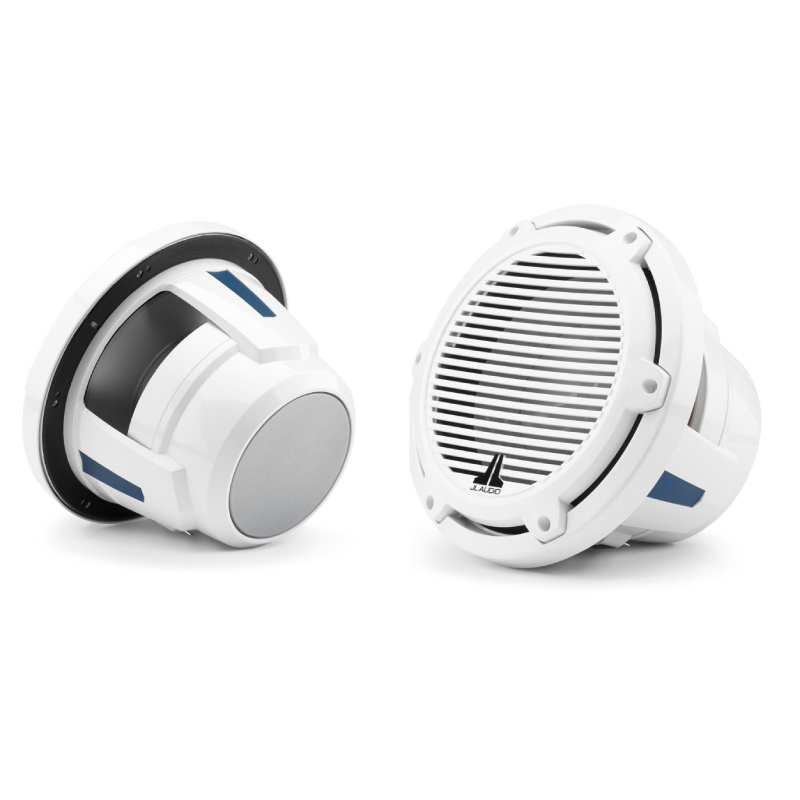

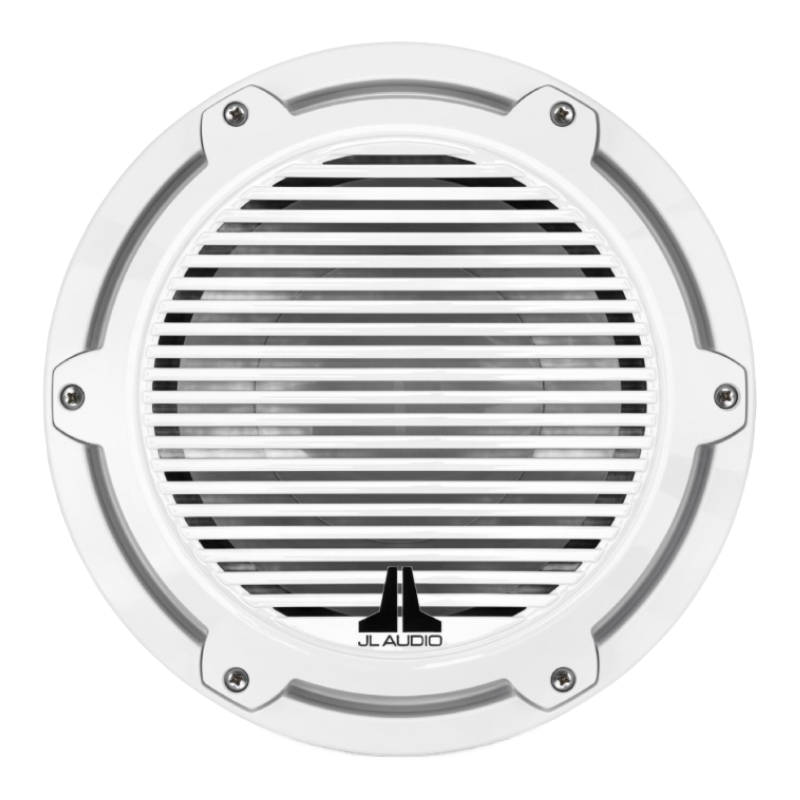

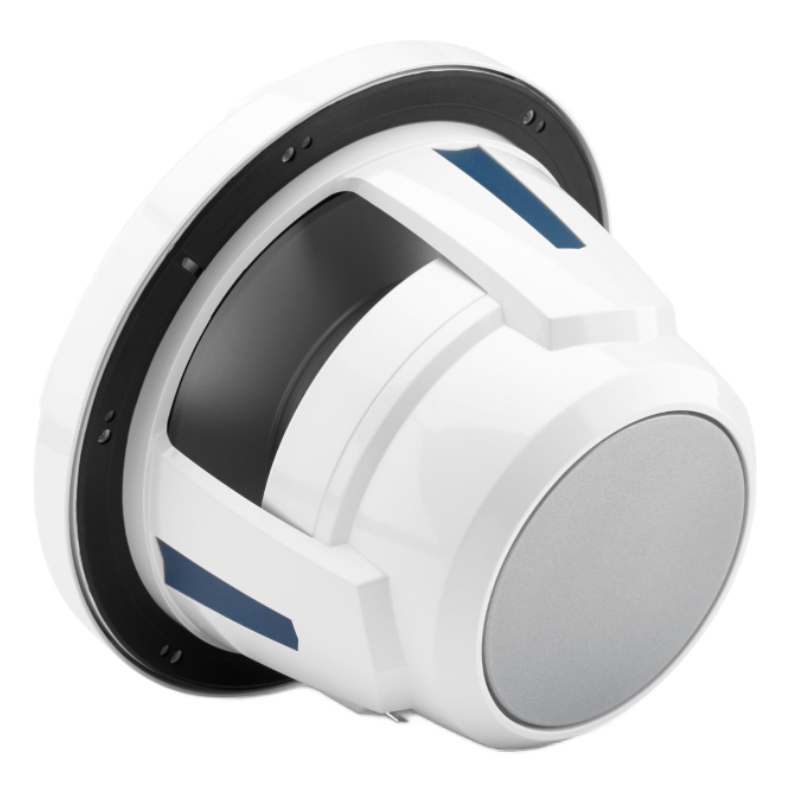

M6 Loudspeakers fulfill JL Audio’s commitment to raise the bar with each product generation. The engineering team has completely reinvented the premium marine loudspeaker, with major improvements in performance, precision and durability. Offered in multiple sizes and cosmetic options, most models are also available with a brilliant, new lighting technology. Choose from three sizes of coaxial loudspeakers: a 6.5-inch designed to fit in standard marine speaker locations, and two oversized designs that deliver even greater performance: a 7.7-inch and an 8.8-inch. Complementing the coaxial offering, the M6 line also includes subwoofer models, in 8-inch and 10-inch nominal diameters and Enclosed Coaxial Systems in 7.7-inch and 8.8-inch diameters.
Coaxial Speaker Technology
Every M6 coaxial loudspeaker starts with a long-excursion woofer designed with JL Audio’s proprietary motor, suspension and cone modeling systems to yield superior frequency response, smooth mid-range dispersion and linear performance at all listening levels. JL Audio’s acoustics laboratory in Miramar, Florida performs extensive testing on multiple generations of prototypes to refine every design and extract maximum performance.
Diameter : 10 Inch
Sensitivity : 86.1 dB
Impedance : 4 Ohm
RMS Power Range : 250 Watts
Peak Power Handling : 500 Watts
Color : White
Continuous Power Handling (RMS): 250 W
Nominal Impedance (Znom): 4 ohms
Nominal Diameter: 10.0 in / 250 mm
Overall Diameter: 10.75 in / 273 mm
Bolt Hole Circle Diameter: 9.70 in / 247 mm
Frontal Grilles Protrusion* (C): 1.66 in / 42 mm
Mounting Hole Diameter: 8.875 in / 225 mm
Mounting Depth: 5.90 in / 150 mm
Driver Displacement: 0.052 cu ft / 1.47 L
Net Weight: 8.70 lbs / 3.90 kg
*Frontal grille protrusion measured from mounting surface
Free Air Resonance (Fs): 43.76 Hz
Electrical “Q” (Qes): 0.907
Mechanical “Q” (Qms): 11.315
Total Speaker “Q” (Qts): 0.84
Equivalent Compliance (Vas): 0.54 cu ft / 15.29 L
One-Way Linear Excursion (Xmax)*: 0.52 in / 13.2 mm
Reference Efficiency (no): 0.28%
Efficiency (1 W / 1 m)**: 86.1 dB SPL
Effective Piston Area (Sd): 50.11 sq in / 0.0323 sq m
DC Resistance (Re): 4.543 ohms
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
Sealed Enclosure Specifications:
Wall Thickness: 0.75 in / 19 mm
Front Baffle Thickness: 0.75 in / 19 mm
Volume (net int.): 2.00 cu ft / 56.6 L
External Width: 17 in / 432 mm
External Height: 17 in / 432 mm
External Depth: 16.25 in / 413 mm
F3: 41.54 Hz
Fc: 53.41 Hz
Ported Enclosure Specifications
Wall Thickness: 0.75 in / 19 mm
Front Baffle Thickness: 0.75 in / 19 mm
Volume (net int.): 2.50 cu ft / 70.8 L
External Width (W): 17 in / 432 mm
External Height (H): 17 in / 432 mm
External Depth (D): 20.50 in / 676 mm
Internal Port Diameter (ID): 4 in / 102 mm
Port Length (L): 13.50 in / 343 mm
Tuning Frequency (Fb): 30 Hz
F3: 25.09 Hz
