We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•(1) 10" Marine subwoofer with fixed grille
•(6) 1-1/2" Stainless-steel screws
•(6) Stainless-steel flat washers
Built for Real Marine Duty

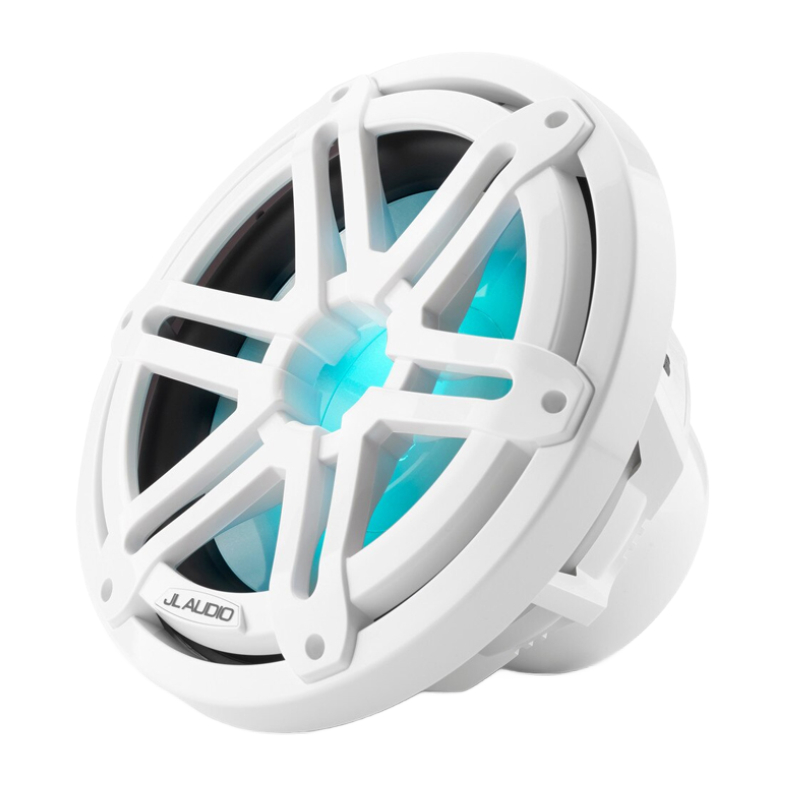

The JL Audio M3-10IB-S-Gw-i-4 is a high-quality marine subwoofer designed to deliver impressive low-frequency performance in marine environments. This subwoofer is built with durability in mind and can produce powerful and accurate bass while enduring challenging boating conditions.
Deliver Years of Listening Enjoyment
Featuring a 10-inch long-excursion woofer, the M3-10IB-S-Gw-i-4 offers deep and impactful bass that enhances the audio experience on the water. A power handling capability of up to 175 watts continuously ensures dynamic and immersive bass response.

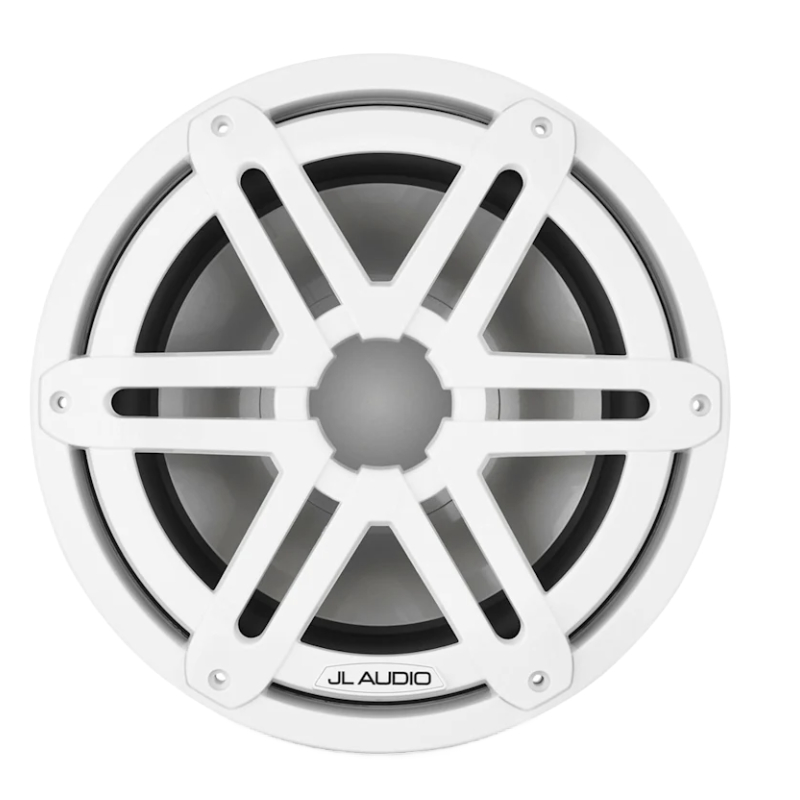

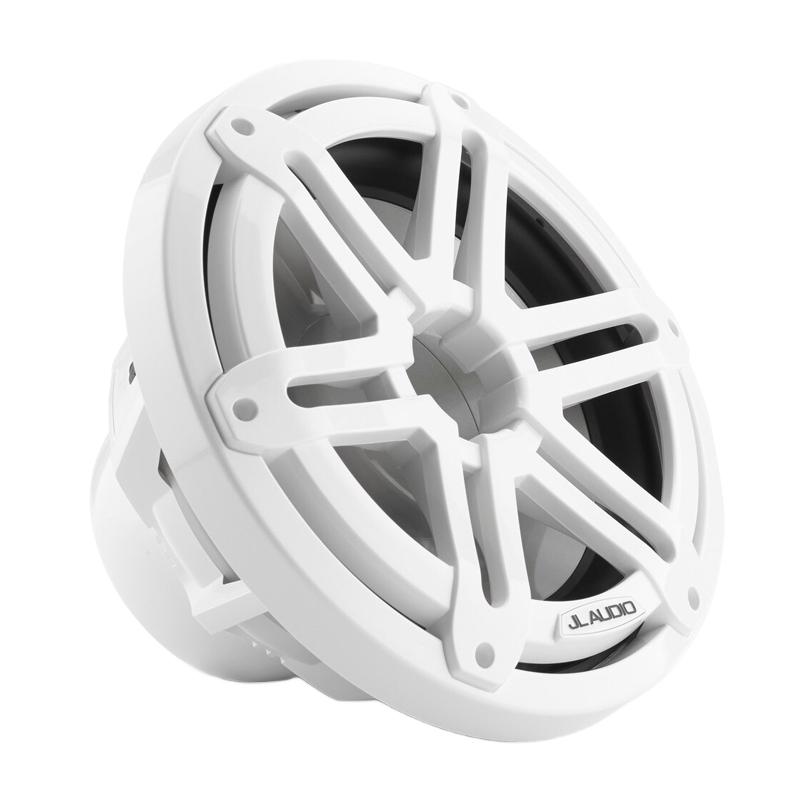

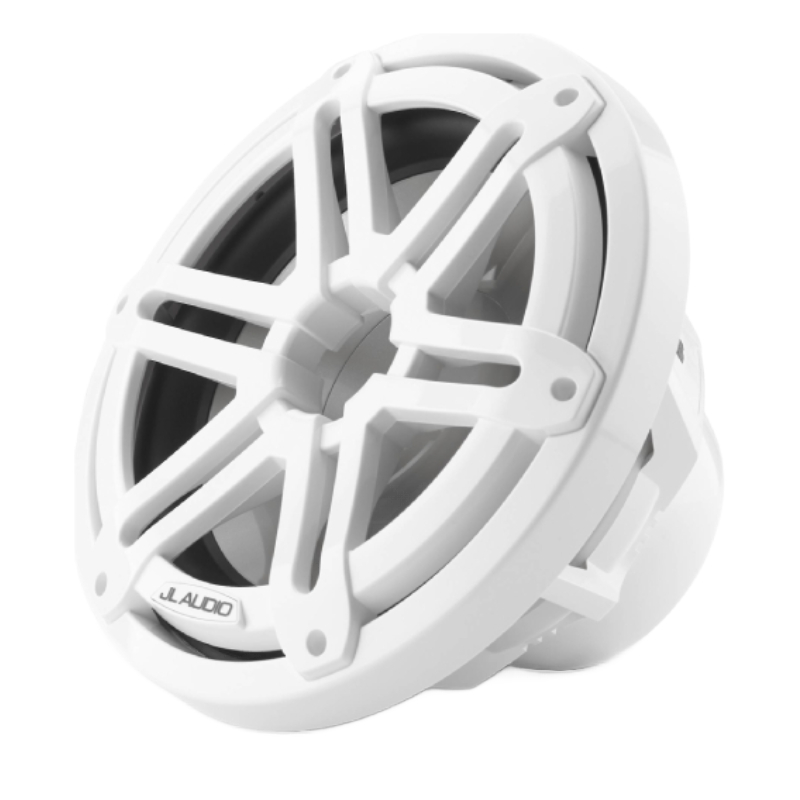

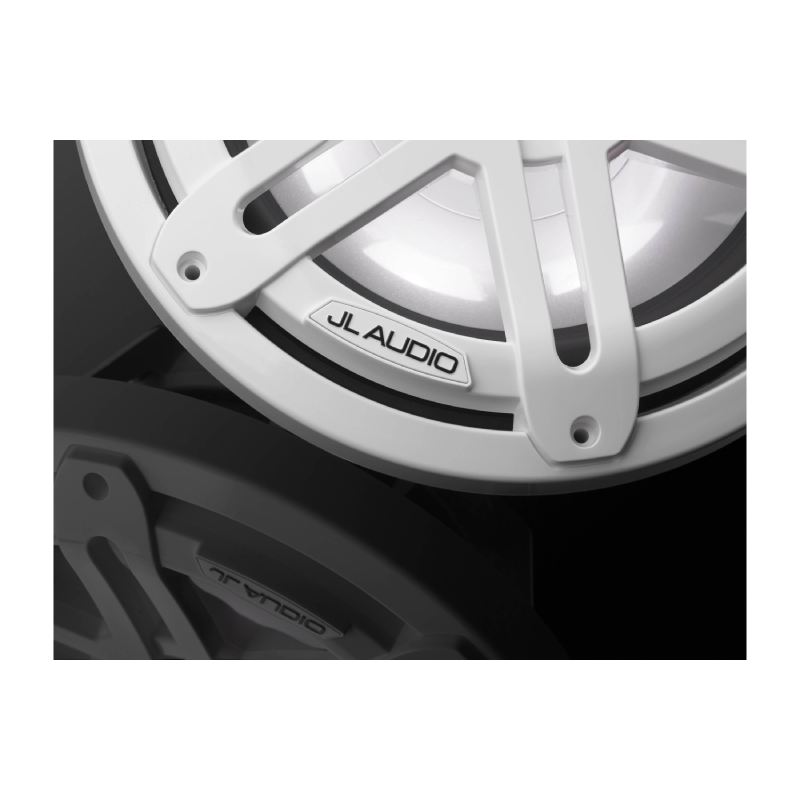

The subwoofer is housed in a durable, UV-resistant white polymer enclosure, protecting the harsh marine environment. Its integrated sport grille adds a touch of style while enhancing the subwoofer's durability.
Enjoy Deep and Powerful Bass
Installation is easy with the M3-10IB-S-Gw-i-4's versatile mounting options and integrated speaker terminals. Whether upgrading your marine audio system or adding a subwoofer to your existing setup, this JL Audio subwoofer delivers exceptional bass performance on the water. Enjoy deep and powerful bass with the JL Audio M3-10IB-S-Gw-i-4 marine subwoofer, elevating your boating sound system to new depths.
Diameter : 10 Inch
Sensitivity : 87.23 dB
Impedance : 4 Ohm
RMS Power Range : 175 Watts
Peak Power Handling : 350 Watts
Color : White
Mounting Depth : 5.12 Inches
10" 4-ohm marine subwoofer

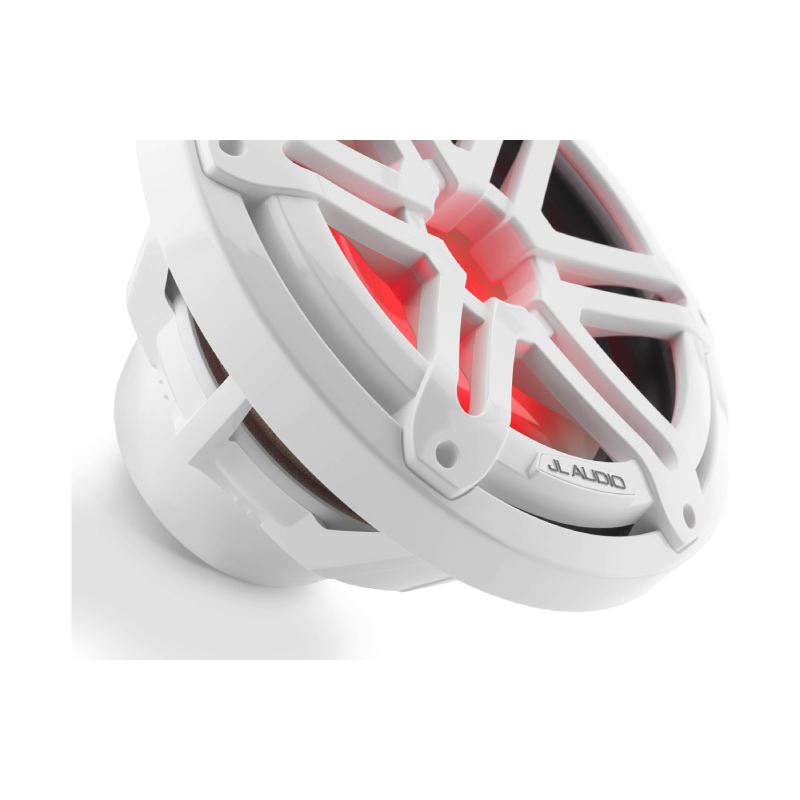

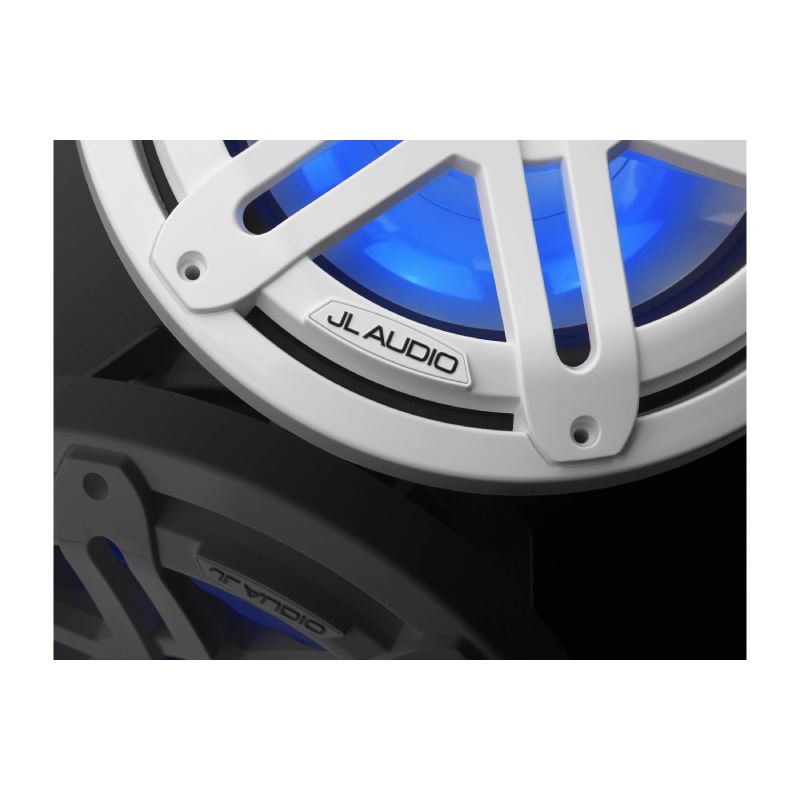

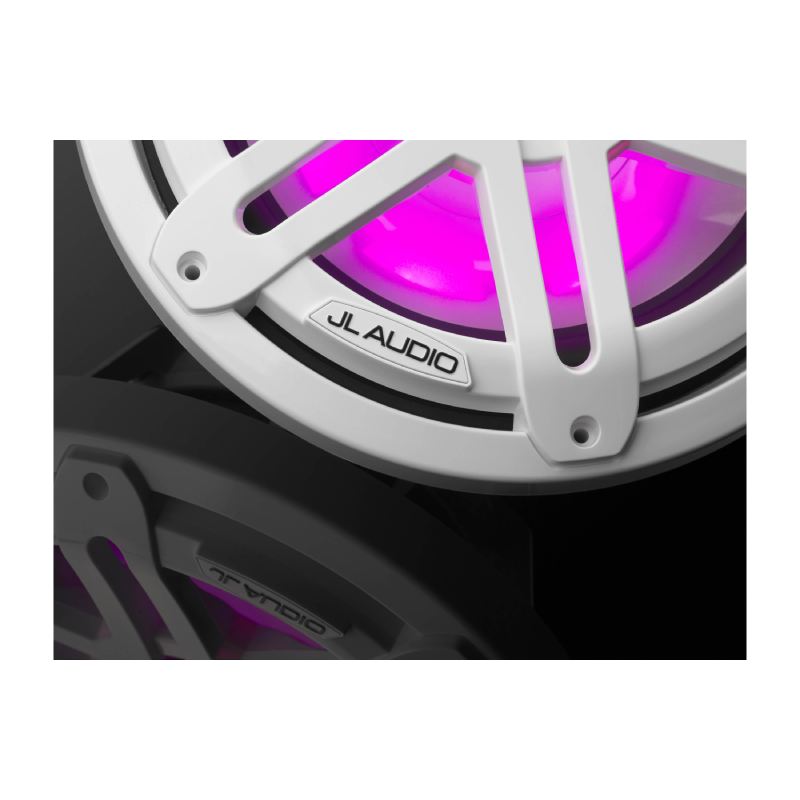

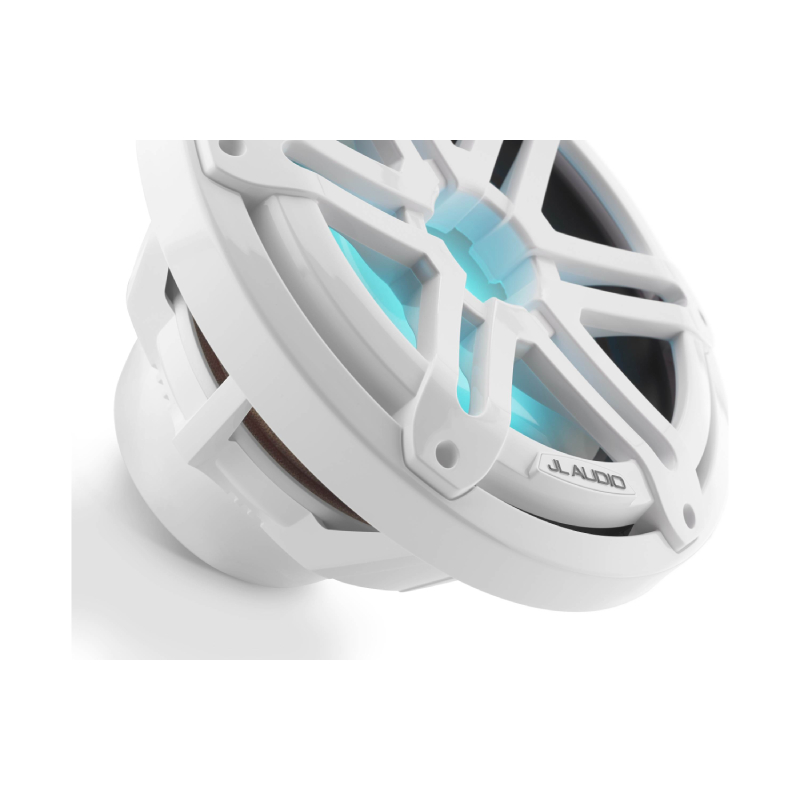

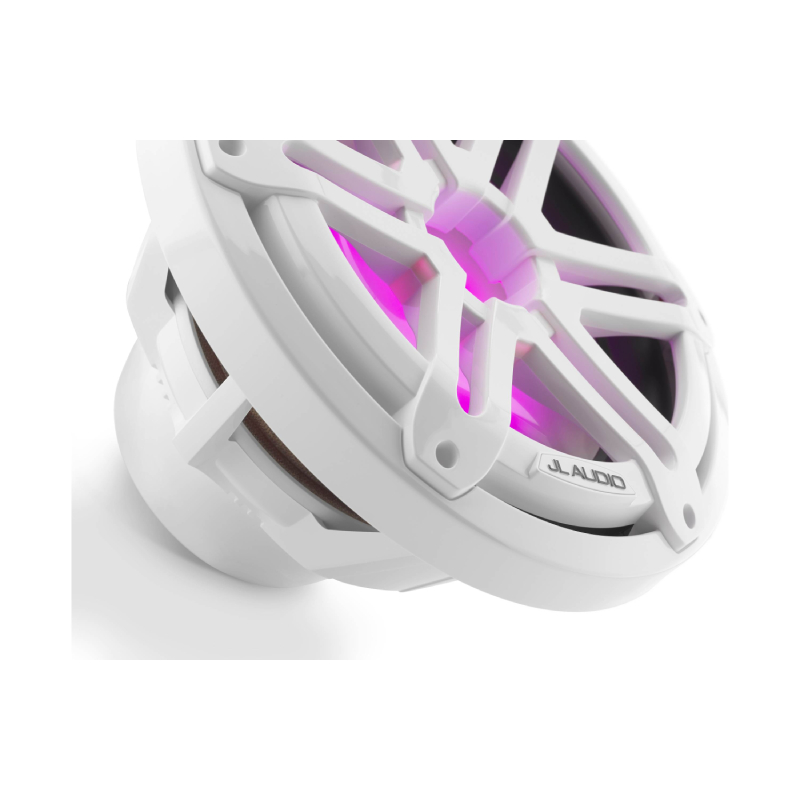

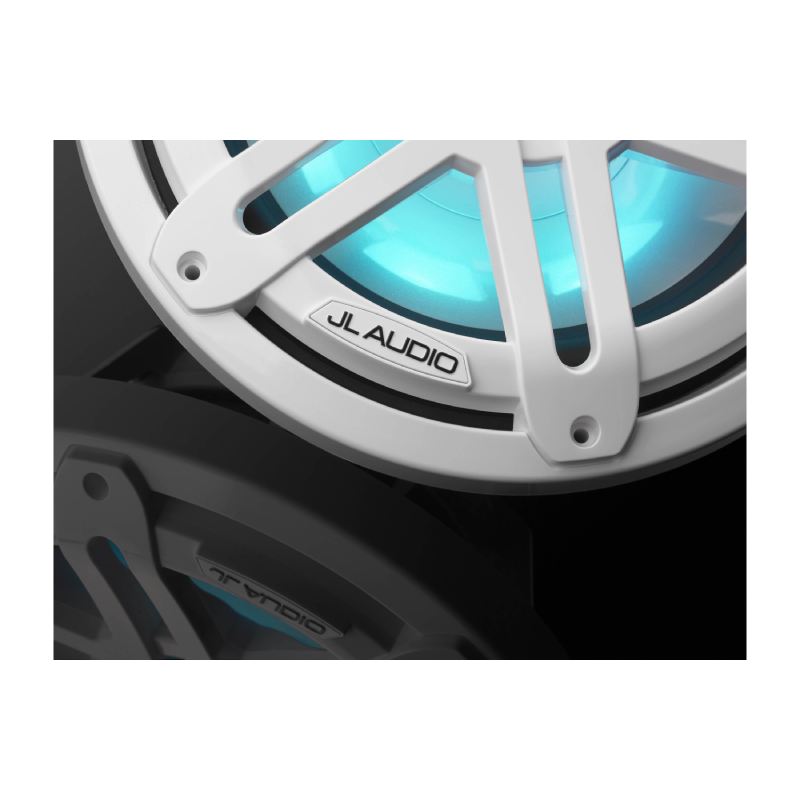

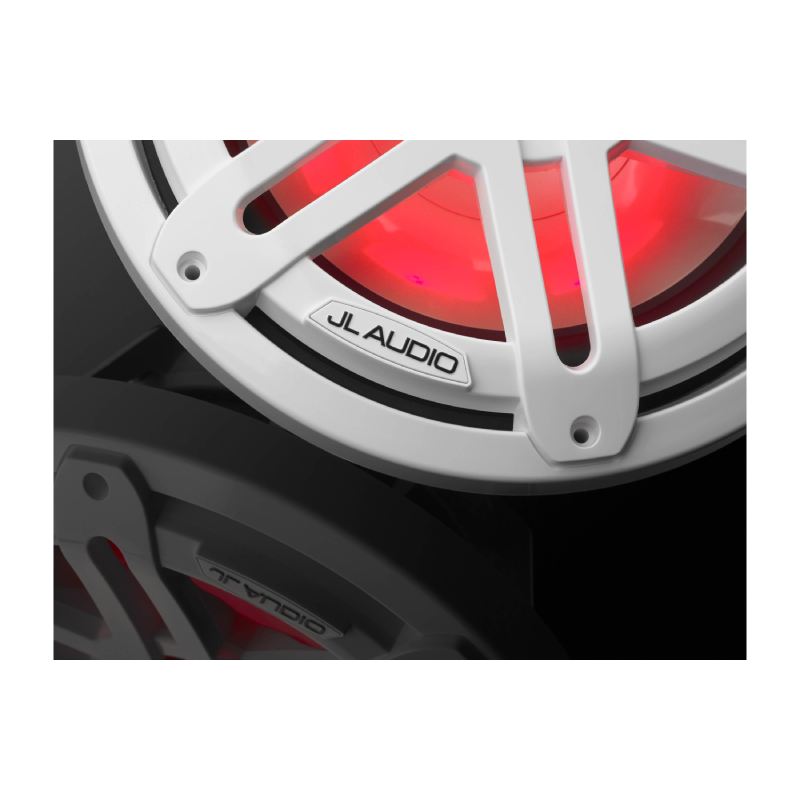

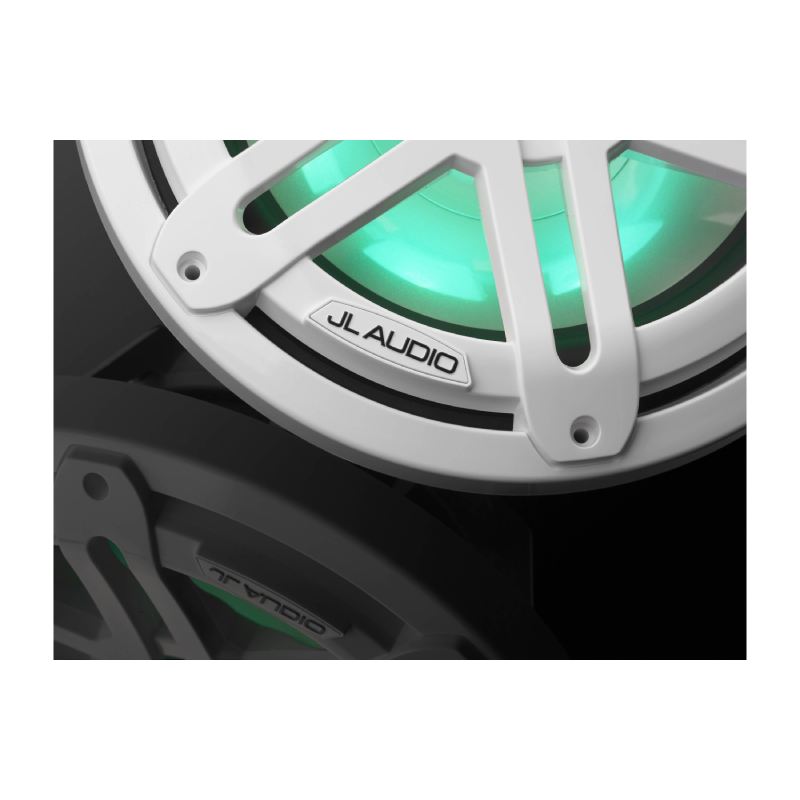

built-in RGB LED illumination
injection-molded mica-filled polypropylene woofer with synthetic rubber surround

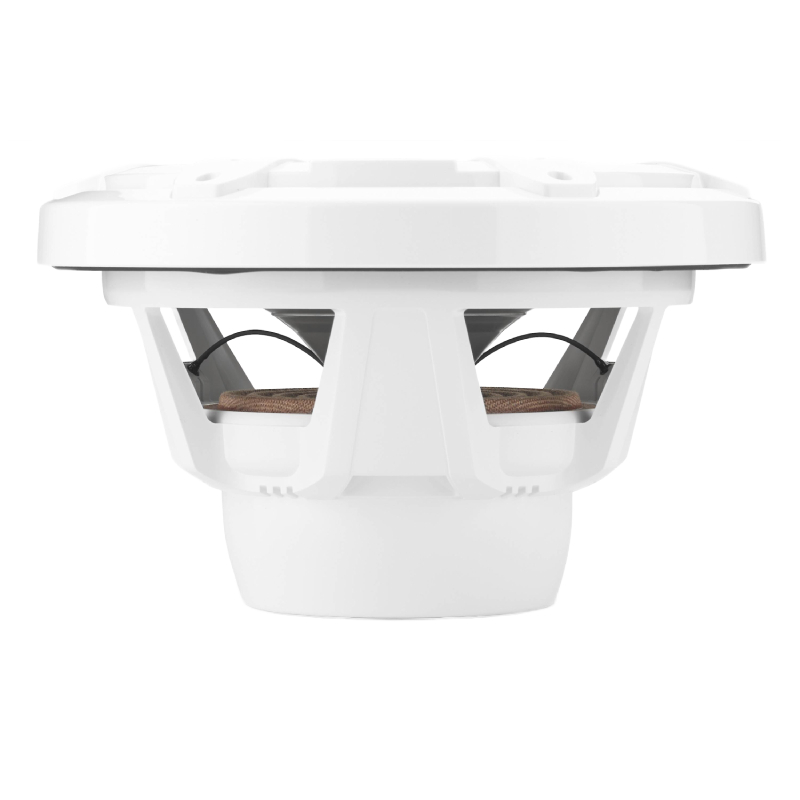

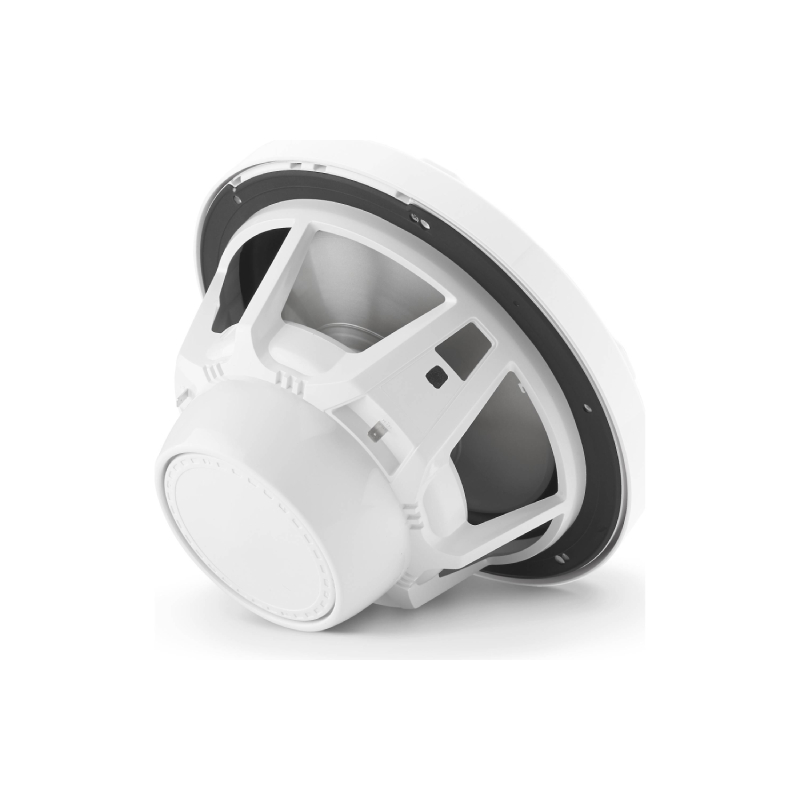

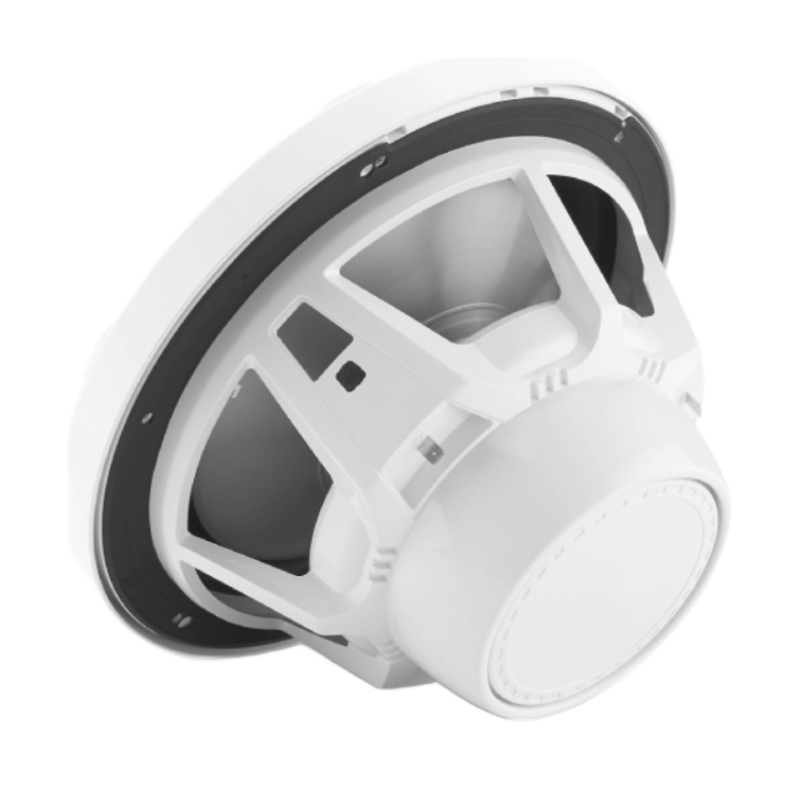

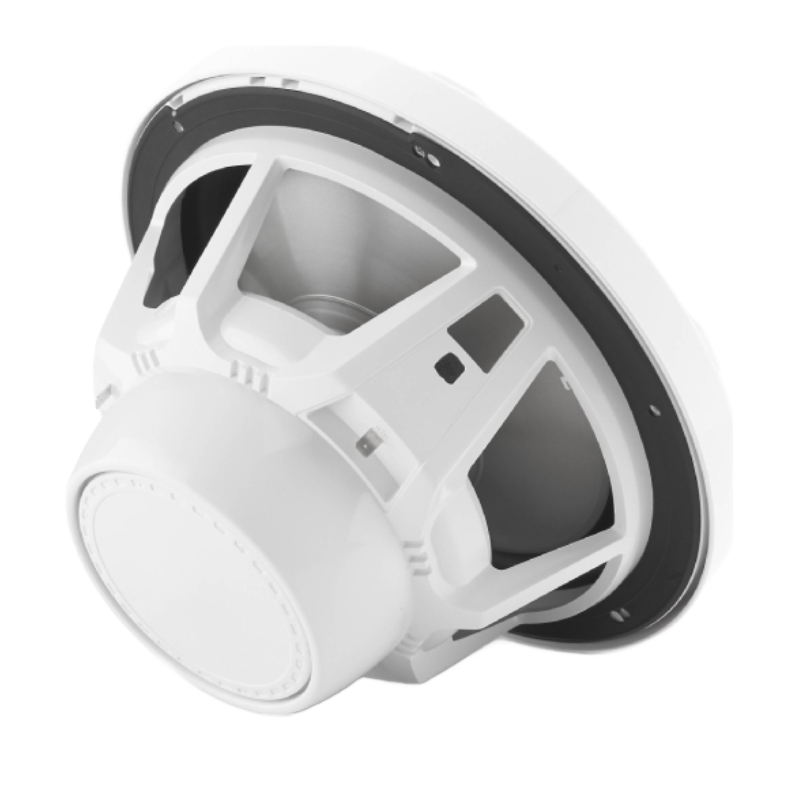

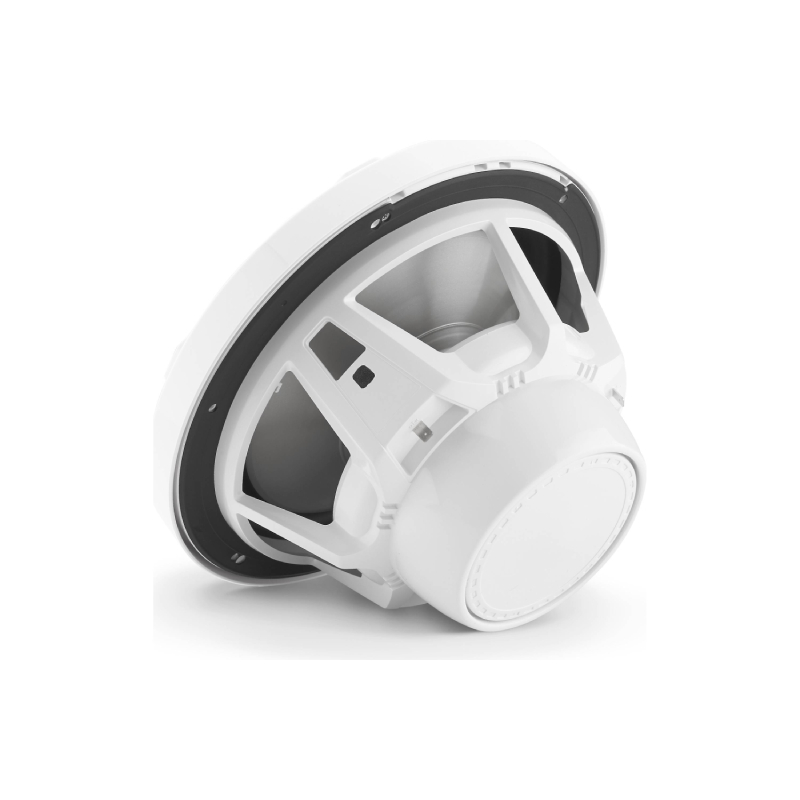

Centrex polymer basket and grille, with stainless steel back plate
gold-plated, marine-grade brass binding posts
marine-grade synthetic fiber spider
designed for free air applications
also works in sealed boxes: 2.5 cu ft optimum volume
power range: 175 watts RMS (350 watts peak power)
sensitivity: 87.2 dB
top-mount depth: 5-1/8"
cutout diameter: 8-7/8"
Continuous Power Handling (RMS): 175 W
Nominal Impedance (Znom): 4 Ohms
Nominal Diameter: 10.0 in / 250 mm
Overall Diameter (A): 10.75 in / 273 mm
Mounting Hole Diameter (B): 8.875 in / 225 mm
Bolt Hole Circle Diameter (C): 9.706 in / 247 mm
Motor Outer Diameter (D): 5.29 in / 134 mm
Mounting Depth (E): 5.12 in / 130 mm
Driver Displacement: 0.04 cu ft / 1.13 L
Net Weight: 6.5 lb / 2.94 kg
Free Air Resonance (Fs): 41.84 Hz
Electrical “Q” (Qes): 0.806
Mechanical “Q” (Qms): 11.751
Total Speaker “Q” (Qts): 0.754
Equivalent Compliance (Vas): 1.29 cu ft / 36.53 L
One-Way Linear Excursion (Xmax)*: 0.42 in / 11 mm
Efficiency (1 W / 1 m)**: 87.23 dB SPL
Effective Piston Area (Sd): 50.68 sq in / 0.0327 sq m
DC Resistance (Re): 3.957 Ω
Infinite Baffle Use: Yes (preferred)
Min. Sealed Enclosure Volume: 2.0 cu ft / 56.6 L (or larger)
Optimum Sealed Enclosure Volume: 2.5 cu ft / 70.8 L
