Outstanding sound quality
All models are designed to operate in open-air boat environments, delivering powerful, smooth sound that is several steps beyond common marine speakers. These are not car speakers painted white, they are acoustically engineered for boat installations.

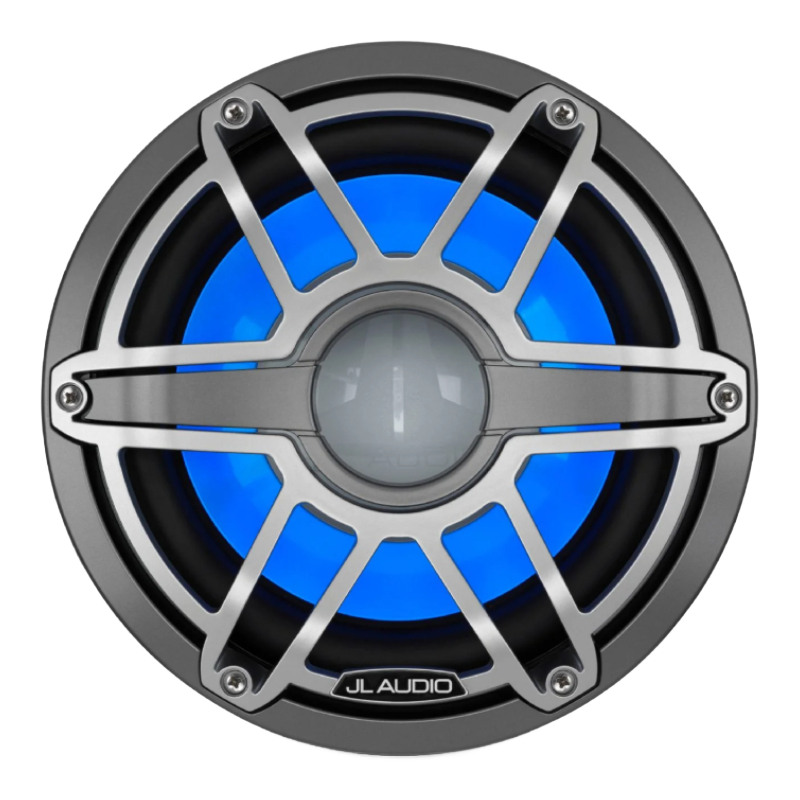

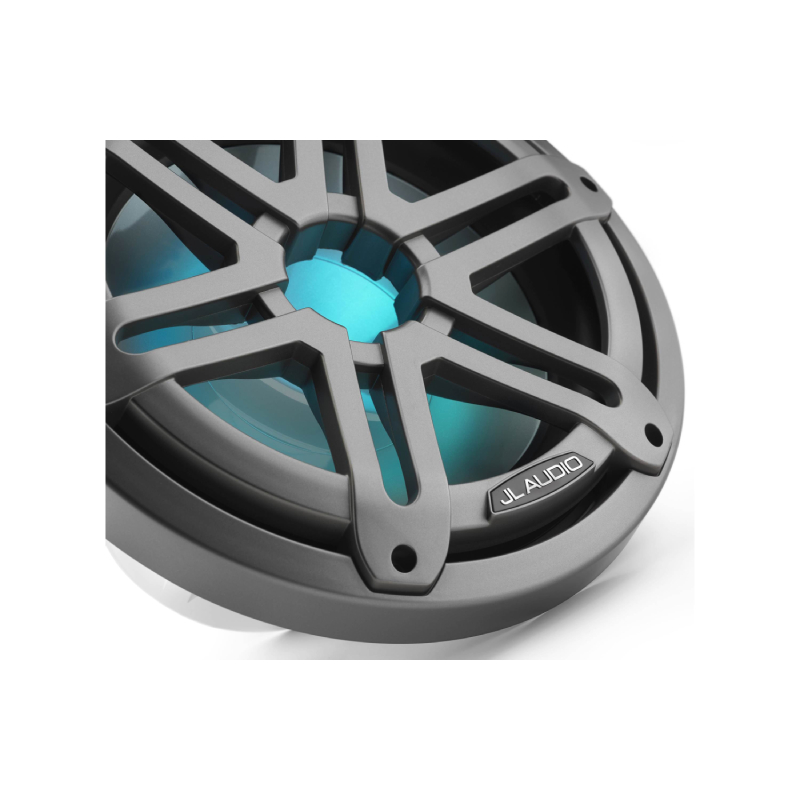

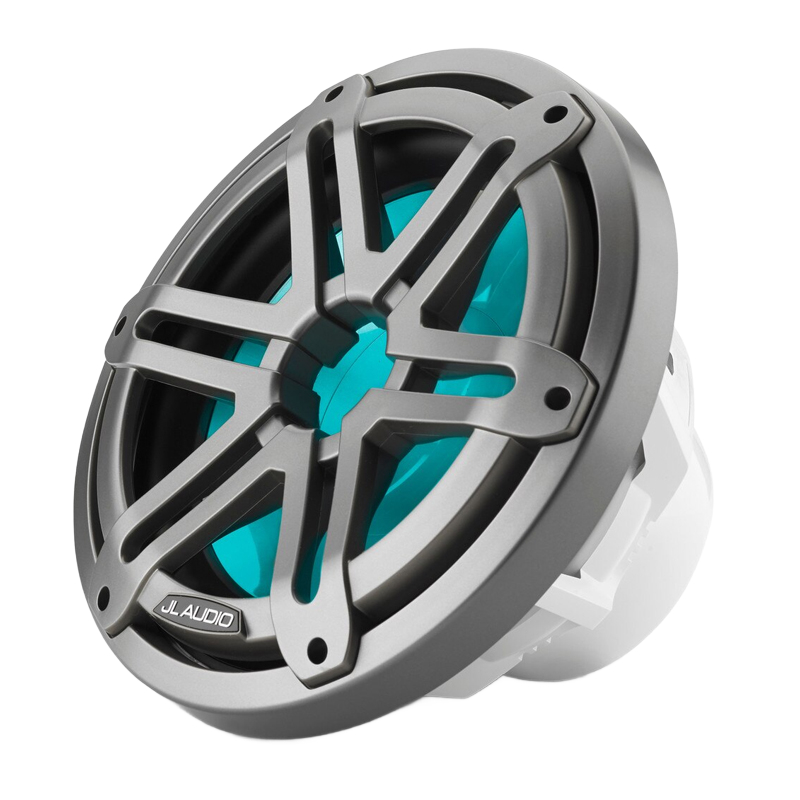

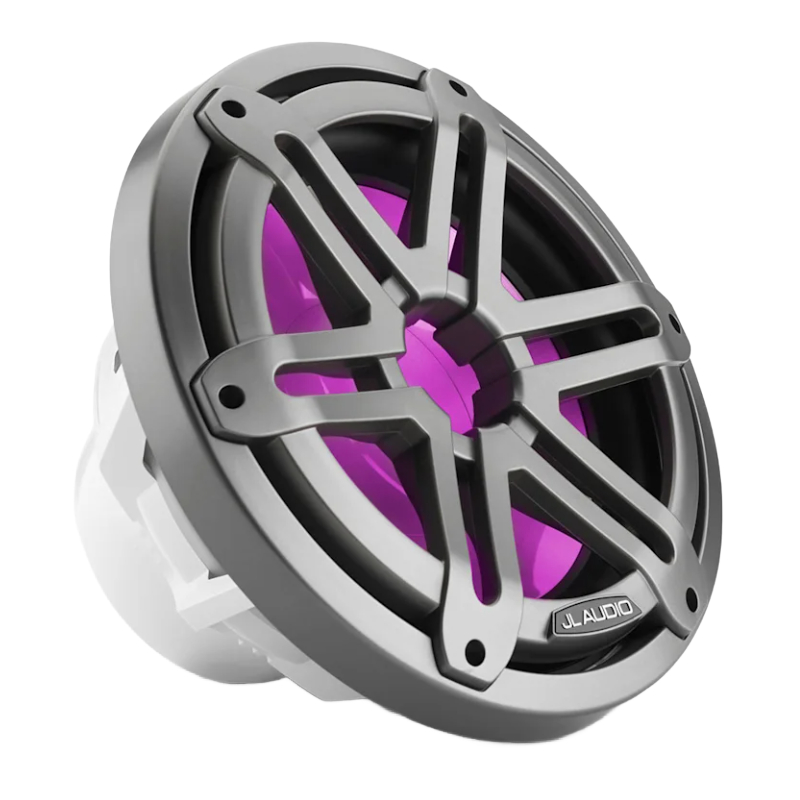

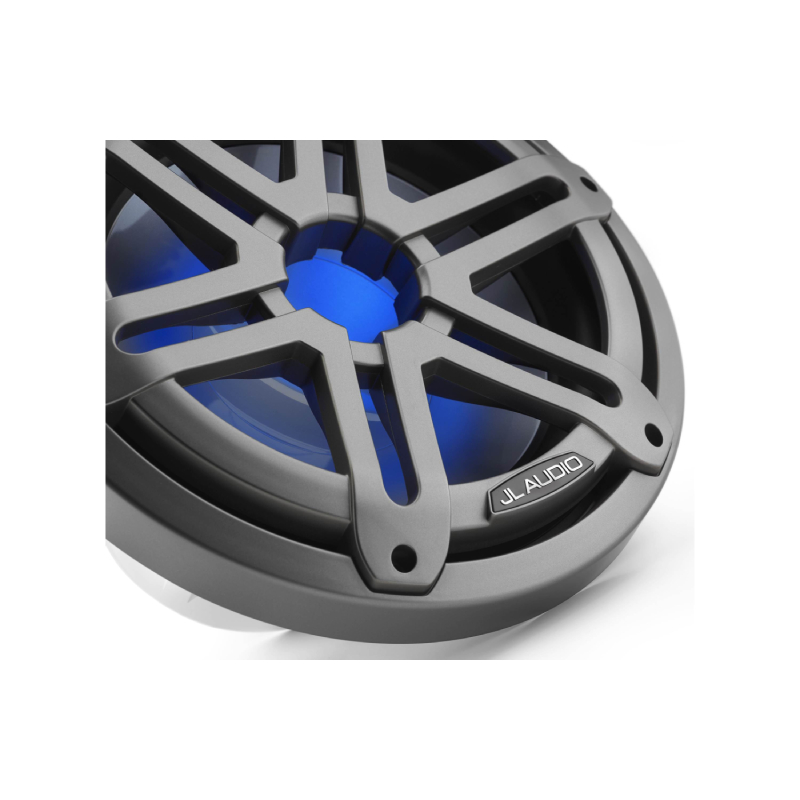

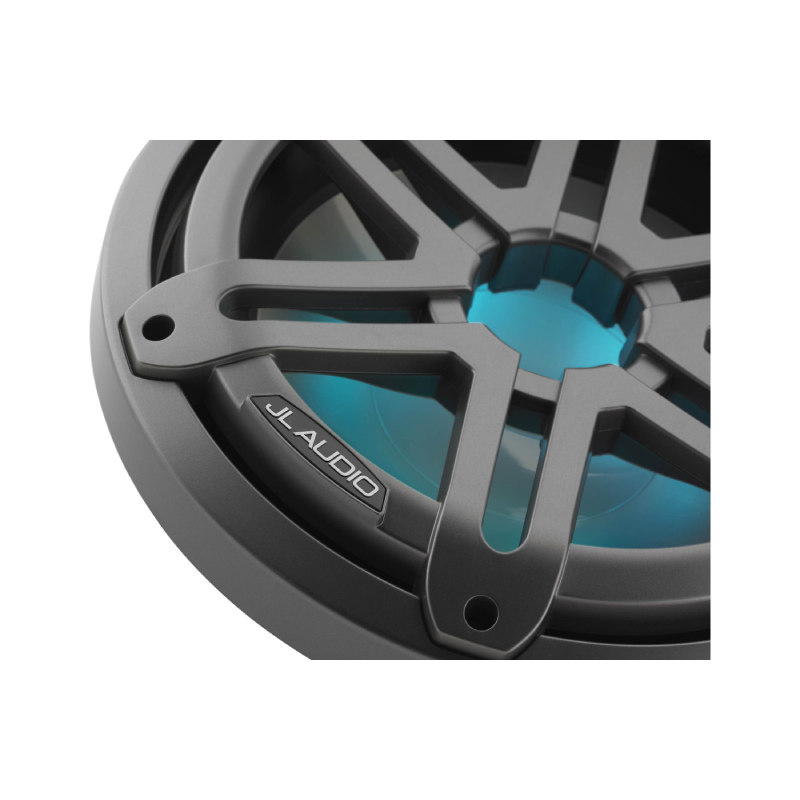

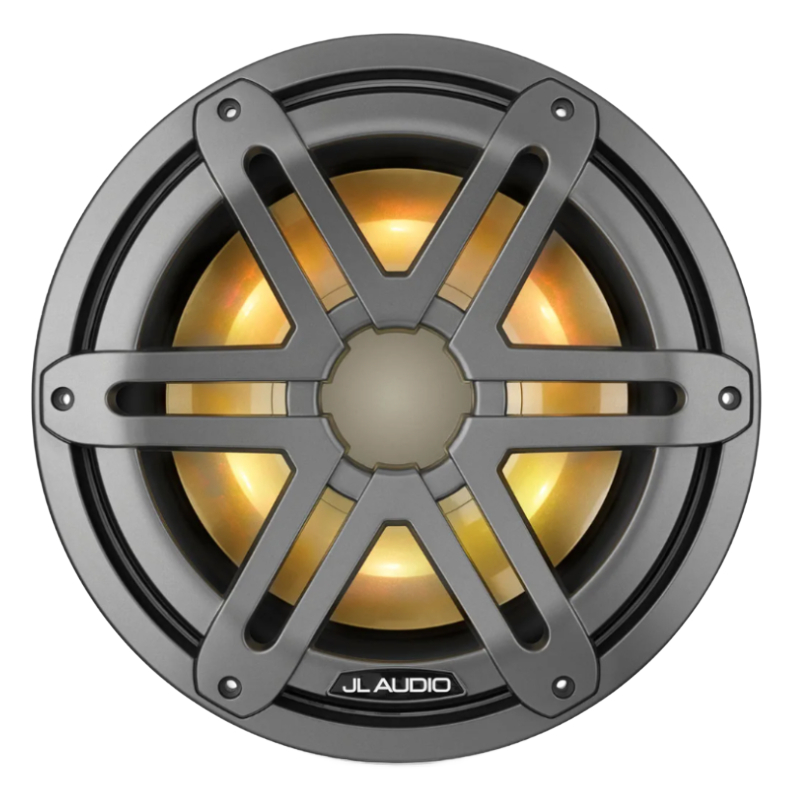

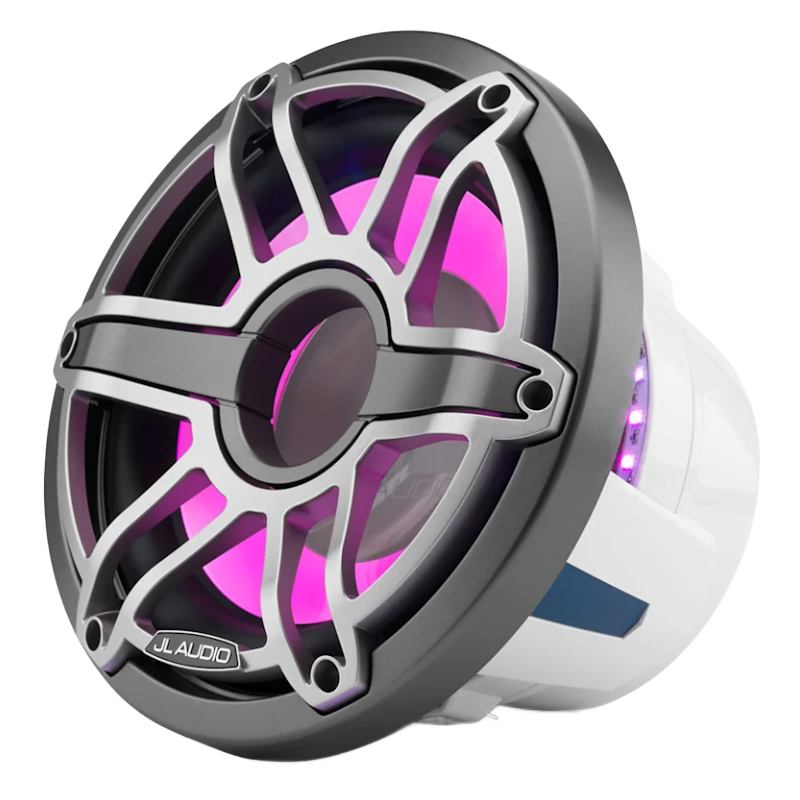

Built-In RGB LED Lighting (Optional Feature)
Available on Sport grille models, multi-color LEDs are embedded within each speaker grille to produce vibrant accent lighting. Choose from seven fixed-wiring lighting colors or connect a lighting controller accessory (sold separately) for adjustable control. (Separate 12V wiring is required to power the illumination.) For optimal performance, we recommend using the JL Audio MLC-RW (Marine Lighting Controller).
- Diameter : 10 Inch
- Sensitivity : 87.23 dB
- Impedance : 4 Ohm
- RMS Power Range : 175 Watts
- Peak Power Handling : 350 Watts
- Color : White
- Mounting Depth : 5.12 Inches
General Specifications:
- Continuous Power Handling (RMS): 175 W
- Nominal Impedance (Znom): 4 Ohms

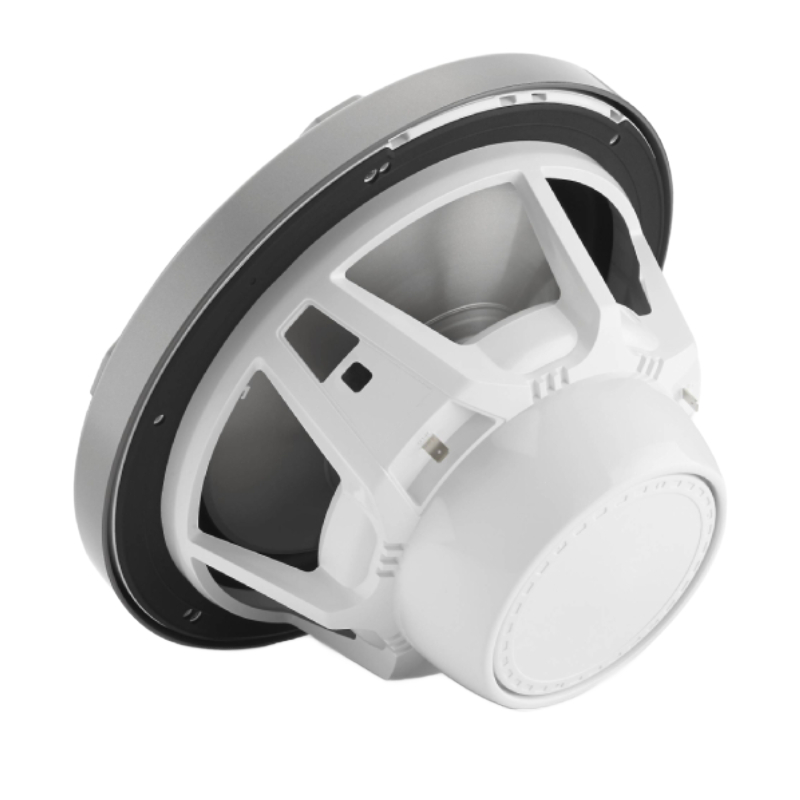

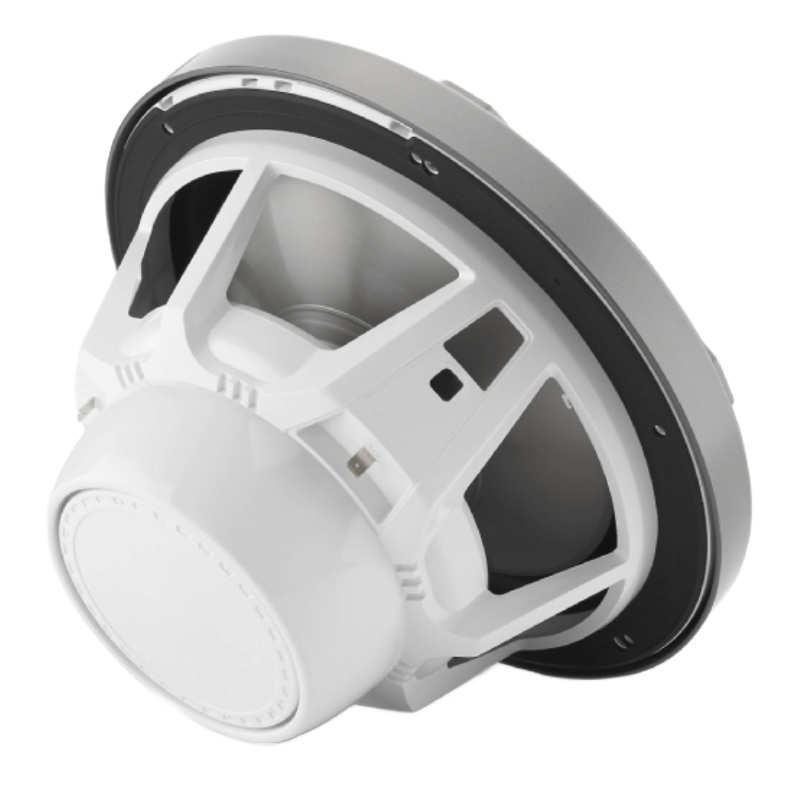

Physical Specifications:
- Nominal Diameter: 10.0 in / 250 mm
- Overall Diameter (A): 10.75 in / 273 mm
- Mounting Hole Diameter (B): 8.875 in / 225 mm
- Bolt Hole Circle Diameter (C): 9.706 in / 247 mm
- Motor Outer Diameter (D): 5.29 in / 134 mm
- Mounting Depth (E): 5.12 in / 130 mm
- Driver Displacement: 0.04 cu ft / 1.13 L
- Net Weight: 6.5 lb / 2.94 kg
Parameters:
- Free Air Resonance (Fs): 41.84 Hz
- Electrical “Q” (Qes): 0.806
- Mechanical “Q” (Qms): 11.751
- Total Speaker “Q” (Qts): 0.754
- Equivalent Compliance (Vas): 1.29 cu ft / 36.53 L
- One-Way Linear Excursion (Xmax)*: 0.42 in / 11 mm
- Efficiency (1 W / 1 m)**: 87.23 dB SPL
- Effective Piston Area (Sd): 50.68 sq in / 0.0327 sq m
- DC Resistance (Re): 3.957 Ω
Enclosure Specifications:
- Infinite Baffle Use: Yes (preferred)
- Min. Sealed Enclosure Volume: 2.0 cu ft / 56.6 L (or larger)
- Optimum Sealed Enclosure Volume: 2.5 cu ft / 70.8 L
- UPC: 699440935296
- Weight: 10.01
- Authorized Internet Dealer
Warranty: 2 Years Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
