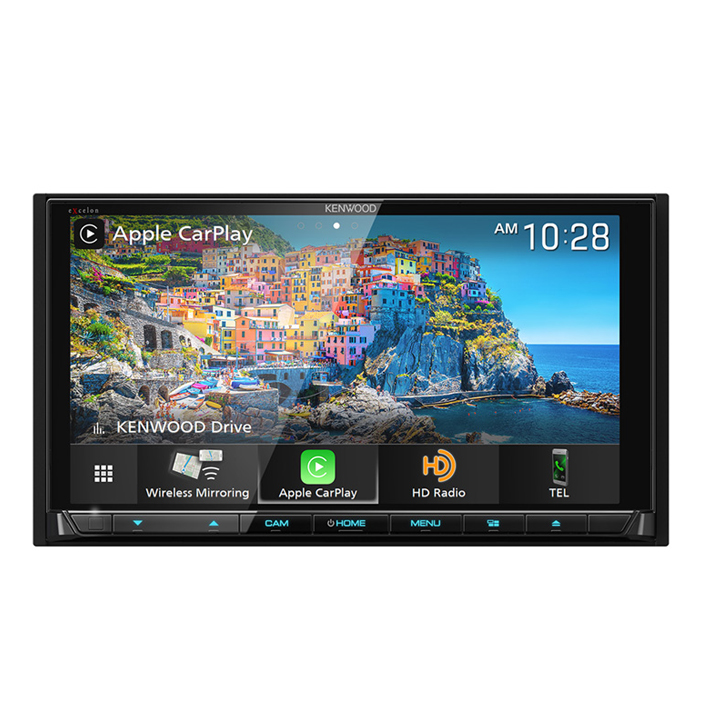

Kenwood Excelon DDX9906XR 2-DIN 6.8" DVD Receiver
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •DVD receiver w/ electronic 6.75" touchscreen monitor (15A fuse)
•Sleeve (attached) •Trim ring •Wiring harness •Two 39" USB extension cables
- •GPS antenna (attached 11.5' cable)
•Microphone w/ bracket •7" Male minijack to female RCA adapter cable •Self-adhesive pad •2 Radio removal tools
- •6 Pan-head ISO-mount screws
•6 Flat-head ISO-mount screws •Owner's Manual
Connecting Smartphones Wirelessly
The Kenwood Excelon DDX9906XR DVD receiver expands the ever-growing options for connecting smartphones wirelessly by including wireless Android Auto™, wireless Apple CarPlay™, and Bluetooth™.
Kenwood also includes lots of music options, as well as the superior sound quality and immersive sound-sculpting settings that personifies their Excelon Series. You can control the entire show using its gorgeous high definition 6.8" touchscreen display. Kenwood also backs up this receiver with a 2-year warranty.

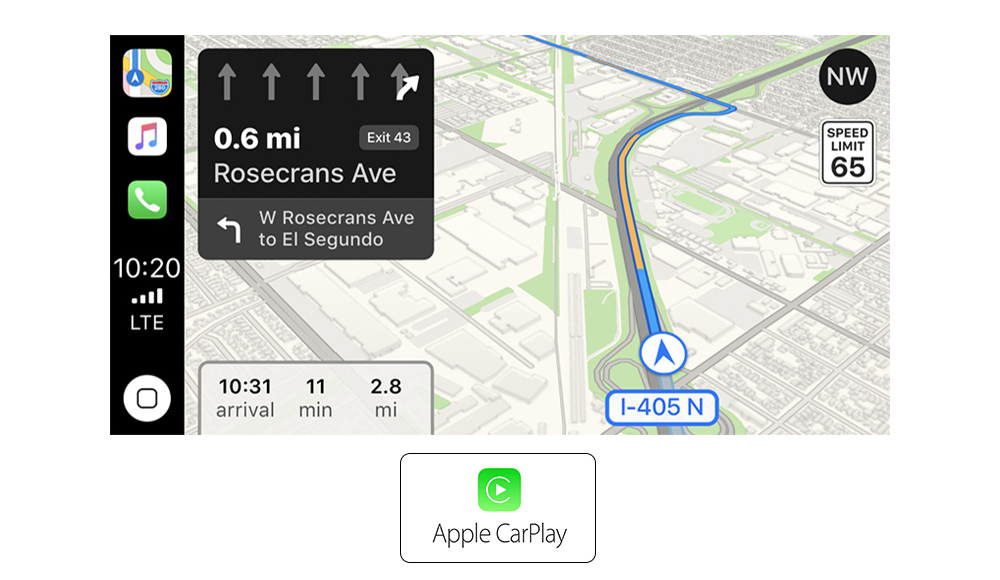

Android Auto & Apple CarPlay
Get the awesome convenience of Android Auto or Apple CarPlay without having to plug in. This Kenwood multimedia receiver features a built-in Wi-Fi connection, so all you have to do is get in and go. Your phone can stay put. The receiver and your smartphone link right up and you're ready to roll with all the voice-control wonderfulness that Android Auto and Apple CarPlay bring to driving.
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : Yes
- Remote Control : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 5 volts
- Display Size : 6.8 Inch
- Bluetooth : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Monitor Section
- Picture size: 6.75 inches(diagonal) wide
- W x H: 152.1 mm x 79.5 mm, 5-63/64 x 3-1/8 inch
- Display system: AAS LCD panel
- Drive system: TFT active matrix system
- Number of pixels: 2,764,800 | 1280H x 720V x RGB
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Back lighting: LED
DVD Section
- D/A Converter: 24 / 32Bit
- Audio Decoder: Linear PCM | Dolby Audio | MP3 / WMA / AAC / WAV / FLAC / Vorbis
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
- Wow & Flutter: Below Measurable Limit
- Frequency response:
- 96k Sampling 20 - 44,000 Hz
- 48k Sampling 20 - 22,000 Hz
- 44.1k Sampling 20 - 20,000 Hz
- Total harmonic distortion 1kHz: 0.010%
- Signal to Noise ratio: 90.5dB (DVD-Video 96k)
- Dynamic range: 89dB (DVD-Video 96k)
- DISC Format: DVD-Video / VIDEO-CD / CD-DA
- Quantifying bit number: 16 / 20 / 24bit
USB I/F Section
- USB Standard: USB2.0 High Speed
- File System: FAT 16/32, exFAT, NTFS
- Maximum Power Supply Current: DC5V=1.5A
- D/A Converter: 24/32Bit
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
Wireless Mirroring Section
- Mode: Sink
- Copyright protection: HDCP2.2
- Touch Control: UIBC
Wi-Fi
- IEEE Standard: 802.11 a/b/g/n/ac
- Frequency Range: Dual Band ( 2.4GHz / 5GHz )
- Channels:
- Auto(1-11ch)
- Auto(149,153,157,161ch)
- Transfer rates (MAX):
- 11a: 54 Mbps / 11b: 11 Mbps/
- 11g: 54 Mbps / 11n: 300 Mbps /
- 11ac: 867 Mbps
- Output Power:
- 2.4GHz/SISO:
- 11b:14dBm±2dB / 11g:13dBm±2dB
- 11n(20MHz):12dBm±2dB
- Output Power:
- 5GHz/SISO
- 11a:9dBm±2dB /
- 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB /
- 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB
- Output Power:
- 5GHz/MIMO
- 11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB /
- 11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB
Bluetooth Section
- Technology: Bluetooth Ver5.0
- Frequency: 2.402 – 2.480 GHz
- RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Audio Codec: SBC / AAC
- Multi Profile Support: Multi Profile
- Profile:
- HFP (V1.7) (Hands Free Profile)
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (V1.6) (Audio/Video Remote Control Profile)
- PBAP (Phonebook Access Profile)
DSP Section
Graphics equalizer
- BAND: 13Band
- frequency (Hz) (BAND1-13): 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
- Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
- 2Way X'Over
- HIGH PASS FILTER frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
- SLOPE: -6/-12/-18/-24[dB/Oct.]
- LOW PASS FILTER frequenc: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
- SLOPE: -6/-12/-18/-24[dB/Oct.]
- 3Way X'Over
- HIGH PASS FILTER frequency: 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
- SLOPE: -12/-18/-24[dB/Oct.]
- Band PASS FILTER frequency: Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz]
- 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
- SLOPE: -12/-18/-24[dB/Oct.]
- LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/Through[Hz]
- SLOPE: -12/-18/-24[dB/Oct.]
- Position:
- Front / Rear /Subwoofer Delay: 0 - 20.01ft (0.03or0.04ft Step)
- Gain: -8 to 0dB
- Subwoofer Level: -50 to +10dB
Digital FM
- Frequency Range (Frequency step): 87.9MHz - 107.9MHz (200kHz)
- Frequency Response (±3.0dB): 20Hz - 20kHz
- S/N: 80dB (STEREO)
Digital AM
- Frequency Range(Frequency step): 530kHz - 1700kHz (10kHz)
- Frequency Response (±3.0dB): 40Hz - 15kHz
- S/N: 80dB (STEREO)
FM
- Frequency Range (Frequency step): 87.9MHz - 107.9MHz(200kHz)
- Usable sensitivity (S/N30dB): 9.3dBf (0.8μV/75Ω)
- Quieting sensitivity (DIN S/N 46dB): 10.2dBf (1.13μV / 75Ohms)
- Frequency response(±3.0dB): 30Hz - 15kHz
- S/N (dB): 65dB (MONO)
- Selectivity Over: 80dB (±400kHz)
- Stereo separation: 45dB (1kHz)
AM
- Frequency Range(Frequency step): 530kHz - 1700kHz(10kHz)
- Usable sensitivity: 28dBμ
Video
- Color system of external video input: NTSC/PAL
- External video input level (Mini jacks): 1 Vp-p / 75 Ohms
- External audio max input level (Mini jacks): 2 V / 25 kOhms
- Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
- Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
- Audio Output level (Mini jacks): 0.9 V / 10 kOhms
Audio
- Maximum Power Output (Front&Rear): 50Wx4
- Typical Power Output (Front&Rear):
- Full Bandwidth Power
- (at less than 1%THD)
- 22Wx4
- Output frequency band: 20 - 88,000Hz
- Preout level (V): 5V / 10kOhms
- Preout impedance (Ω): =< 300 Ohms
- Speaker Impedance (Ω): 4-8 Ohms
General
- Operating voltage: 12V DC Car Battery
- Maximum Current consumption: 15A
- Installation Dimensions WxHxD: 178mm x 100mm x 160mm (7 x 3-15/16 x 6-5/16 inch)
- (with Sleeve): 182mm x 112mm x 163mm (7-3/16 x 4-7/16 x 6-7/16 inch)
- Operational temperature range: -10°C to +60°C
- Weight Main unit: 2.4 kg(5.3 lb)
- UPC: 019048226594
- Weight: 10
